Vertical CNC lathe RIC-VT1600
Price on request

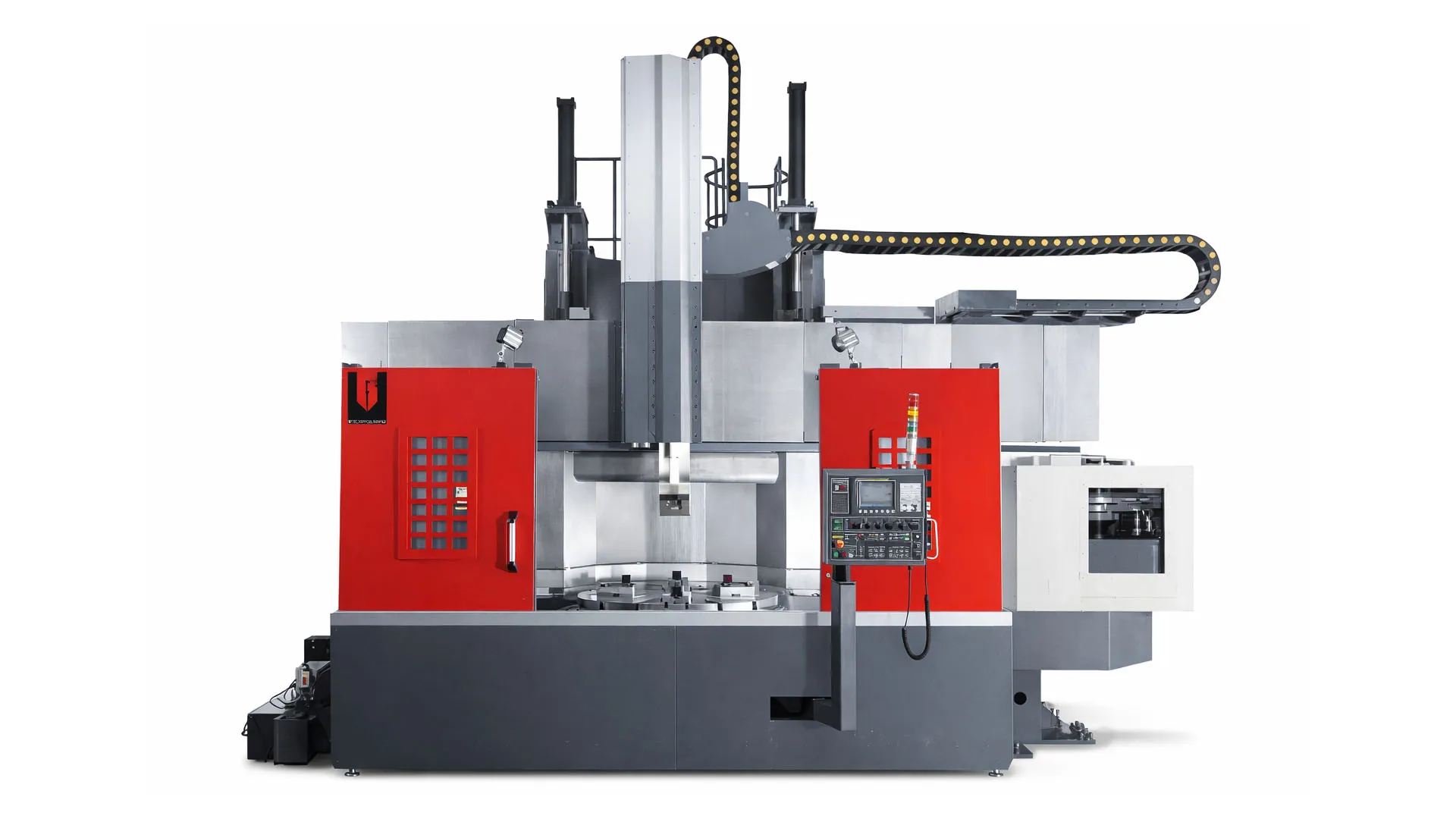

Vertical CNC Lathe Pro Richyoung RIC-VT1600
The Pro Richyoung RIC-VT1600 is a CNC vertical turning lathe designed for machining large and heavy components requiring high rigidity, stability, and precision. The machine combines advanced technology with flexible configuration options, allowing it to be adapted to a wide range of industrial applications.

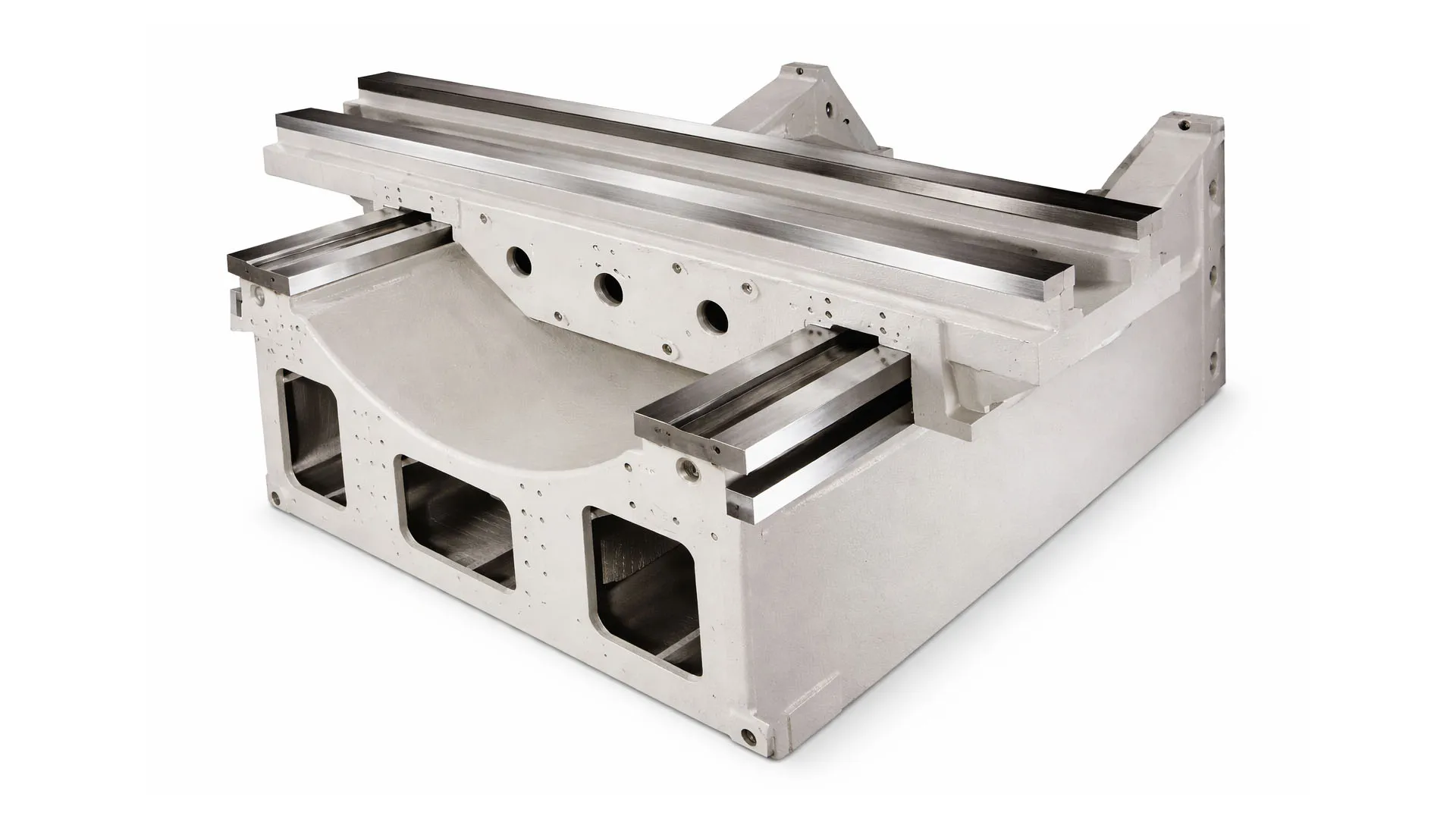

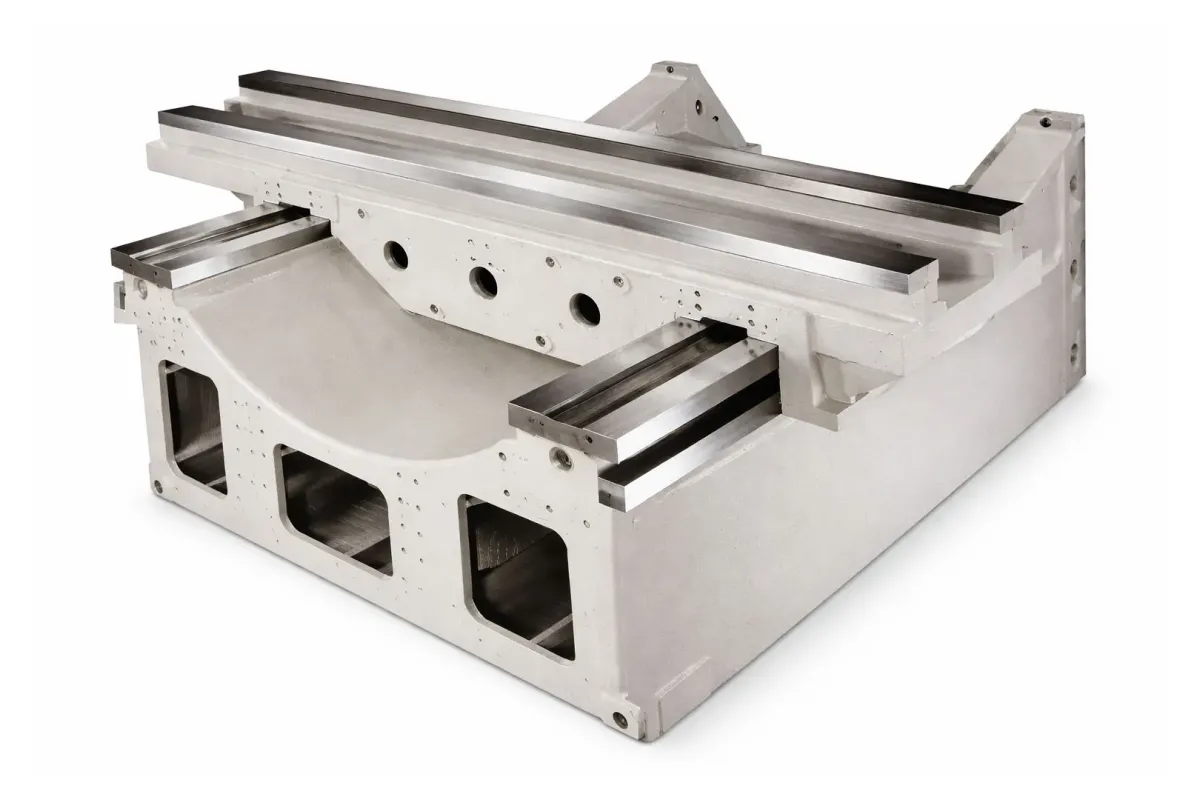

The structure is built in high-quality cast iron with reinforced brackets, ensuring excellent vibration absorption and long-term structural stability. The machine is also equipped with additional guideways on the ram system, increasing rigidity during heavy cutting operations and improving machining accuracy.
The RIC-VT1600 can be configured with different CNC systems and optional equipment, including RAM with driven tools, C-axis controlled spindle, and an automatic tool magazine. These options allow the machine to perform combined operations such as turning, drilling, milling, and tapping within the same setup, improving productivity and reducing machining times.
With a 1600 mm chuck diameter, maximum cutting diameter of 2000 mm, and maximum turning height of 1600 mm, the machine offers a large working capacity suitable for heavy industrial components. The maximum admissible workpiece weight of 10,000 kg ensures safe and stable machining of large parts.
The machine can be equipped with manual or hydraulic chucks, depending on the workholding requirements and the type of components to be machined.
Maximum turnable diameter: | 2000 mm |
X-axis travel: | -1020+1220 mm |
Z-axis travel: | 1000 mm |
RAM size: | 240 x 240 mm |
Table dimensions: | 1600 mm |
Spindle speed: | 256 rpm |
High pressure through the spindle: | Yes |
Number of tool-changing positions: | 12 |
C-axis and power tools: | Yes |
CNC type: | Fanuc, Siemens, Fagor, Gsk, Syntec |
Weight: | 28000 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
- Chuck diameter: 1600 mm
- Maximum cutting diameter: 2000 mm
- Maximum turning height: 1600 mm
- Maximum admissible workpiece weight: 10,000 kg
- Heavy-duty cast iron structure with reinforced brackets
- Additional guideways on the RAM for increased rigidity
- Optional RAM with driven tools
- C axis controlled spindle available
- Optional automatic tool magazine
- Manual or hydraulic chuck available
- Several configurations available
- Machining of large rings, flanges, and discs
- Production of components for energy, steel, and heavy industry
- Manufacturing of gear blanks, housings, and turbine parts
- Combined turning, drilling, milling, and tapping operations on large workpieces
