Vertical CNC lathe RAL-12Cs
Price on request

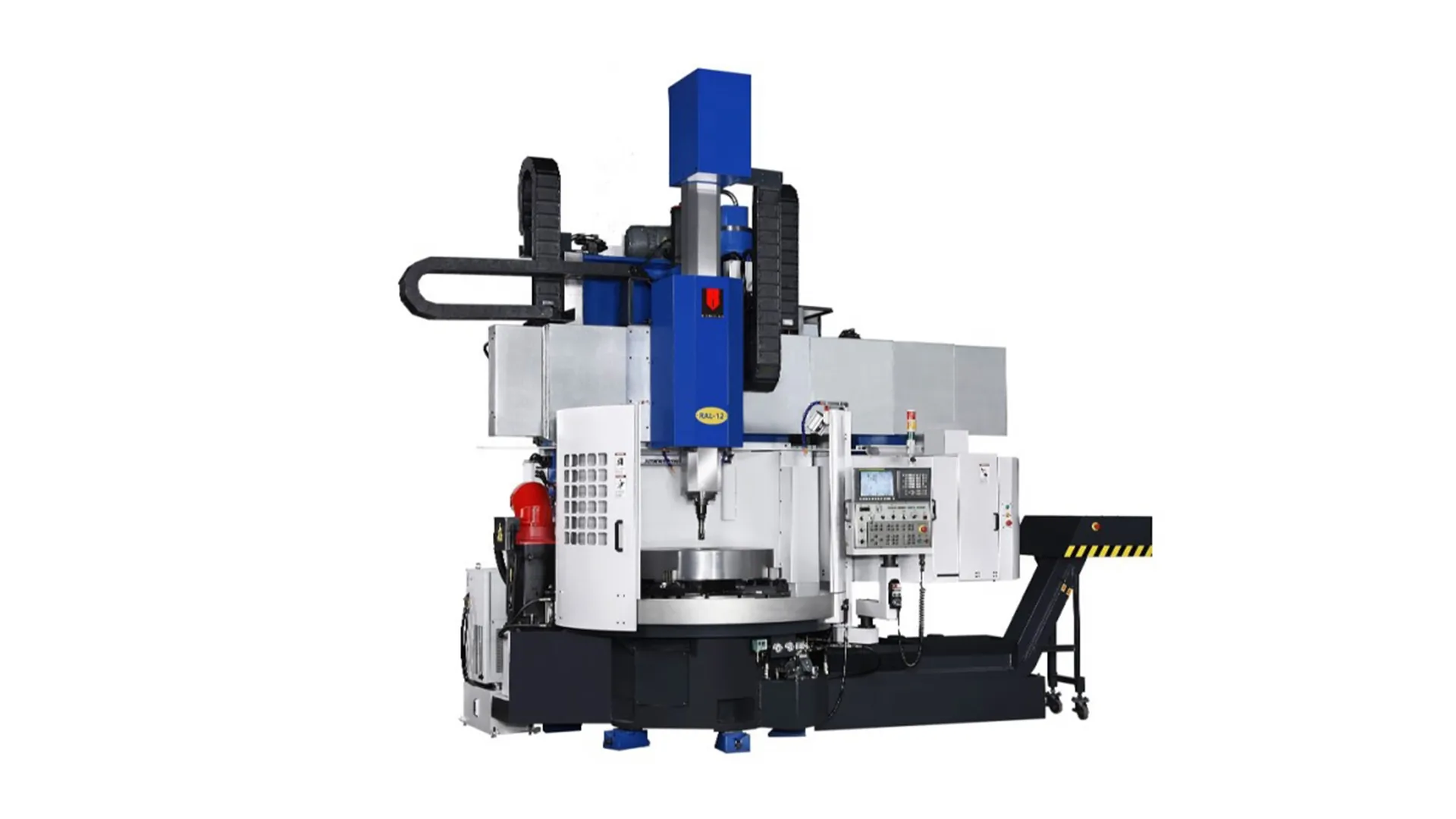

Vertical CNC Lathe Pro Richyoung RAL-12Cs
The Pro Richyoung RAL-12Cs is a CNC vertical turning lathe designed for machining large and heavy workpieces with high precision and structural rigidity. The machine combines advanced technology with a versatile configuration, allowing it to be adapted to different production requirements.
The structure is built in high-quality cast iron with reinforced brackets, ensuring excellent rigidity and vibration absorption during heavy turning operations. The machine is also equipped with additional guideways on the ram system, increasing stability and accuracy during machining cycles.
The RAM can be configured with driven tools, allowing combined operations such as turning, drilling, milling, and tapping in a single setup. The machine can also be equipped with a C axis controlled spindle and an optional tool magazine, increasing machining flexibility and productivity.
The RAL-12Cs can be supplied with different CNC control systems, mainly Fanuc, combined with latest-generation brushless motors and drives to ensure precise movements and high dynamic performance.
With a 1200 mm chuck diameter, maximum cutting diameter of 1600 mm, and maximum turning height of 1250 mm, the machine is suitable for machining large diameter components. The maximum admissible workpiece weight of 9000 kg allows stable machining of heavy industrial parts.
Maximum turnable diameter: | 1600 mm |
X-axis travel: | 1700 mm |
Z-axis travel: | 900 mm |
RAM size: | 230 x 240 mm |
Table dimensions: | 1200 mm |
Spindle speed: | 350 rpm |
Number of tool-changing positions: | 18 |
C-axis and power tools: | Yes |
CNC type: | Fanuc, Siemens, Fagor, Gsk, Syntec |
Weight: | 20000 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
- Chuck diameter: 1200 mm
- Maximum cutting diameter: 1600 mm
- Maximum turning height: 1250 mm
- Maximum admissible workpiece weight: 9000 kg
- Heavy-duty cast iron structure with reinforced brackets
- Additional guideways on the RAM for increased rigidity
- Optional driven tools on RAM

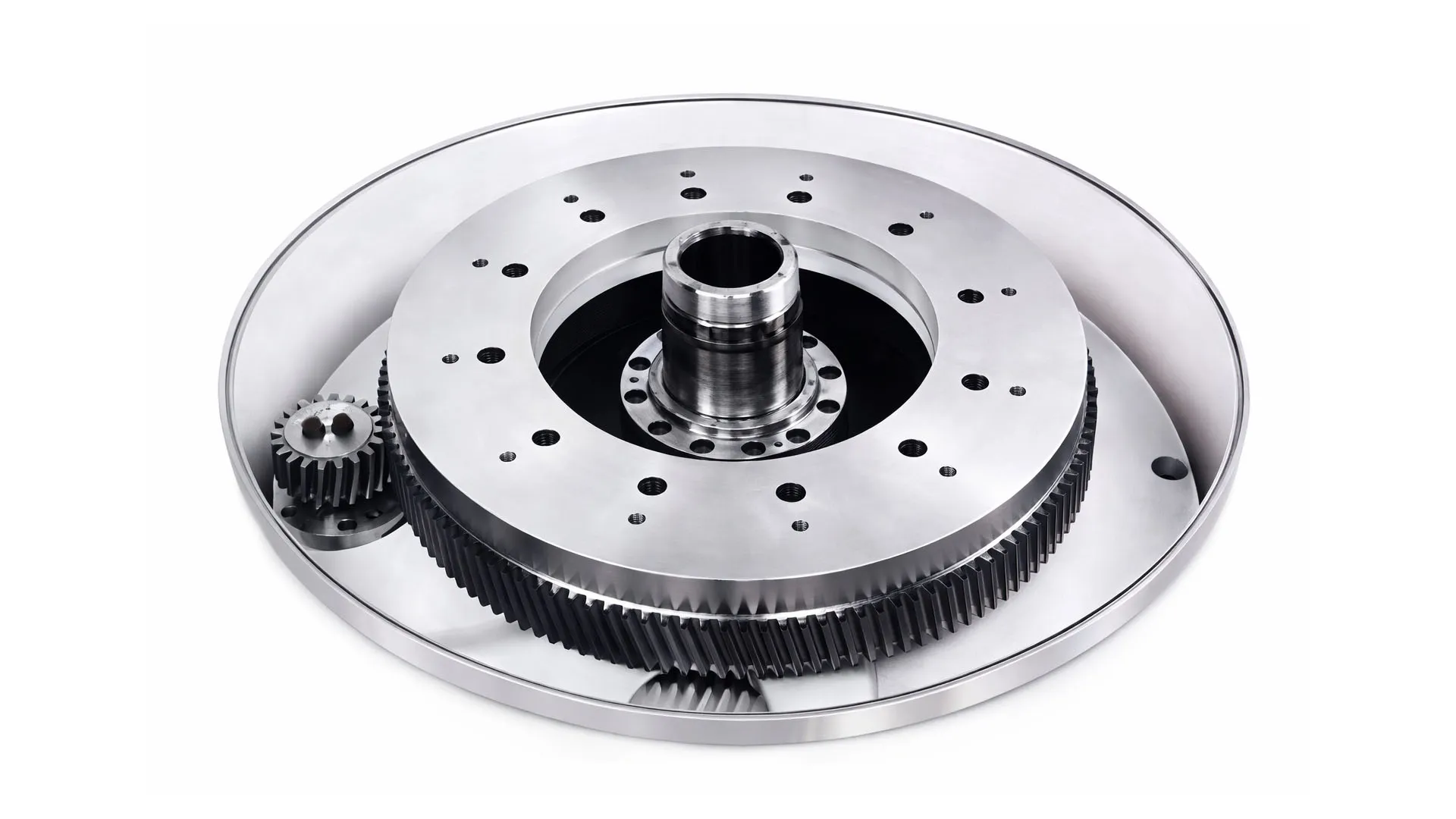

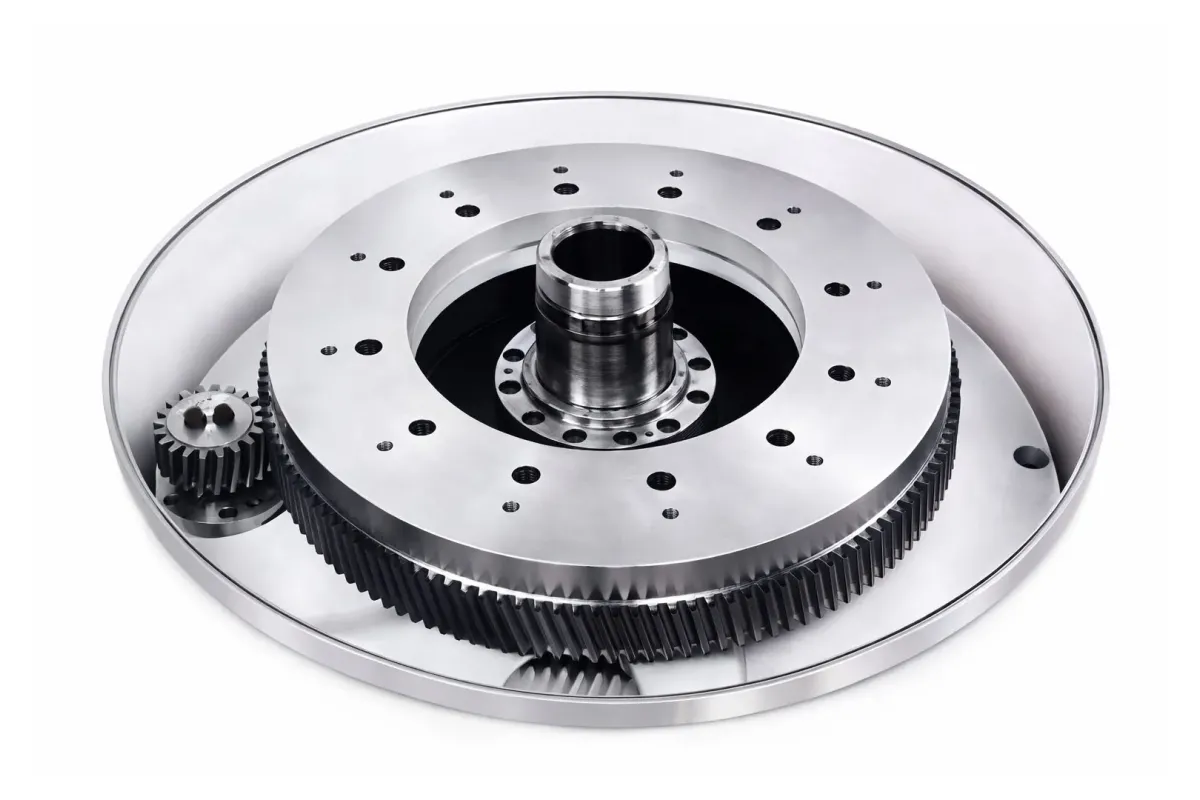

- C axis controlled spindle available

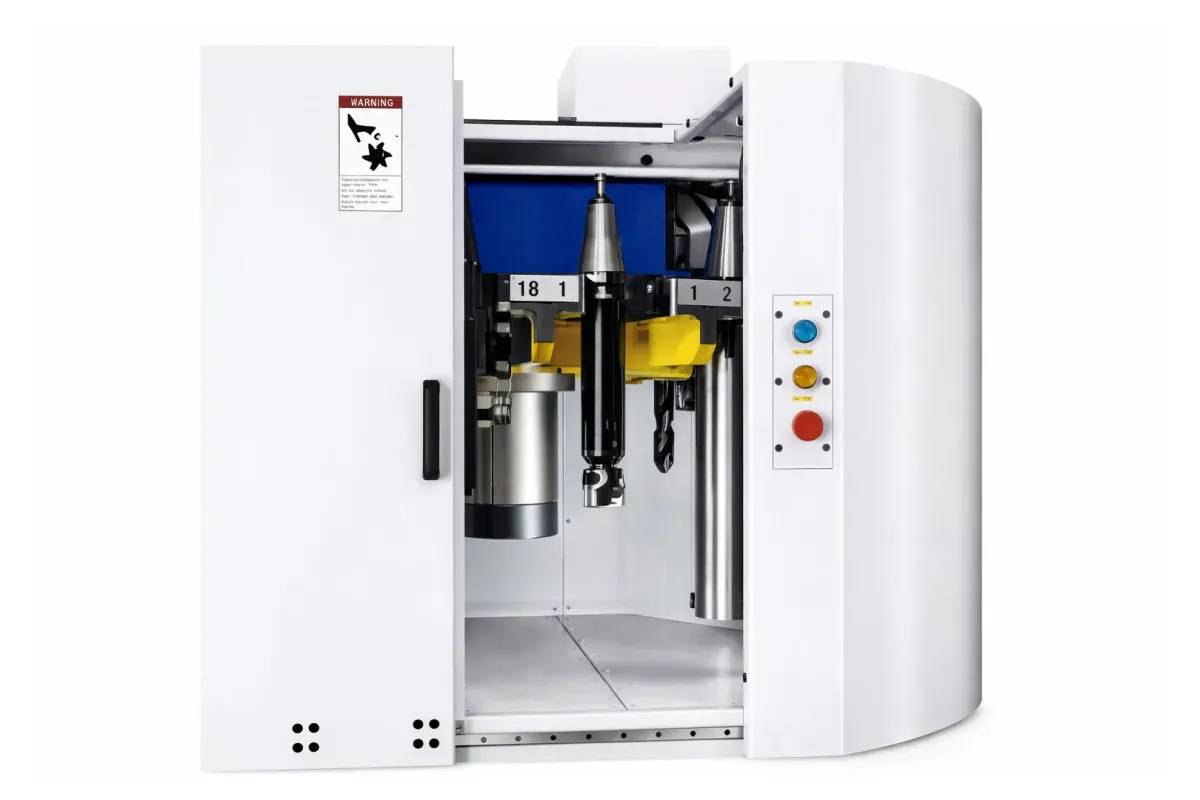

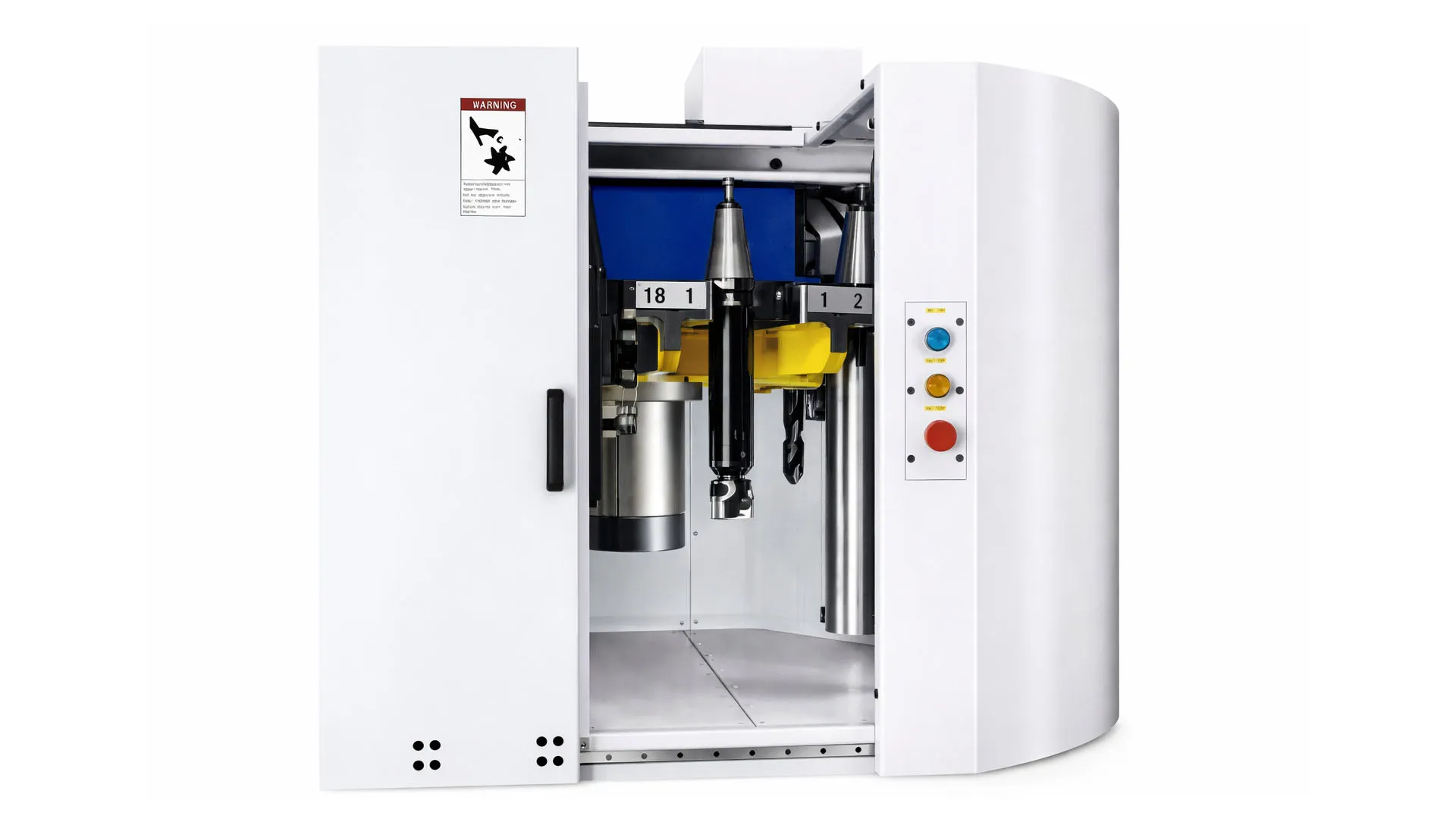

- Optional tool magazine
- Latest generation brushless motors and drives
- Several CNC options available (mainly Fanuc)
- Machining of large rings, flanges, and discs
- Production of components for energy, steel, and heavy industry
- Manufacturing of gear blanks, housings, and large mechanical parts
- Combined turning, drilling, milling, and tapping operations on heavy workpieces
