Vertical CNC lathe DV-3000
Price on request

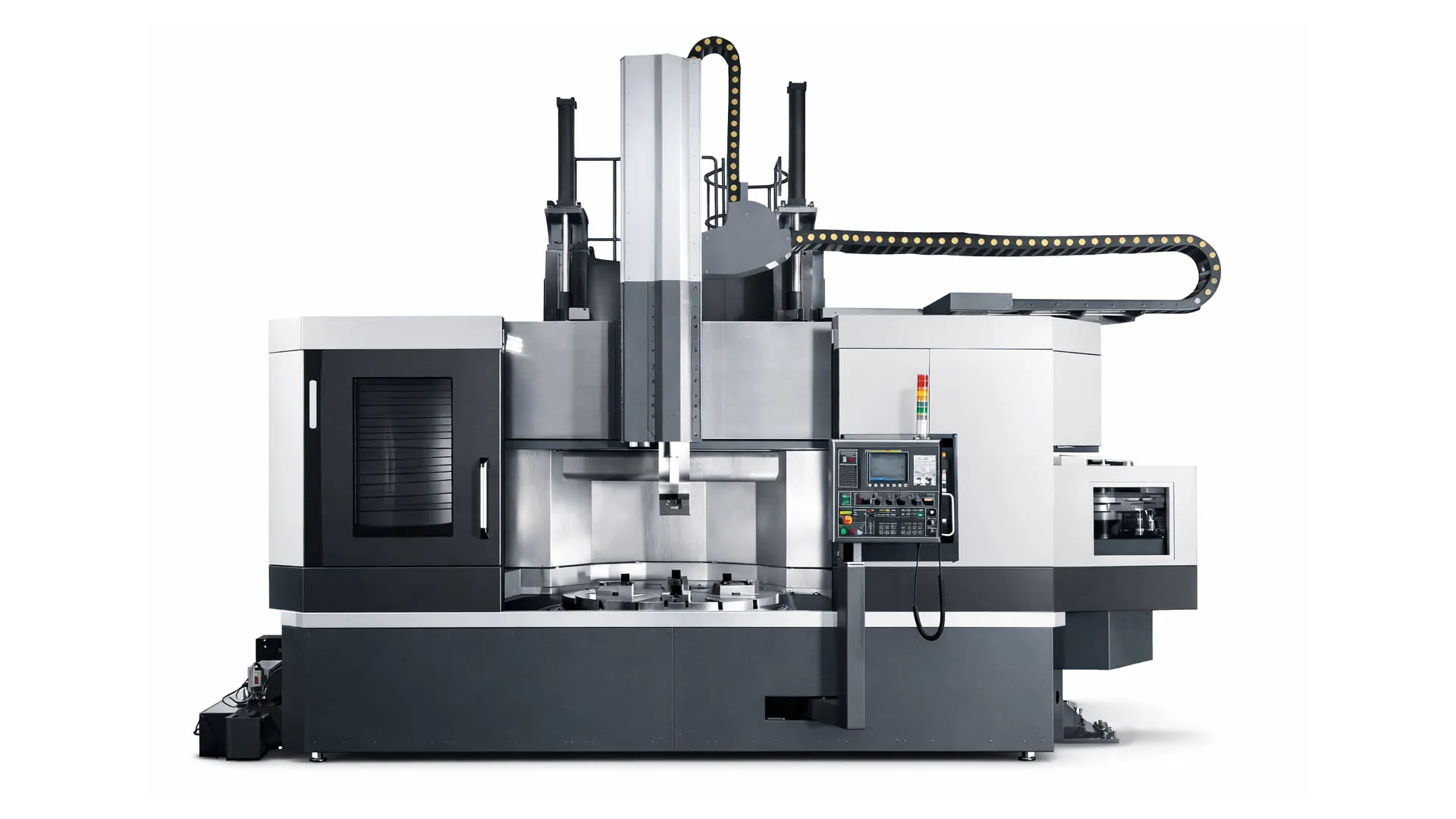

Vertical CNC Lathe Pro Richyoung DV-3000
The Pro Richyoung DV-3000 is a heavy-duty CNC vertical turning lathe designed for machining very large and heavy components with high precision and stability. The machine combines advanced technology with strong structural rigidity, making it suitable for demanding industrial applications.

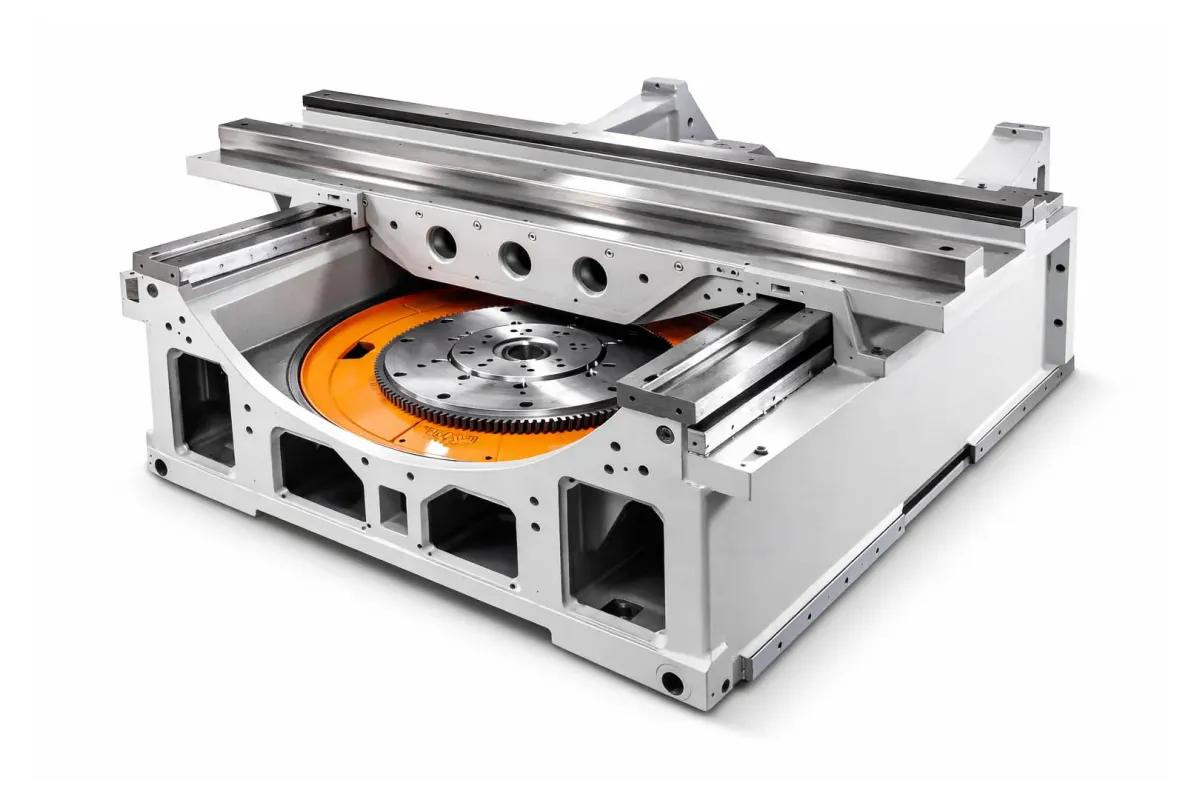

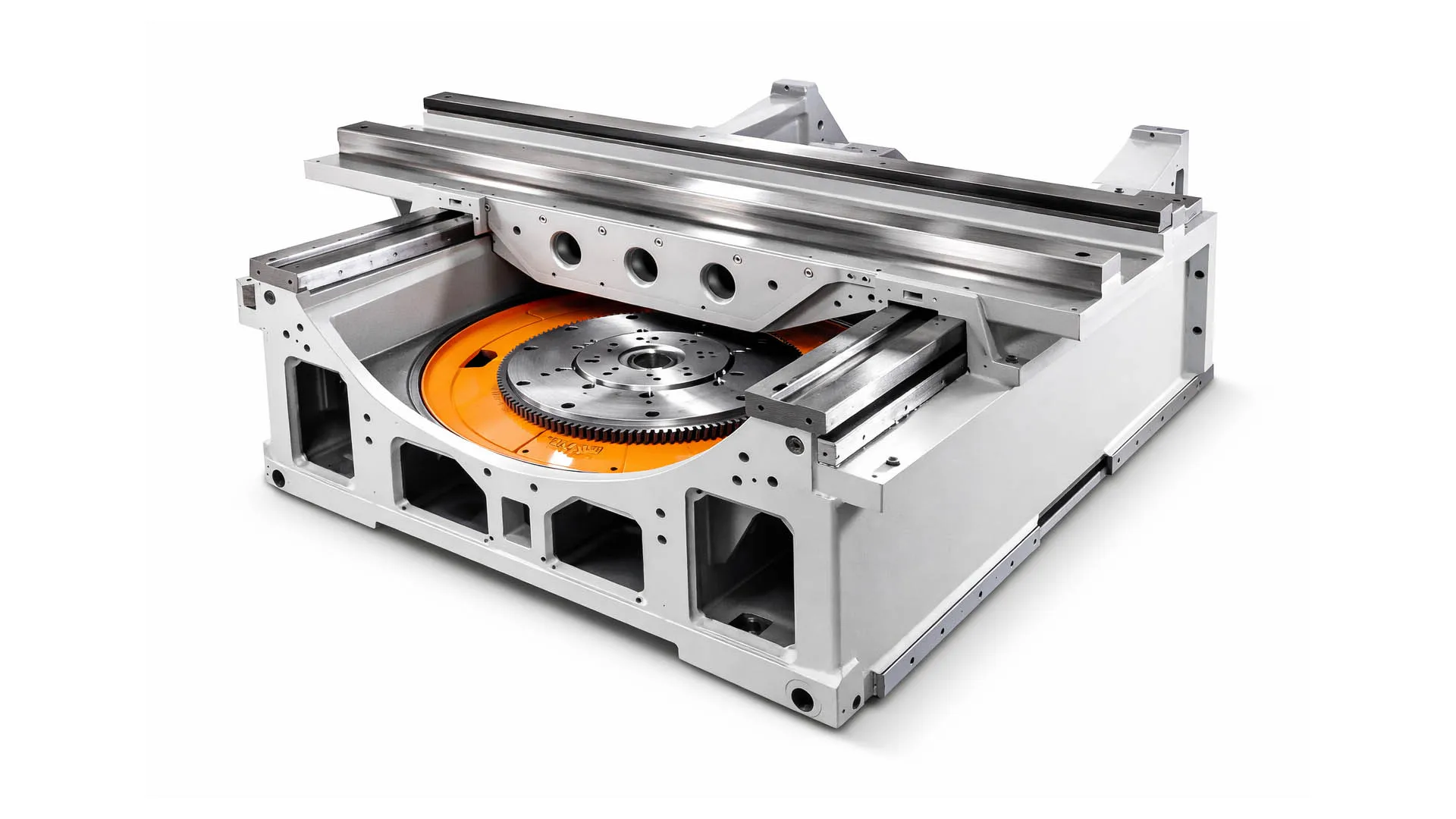

The structure is built in high-quality cast iron with reinforced brackets, ensuring excellent vibration absorption and long-term dimensional stability during heavy machining operations. The machine is also equipped with additional guideways on the ram system, improving rigidity and maintaining high precision even under high cutting loads.
The RAM can be equipped with driven tools, allowing combined operations such as turning, drilling, milling, and tapping in a single setup. The machine can also be configured with a C axis controlled spindle and an automatic tool magazine, increasing machining flexibility and productivity.
The DV-3000 can be supplied with different CNC systems, including Fanuc or Siemens, together with latest-generation brushless motors and drives, ensuring precise motion control and reliable performance.
With a 3000 mm chuck diameter, maximum cutting diameter of 3400 mm, and maximum turning height of 2000 mm, the machine offers a very large working capacity. The maximum admissible workpiece weight of 22,000 kg allows safe machining of extremely heavy industrial components.
Maximum turnable diameter: | 3400 mm |
X-axis travel: | 2300 mm |
Z-axis travel: | 1200 mm |
W-axis travel: | 1400 mm |
Table dimensions: | 3000 mm |
Spindle speed: | 100 rpm |
High pressure through the spindle: | Yes |
Number of tool-changing positions: | 12 |
C-axis and power tools: | Yes |
CNC type: | Fanuc, Siemens, Fagor, Gsk, Syntec |
Weight: | 57900 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
- Chuck diameter: 3000 mm
- Maximum cutting diameter: 3400 mm
- Maximum turning height: 2000 mm
- Maximum admissible workpiece weight: 22,000 kg
- Heavy-duty cast iron structure with reinforced brackets
- Additional guideways on the RAM for increased rigidity
- Optional RAM with driven tools
- C axis controlled spindle available
- Optional automatic tool magazine
- Latest generation brushless motors and drives
- Several CNC configurations available (Fanuc, Siemens)
- Machining of large rings, flanges, and heavy discs
- Production of components for energy, steel, and heavy engineering industries
- Manufacturing of large gear blanks, housings, and turbine components
- Combined turning, drilling, milling, and tapping operations on oversized workpieces
