Price on request

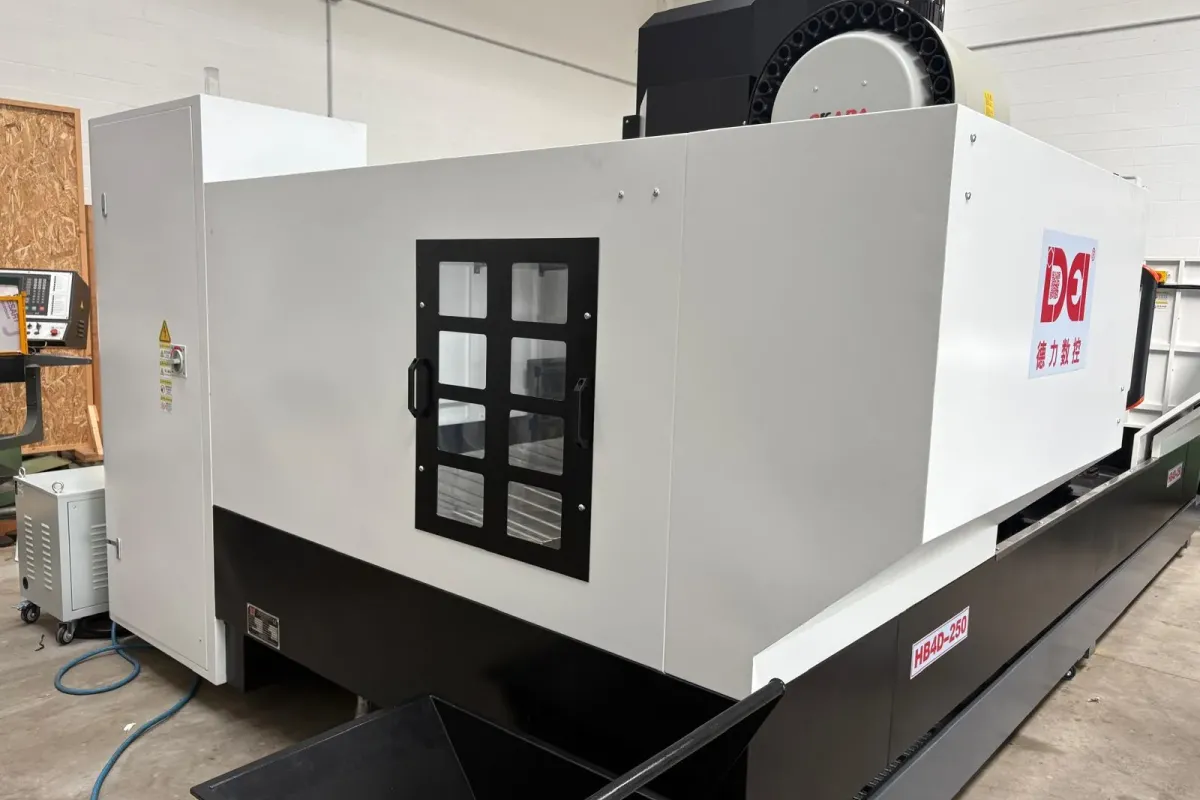

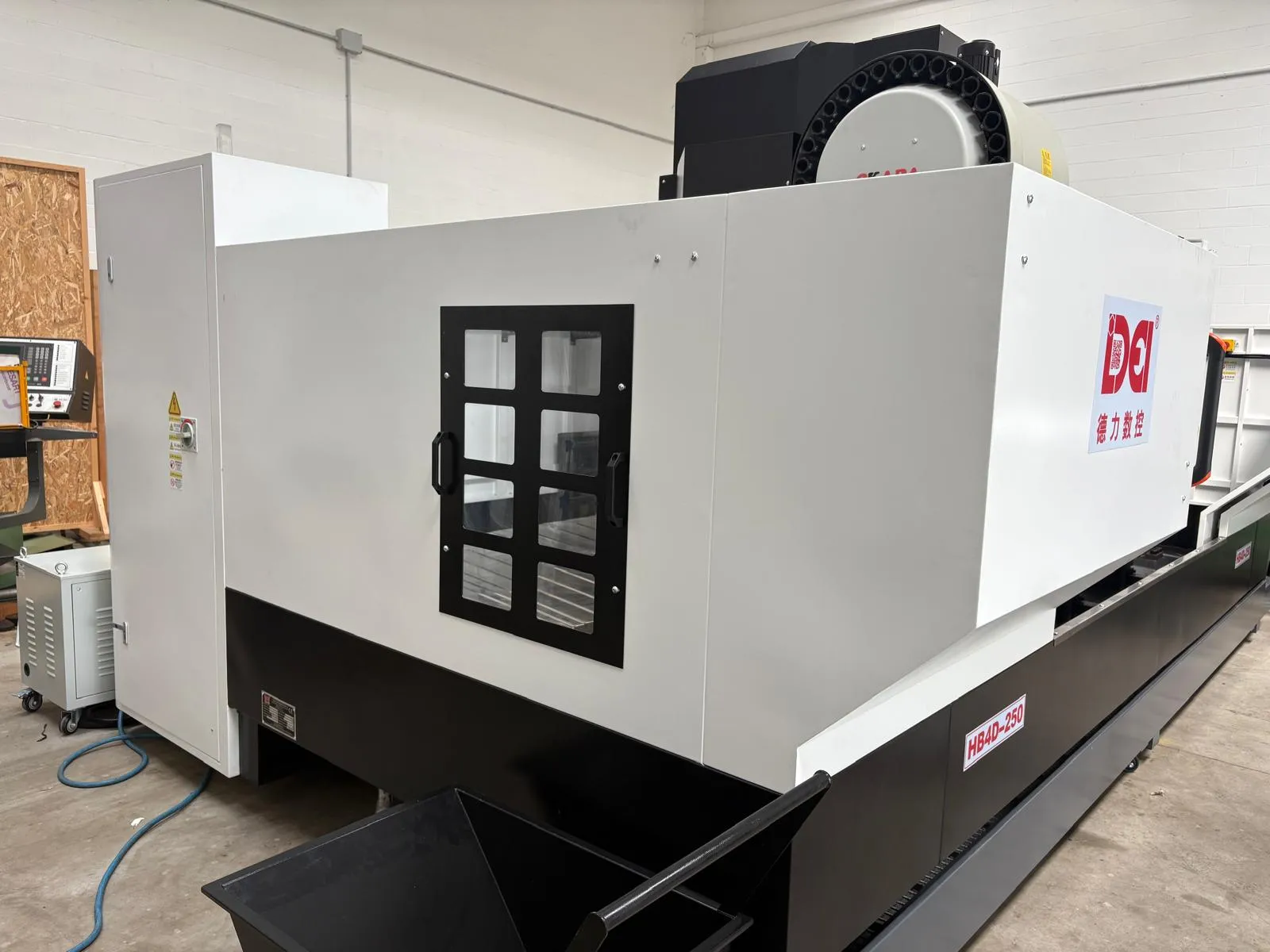

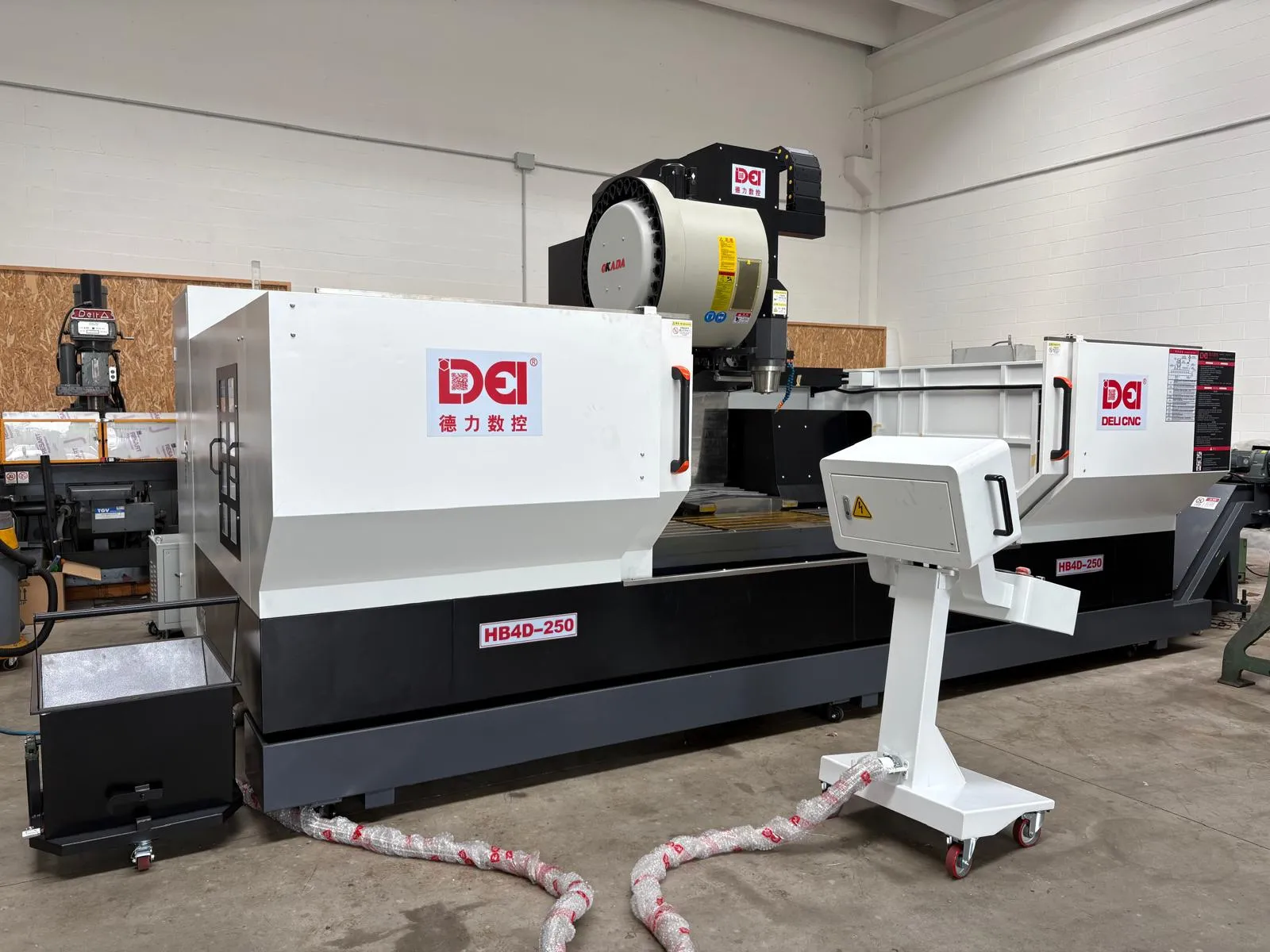

The Deli HB4D-250 is a new travelling column vertical machining center available for immediate delivery, designed for high-precision milling, drilling, and multi-axis operations on medium-sized components. Its robust construction with linear roller guideways ensures excellent rigidity, accuracy, and smooth movement for demanding machining tasks.

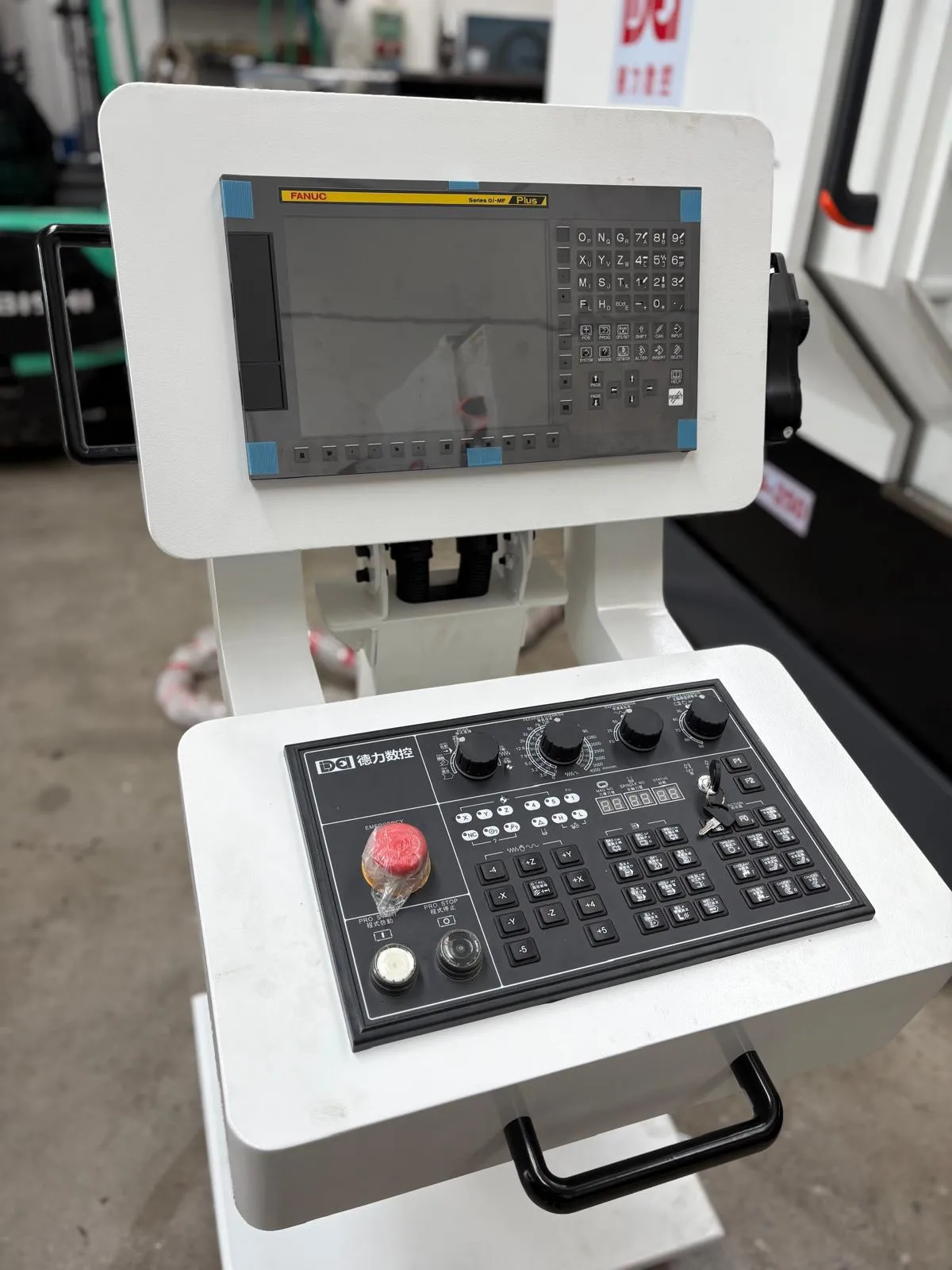

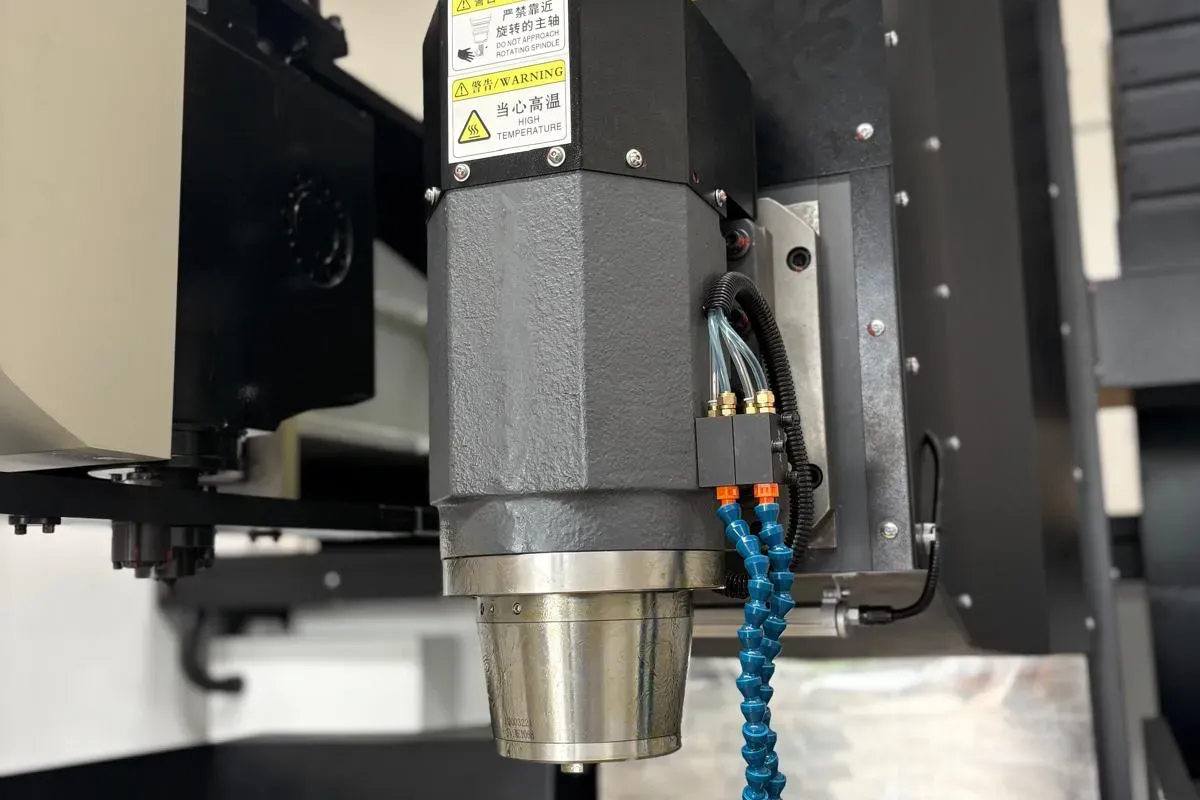

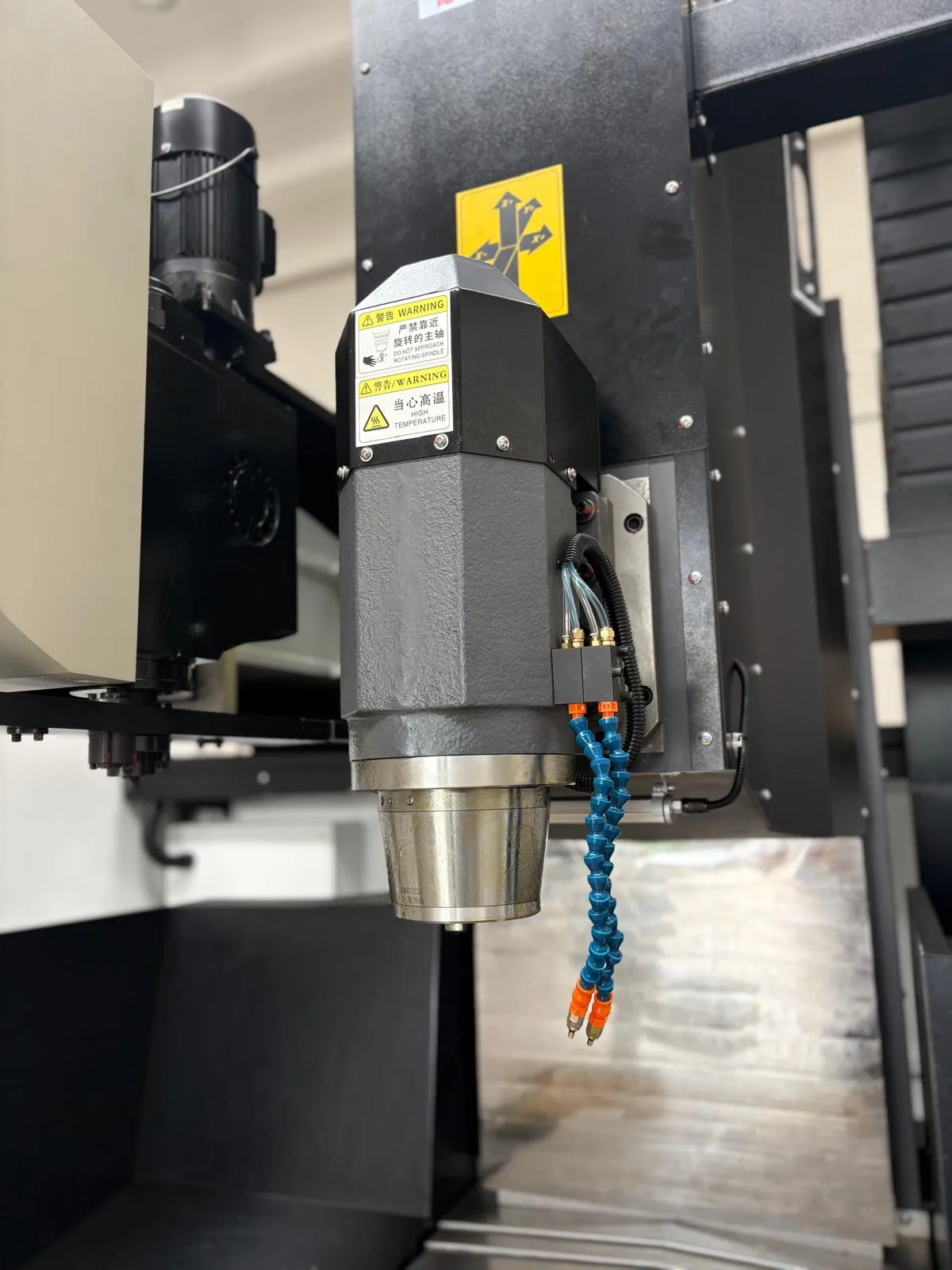

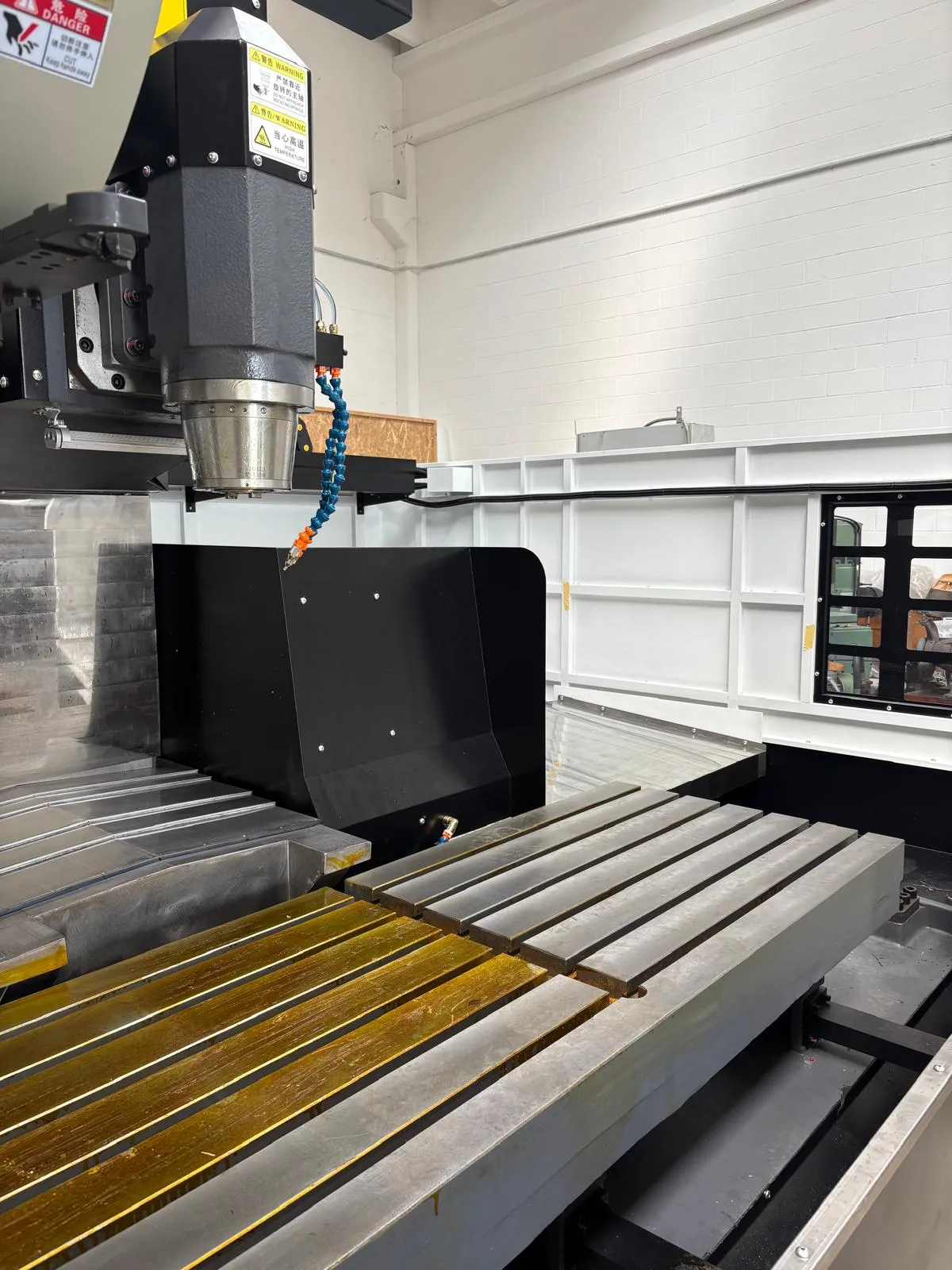

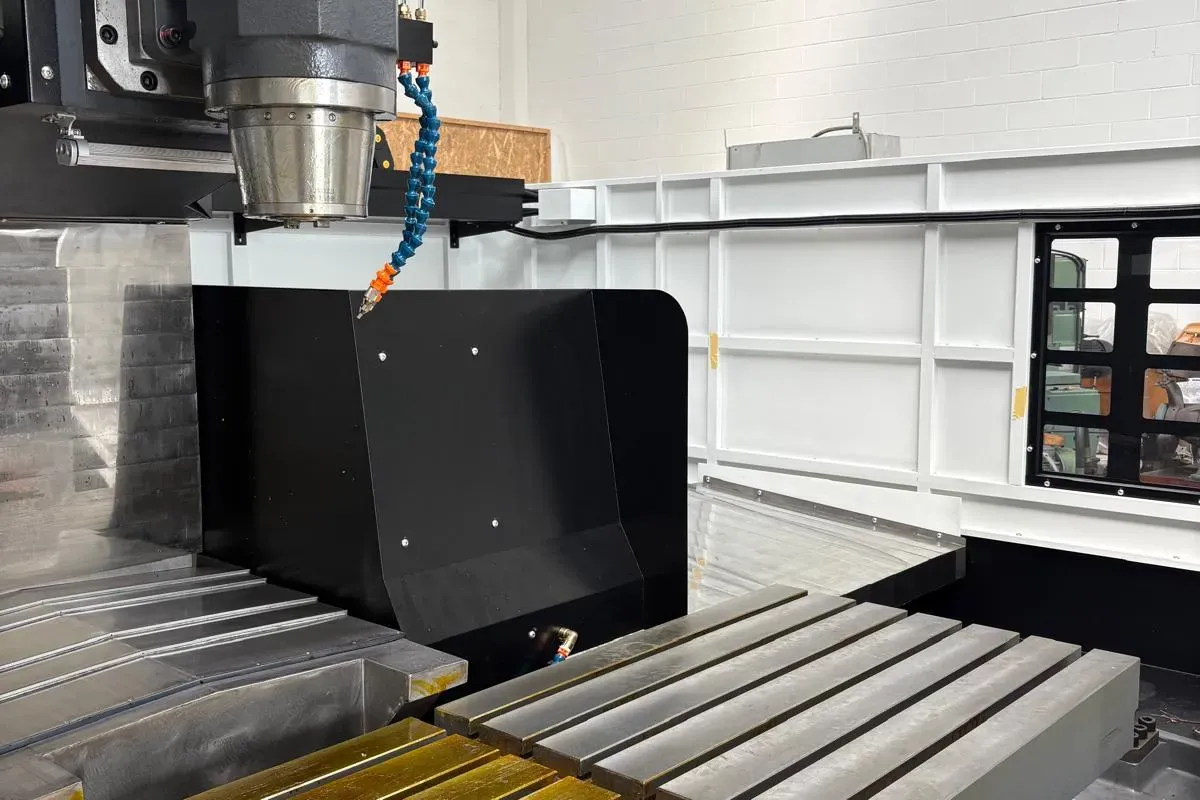

Equipped with a FANUC 0i-MF5 Beta CNC control, the machine features a tilting automatic head with continuous B-axis rotation ±110°, and a high-power integrated electro-spindle capable of 20,000 rpm with high torque. The 24-position BT40 tool magazine allows efficient multi-tool operations, while through-spindle high-pressure coolant at 30 bar ensures optimal cutting performance.
Additional features include a rear hinged belt chip conveyor and the ability to operate in pendular mode, making the HB4D-250 ideal for Industry 4.0 connected workshops requiring high productivity and flexible multi-axis machining.
X-axis travel: | 2500 mm |
Y-axis travel: | 660 mm |
Z-axis travel: | 750 mm |

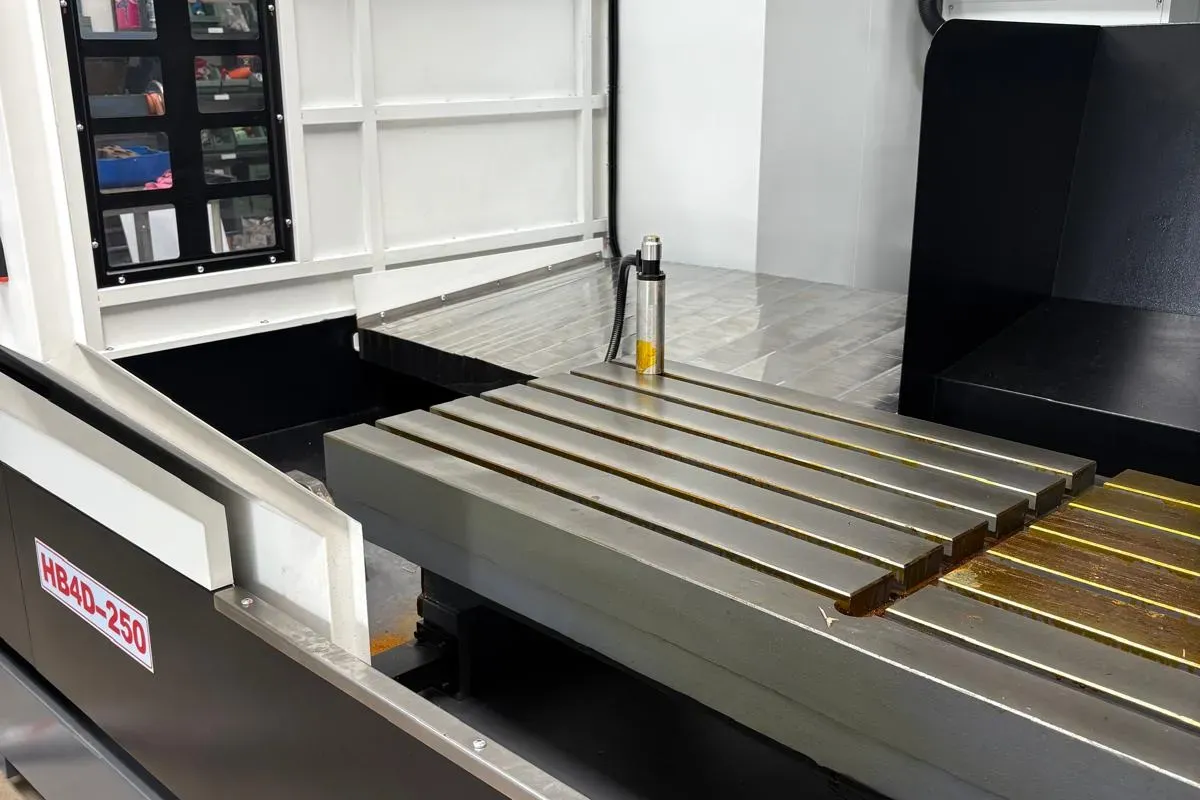

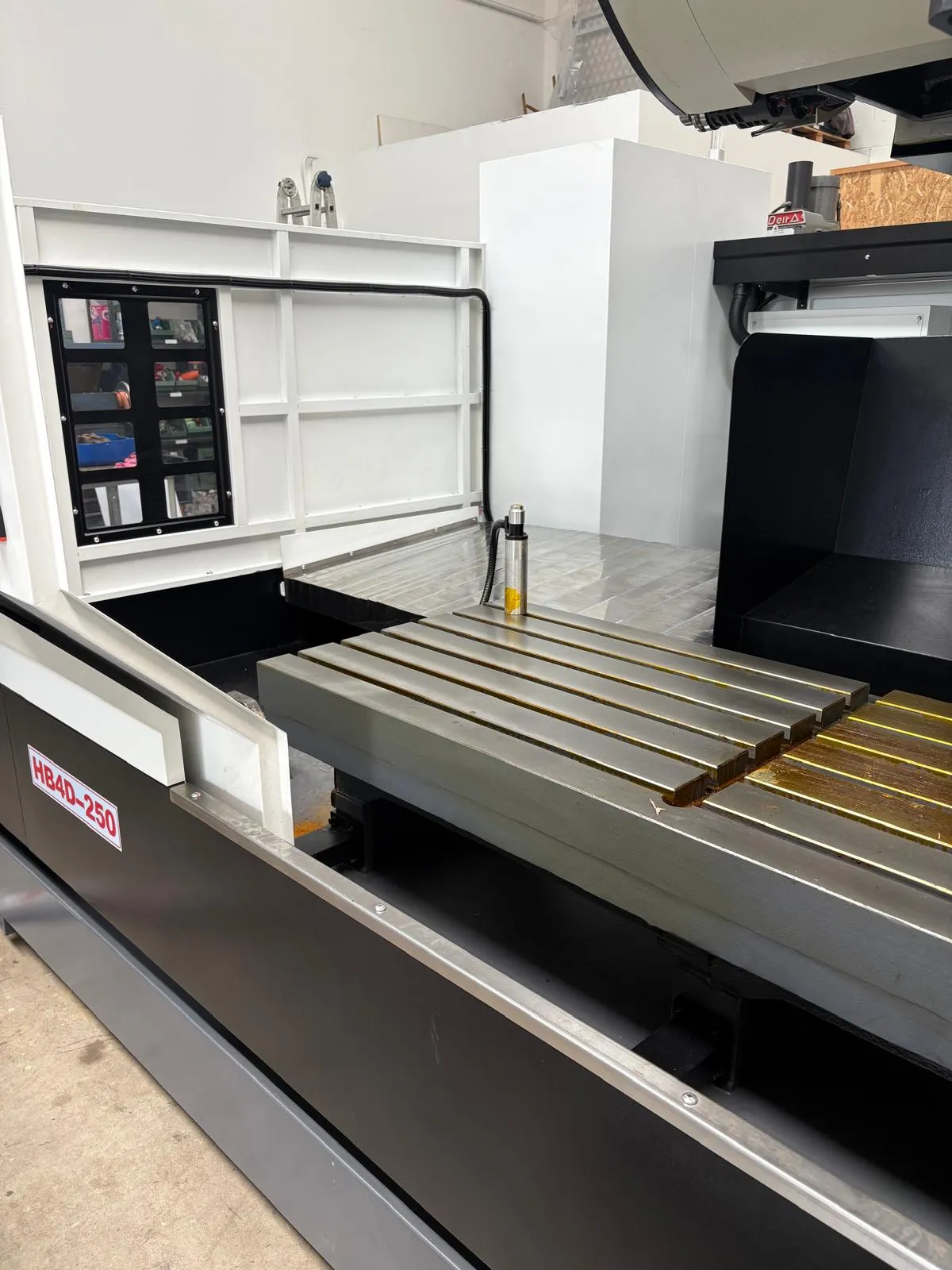

Table dimensions: | 2500 x 650 mm |
Maximum permissible load: | 500 Kg/mq |
Head type: | +/- 110° |
Spindle nose attachment: | BT 40 |
Spindle speed: | 20000 rpm |

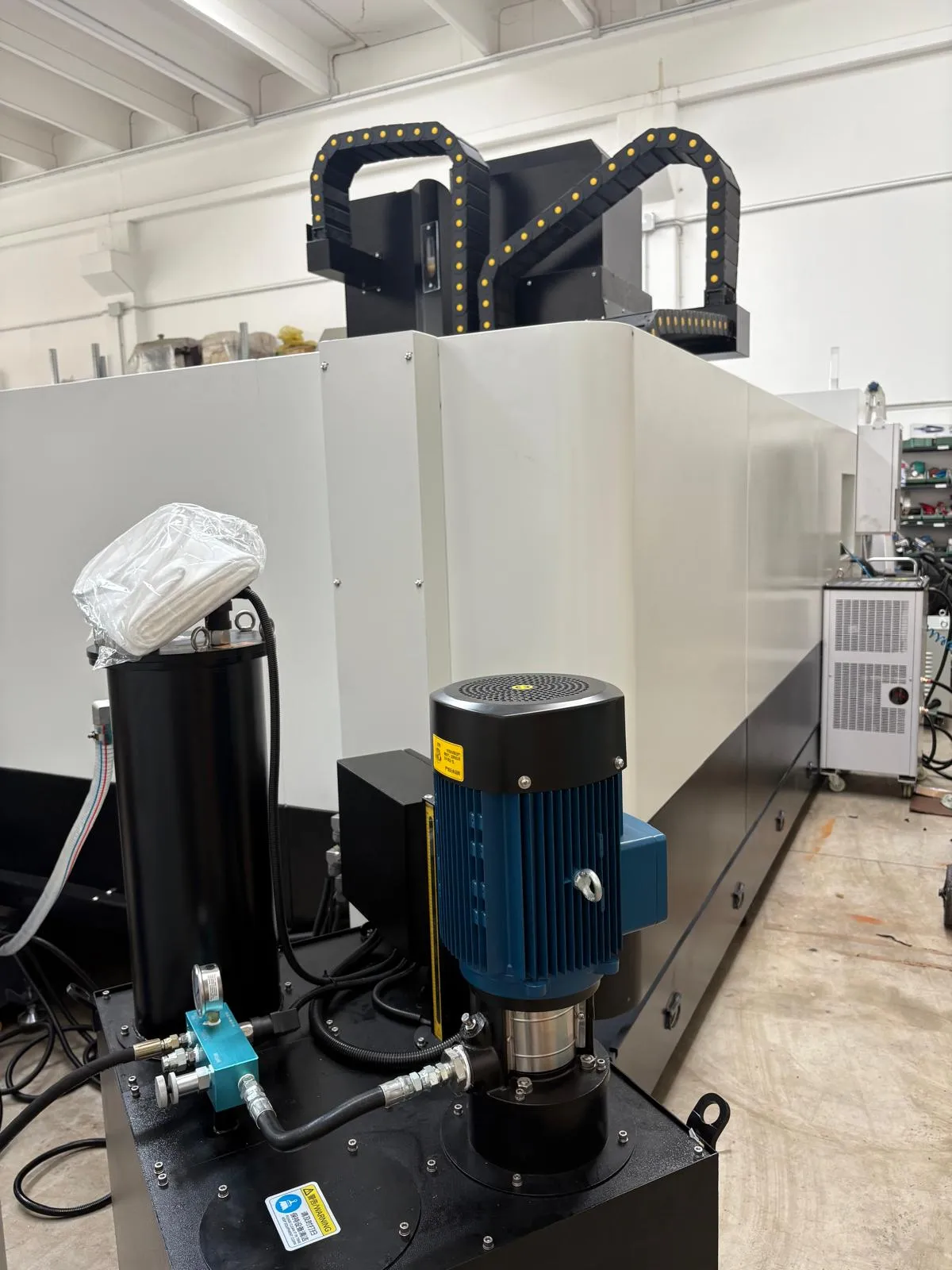

High pressure through the spindle: | 30 Bar |
Number of tool-changing positions: | 24 |
Working feed rate: | 20 m/min |

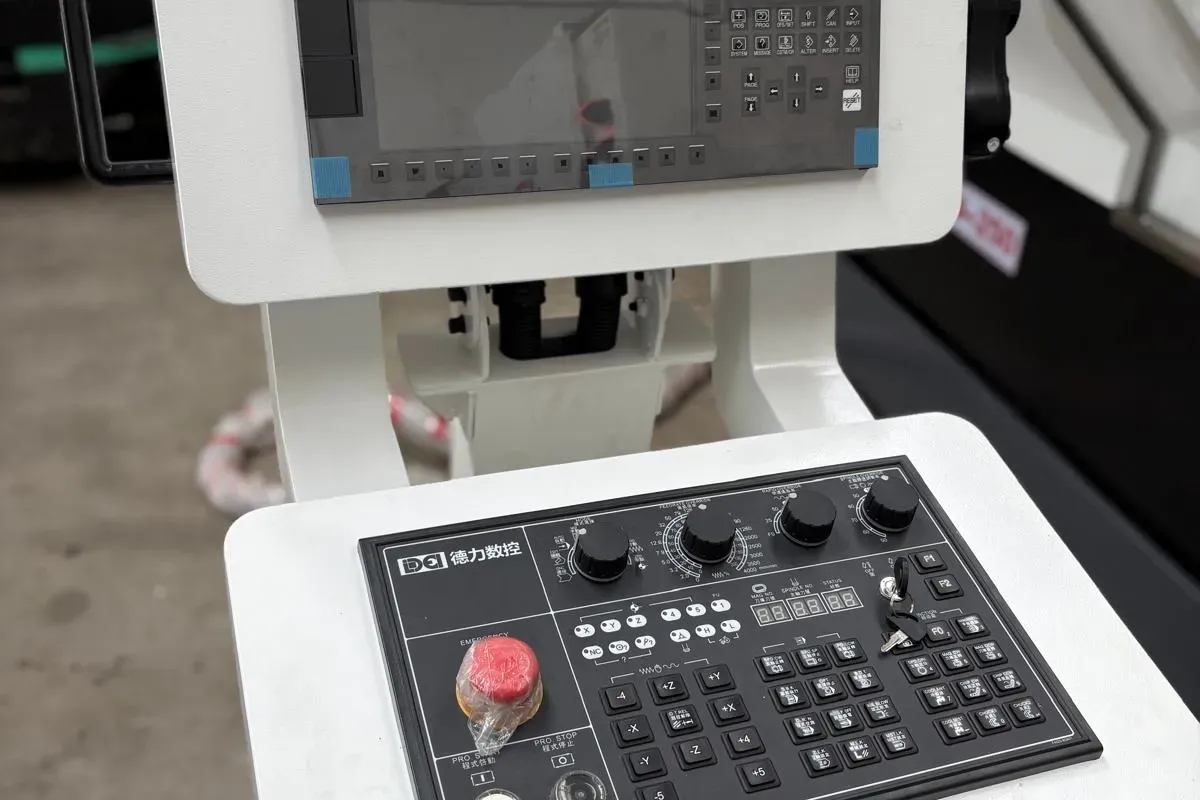

CNC type: | FANUC 0i-MF5 |
Weight: | 12000 Kg |
Type of guides: | linear guideways |
Type of accommodation: | meehanite cast iron |
