Ken Giant Series 5-Axis High-Speed Gantry Machining Center
Price on request

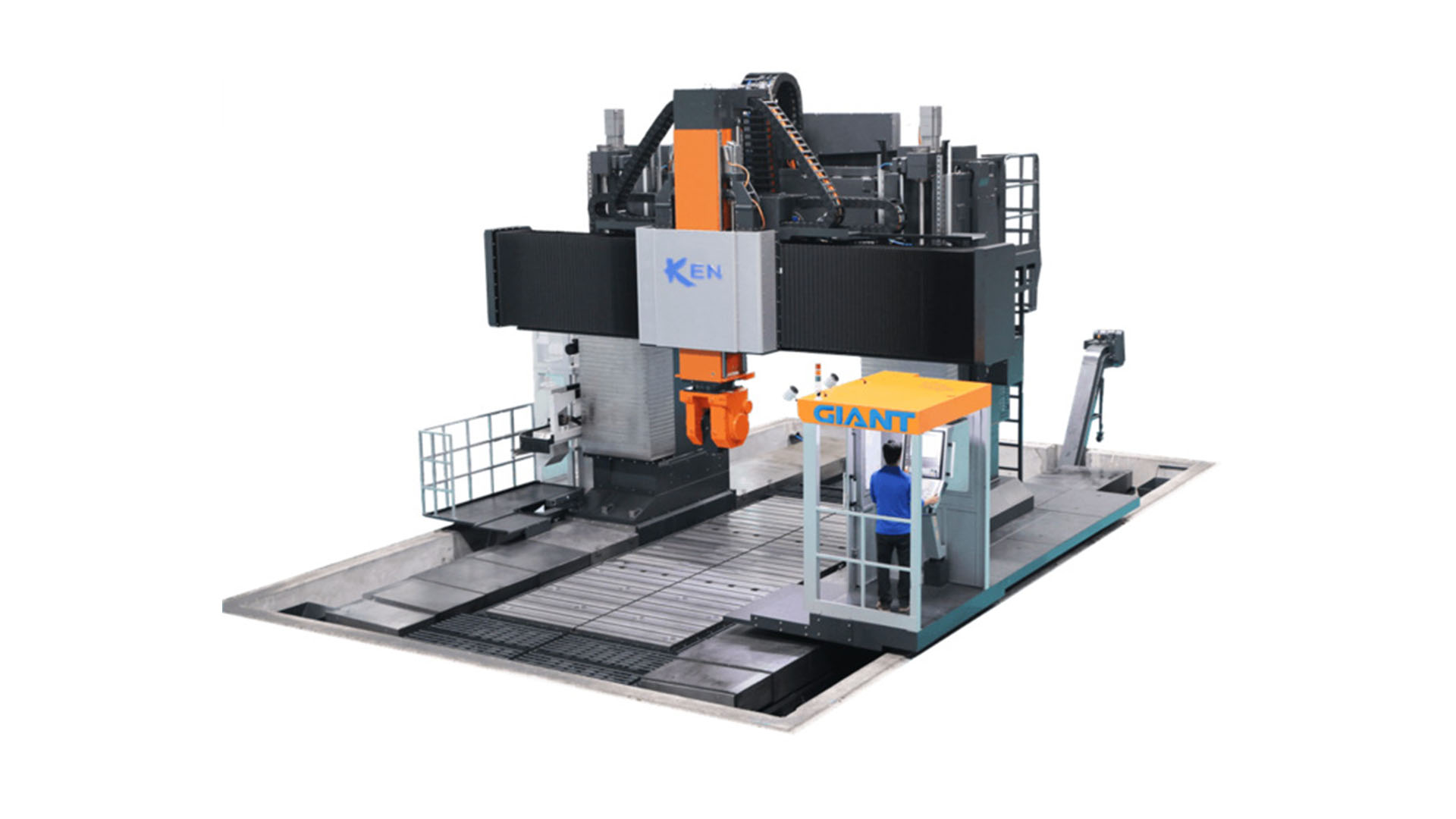

Moving Column Mobile Crossbeam 5-Axis Machining Center – Ken Machine Center Giant Series
The Ken Machine Center Giant Series is a large portal type 5-axis machining center designed for high precision machining of very large and complex components. Thanks to its advanced structural design and powerful milling head, the machine offers high rigidity, precision, and productivity for heavy-duty machining applications.
The machine features a moving column with mobile crossbeam structure, providing a very spacious working area and excellent flexibility for machining large workpieces. The W-axis crossbeam movement allows the crossbeam to move vertically, improving accessibility to the workpiece and optimizing machining capability for parts of different heights.
To guarantee high positioning accuracy and dynamic performance, the machine is equipped with a dual electronic servo preload rack and pinion drive system, ensuring smooth axis movements and reliable performance even on very large axes.

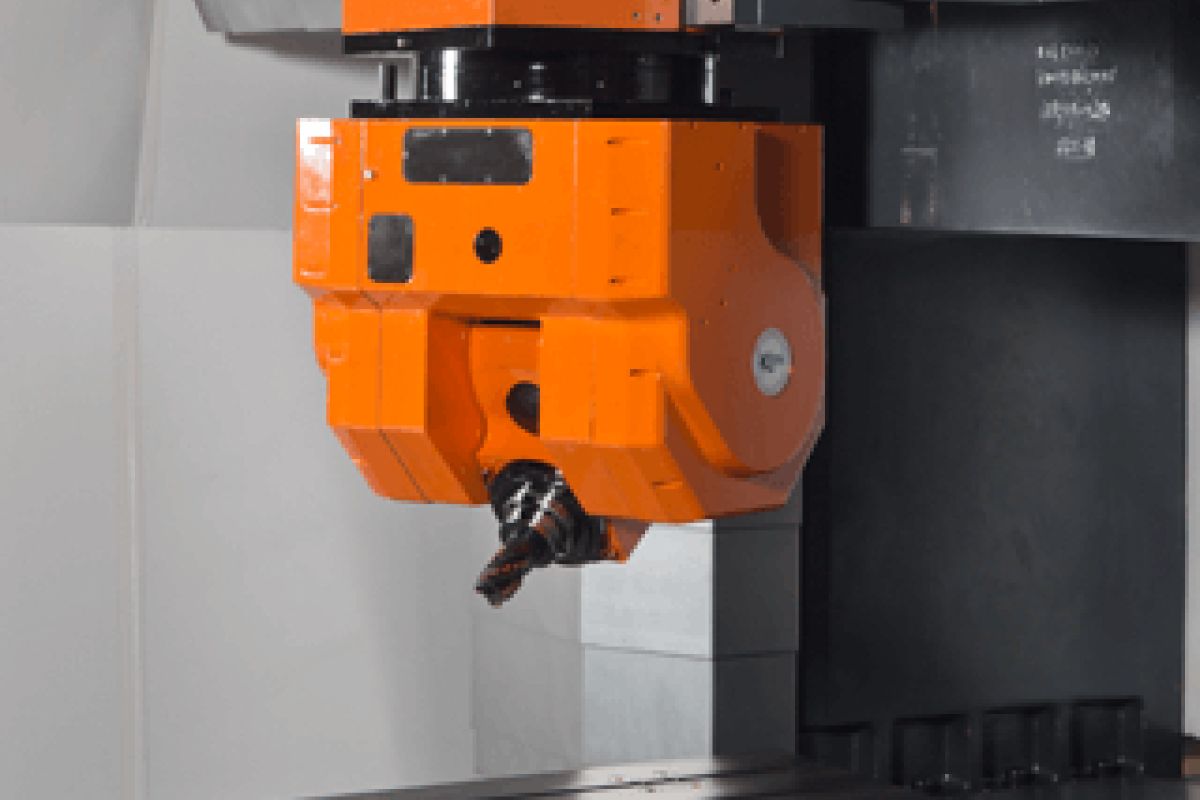

The machining center is fitted with a European high-torque mechanical transmission milling head, designed to handle demanding machining operations. The spindle delivers up to 1,200 Nm of torque, making the machine suitable for both high-speed machining and heavy cutting operations on tough materials.
Thanks to its 5-axis machining capability, the Giant Series allows the machining of complex geometries in a single setup, reducing machining time and improving overall productivity.
The portal type configuration combined with the mobile crossbeam design makes this machine particularly suitable for industries that require large-scale precision machining.
X-axis travel: | From 8000 mm |
Y-axis travel: | From 4300 mm |
Z-axis travel: | From 1200 mm |
Head type: | Manual / automatic |
Spindle nose attachment: | BT 50 |
High pressure through the spindle: | Yes |
Number of tool-changing positions: | 24/30/40/60/80 |
CNC type: | Heidenhain, Siemens, Fagor, Fanuc |
Type of guides: | linear guideways |
Type of accommodation: | meehanite cast iron |
- Portal type 5-axis machining center
- Moving column with mobile crossbeam structure
- W-axis vertical movement of the crossbeam
- Large working area for oversized components
- Dual electronic servo preload rack and pinion drive system
- European high torque mechanical transmission milling head
- High torque spindle up to 1,200 Nm
- High rigidity structure for heavy-duty machining
- Machining of large aerospace structural components
- Production of mold and die for large parts
- Manufacturing of energy, power generation, and heavy industry components
- Machining of large mechanical frames and structures
- Complex 5-axis contour machining on oversized workpieces
