Price on request
The Victor VTurn 36/125 is a used CNC lathe designed for precision turning of medium-sized mechanical components. Built with hardened and ground guideways with Turcite covers, this machine ensures excellent rigidity, accuracy, and long-term reliability in demanding production environments.

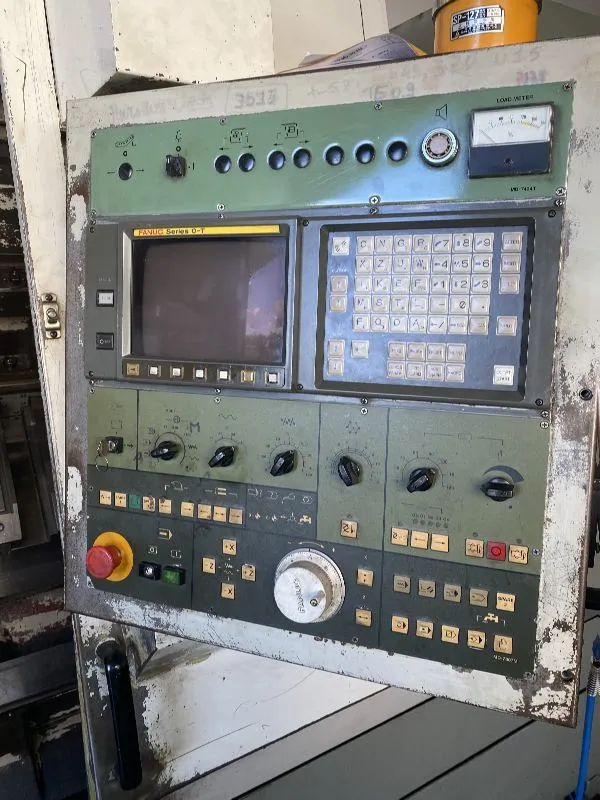

Equipped with a Fanuc 0-T CNC control, the lathe allows efficient programming and precise management of turning operations. With a bar capacity of 90 mm, spindle speed range of 9–2500 rpm, and integrated chip conveyor, the Victor VTurn 36/125 (Year 2001) is ideal for workshops and manufacturing companies requiring a used CNC lathe for high-precision and medium batch production.
Maximum rotating diameter on the bed: | 680 mm |
Maximum rotating diameter on the cross carriage: | 475 mm |
Maximum turnable diameter: | 320 mm |
Distance between the tips: | 1290 mm |

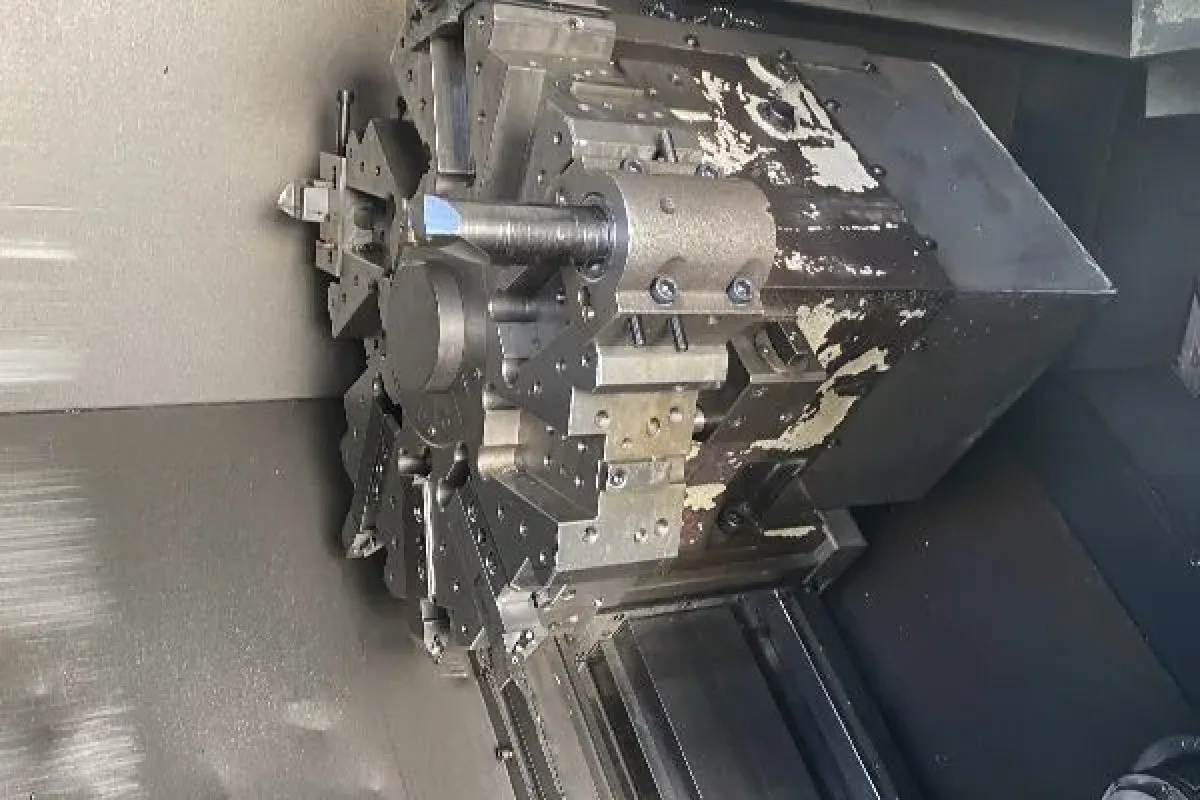

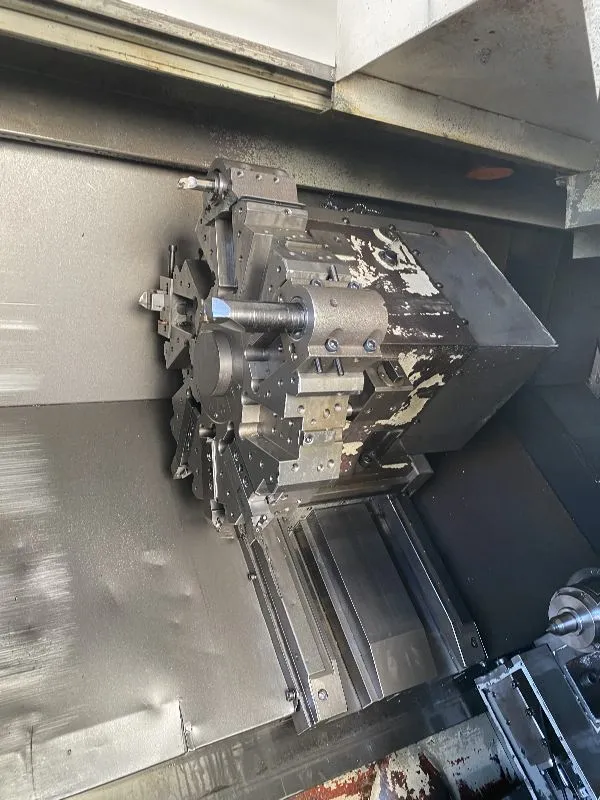

Turret type: | Hydraulic |
Number of seats in the cabin: | 10 |
X-axis travel: | 275 mm |
Z-axis travel: | 1255 mm |
Spindle nose attachment: | ASA A2-8 |
Spindle speed: | 2500 rpm |
Spindle bore diameter: | 105 mm |

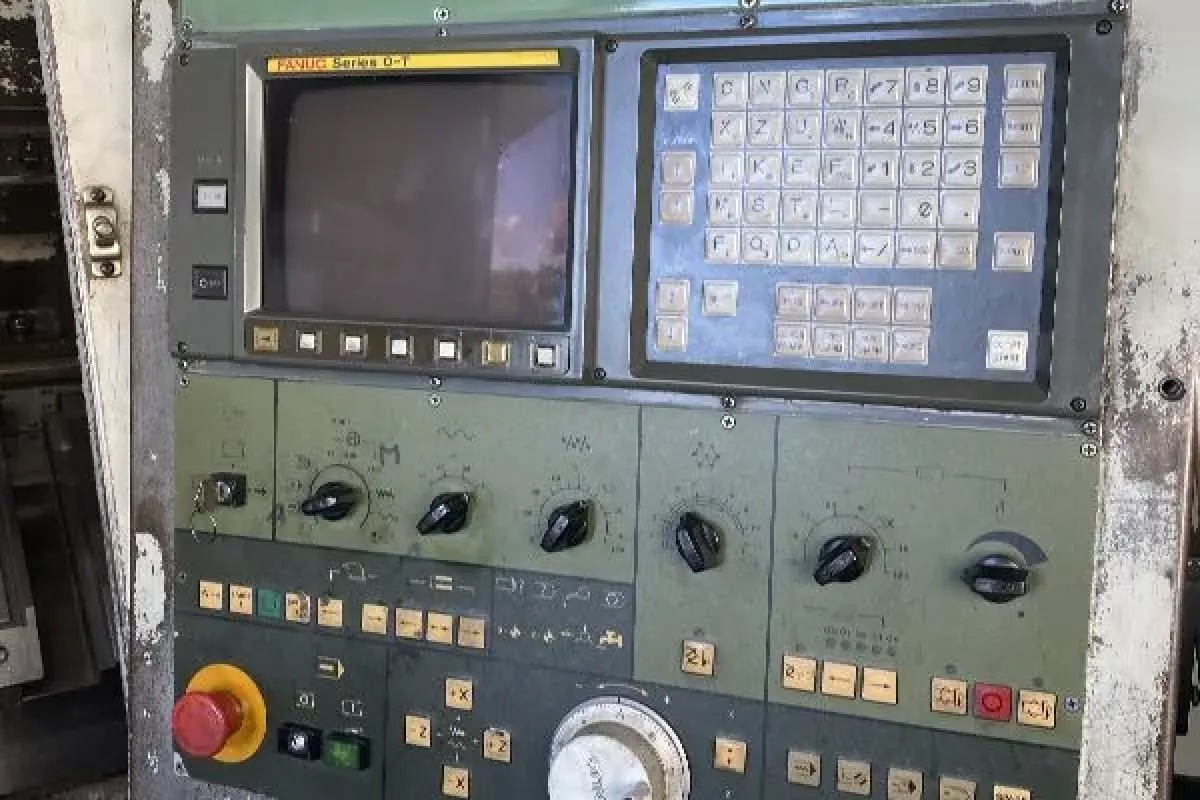

CNC type: | FANUC 0-T |
Overall dimensions: | 5210 x 1985 x 2205 h mm |
Weight: | 9100 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
