Price on request

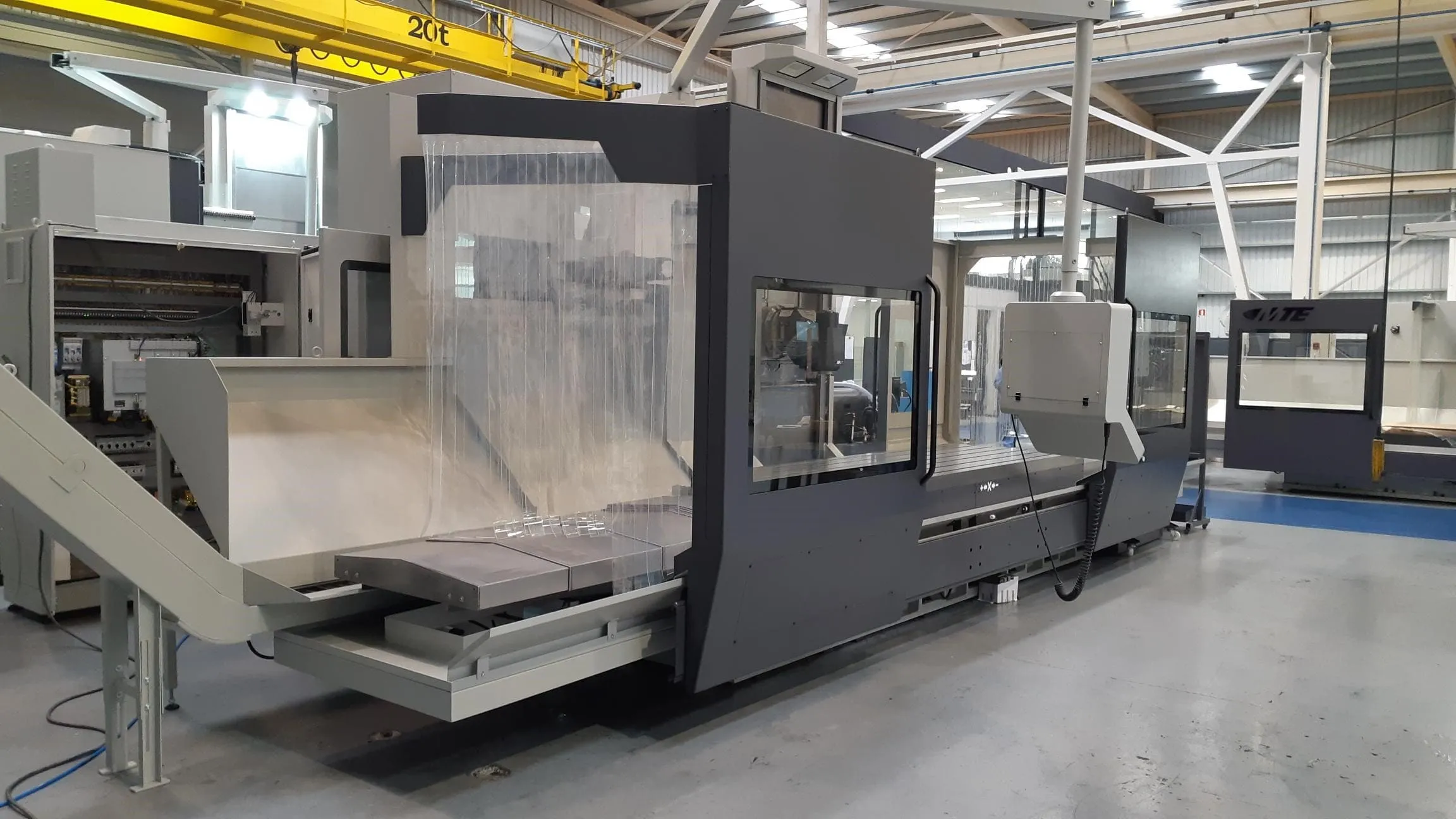

The MTE BF-3200 is a new bed type milling machine available for immediate delivery, designed for high-precision milling operations on medium to large components. Its rigid structure with square guideways ensures maximum stability and accuracy during heavy-duty milling operations.

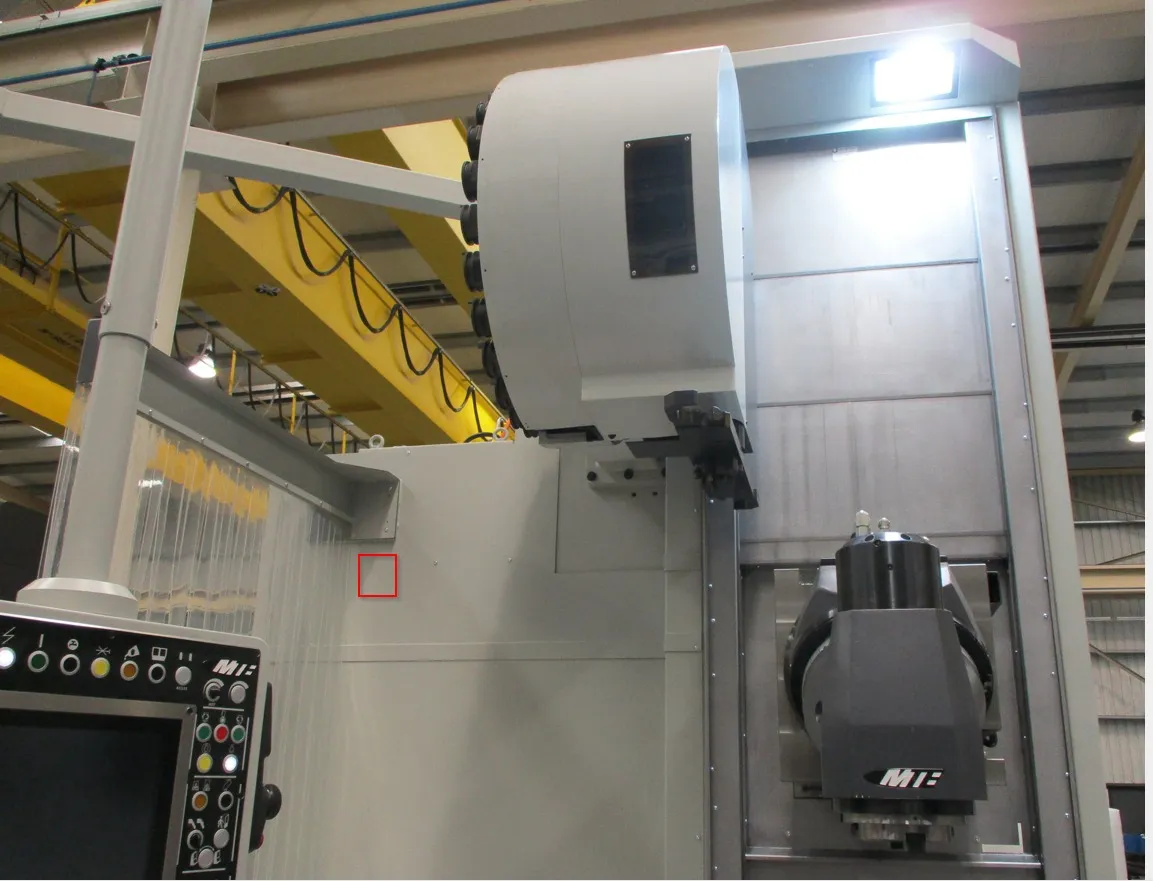

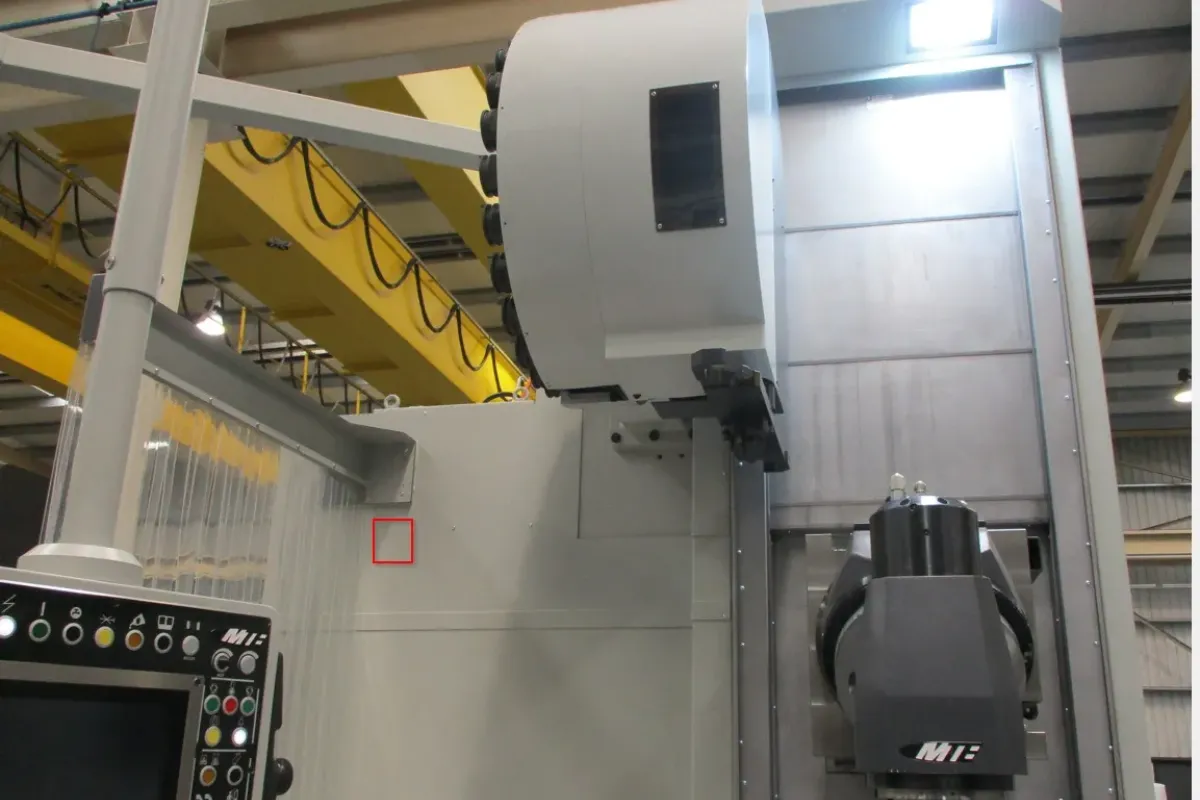

Equipped with a Heidenhain TNC 640 CNC control and a 2.5° × 2.5° indexed milling head running at 4000 rpm, the BF-3200 allows flexible multi-face machining and precise contouring. The machine features a 30-position tool carousel, ISO 50 spindle attachment, and high-pressure coolant through the spindle at 20 bar, providing efficient cutting performance and extended tool life.

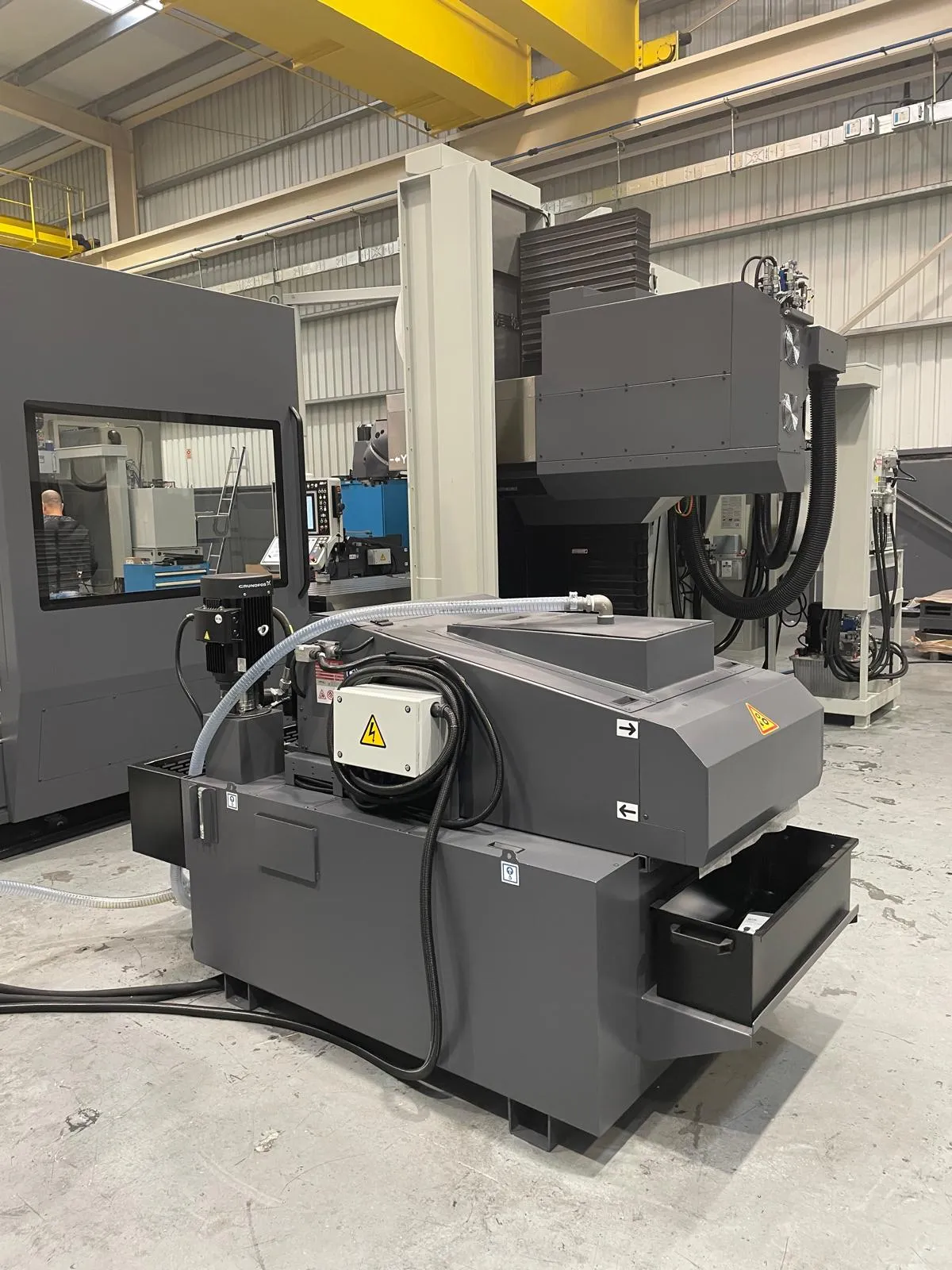

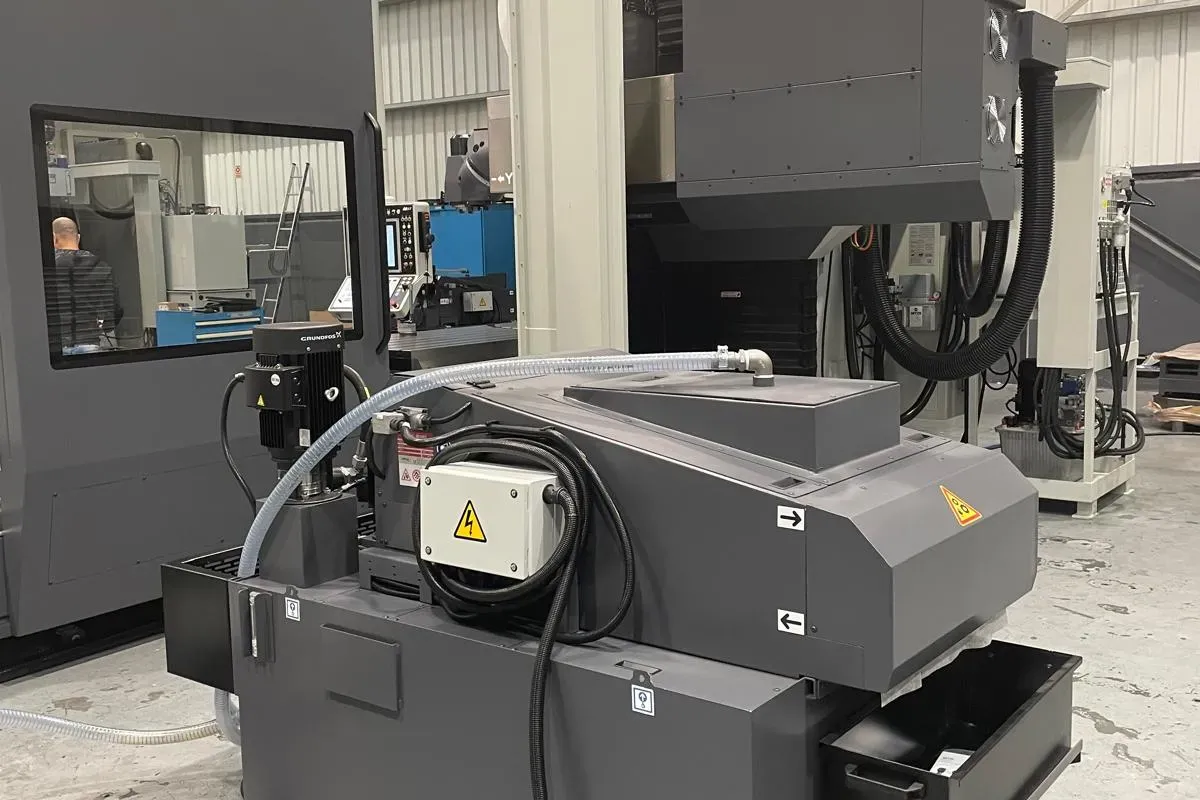

With rapid feed rates up to 15,000 mm/min and a rear hinged belt chip conveyor, this machine is ideal for modern workshops and production environments. The BF-3200 is fully Industry 4.0 ready, offering connectivity and smart manufacturing capabilities.
X-axis travel: | 3000 mm |
Y-axis travel: | 1200 mm |
Z-axis travel: | 1500 mm |
Table dimensions: | 3200 x 1000 mm |
Maximum permissible load: | 11000 Kg |
Head type: | 2,5 x 2,5° |
Spindle nose attachment: | ISO 50 |
Spindle speed: | 4000 rpm |
High pressure through the spindle: | 20 Bar |
Number of tool-changing positions: | 24 |
Key points: | 15 m/min |
Working feed rate: | 10 m/min |
CNC type: | Heidenhain iTNC 640 |
Overall dimensions: | 8300 x 4750 x 3550 h mm |
Weight: | 26000 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
