5 axis Machining Center Litz Lu 620
Price on request

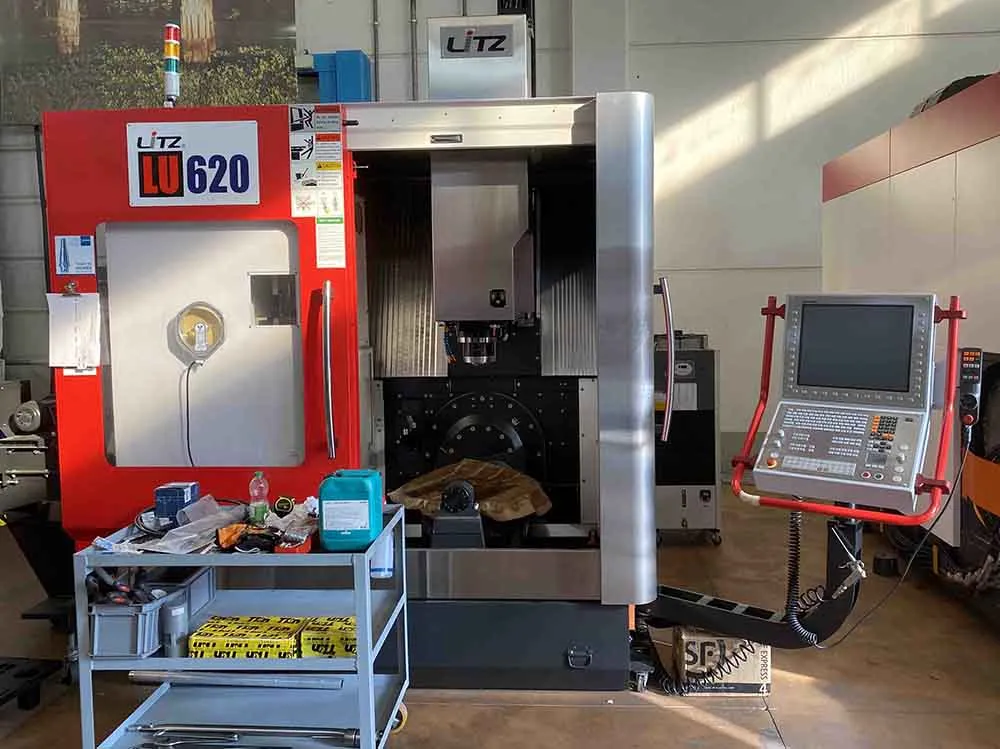

New 5-Axis Vertical Machining Center Litz LU 620 – Available for Immediate Delivery
The Litz LU 620 is a new 5-axis vertical machining center available for immediate delivery, designed for high-precision multi-axis milling and complex contour machining of medium-sized components. Its linear guides on the X, Y, and Z axes ensure smooth, accurate, and rigid movement for demanding operations in advanced workshops.

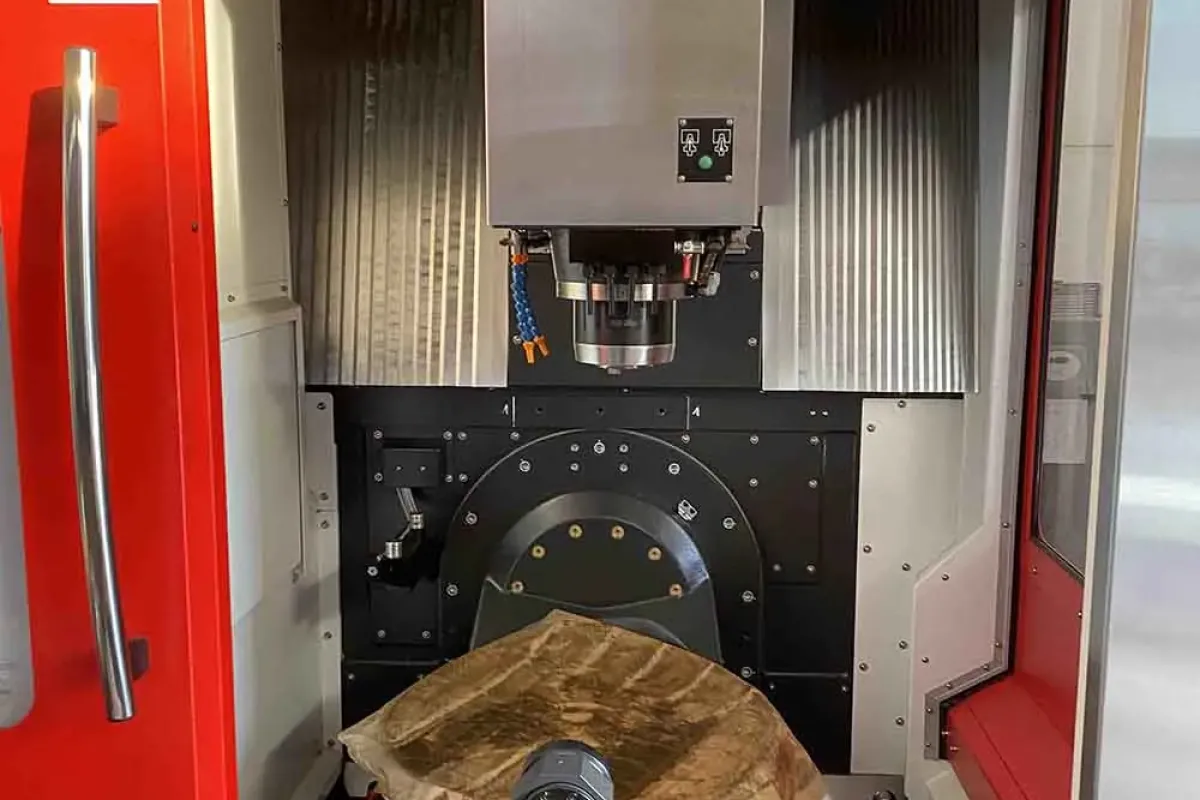

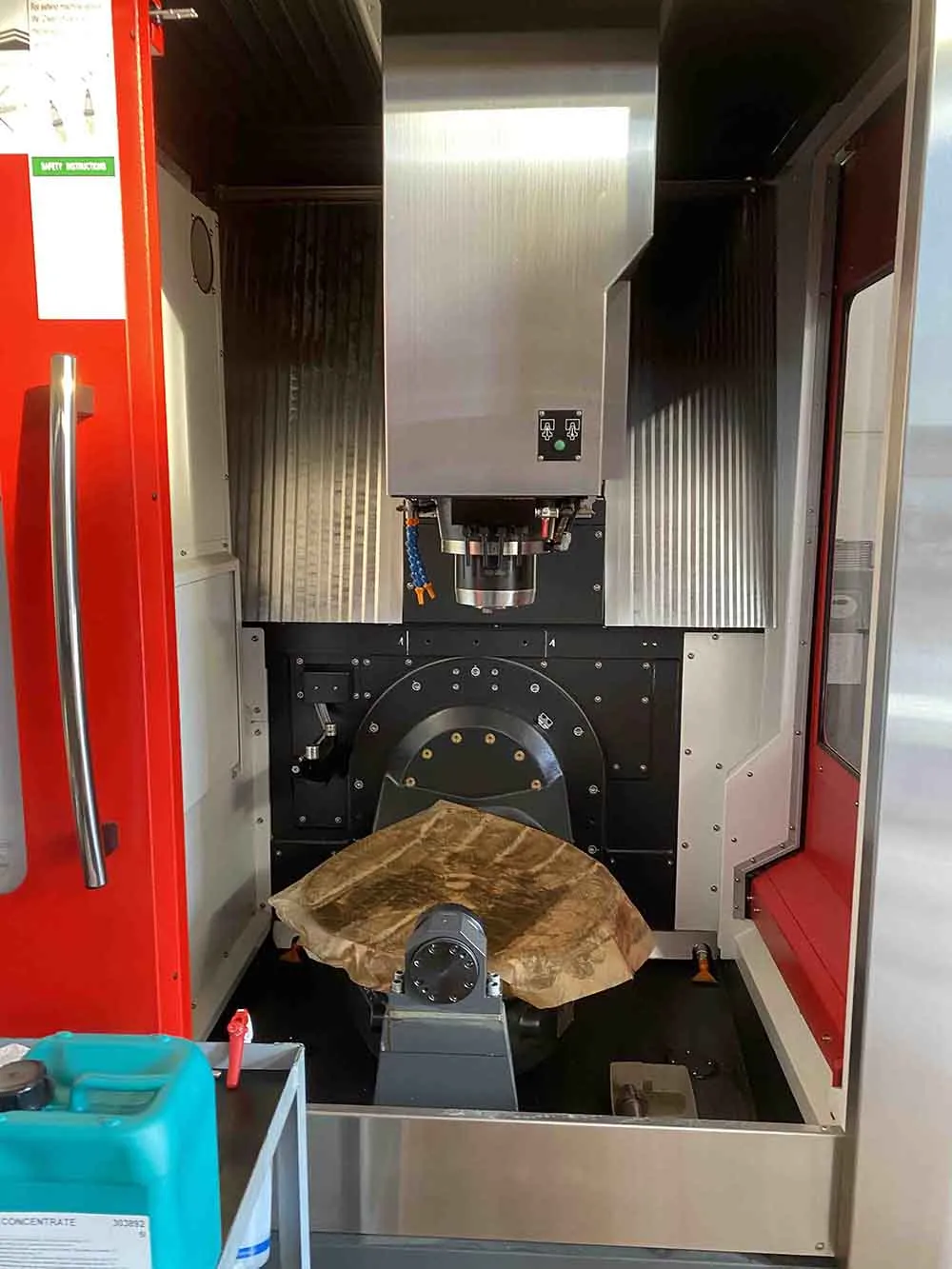

Equipped with a Heidenhain iTNC 640 CNC control, the LU 620 features a 60-position automatic tool changer (ATC) and a ISO 40 spindle, allowing efficient multi-tool operations. The machine includes a through-spindle coolant system at 20 bar and a chip conveyor to maintain clean and safe operation. Its 650 mm rotary table enables full 5-axis simultaneous machining for complex geometries and precise part production.
With travels of 620 mm (X), 520 mm (Y), and 460 mm (Z), the Litz LU 620 is ideal for workshops and production environments requiring high-accuracy 5-axis machining for molds, dies, aerospace, and precision engineering components.
X-axis travel: | 620 mm |
Y-axis travel: | 520 mm |
Z-axis travel: | 460 mm |
Table dimensions: | 650 mm |
Table type: | continuous |
Maximum permissible load: | 300 Kg |
Spindle nose attachment: | ISO 40 |
Spindle speed: | 15000 rpm |
High pressure through the spindle: | 30 Bar |
Number of tool-changing positions: | 60 |
Key points: | 36 m/min |
Working feed rate: | 20 m/min |
CNC type: | Heidenhain iTNC 640 |
Weight: | 8800 Kg |
Type of guides: | linear guideways |
Type of accommodation: | meehanite cast iron |
- New 5-axis vertical machining center
- Model: Litz LU 620
- CNC control: Heidenhain iTNC 640
- X-axis travel: 620 mm
- Y-axis travel: 520 mm
- Z-axis travel: 460 mm
- Rotary table diameter: 650 mm
- X, Y, Z linear guides
- 60-position automatic tool changer (ATC)
- Spindle: ISO 40
- Through-spindle coolant system: 20 bar
- Chip conveyor
- Full 5-axis simultaneous machining capability
- Available for immediate delivery
- High-precision 5-axis milling and contour machining
- Complex part production for molds and dies
- Aerospace and precision engineering components
- Medium-sized component manufacturing with multi-axis operations
- Industry 4.0 compatible workshops and production lines
