Price on request

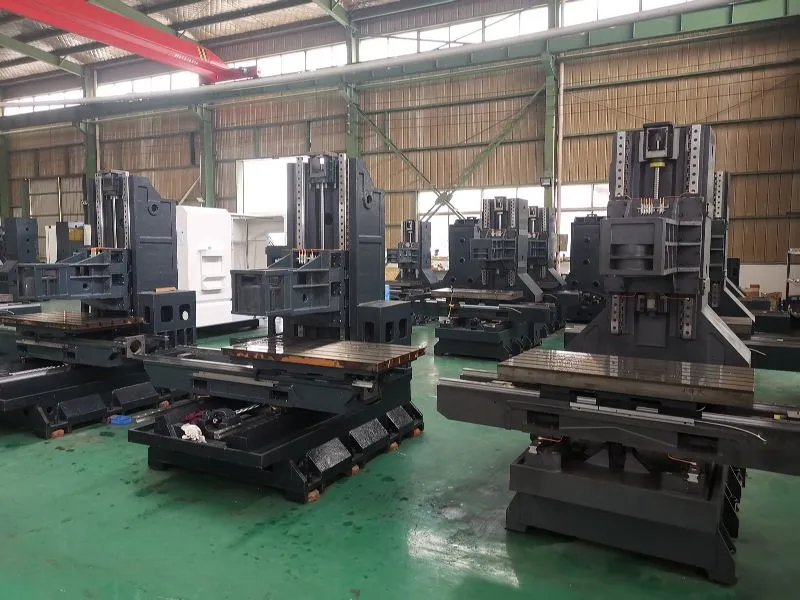

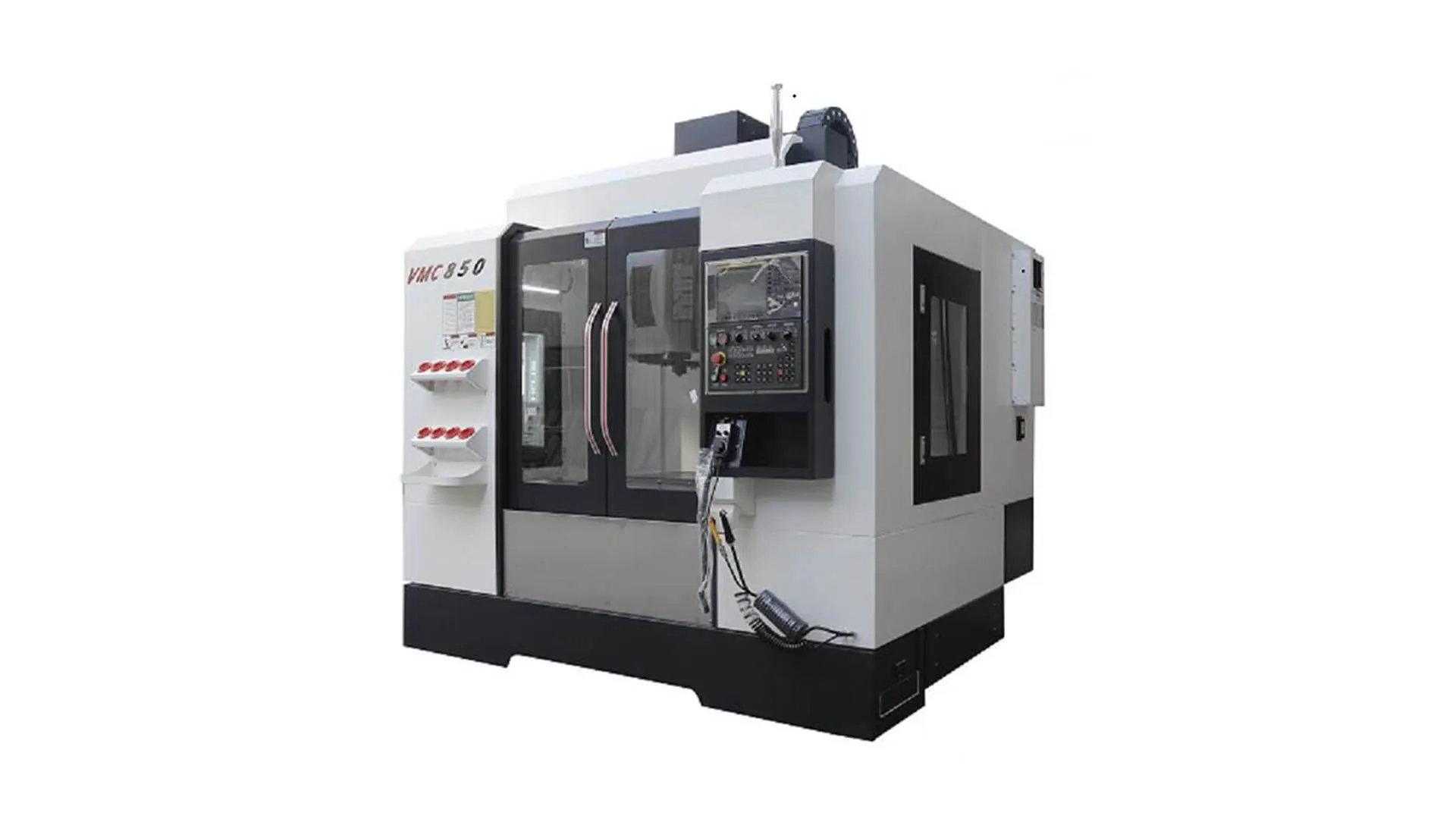

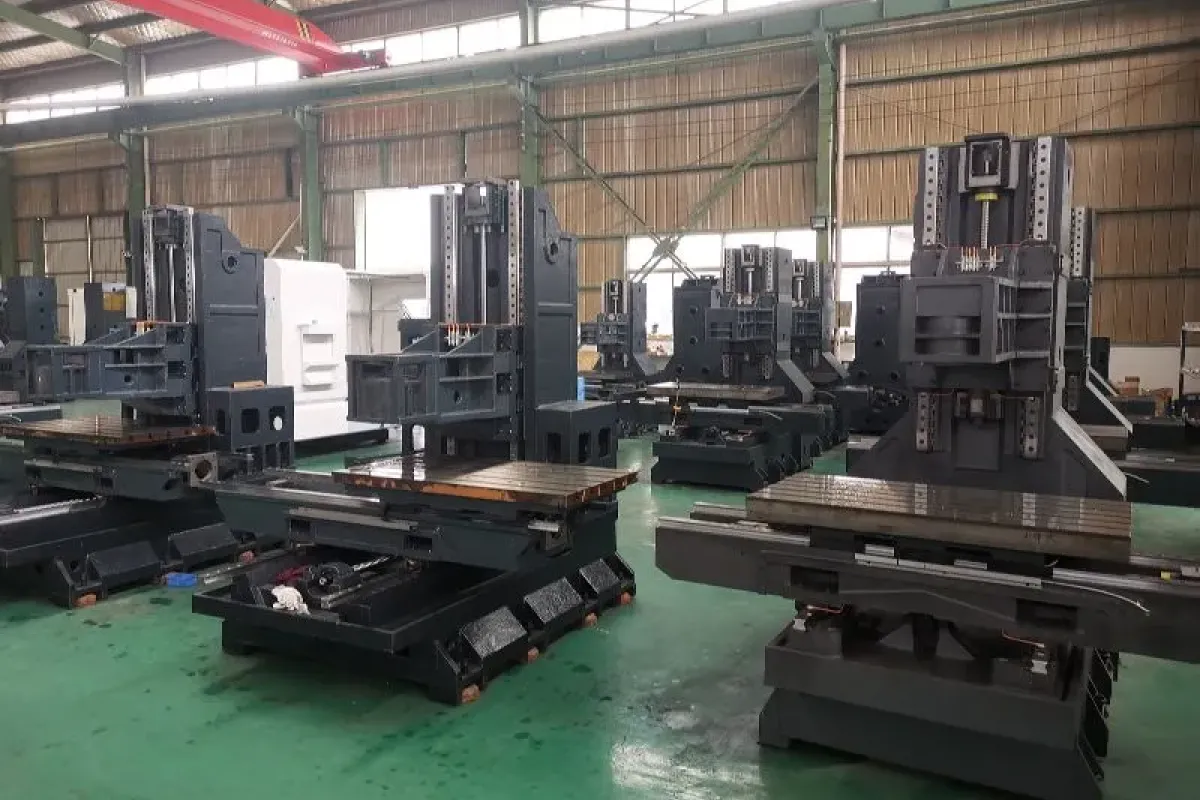

The Sainty VMC 850 is a high-performance vertical machining center designed for precision milling, drilling, and machining operations on medium-sized components. Its robust cast iron structure combined with roller-type linear guideways on the X, Y, and Z axes ensures excellent rigidity, stability, and long-term accuracy.
With axis travels of 800 mm (X), 500 mm (Y), and 550 mm (Z), the machine provides a versatile working envelope suitable for a wide range of mechanical machining applications. The rapid feed rate of 48 m/min on all axes allows fast positioning and reduced cycle times, improving productivity in production environments.
The 24-position automatic tool changer (ATC) enables efficient multi-tool machining operations, while the automatic oil lubrication system ensures reliable operation and reduced maintenance. The machine is equipped with Fanuc brushless motors and can be configured with several CNC control options, making it adaptable to different production requirements.
X-axis travel: | 800 mm |
Y-axis travel: | 500 mm |
Z-axis travel: | 550 mm |
Table dimensions: | 1000 x 500 mm |
Spindle speed: | 8000 rpm |
Spindle power: | 7,5/11 KW |
High pressure through the spindle: | Yes |
Number of tool-changing positions: | 24 |
Key points: | 48 m/min |
Working feed rate: | 10 m/min |
CNC type: | Fanuc, Siemens, Mitsubishi |
Total power: | 15 KW |
Weight: | 4450 Kg |
Type of guides: | linear guideways |
Type of accommodation: | meehanite cast iron |
