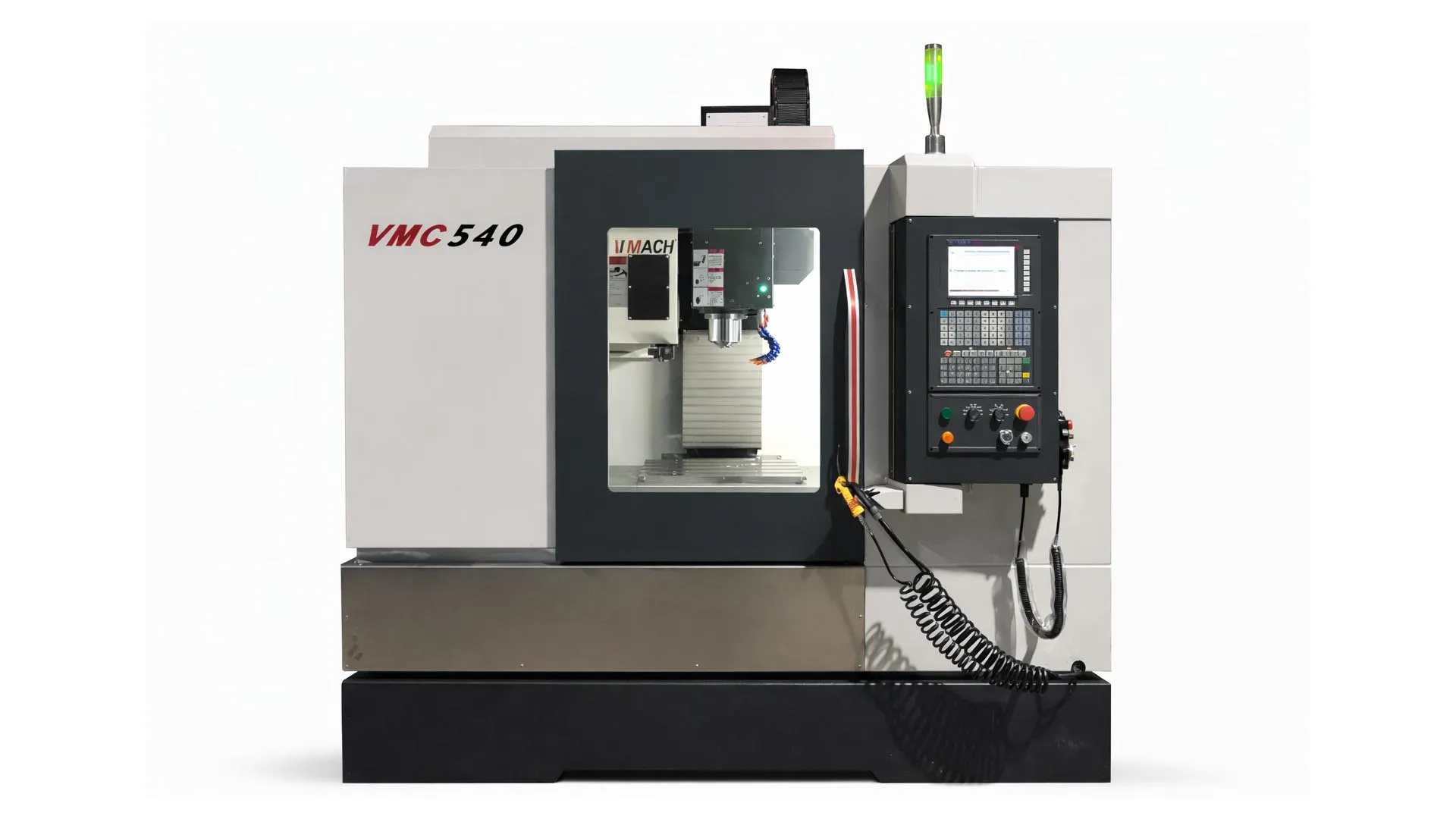

Vertical Machining Center Sainty VMC 540

New Vertical Machining Center Sainty VMC 540

The Sainty VMC 540 is a compact vertical machining center designed for precision milling, drilling, and machining of small to medium-sized components. Thanks to its rigid cast iron structure and roller-type linear guideways on all axes, the machine ensures high stability, accuracy, and smooth motion during machining operations.

With travels of 500 mm on the X-axis, 400 mm on the Y-axis, and 400 mm on the Z-axis, the VMC 540 offers excellent performance within a compact footprint, making it ideal for workshops where space efficiency is important. The machine is equipped with a 16-position automatic tool changer and rapid feed rates up to 15 m/min on all axes, ensuring productive and reliable machining operations.

The machine is also prepared for the integration of a fourth axis, allowing extended machining flexibility for more complex parts.

• New vertical machining center
• Model: Sainty VMC 540
• X-axis travel: 500 mm
• Y-axis travel: 400 mm
• Z-axis travel: 400 mm
• Rapid feed X/Y/Z: 15 m/min
• Roller-type linear guideways on X, Y, Z axes
• Rigid cast iron structure

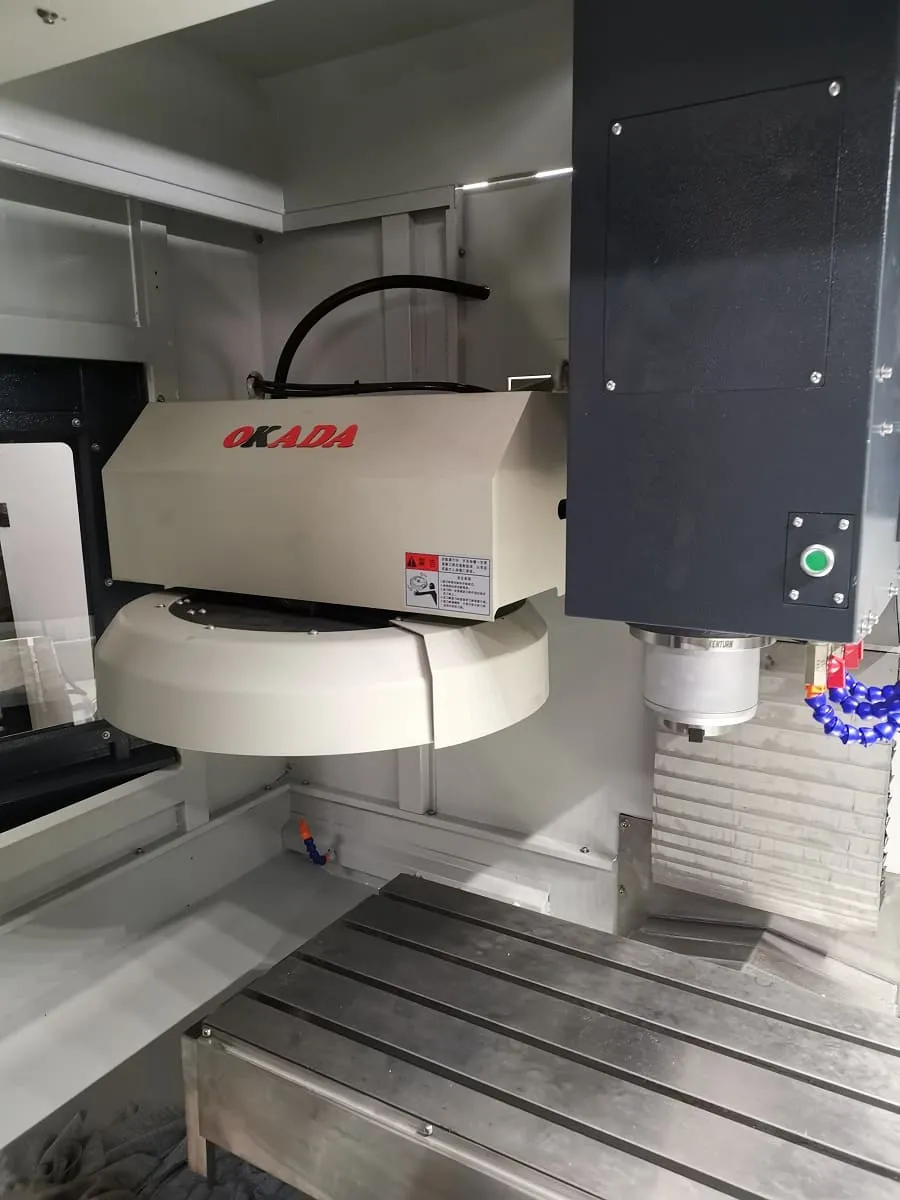

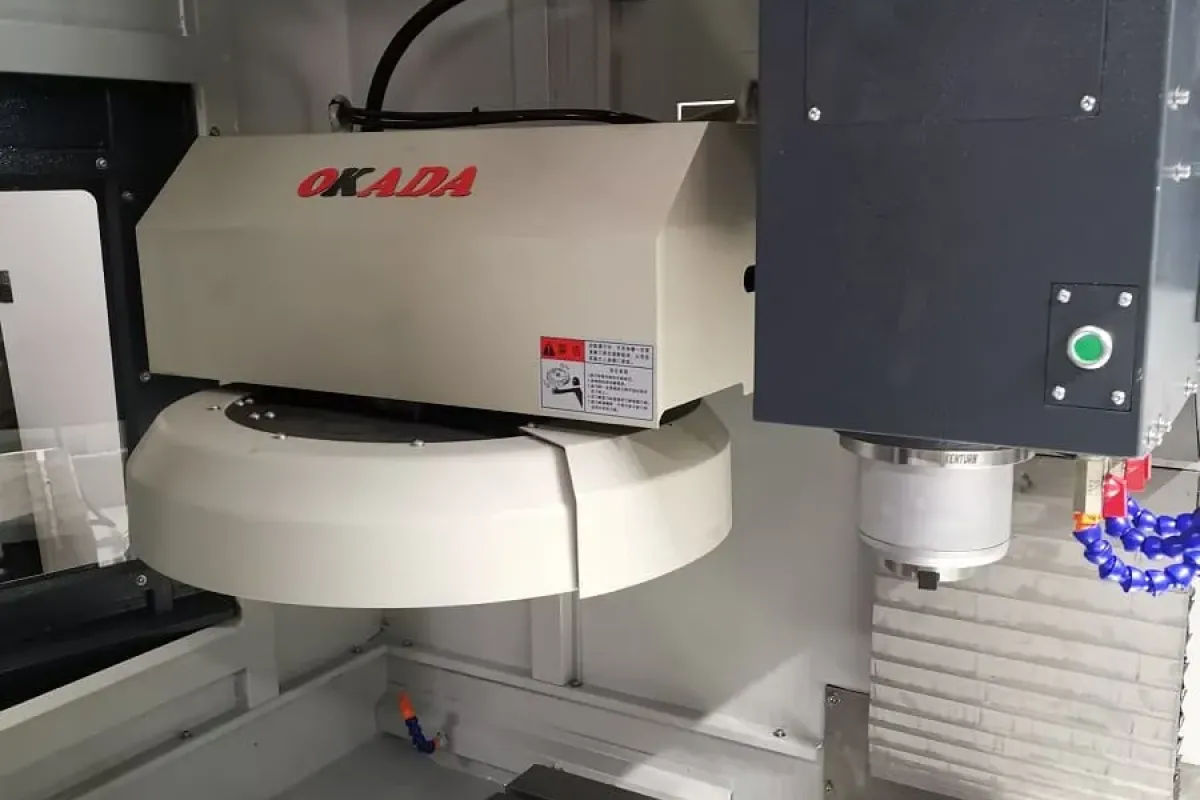

• Automatic tool changer with 16 positions
• Tube oil circuit lubrication system
• Compact dimensions for space-saving installation
• Preparation for fourth axis

• Precision milling of small mechanical components
• Drilling and tapping operations
• Production of small and medium batches
• Tooling and fixture manufacturing
• Mechanical workshops and subcontracting
• Educational and training machining environments
