Price on request

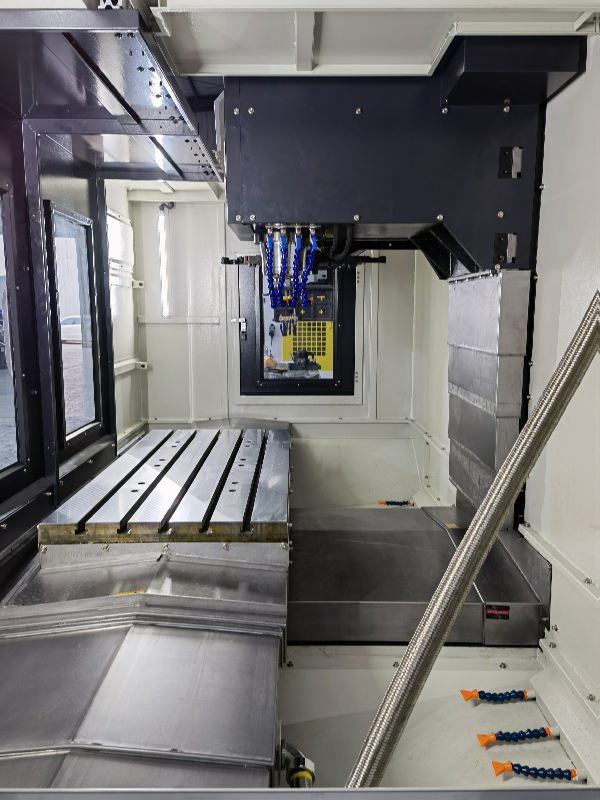

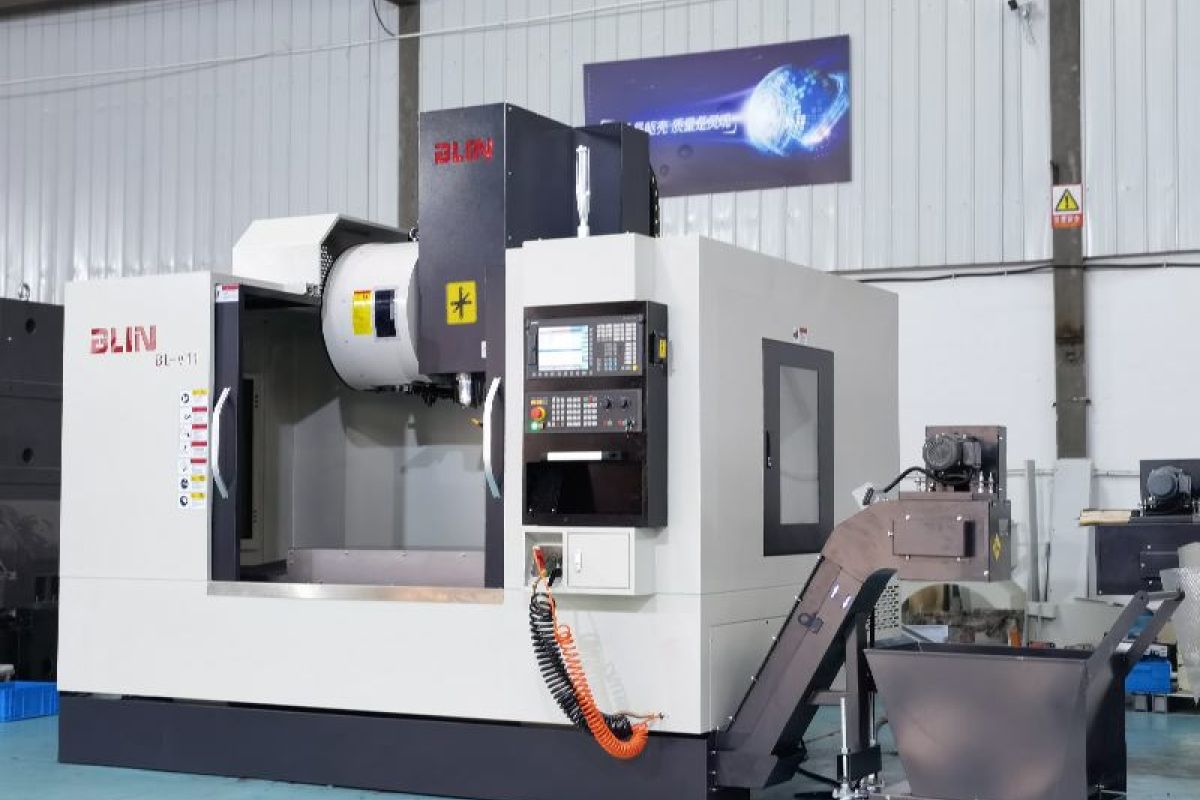

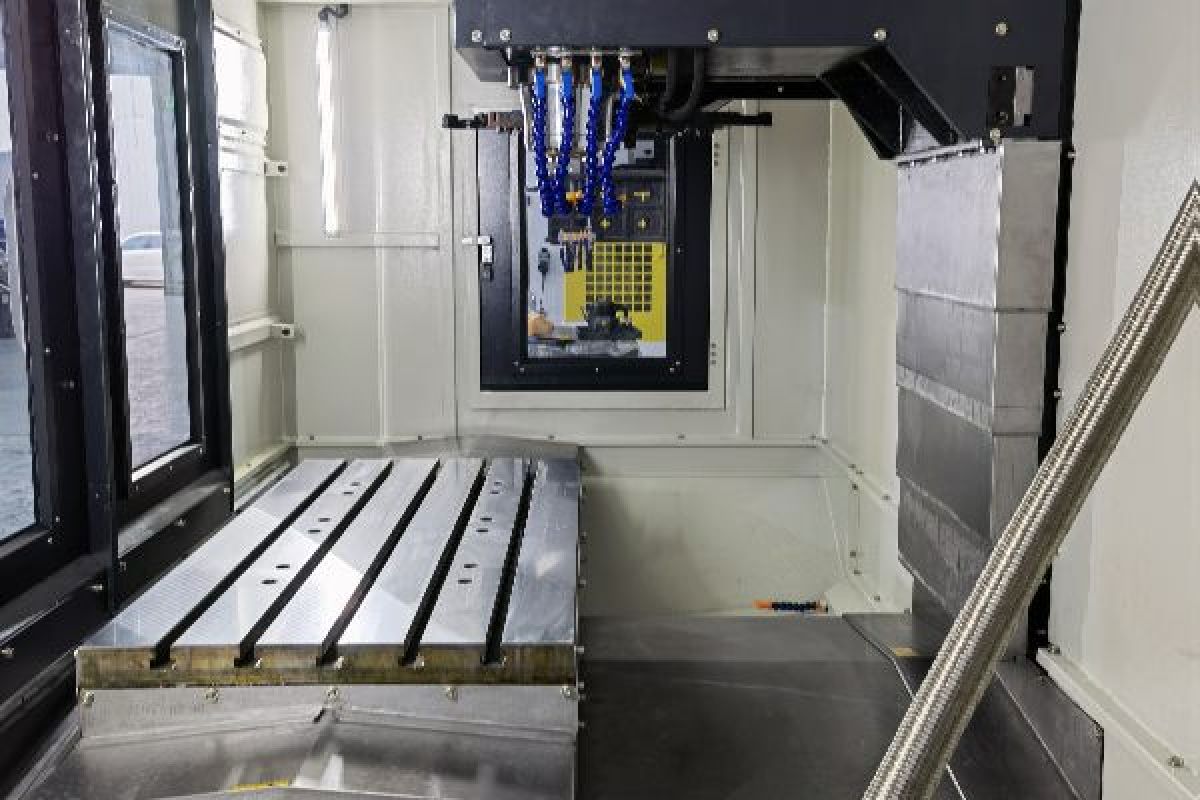

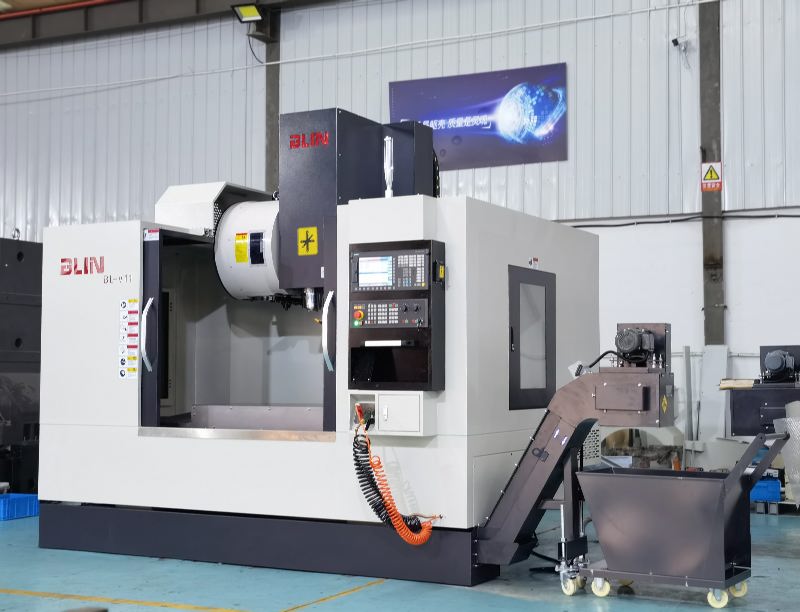

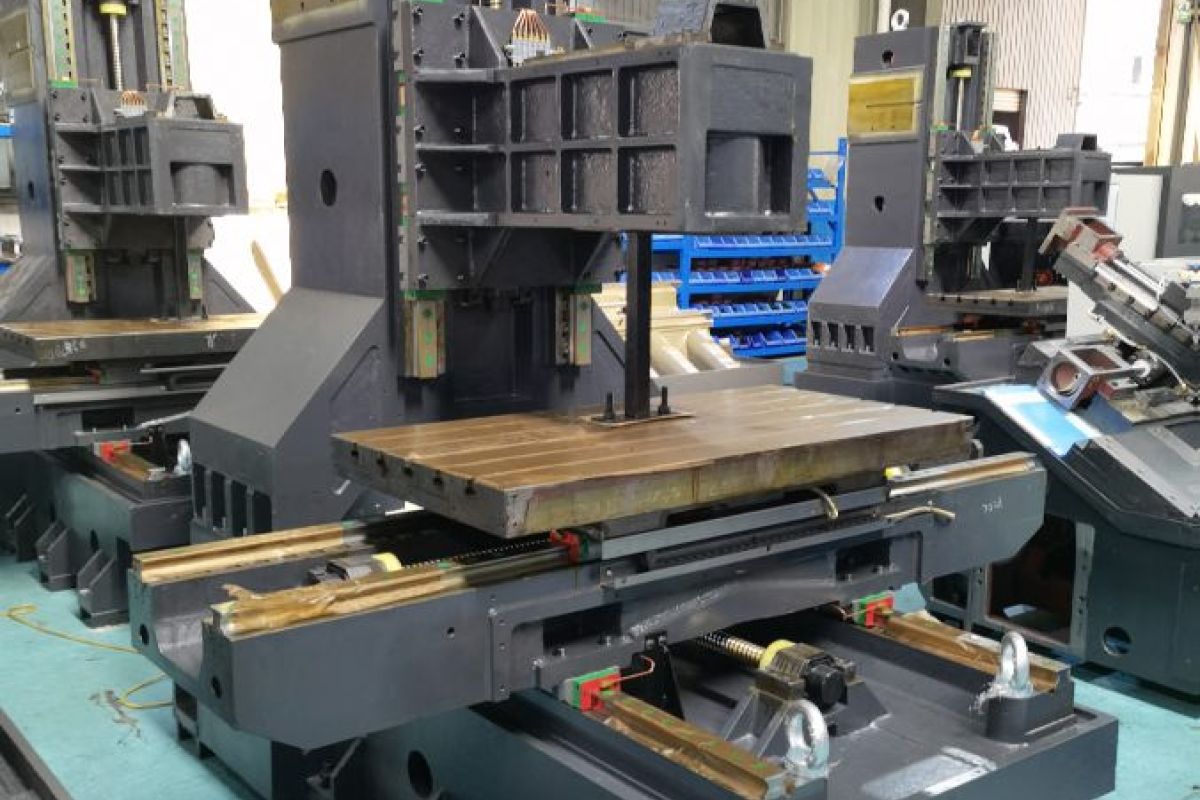

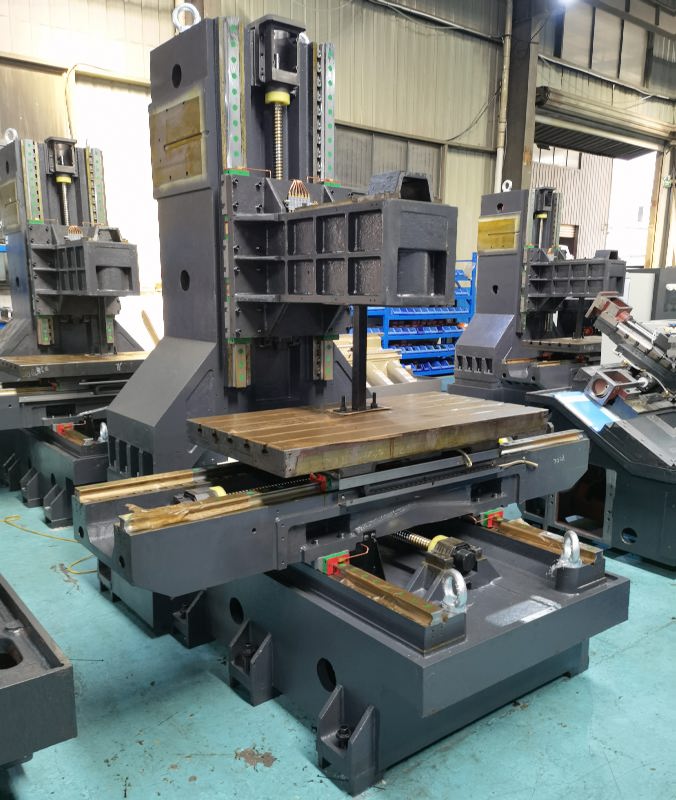

The Blin BL-V11 is a high-performance vertical machining center designed for precision milling, drilling, and tapping of medium to large mechanical components. Its rigid cast iron structure combined with linear guideways on the X, Y, and Z axes ensures superior stability, high accuracy, and smooth movement during machining operations.
With travels of 1100 mm on the X-axis, 600 mm on the Y-axis, and 600 mm on the Z-axis, the BL-V11 provides a generous working envelope suitable for a wide range of industrial machining applications. The rapid feed rate of 36 m/min on all axes allows fast positioning and improved productivity.
The machine is equipped with a 11/15 kW spindle and a 24-position automatic tool changer (ATC), enabling efficient multi-operation machining. Additional features such as a cooling system and rigid tapping capability enhance cutting performance and threading precision. The BL-V11 can be configured with various CNC control options to meet different production requirements and operator preferences.
X-axis travel: | 1100 mm |
Y-axis travel: | 600 mm |
Z-axis travel: | 600 mm |
Table dimensions: | 1200 x 600 mm |
Maximum permissible load: | 900 Kg |
Spindle speed: | 8000 / 10000 / 12000 rpm |
Spindle power: | 11/15 KW |
Cone type: | BT 40 |
High pressure through the spindle: | 20 Bar |
Number of tool-changing positions: | 24/30/40 |
Key points: | 36 m/min |
Working feed rate: | 10 m/min |
CNC type: | Fanuc, Siemens, Mitsubishi |
Weight: | 7200 Kg |
Type of guides: | linear guideways |
Type of accommodation: | meehanite cast iron |
