Used 5-Axis Vertical Machining Center EMCO UMILL 750 – Siemens 840D sl CNC

Model: UMILL 750

Brand: EMCO

Type: machining centers

Price on request

Description

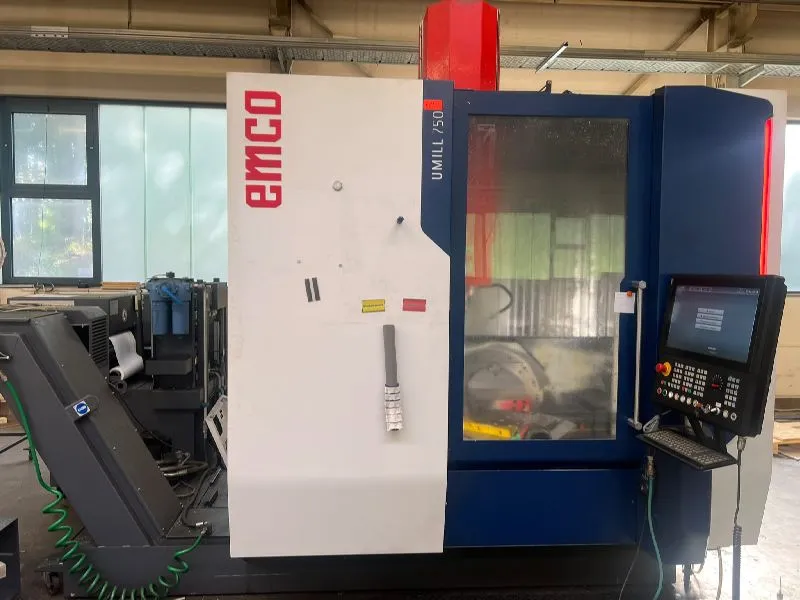

Used EMCO UMILL 750 5-axis simultaneous vertical machining center, equipped with the highly reliable Siemens 840D sl control unit.

This used machine tool is the ideal choice for precision engineering workshops seeking maximum operational flexibility and structural rigidity when milling complex parts on 5 faces.

Featuring a top-of-the-line configuration, the machining center includes a 15,000 rpm integrated spindle, high-pressure through-spindle coolant system, and a Renishaw electronic probe for maximum geometric accuracy during the cycle.

Available with professional support and technical assistance from Skio Macchine. Also available with flexible financing, leasing, or rental/operating lease solutions.

Technical Specifications

X-axis travel:	750 + 50 mm
Y-axis travel:	610 mm
Z-axis travel:	500 mm
Table dimensions:	750 x 600 mm
Table type:	Tilting rotary
Spindle nose attachment:	BT 40
Spindle speed:	15000 rpm
Spindle power:	26 KW
High pressure through the spindle:	Yes
Number of tool-changing positions:	40
Key points:	50 m/min

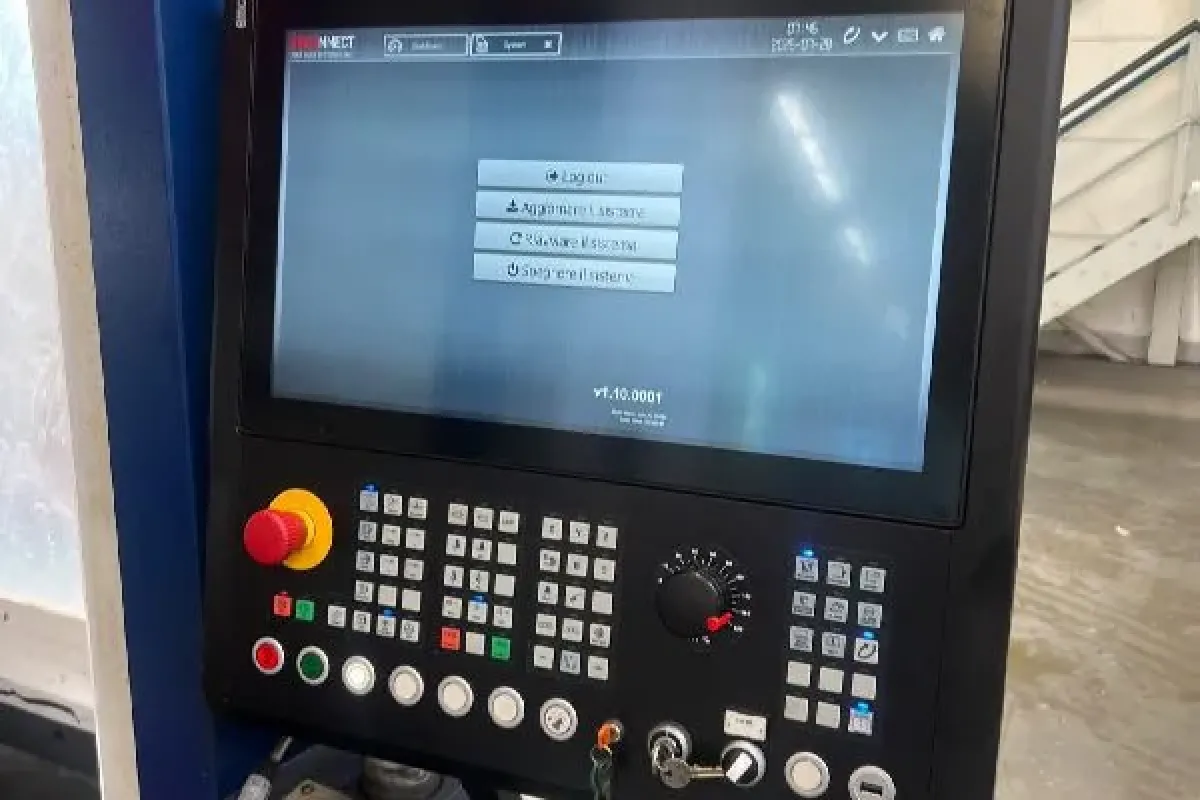

CNC type:	SIEMENS 840D sl
Overall dimensions:	2850 x 3680 X 3060 h mm
Weight:	9000 Kg
Type of guides:	linear guideways
Type of accommodation:	meehanite cast iron

Key Features

5-axis simultaneous configuration: Ideal architecture for complex machining with a single part setup, reducing cycle times

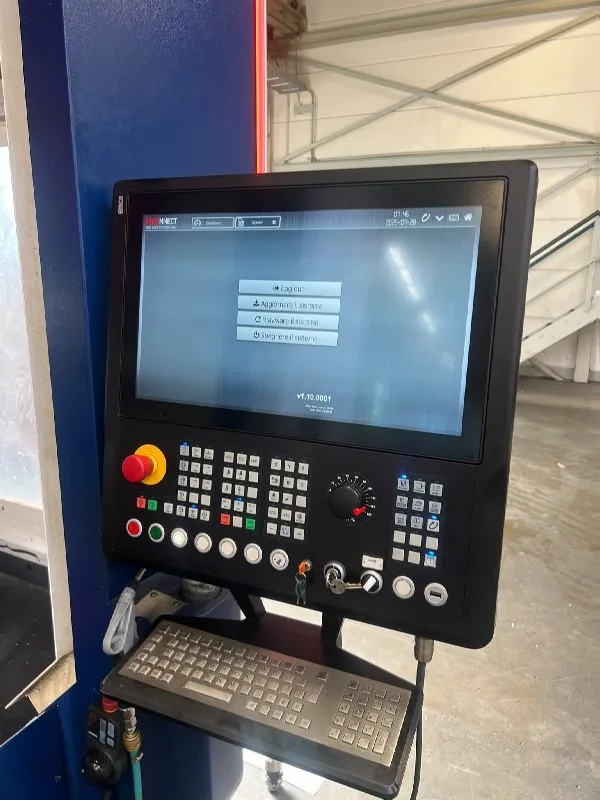

Siemens 840D sl CNC unit: Top-tier, highly responsive, and precise control system, globally recognized for easy programming and operation
Extended working strokes: X-axis travel of 750 + 50 mm, Y-axis of 610 mm, and Z-axis of 500 mm

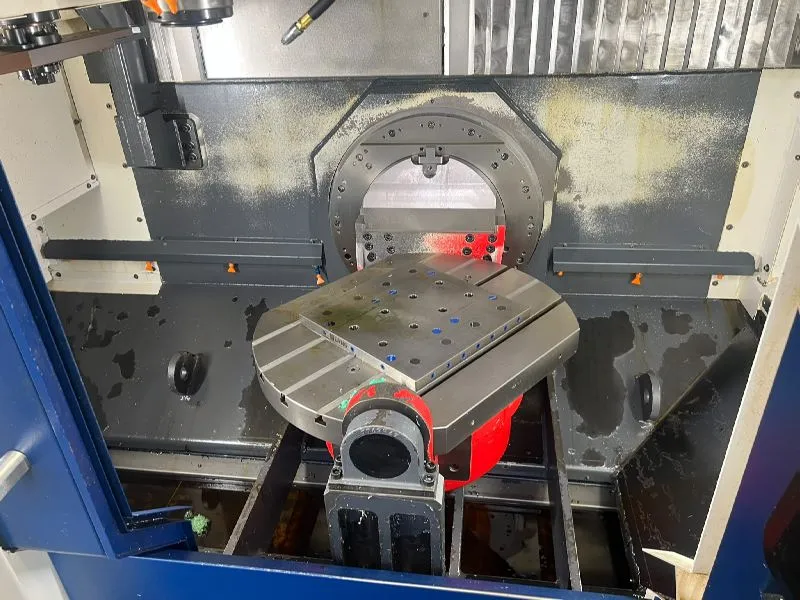

Large rotary-tilting table: Table dimensions of 750 x 600 mm, engineered to support heavy loads without compromising accuracy

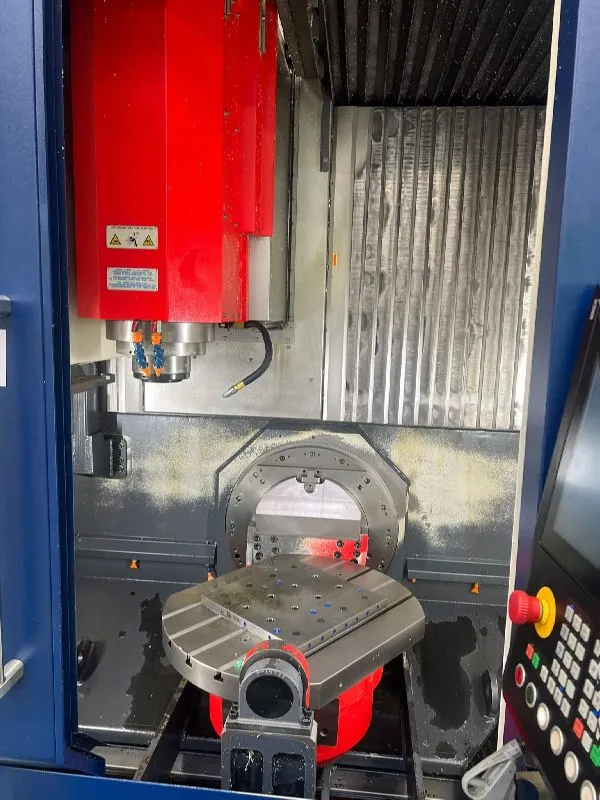

High-performance built-in spindle: Integrated 15,000 rpm motor ensuring high-speed machining and excellent surface finishes
BT 40 spindle taper: Rigid industrial standard, perfect for stable material removal and precise tool coupling
High-capacity tool magazine: Automatic tool changer with 40 stations to minimize setup and idle times

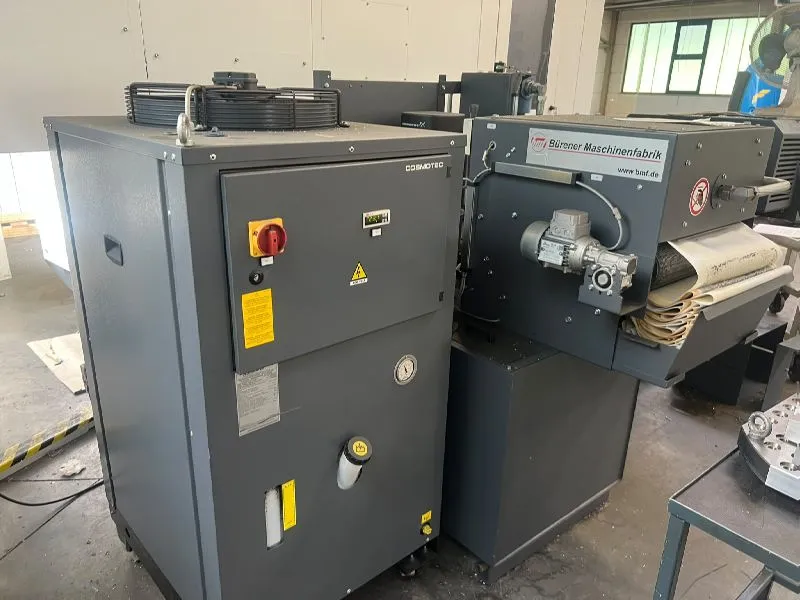

High-pressure through-spindle coolant: Internal coolant system for optimal chip evacuation and extended tool life
Renishaw electronic probe included: Integrated system for fast part zeroing and in-machine dimensional inspection

Typical Applications

Subcontract precision engineering: Machining complex batches requiring tight tolerances and multi-face milling in a single setup
Automotive and Motorsport industry: Milling structural components, engine blocks, and mechanical parts in light alloys or special steels
Aerospace industry: Manufacturing aerodynamically shaped aircraft components with challenging geometries
Mold and Die manufacturing: High-speed finishing of mold cavities and industrial tooling, leveraging the 15,000 rpm spindle
Rapid prototyping: Quick production of one-off functional prototypes directly from complex 3D CAD files
