Price on request

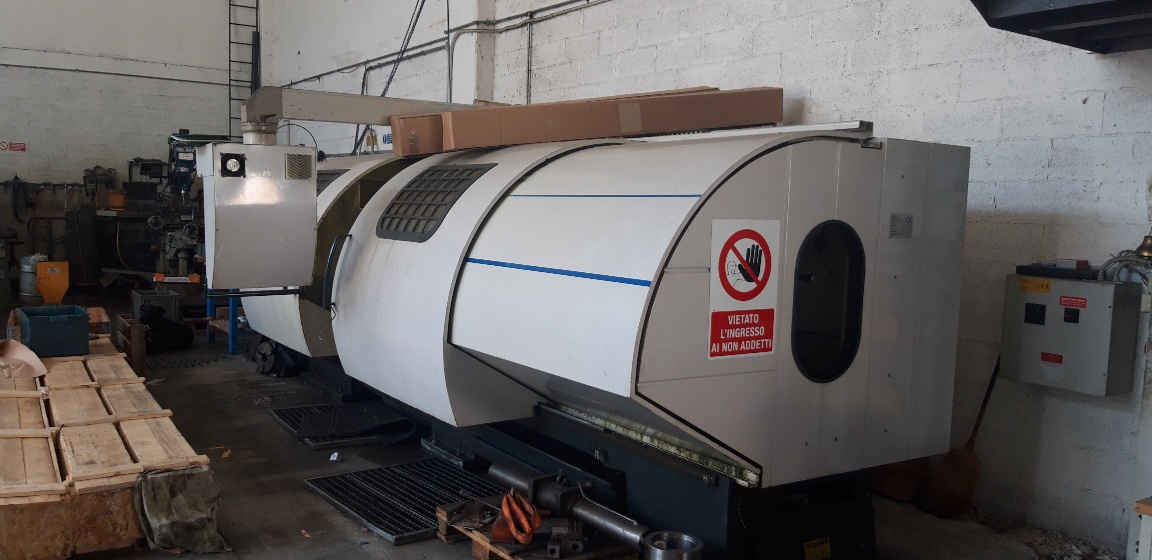

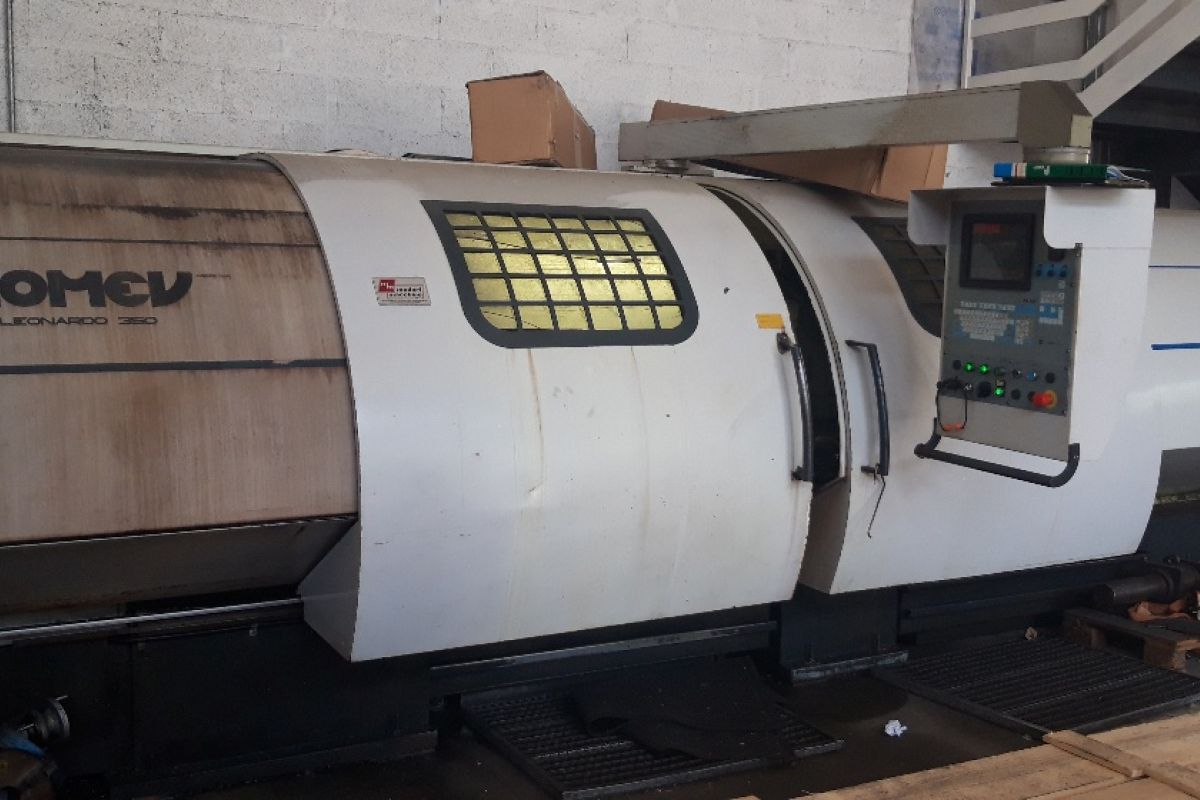

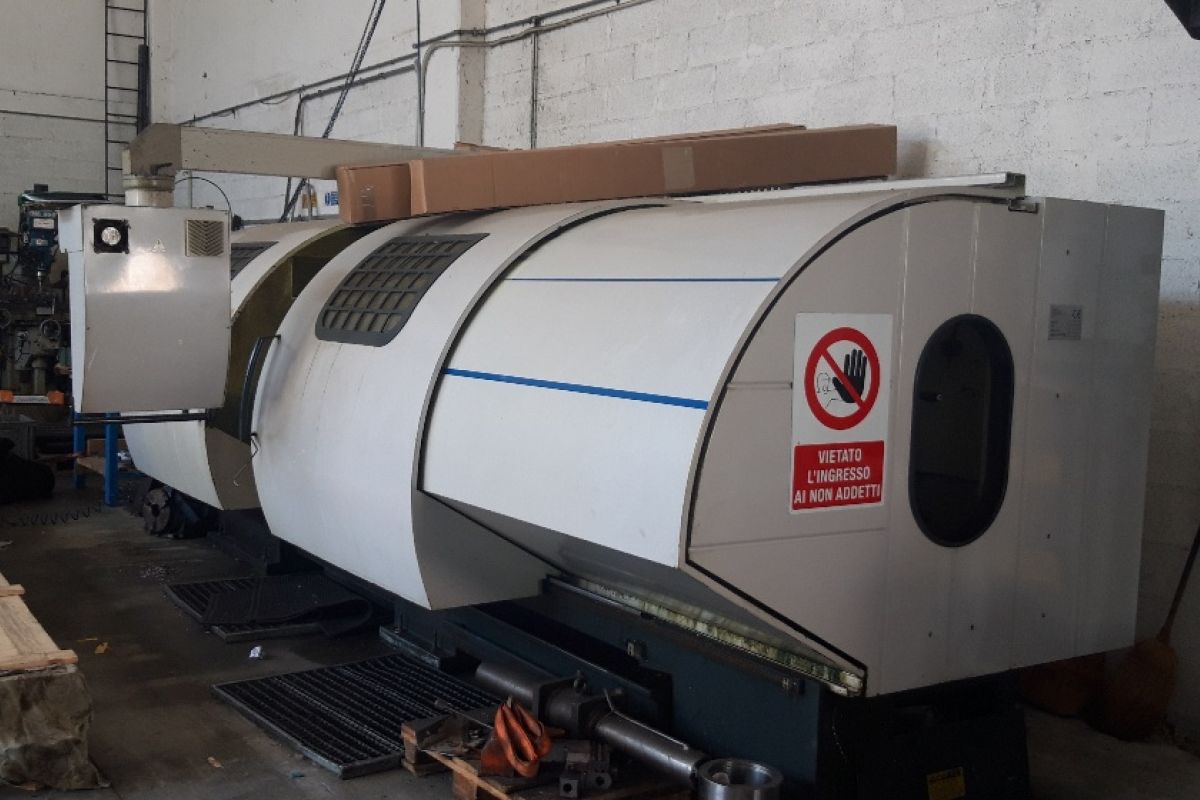

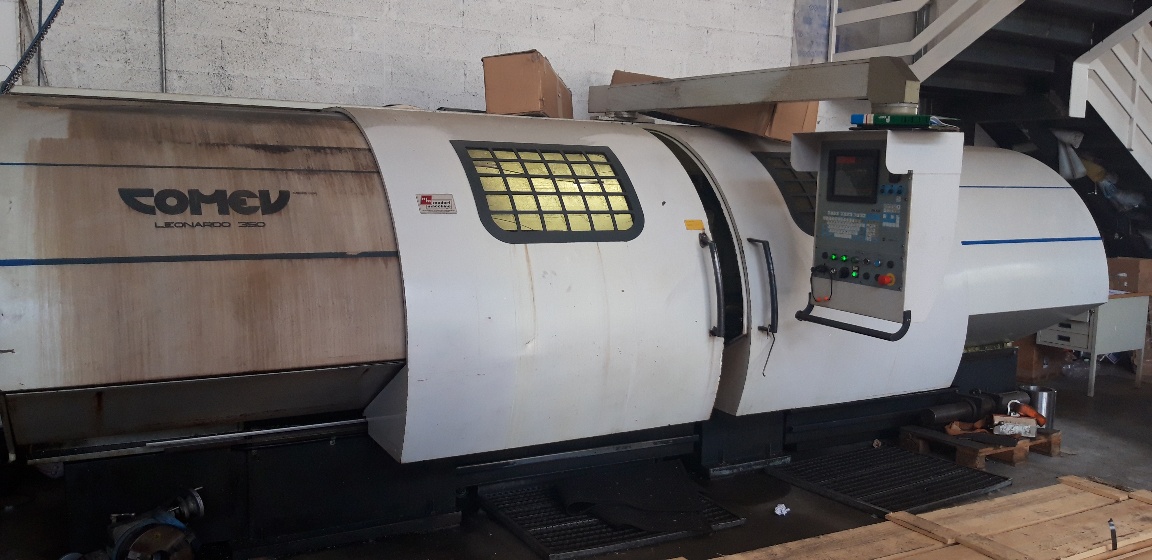

The Comev Leonardo is a used teach-in lathe designed to combine the simplicity of conventional turning with the advantages of numerical control. This type of machine allows both manual operation and semi-automatic programming, making it ideal for small batch production and maintenance work.

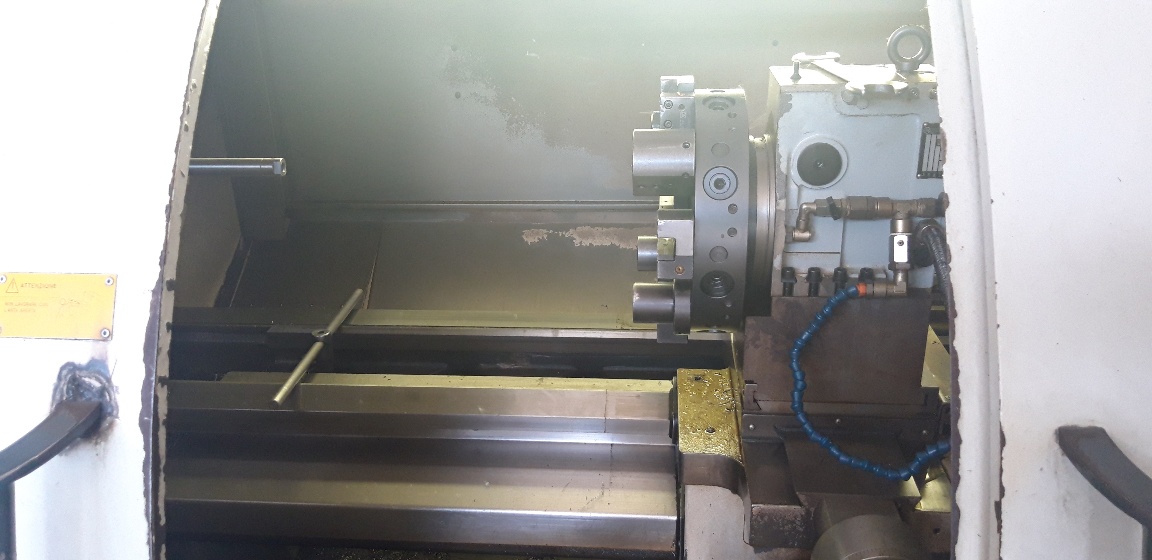

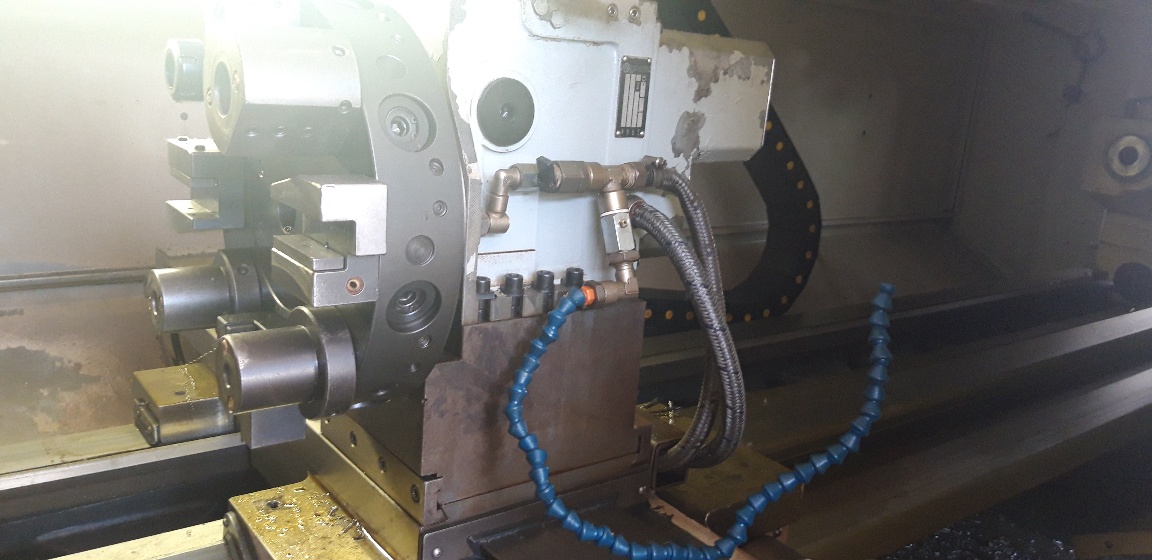

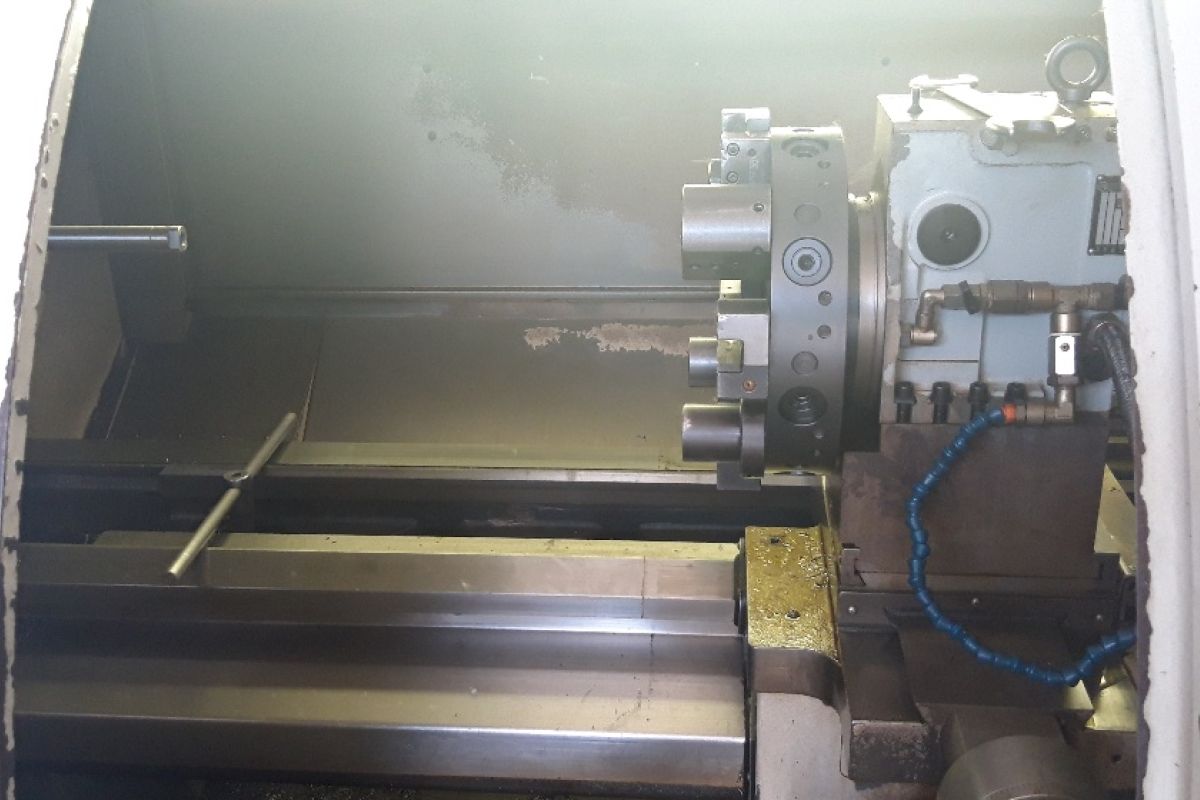

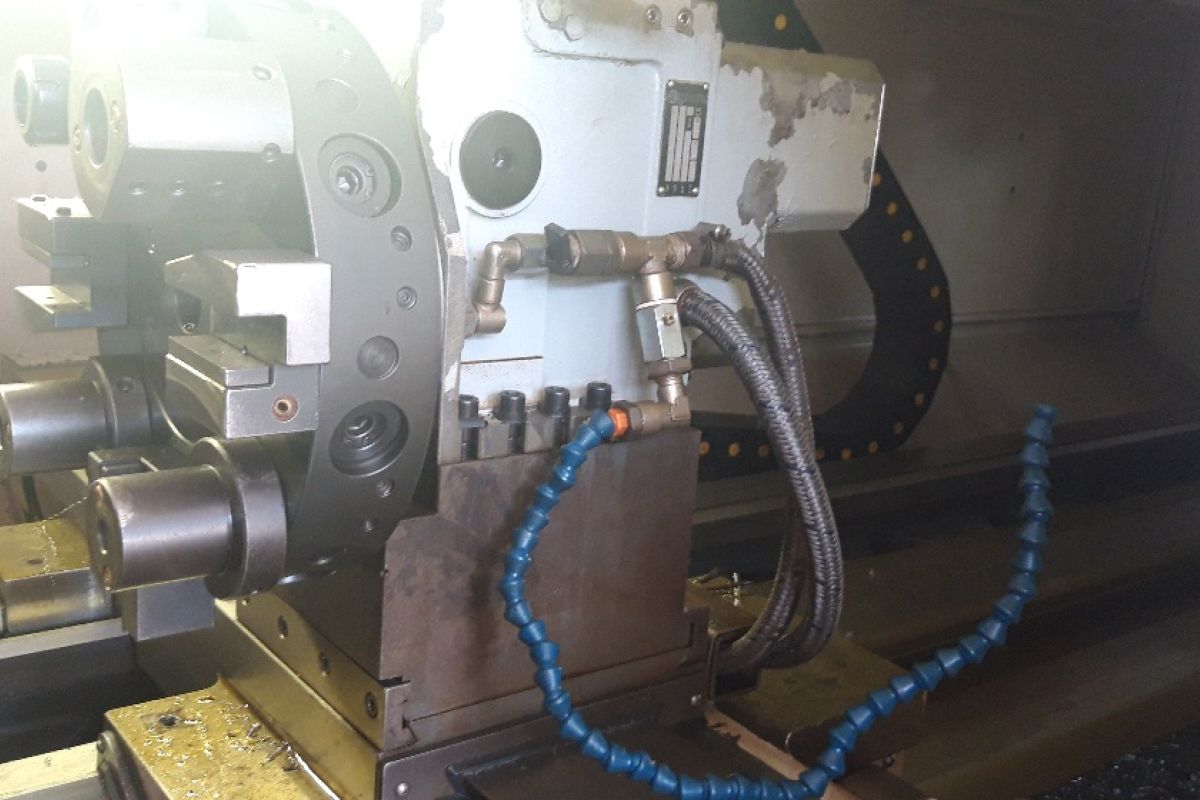

Equipped with the Z32 numerical control, the machine simplifies programming of turning cycles such as facing, longitudinal turning, and threading. The automatic 8-position electric tool turret allows quick tool indexing, improving productivity and reducing setup times.
With a distance between centers of 3000 mm and a large turning capacity, the Comev Leonardo is suitable for machining shafts and cylindrical components in mechanical workshops requiring flexibility and ease of use.
Maximum rotating diameter on the bed: | 700 mm |
Maximum rotating diameter on the cross carriage: | 460 mm |
Distance between the tips: | 3000 mm |
Turret type: | automatic |
Number of seats in the cabin: | 8 |

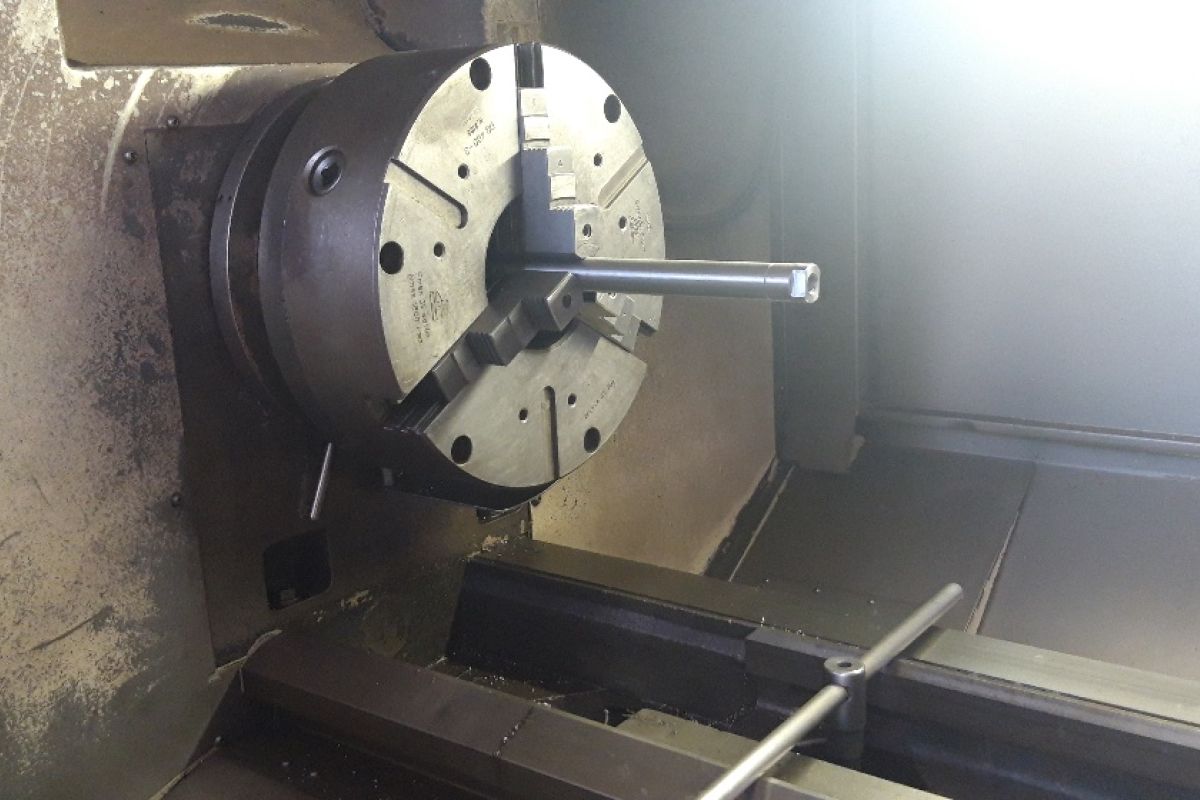

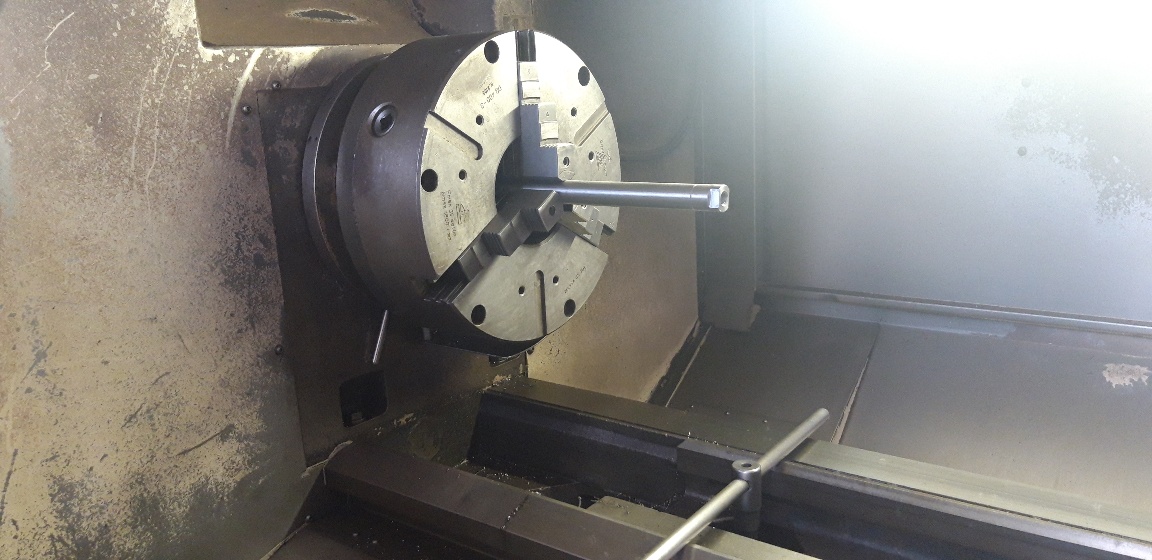

Spindle nose attachment: | Cam-Lock D1-8 |
Spindle speed: | 2000 rpm |
Spindle bore diameter: | 110 mm |
Key points: | 10 m/min |

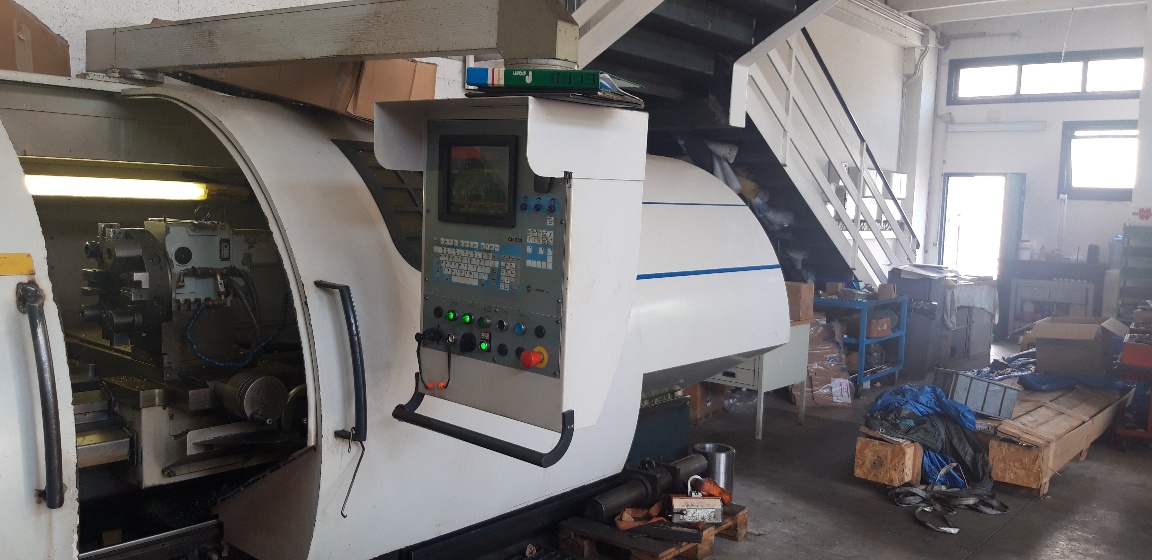

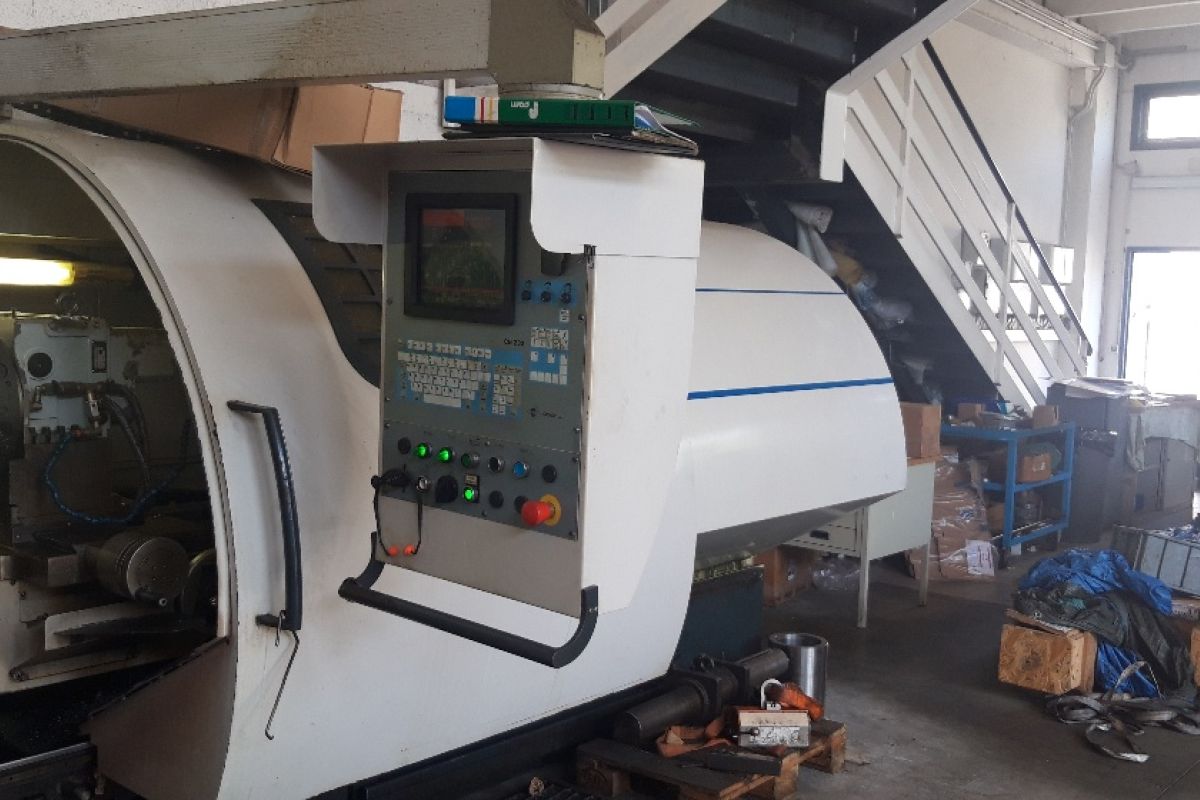

CNC type: | Z32 |
Overall dimensions: | 5750 x 2500 x 1910 h mm |
Weight: | 5500 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
