Parallel Lathe Merli Clovis 50

Model: CLOVIS 50 X 6000
Brand: MERLI
Type: lathes

Price on request


Description

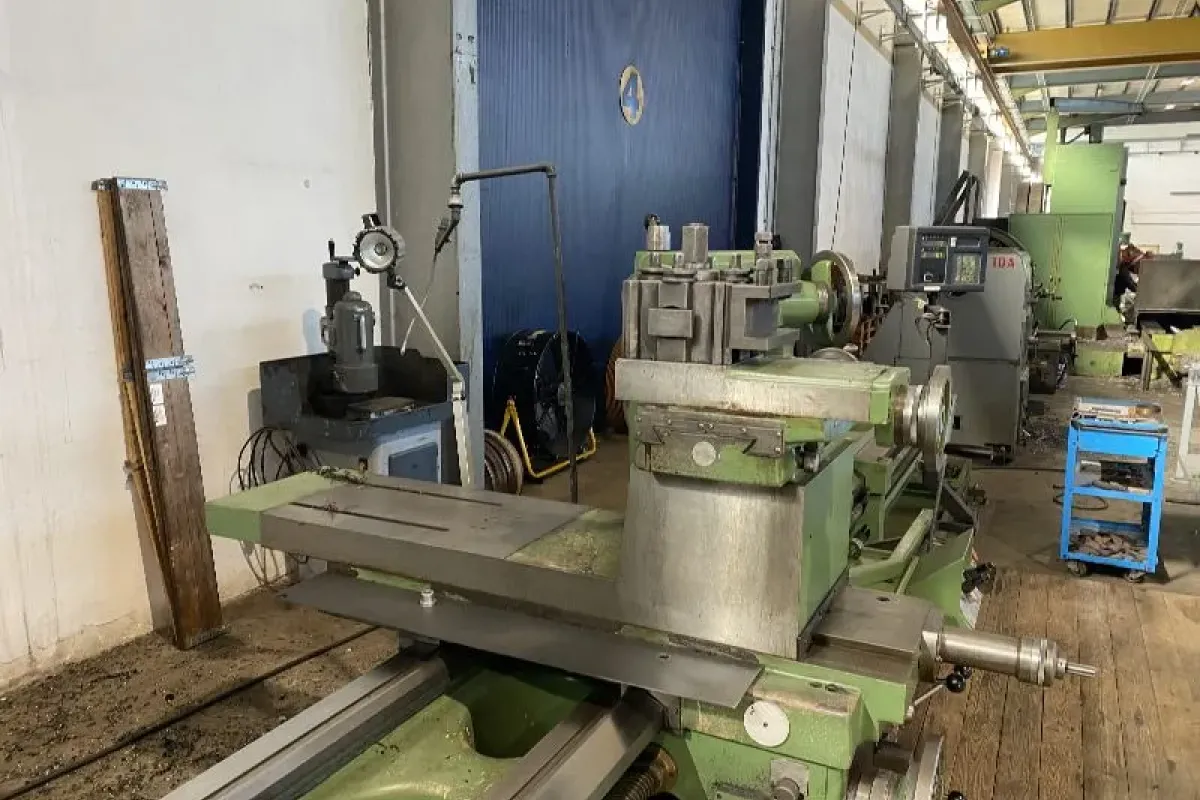

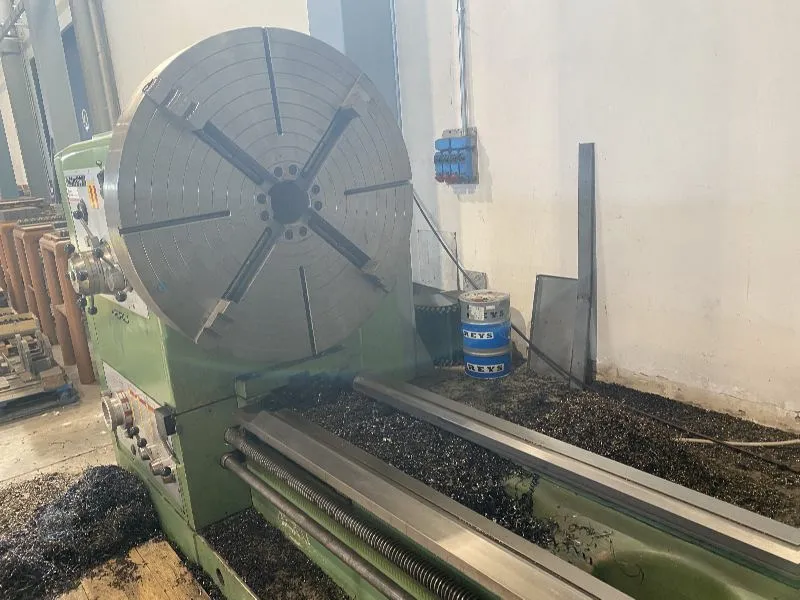

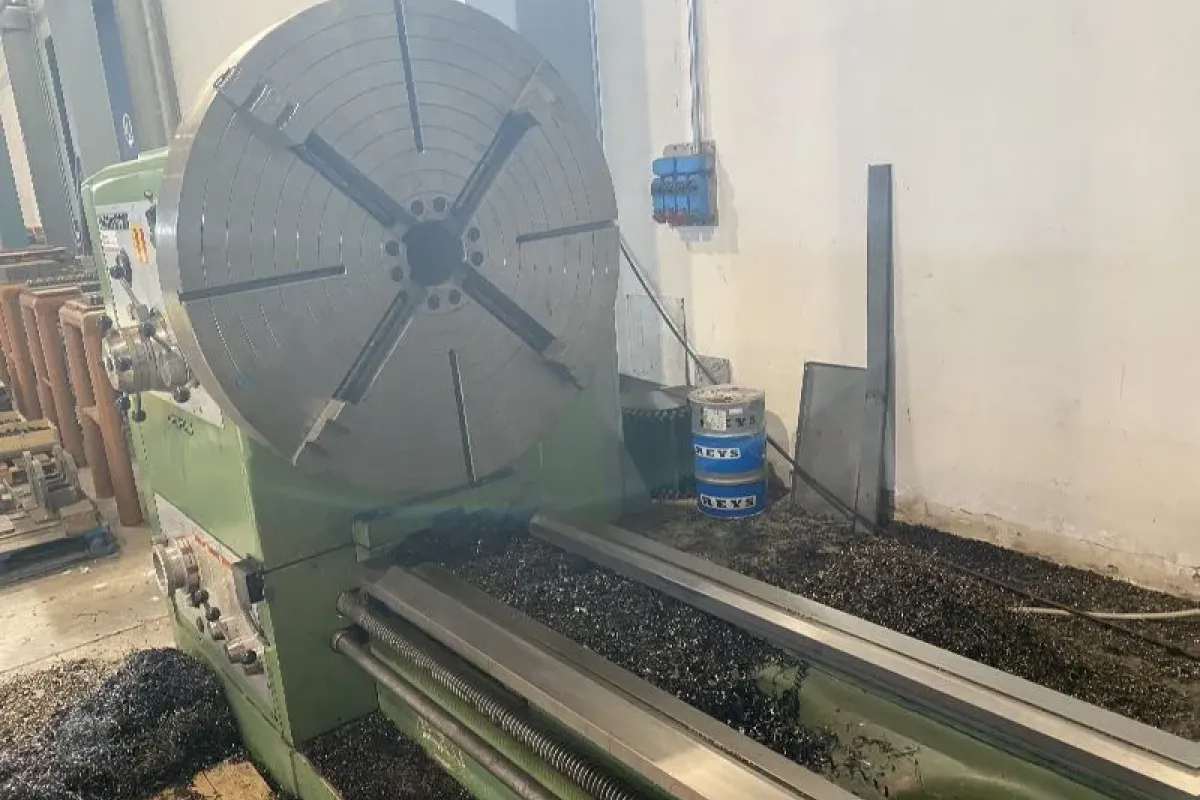

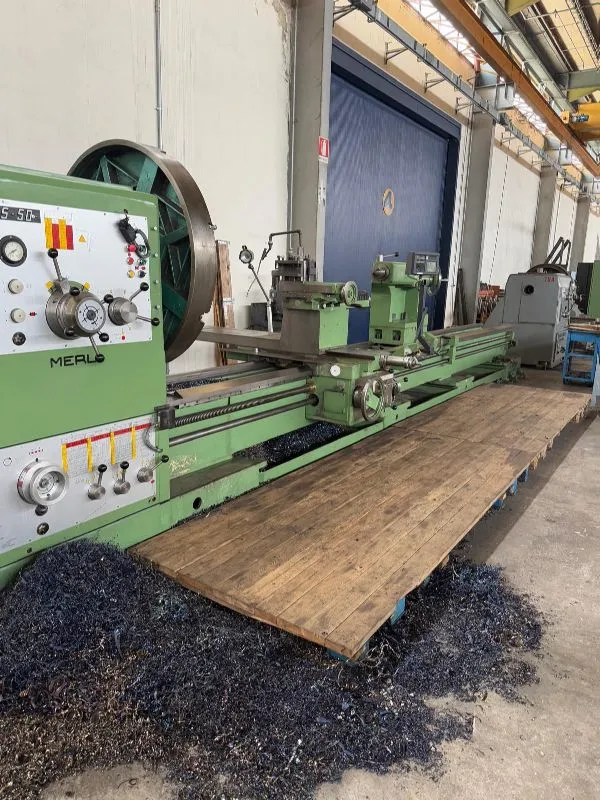

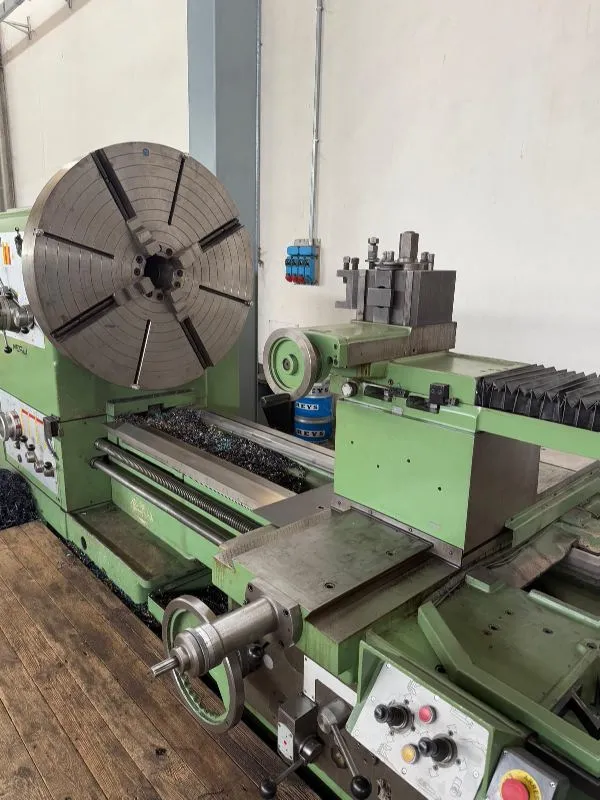

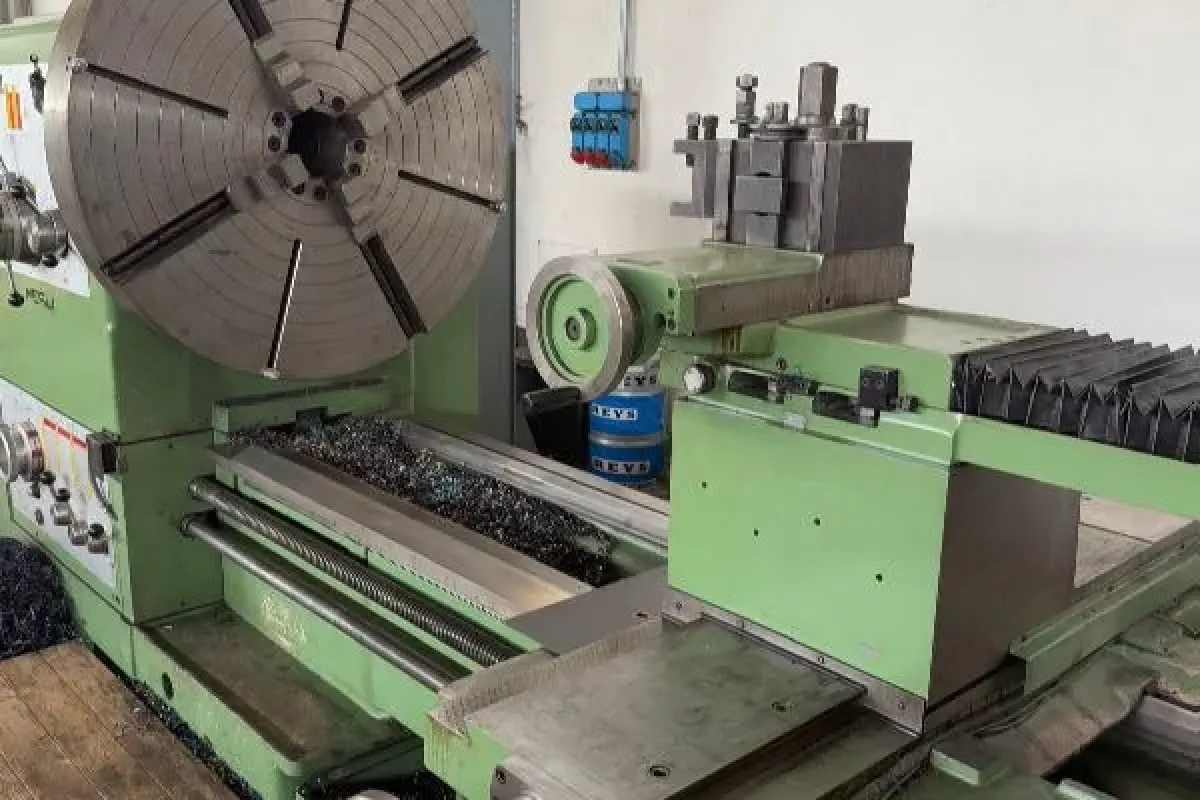

Used Heavy Duty Parallel Lathe Merli Clovis 50 x 6000

The Merli Clovis 50 x 6000 is a used heavy-duty parallel lathe designed for turning large and heavy mechanical components requiring high stability and precision. Built with a robust machine structure and a wide bed, this lathe ensures excellent rigidity during demanding machining operations.

With a center height of 750 mm and a distance between centers of 6000 mm, the machine is particularly suitable for machining large diameter shafts and long cylindrical components. The generous turning capacity combined with the wide bed structure provides stable cutting conditions even during heavy-duty turning operations.

Equipped with digital readouts for precise positioning and supplied as a checked and serviced machine, the Merli Clovis 50 represents a reliable solution for workshops and heavy mechanical industries looking for a large used industrial lathe for long workpieces.

Technical Specifications
Maximum rotating diameter on the bed:
1500 mm
Maximum rotating diameter on the cross carriage:
1120 mm
Maximum turnable diameter:
1790 mm
Distance between the tips:
6000 mm

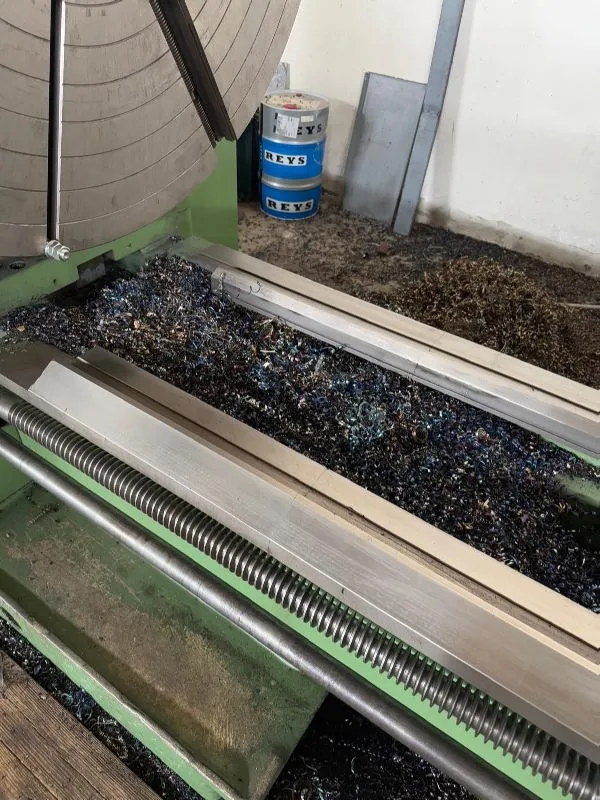

Bed width:
600 mm
Spindle nose attachment:
ASA A2-11
Spindle speed:
800 rpm
Spindle bore diameter:
155 mm
Cone type:
C.M. 6
Overall dimensions:
8885 x 1175 x 1850 h mm
Weight:
13600 Kg

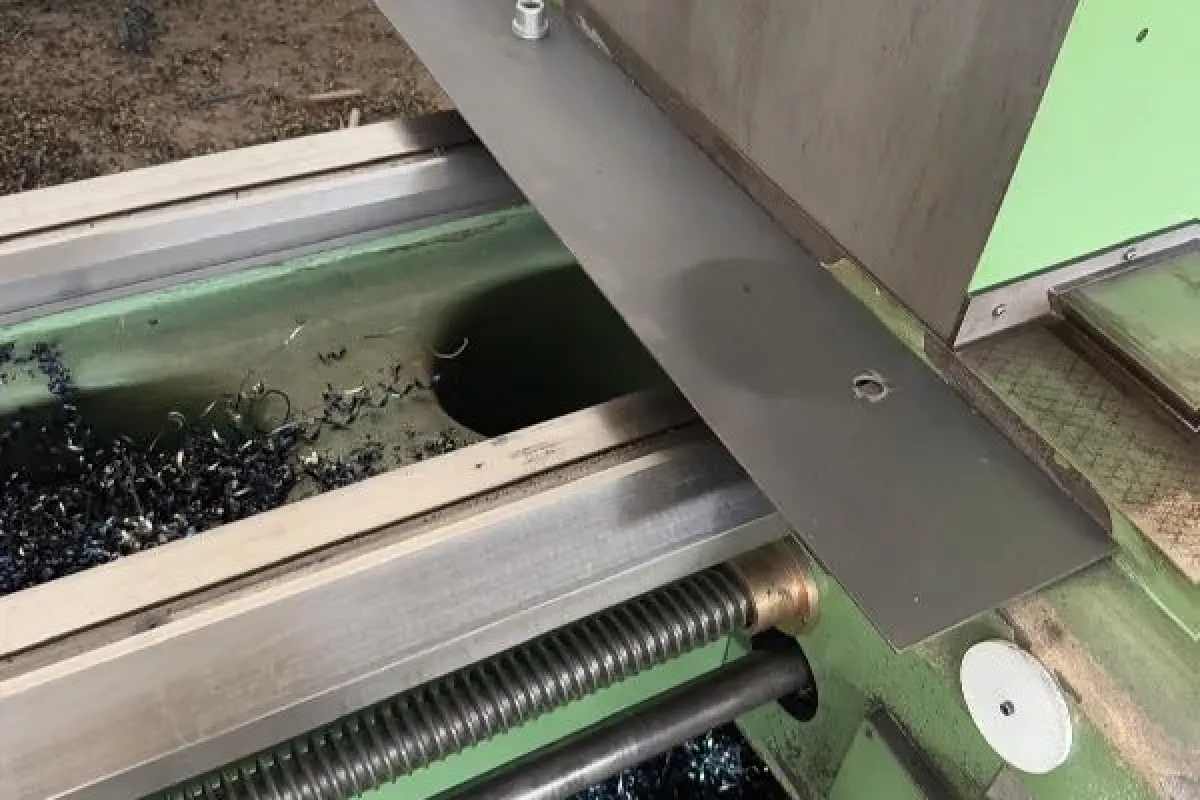

Type of guides:
Box way
Type of accommodation:
meehanite cast iron
Key Features
  • Machine type: Heavy-duty parallel lathe
  • Model: Merli Clovis 50
  • Center height: 750 mm
  • Distance between centers: 6000 mm
  • Maximum turning diameter over bed: 1500 mm
  • Maximum turning diameter over cross slide: 1120 mm

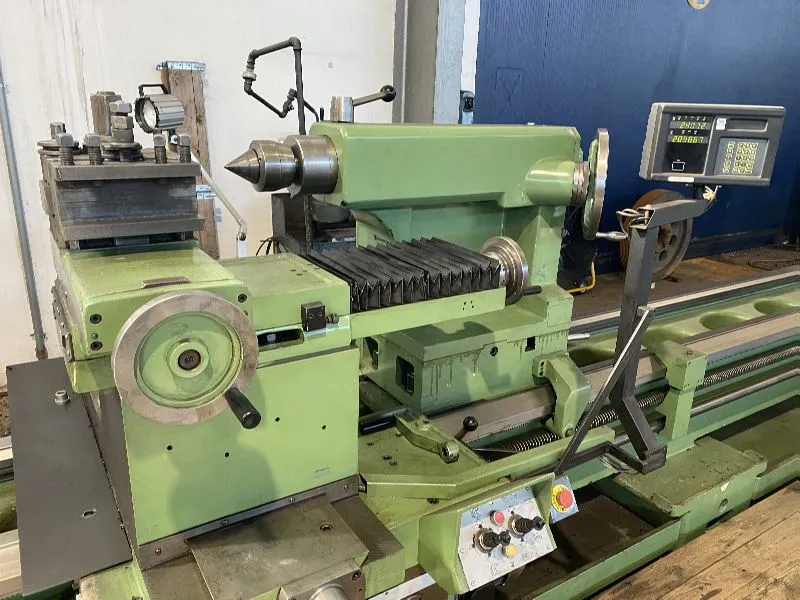

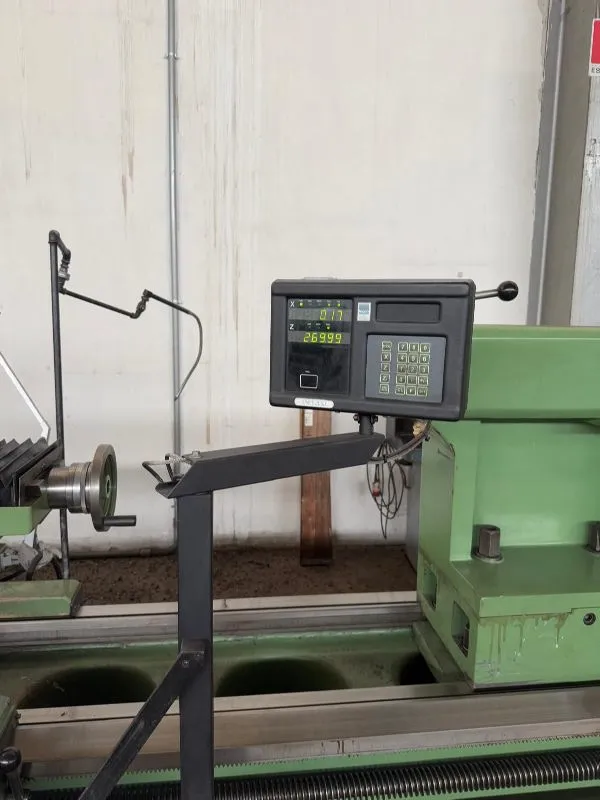

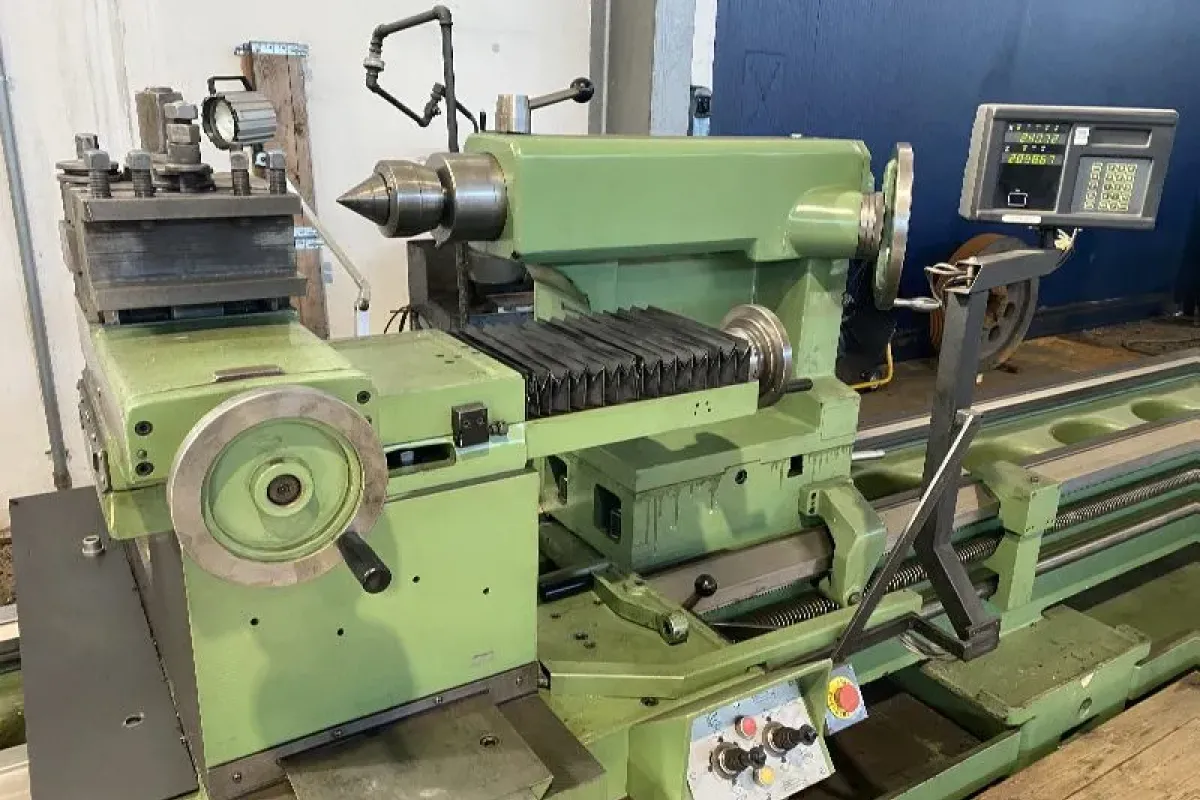

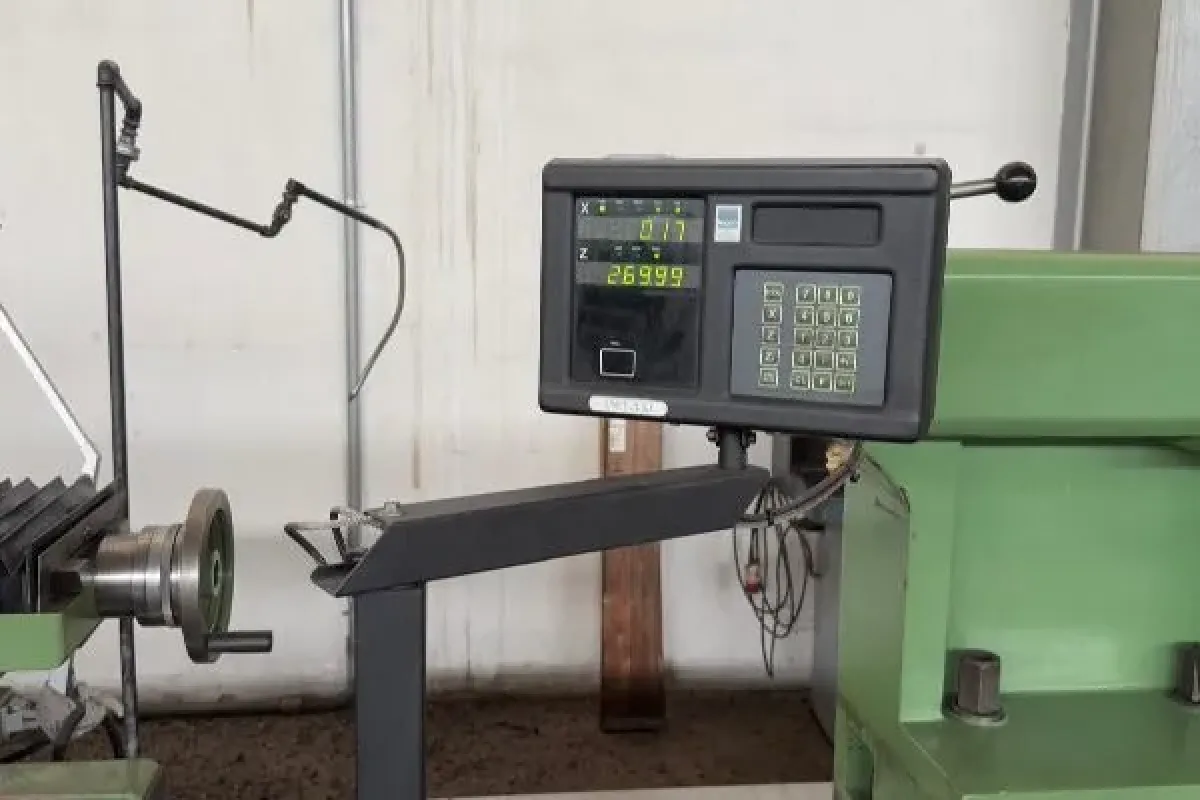

  • Digital readout system (DRO)
  • Machine checked and serviced

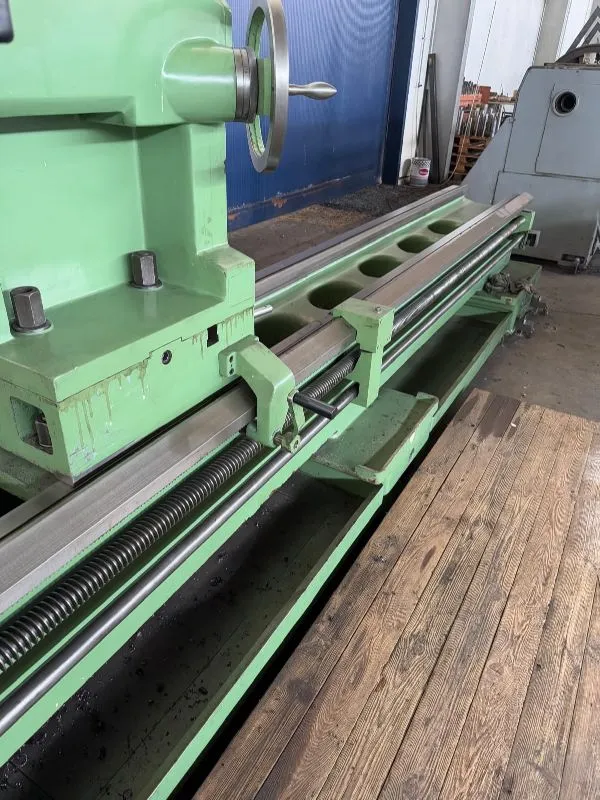

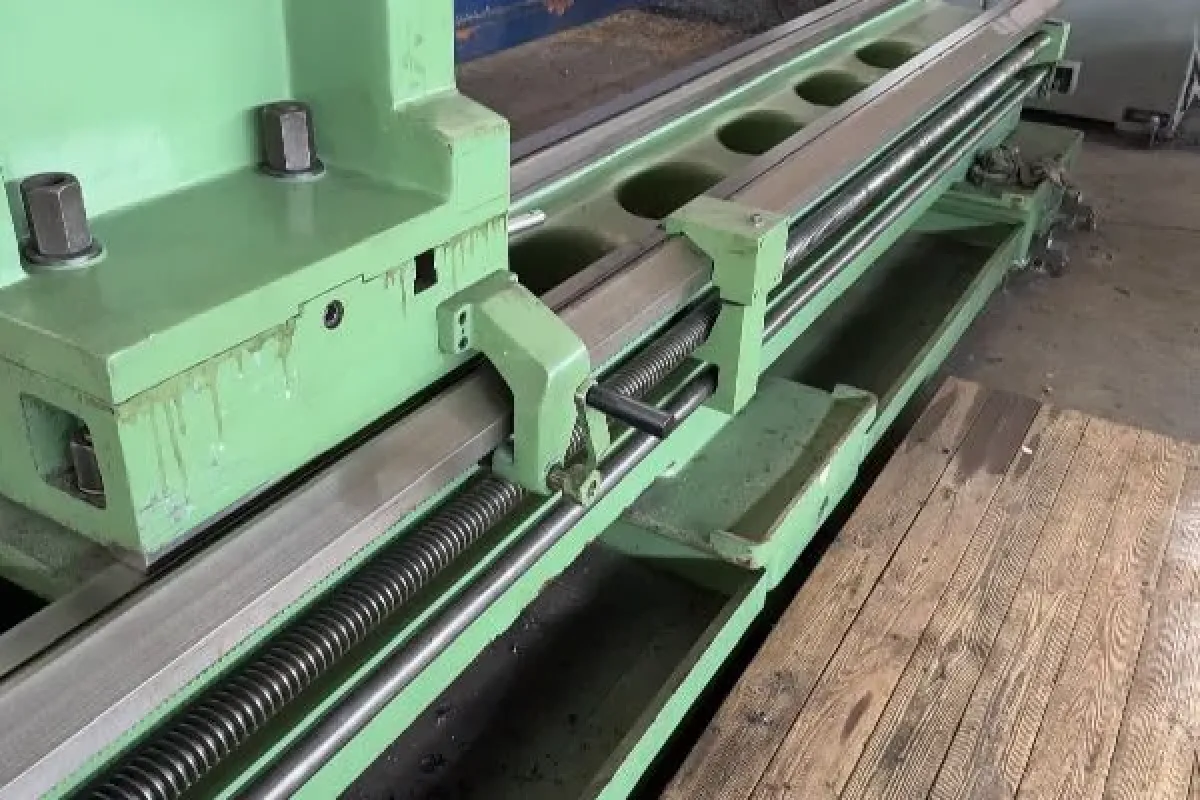

  • Rigid bed construction suitable for heavy machining
Typical Applications
  • Turning of long shafts and large cylindrical components
  • Heavy-duty machining of steel and cast iron parts
  • Mechanical subcontracting
  • Repair and maintenance of industrial components
  • General heavy engineering machining
