Price on request

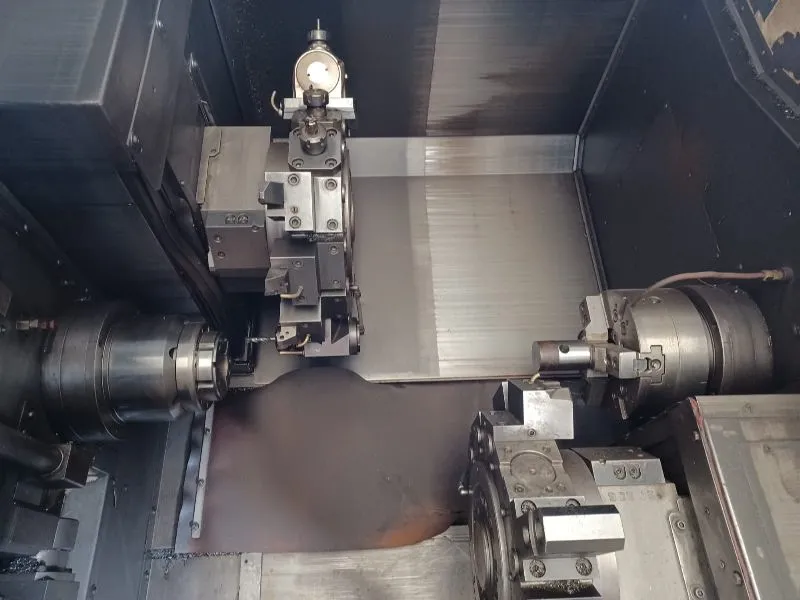

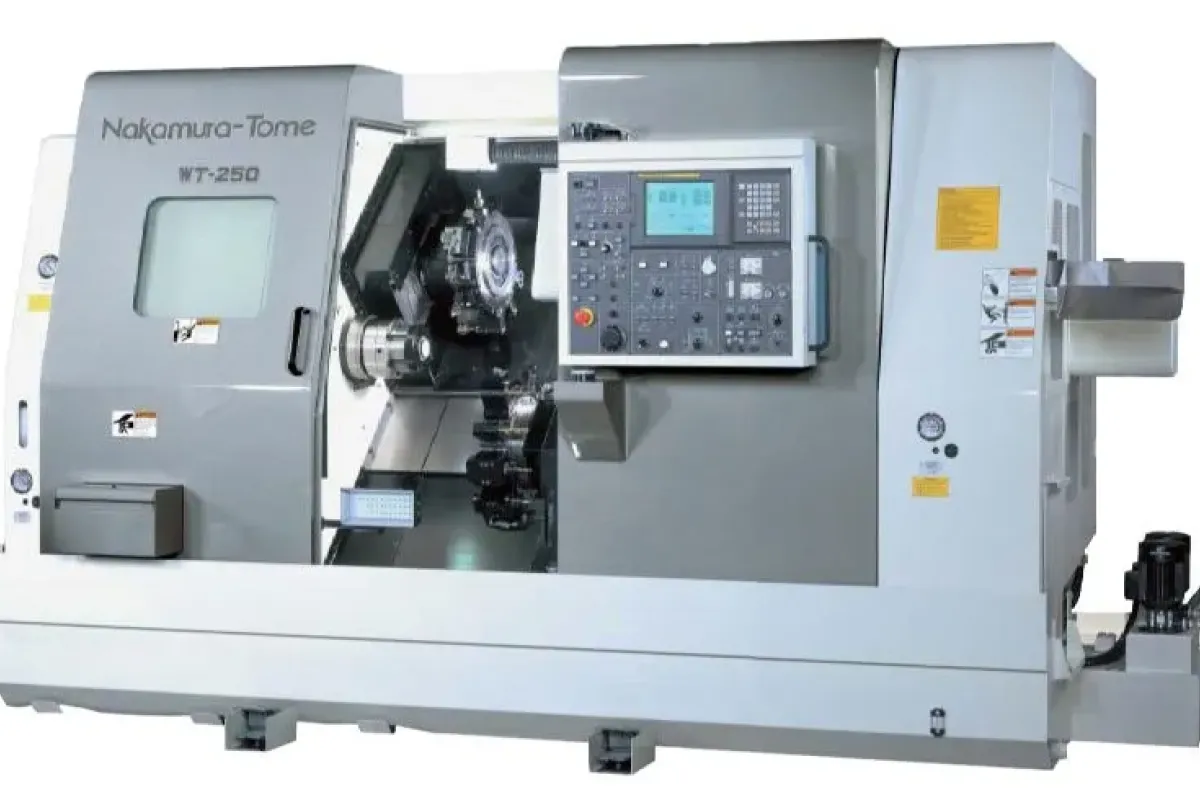

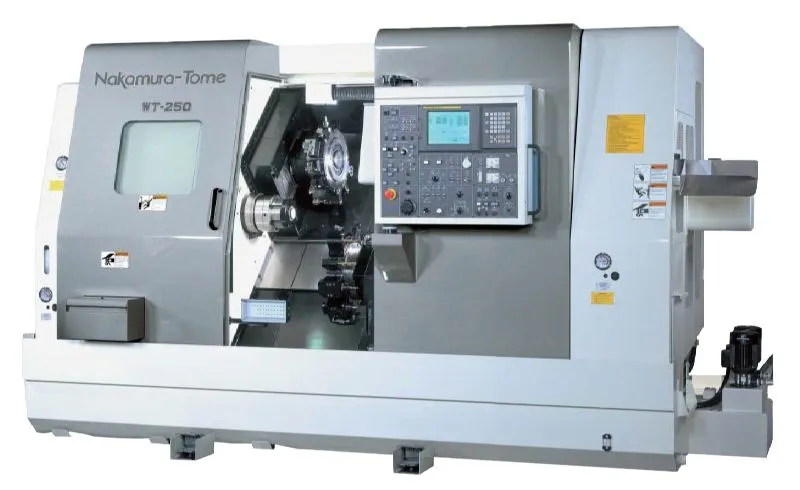

The Nakamura WT-250 Y is a used CNC multitasking lathe designed for high-productivity machining of complex components in a single setup. Thanks to its twin spindle configuration and dual turrets, the machine allows simultaneous machining operations, significantly reducing cycle times.

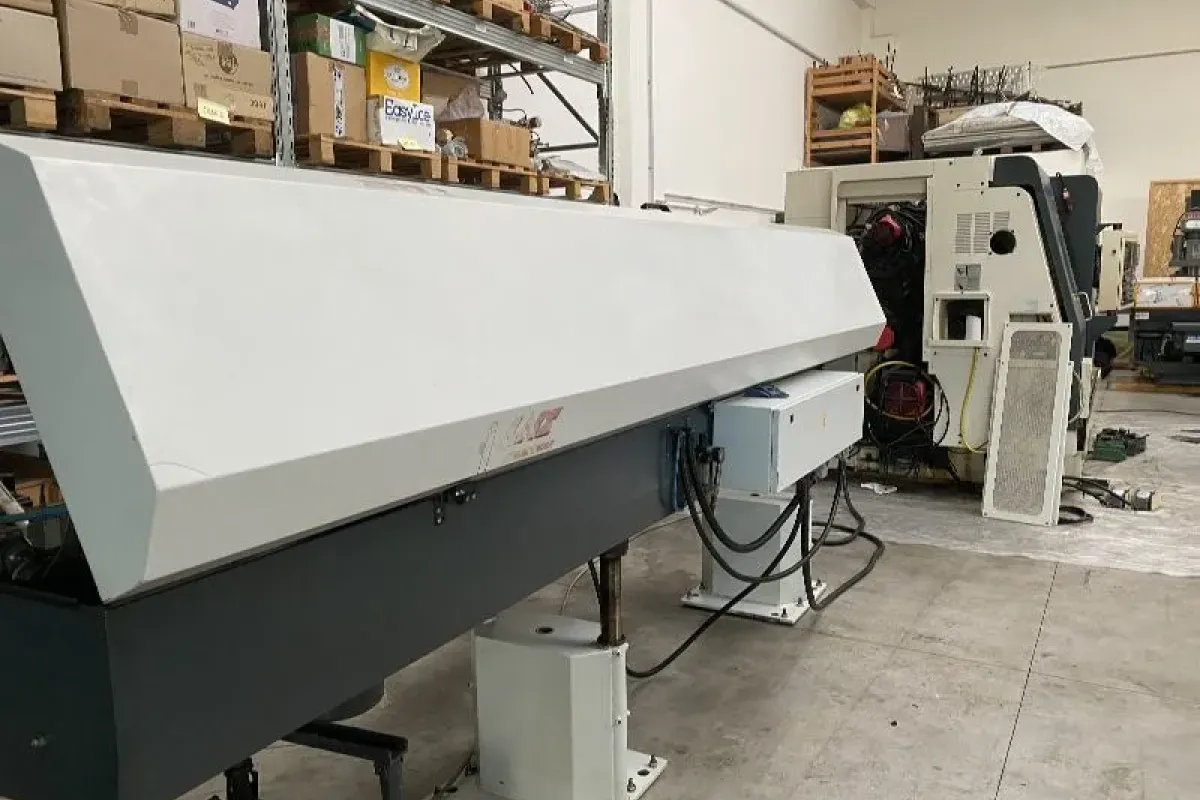

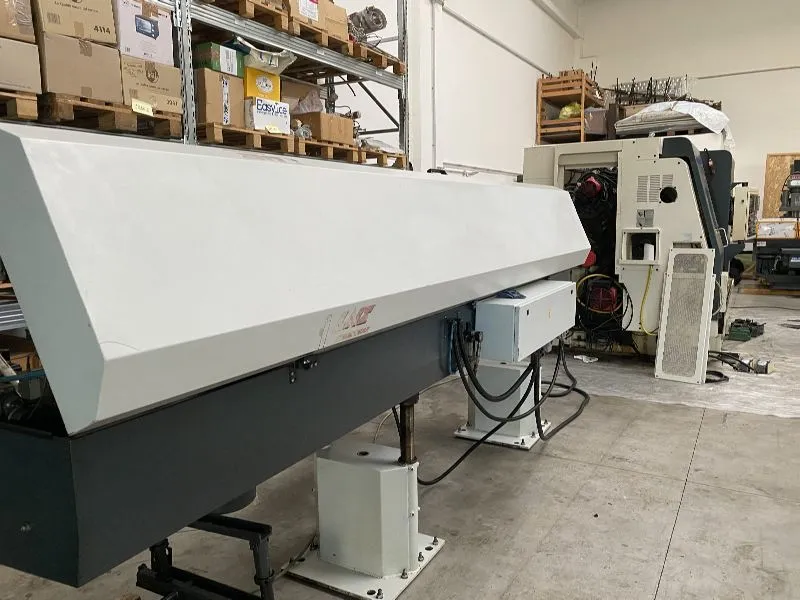

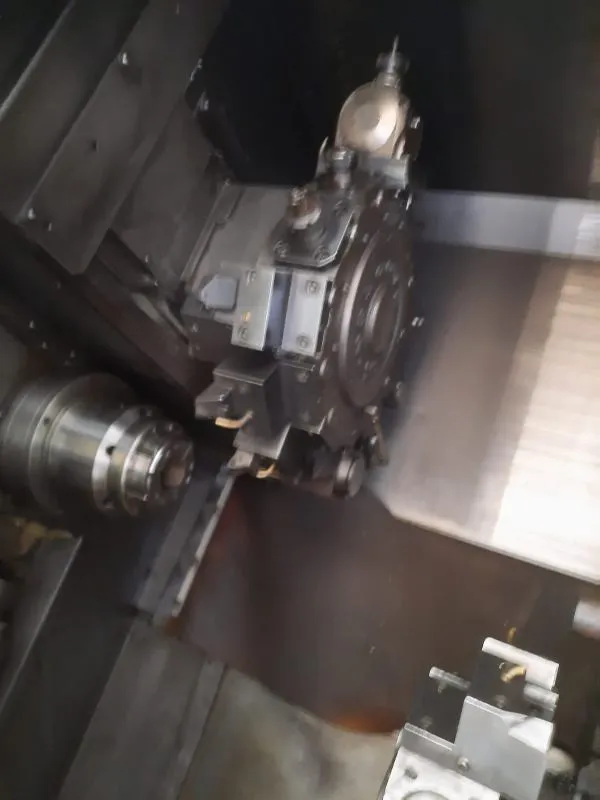

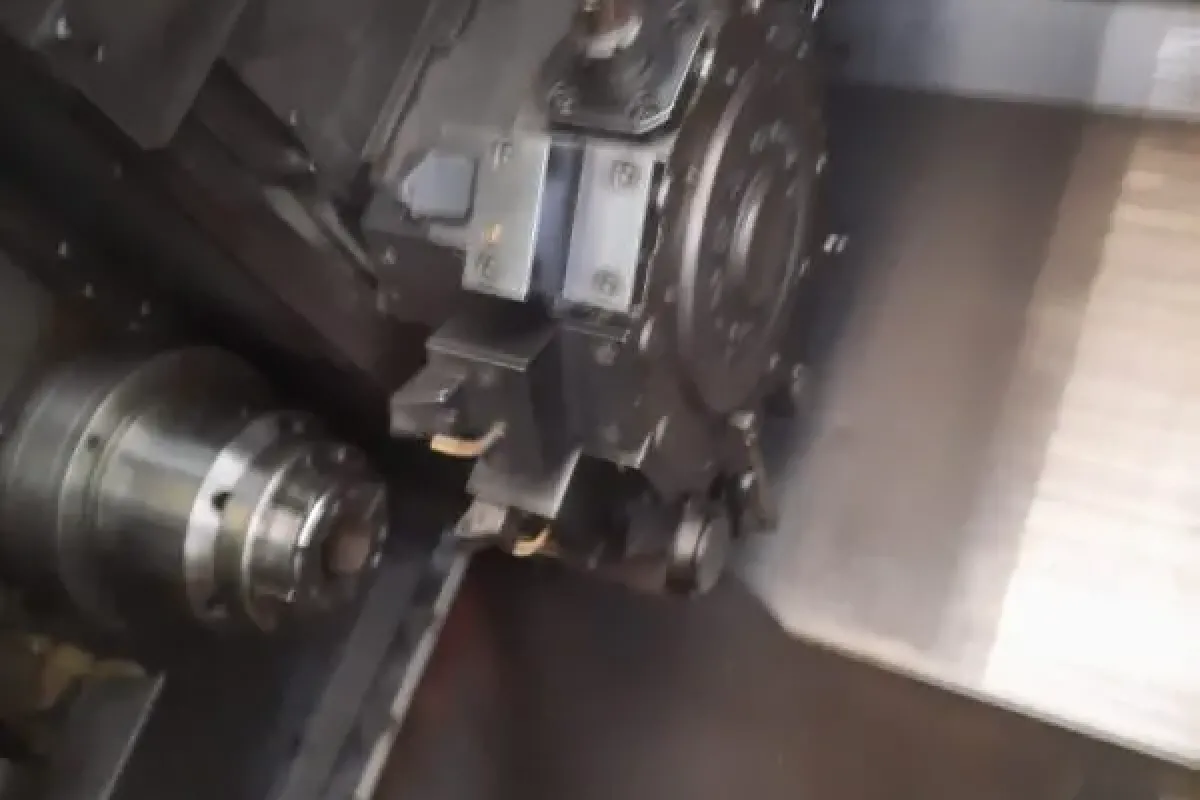

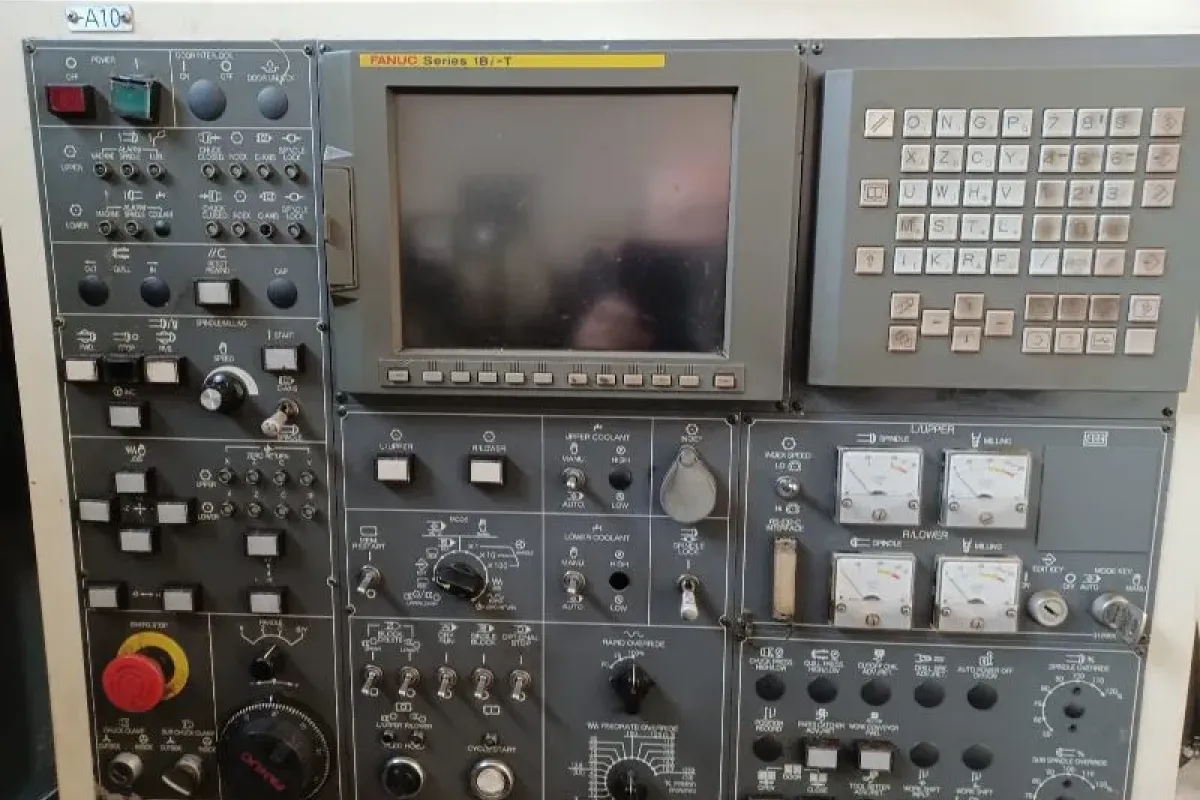

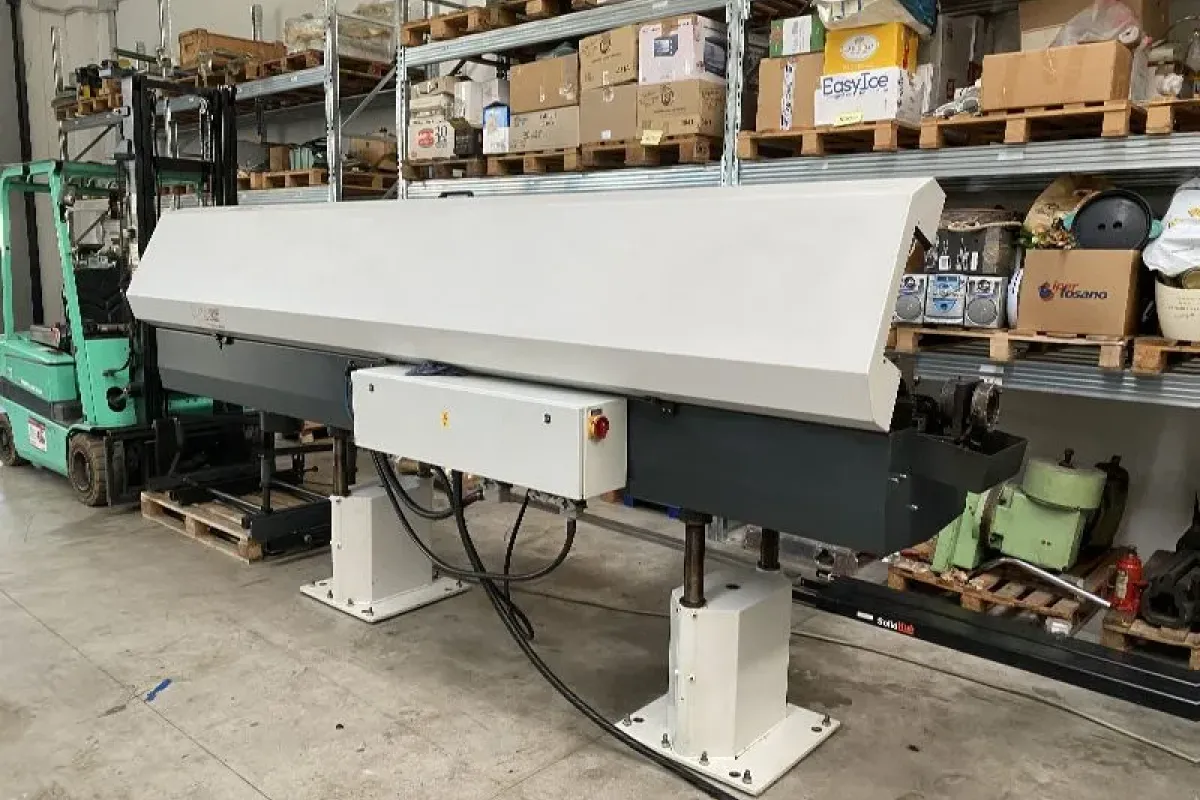

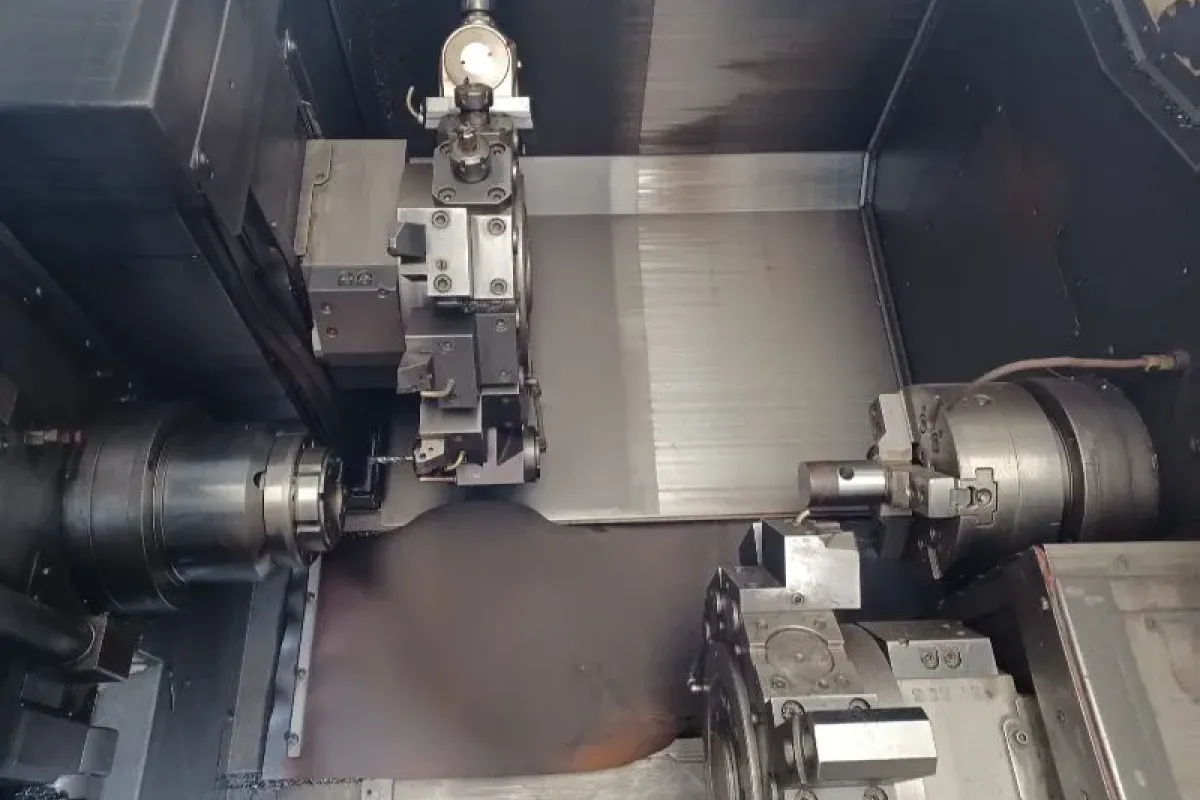

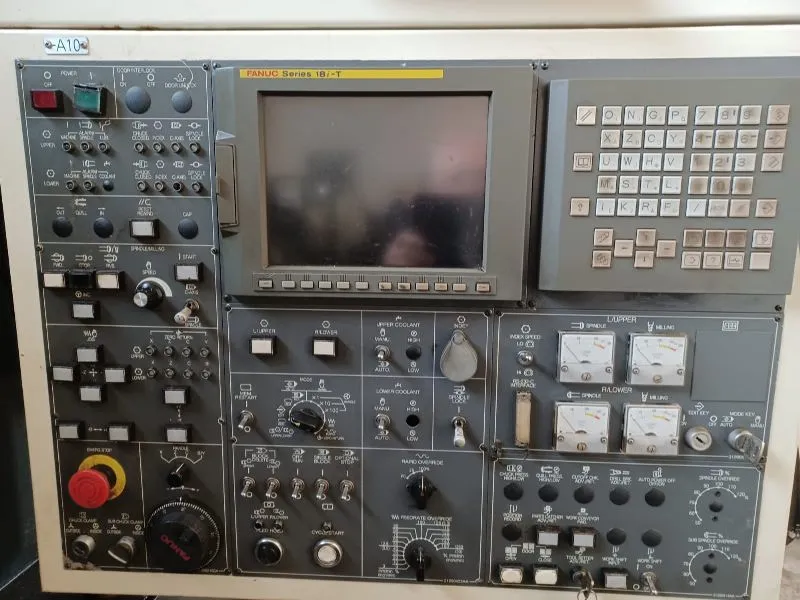

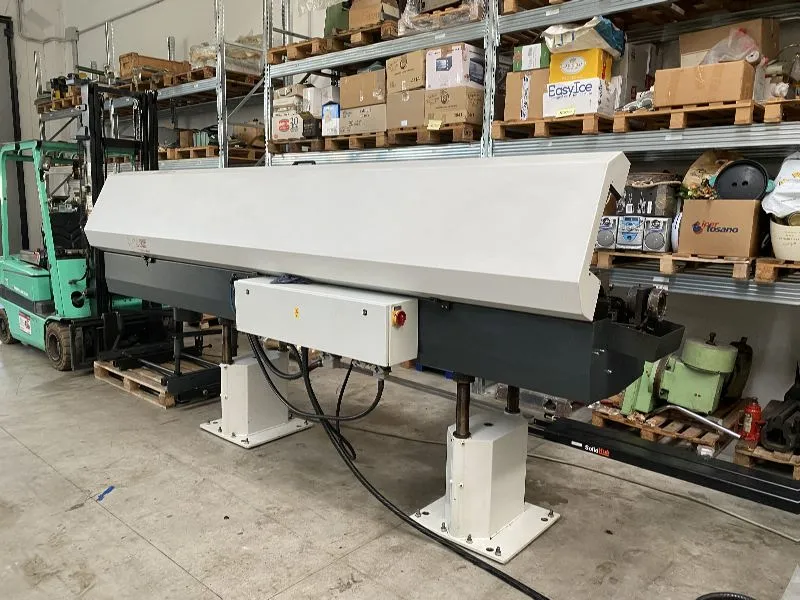

Equipped with a Fanuc 18i-TA CNC control, the machine features a live upper turret with C and Y axis and a live lower turret with C axis, enabling combined turning and milling operations. The integration of an LNS Sprint bar feeder allows automated bar machining, making the Nakamura WT-250 Y (Year 2004) particularly suitable for serial production.
This configuration makes the machine an excellent solution for companies looking for a used multitasking CNC lathe capable of high-efficiency production and machining of complex turned parts.
Maximum turnable diameter: | 250 mm |
Machinable length: | 555 mm |
Turret type: | Motorized |
Number of seats in the cabin: | 12 |
X-axis travel: | 195 mm |
Z-axis travel: | 600 mm |
Spindle nose attachment: | ASA A2-6 |
Spindle speed: | 4500 rpm |
Spindle bore diameter: | 80 mm |
Useful bar clearance: | 65 mm |
Spindle power: | 11/15 KW |
C-axis and power tools: | Yes |
CNC type: | FANUC 18i-TA |
Overall dimensions: | 3475 x 1933 x 2050 h mm |
Weight: | 6000 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
