Price on request

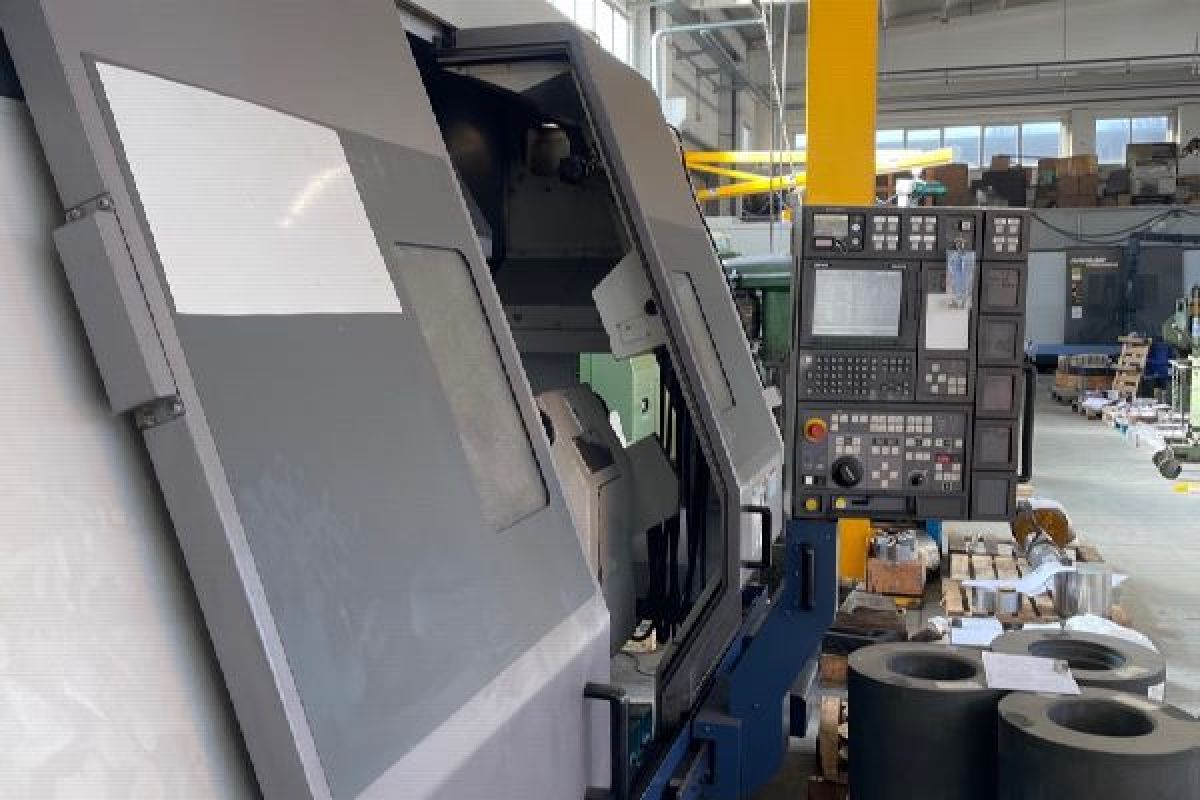

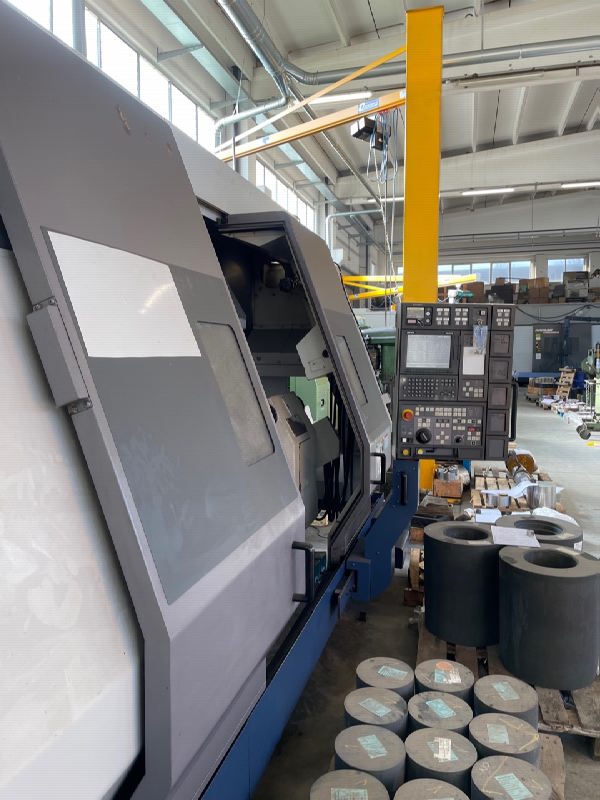

The Mori Seiki MT-3000 is a used CNC multitasking lathe designed to perform complex turning and milling operations in a single setup. Thanks to its advanced multitasking configuration, the machine significantly reduces setup times and increases productivity when machining complex components.

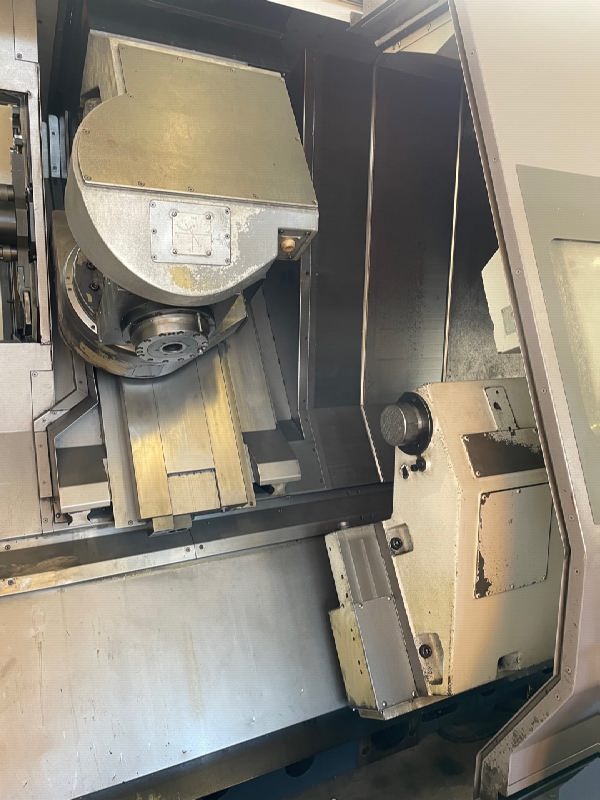

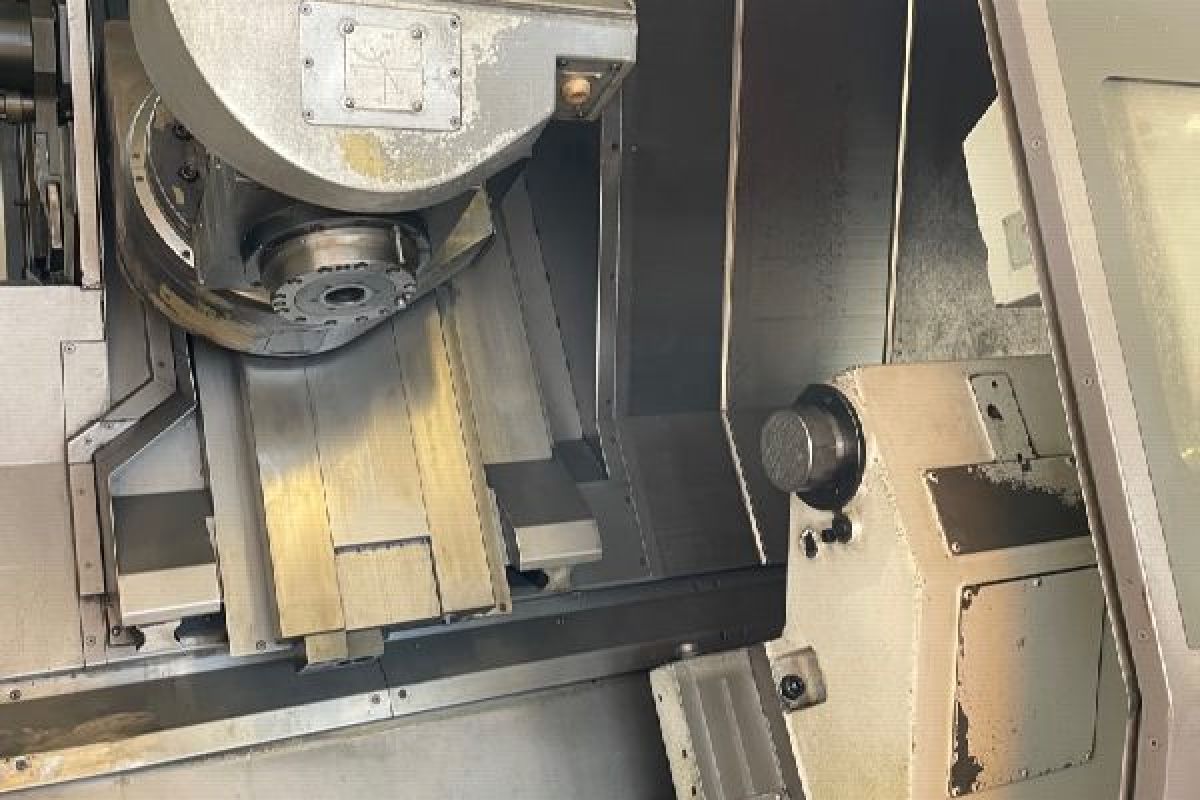

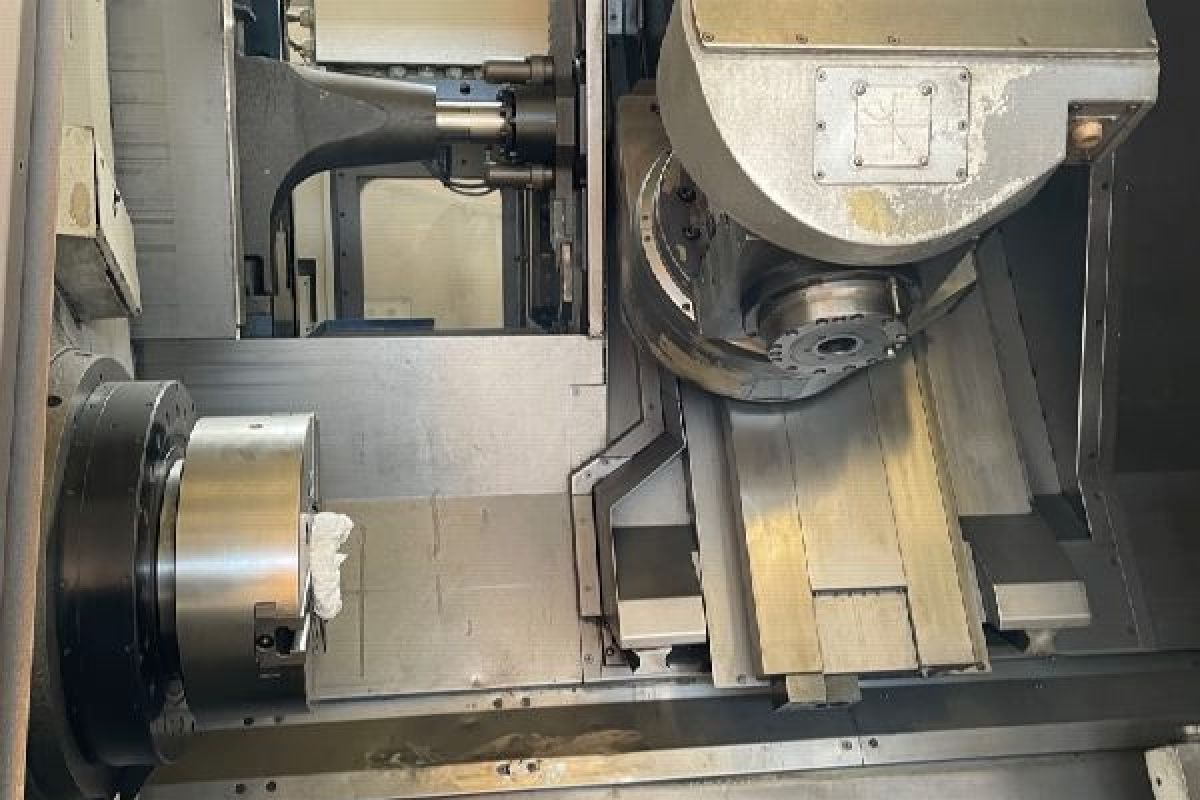

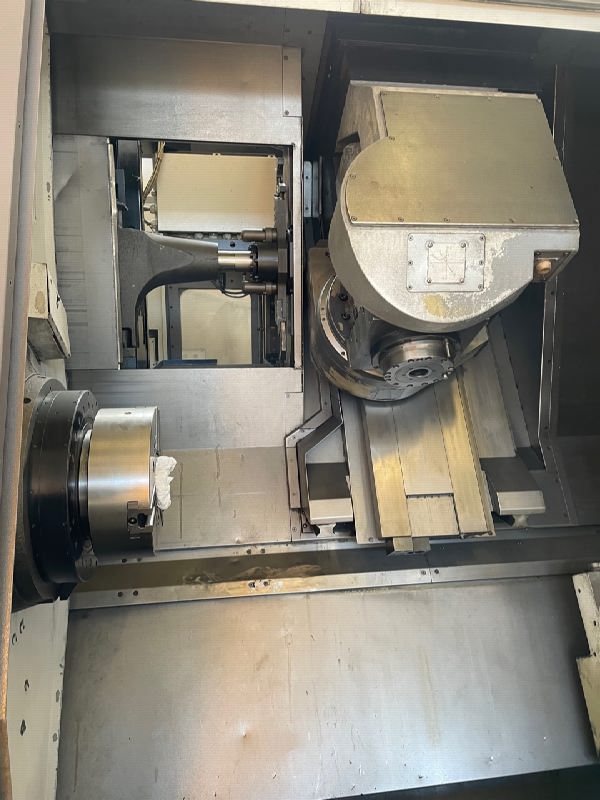

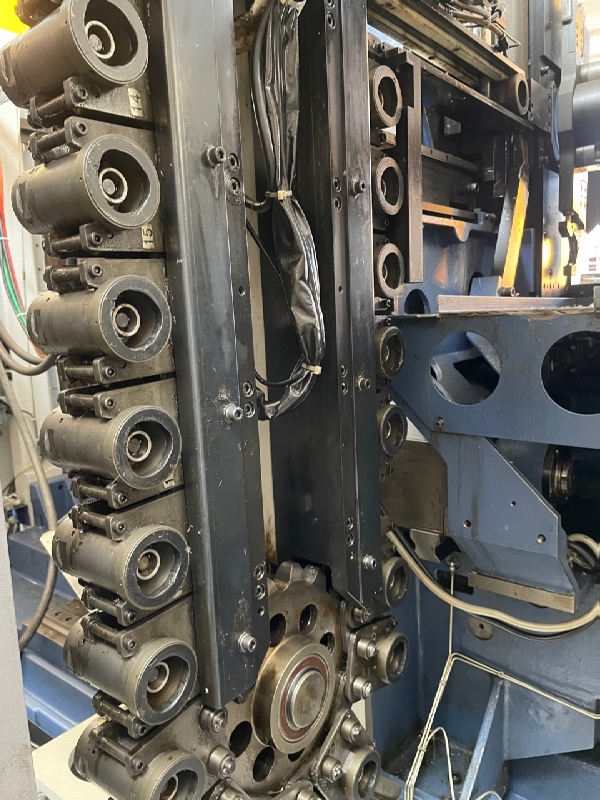

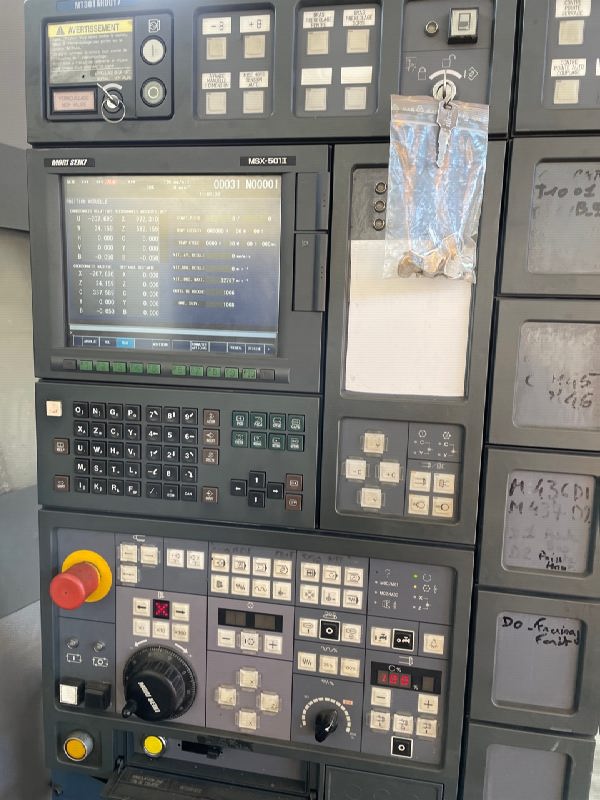

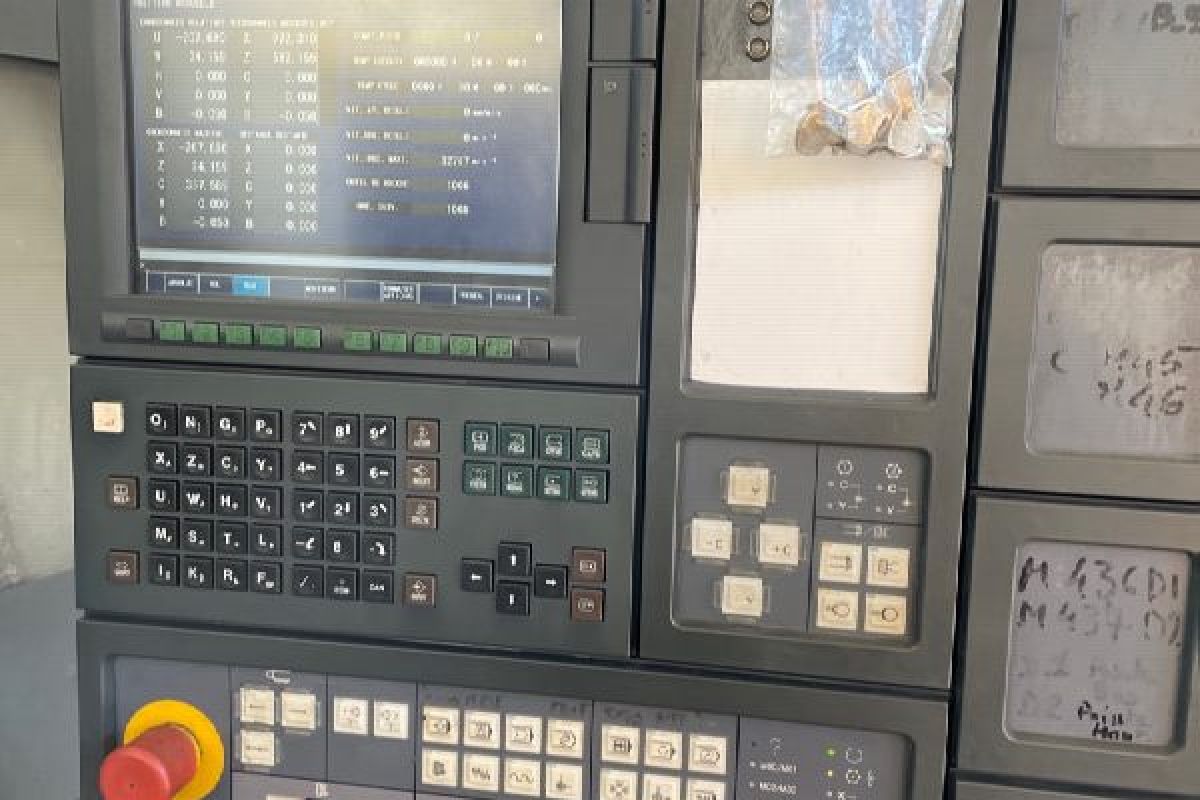

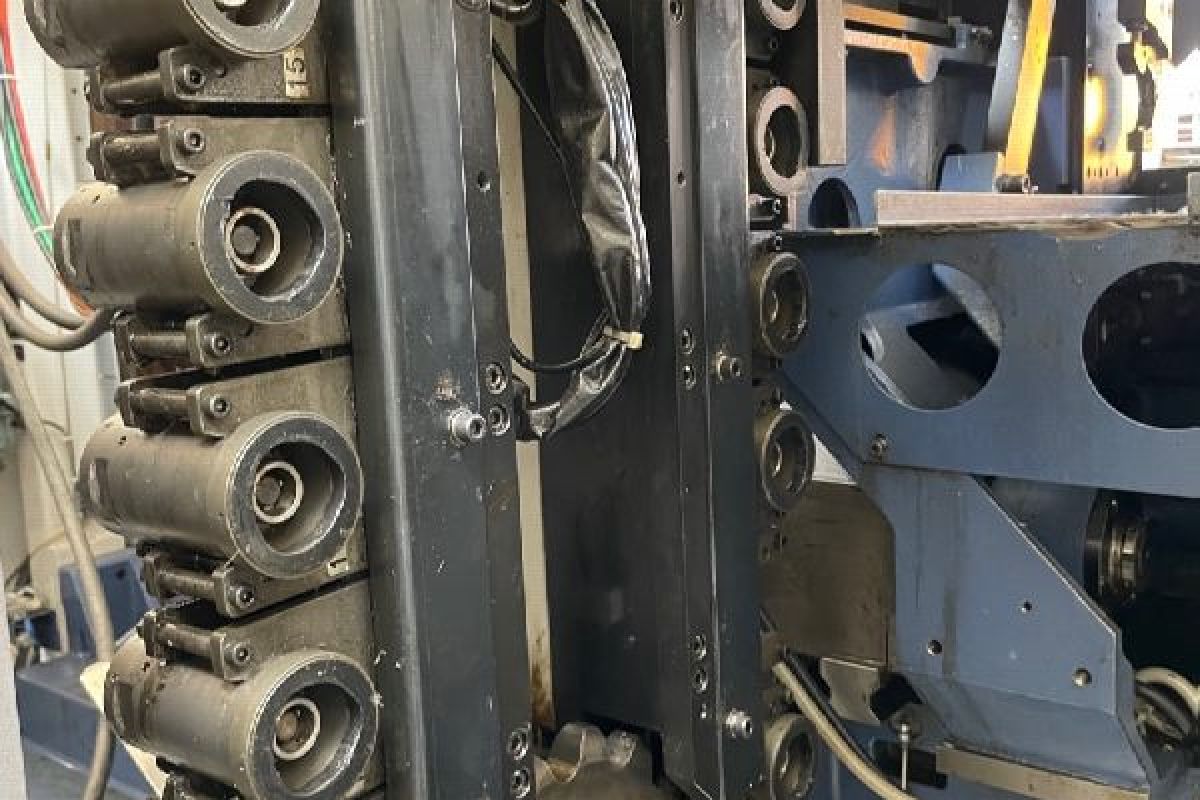

Equipped with the MORI MSX-501III control (based on Fanuc 18-T), the machine features a B-axis motorized milling head with a 24-position tool magazine, Y-axis, and C-axis, enabling full machining of parts with multiple operations such as turning, milling, drilling, and tapping.
The presence of a motorized lower turret with C-axis further enhances machining flexibility, allowing simultaneous operations and improved cycle times. The Mori Seiki MT-3000 is therefore an ideal solution for companies looking for a used multitasking CNC lathe capable of high-precision and high-productivity machining of complex components.
Maximum rotating diameter on the bed: | 800 mm |
Maximum rotating diameter on the cross carriage: | 402mm |
Maximum turnable diameter: | 560 mm |
Machinable length: | 1030 mm |
X-axis travel: | 635 mm |
Y-axis travel: | ± 110 mm |
Z-axis travel: | 1095 mm |
Table size: | 304 mm |

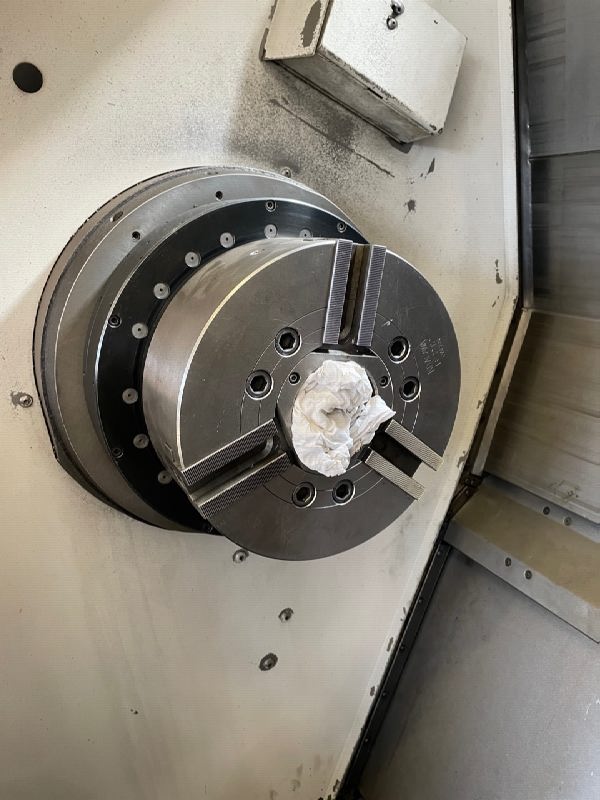

Spindle nose attachment: | ASA A2-8 |
Spindle speed: | 3000 rpm |
Spindle bore diameter: | 105 mm |
Useful bar clearance: | 89 mm |
Number of tool-changing positions: | 24 |
C-axis and power tools: | 0,001° |
Y-axis: | Yes |

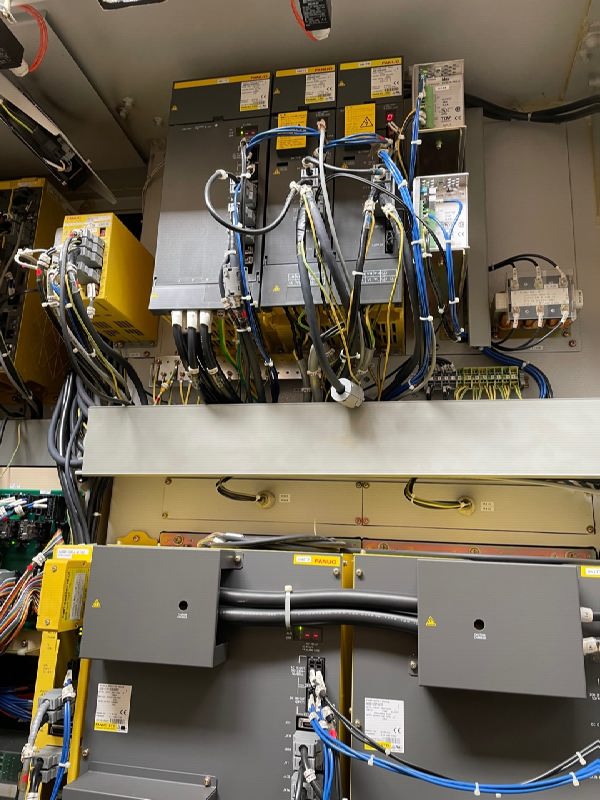

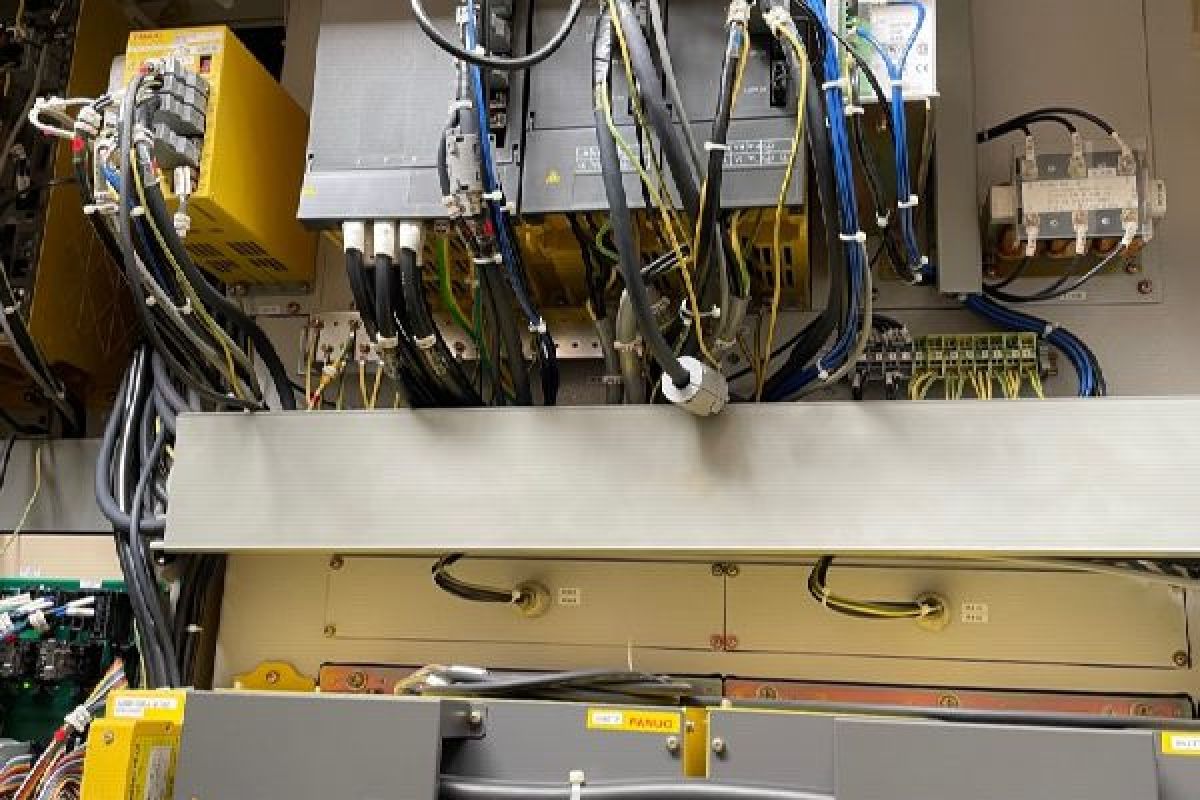

CNC type: | FANUC 18-T MSX 501 III |
Overall dimensions: | 5774 x 3040 x 3295 h mm |
Weight: | 14500 Kg |
Type of accommodation: | meehanite cast iron |
