Mte RT-V Series T-Type Fixed Column Milling Machine
Price on request

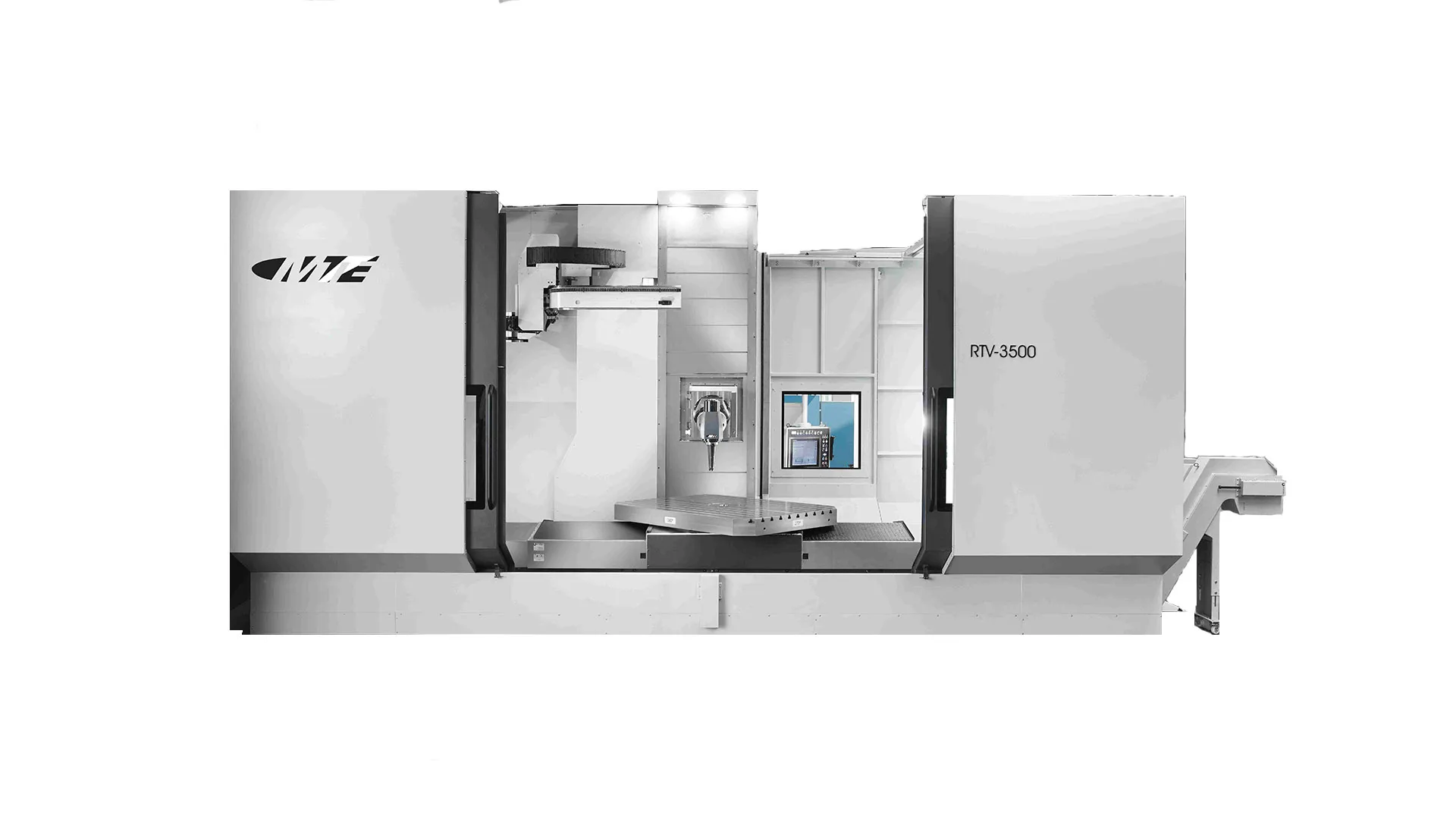

CNC Bed Type Milling Machine MTE RT-V with T-Column and Continuous Rotary Table
The MTE RT-V is a CNC bed type milling machine with T-column configuration, designed for high-precision machining of large components and complex machining cycles.

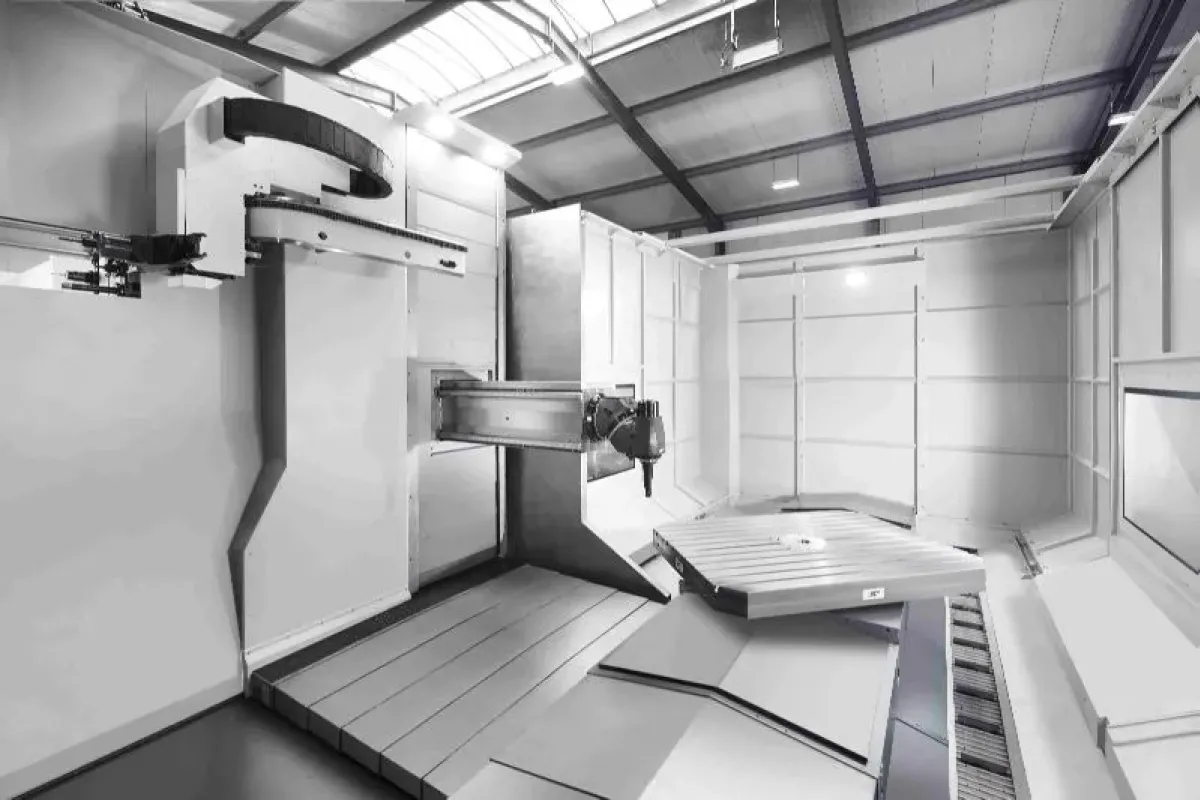

The T-type moving column design optimizes the distribution of moving masses, ensuring excellent structural rigidity and high dynamic performance even during long-axis movements. This configuration allows the machine to maintain stability and precision during heavy-duty machining operations.
Axis movements run on high load-capacity roller linear guideways, providing smooth motion, consistent accuracy, and excellent dynamic response during demanding milling operations.
The RT-V series offers a wide range of configurable travels to adapt the machine to different production requirements:
- X axis travel: from 2000 to 5000 mm
- Y axis travel: from 1200 up to 1600 mm
- Z axis travel: up to 2000 mm
- V axis travel (column movement): up to 2000 mm
The machine can be equipped with a continuous rotary table, enabling efficient multi-face machining and complex operations, significantly reducing setup times and improving productivity.
The high modularity of the RT-V configuration also allows the machine to be equipped with different types of automatic heads, including:
- Indexed milling heads
- High-precision millesimal heads
- Continuous heads
- High-performance electro-spindles
Thanks to its rigid mechanical structure, large working envelope, and high configuration flexibility, the MTE RT-V represents a versatile solution for industries requiring precision machining of large components, including heavy mechanical engineering, mold manufacturing, structural components, and complex tooling.
X-axis travel: | From 2000 mm |
Y-axis travel: | From 1200 to 1600 mm |
Z-axis travel: | From 1000 to 2000 mm |
V-axis travel: | From 1000 to 2000 mm |
Table type: | continuous |
Head type: | Manual / automatic |
Spindle nose attachment: | ISO 50 |
Spindle speed: | 4000 / 6000 rpm |
High pressure through the spindle: | Yes |
Number of tool-changing positions: | 24/30/40/60/80/100/120 |
Key points: | 25 m/min |
Working feed rate: | 15 m/min |
CNC type: | Heidenhain, Siemens, Fagor, Fanuc |
Type of guides: | linear guideways |
Type of accommodation: | meehanite cast iron |
- CNC bed type milling machine with T-column structure
- X axis travel: 2000 – 5000 mm
- Y axis travel: 1200 – 1600 mm
- Z axis travel: up to 2000 mm
- V axis travel (column movement): up to 2000 mm
- High load-capacity roller linear guideways
- Continuous rotary table available
- Configurable with indexed, millesimal or continuous heads
- Option for high-performance electro-spindles
- High rigidity structure for large workpieces
- Wide configuration flexibility for different industrial applications
- Machining of large mechanical components for industrial machinery
- Production of welded structures and heavy steel fabrications
- Machining of machine frames, bases and columns
- Manufacturing of components for machine tools
- Production of large fixtures, clamping systems and tooling plates
- Multi-face machining thanks to the continuous rotary table
- Manufacturing of large molds and tooling equipment
- Components for energy, steel and plant engineering sectors
- Complex machining of medium to large workpieces with 3+2 axis operations depending on the machine configuration
