Horizontal Machining Center Focaseiki HMC-630

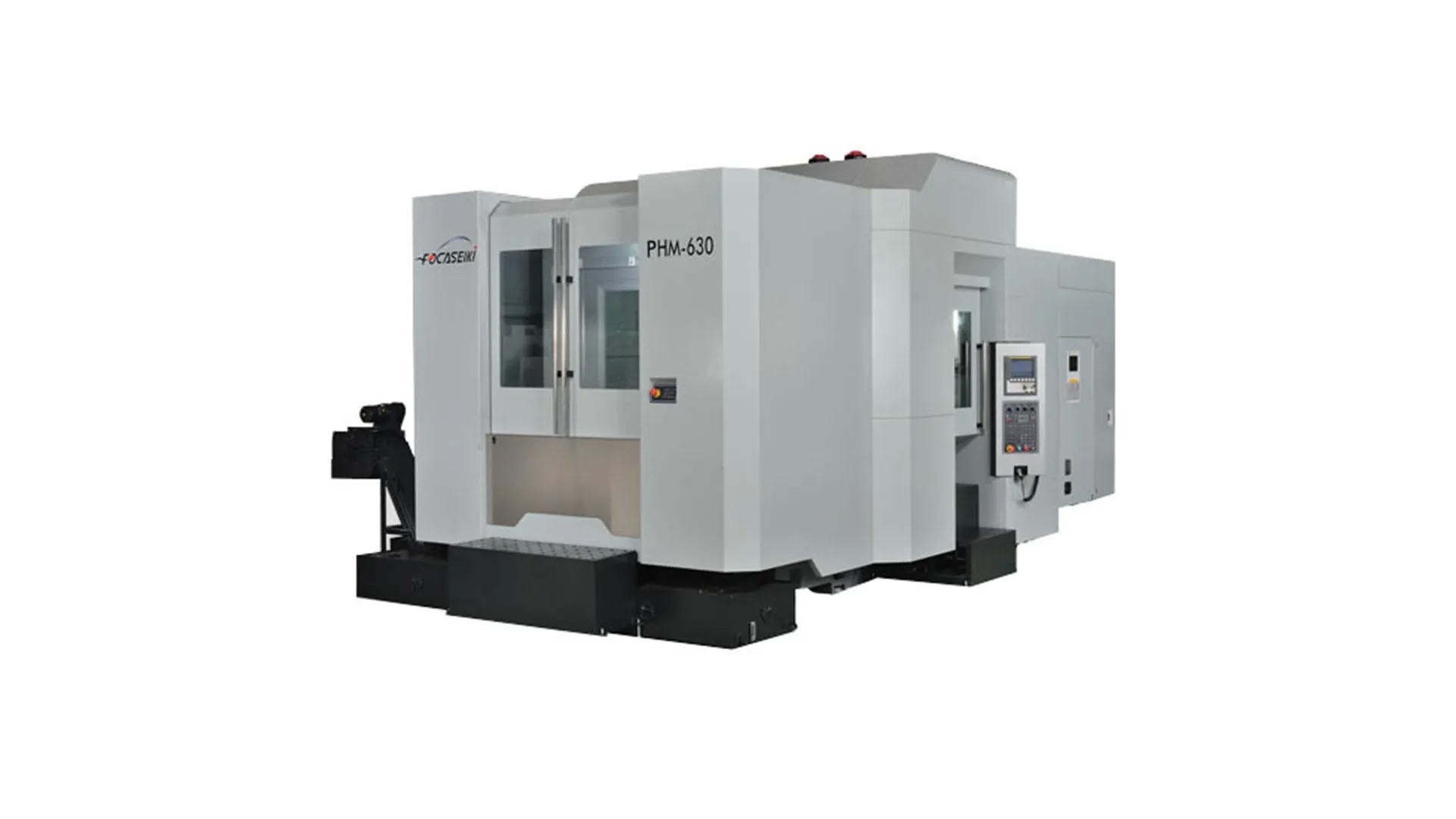

The Focaseiki HMC-630 is a robust horizontal machining center engineered for precision and high productivity in medium to large batch production. Its 1000 × 850 × 950 mm X/Y/Z travels and 630 × 630 mm pallet provide versatility for machining medium-to-large components.

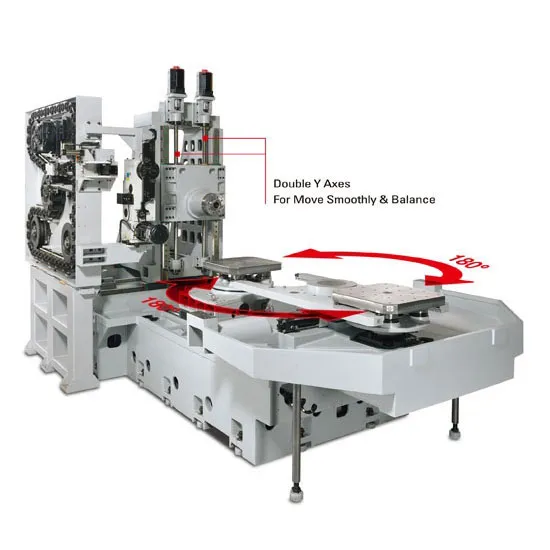

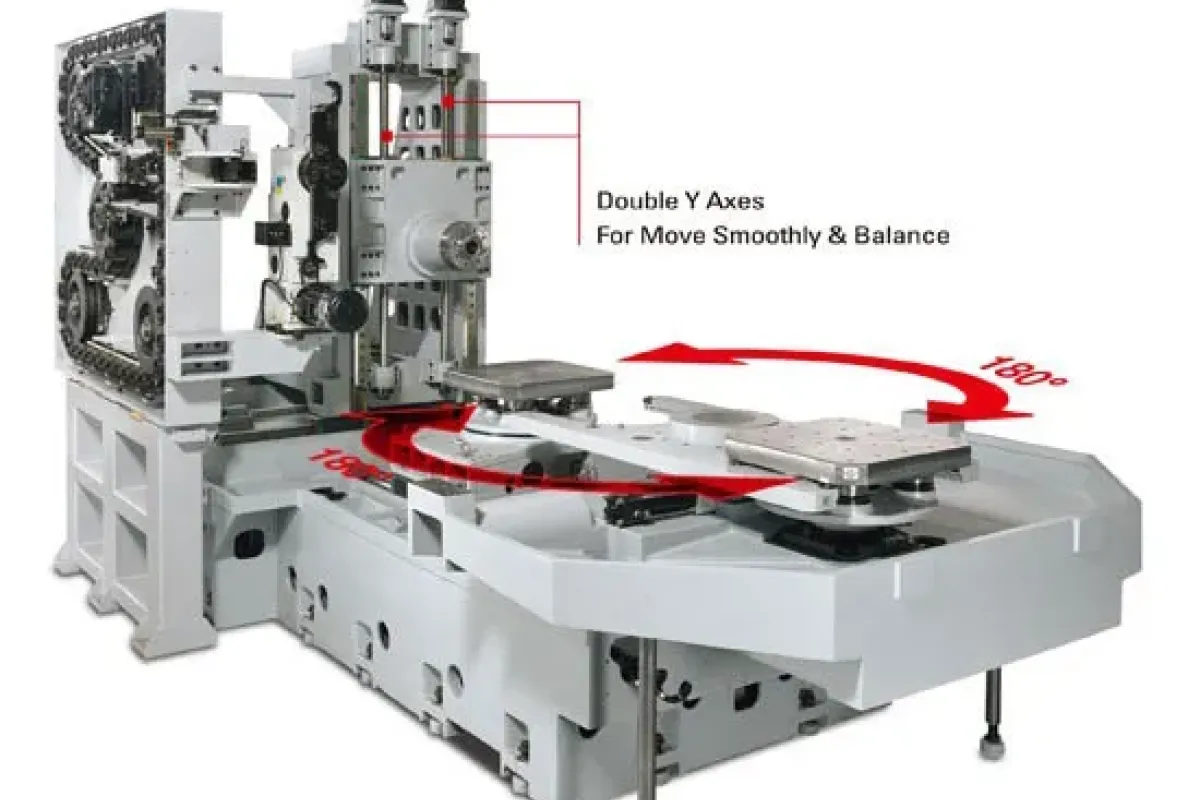

The machine features a dynamic structural design with a two-stepped column configuration, enhancing cutting rigidity and stability. The cast iron structure with double V axes ensures smooth movement and excellent balance during operations, even under heavy cutting conditions.

Multiple configurations are available, including B-axis processing, collet clamp system for pull studs, and automatic tool changers ranging from 30 to 120 positions. A spindle-through coolant system and other optional features further increase efficiency and precision.

• X axis travel: 1000 mm
• Y axis travel: 850 mm
• Z axis travel: 950 mm

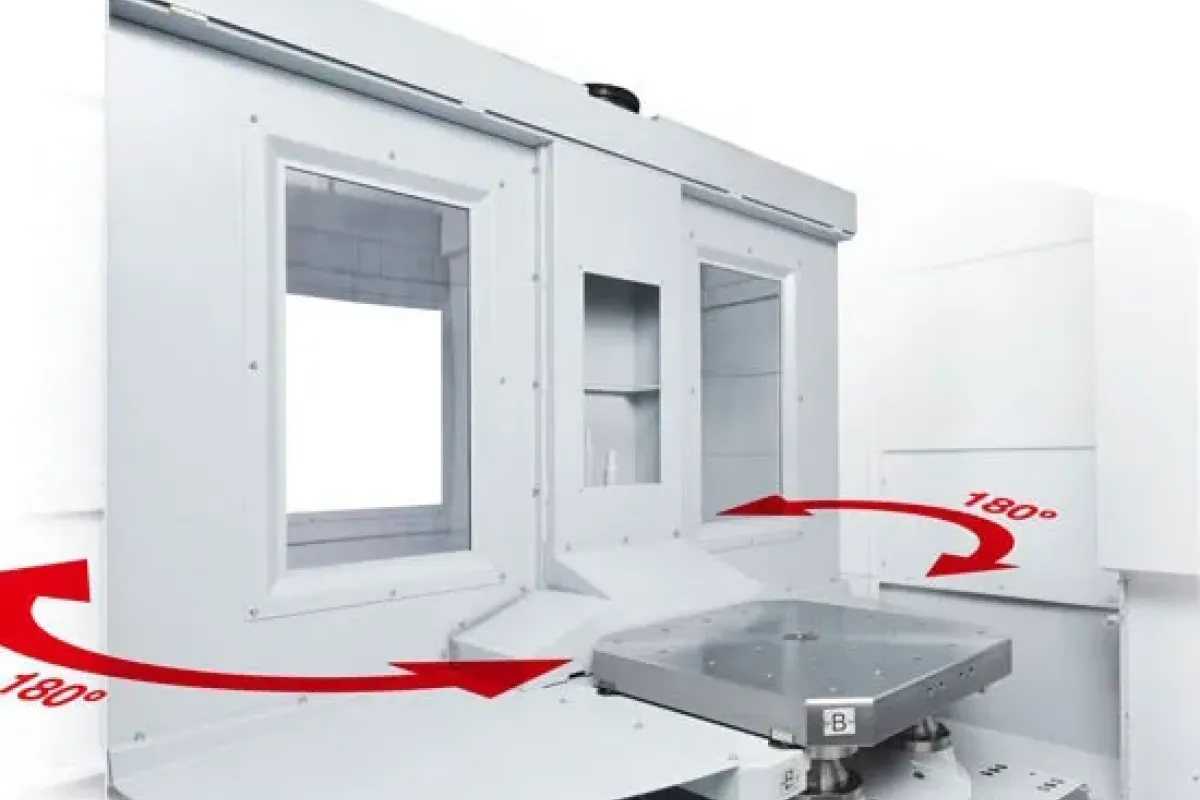

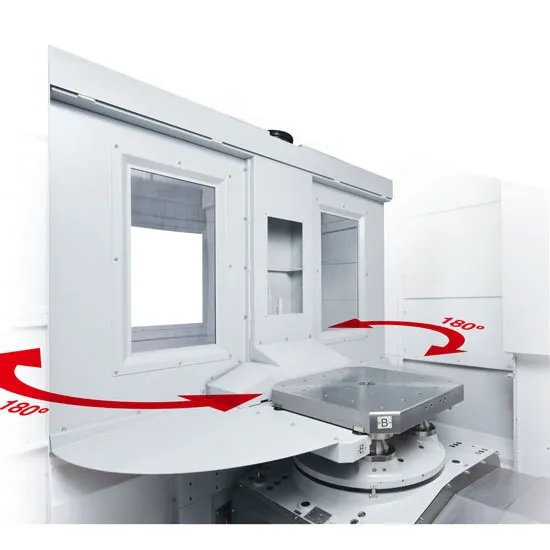

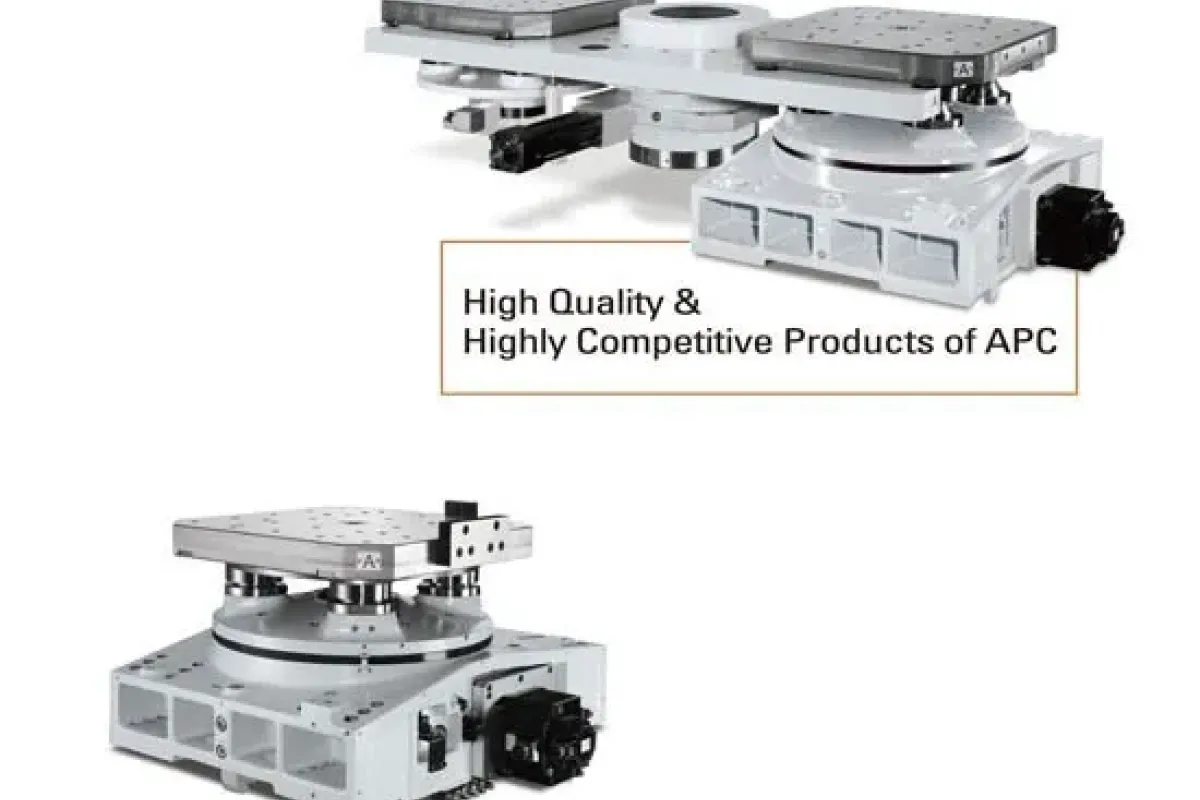

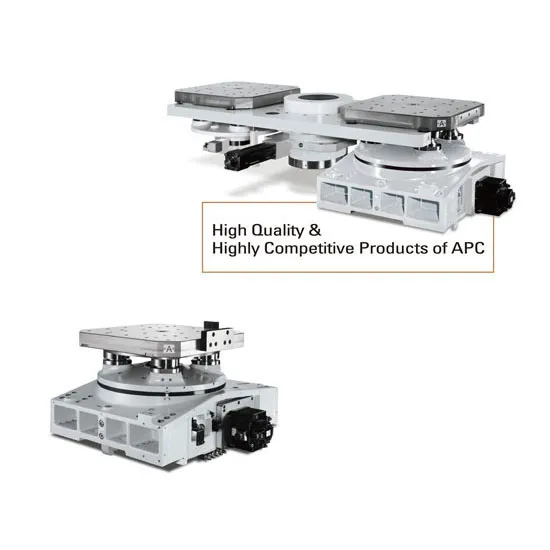

• Pallet size: 630 × 630 mm
• Dynamic structural design with two-stepped column

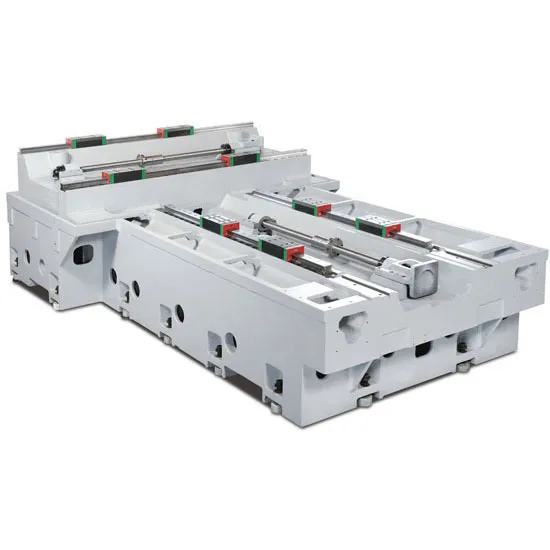

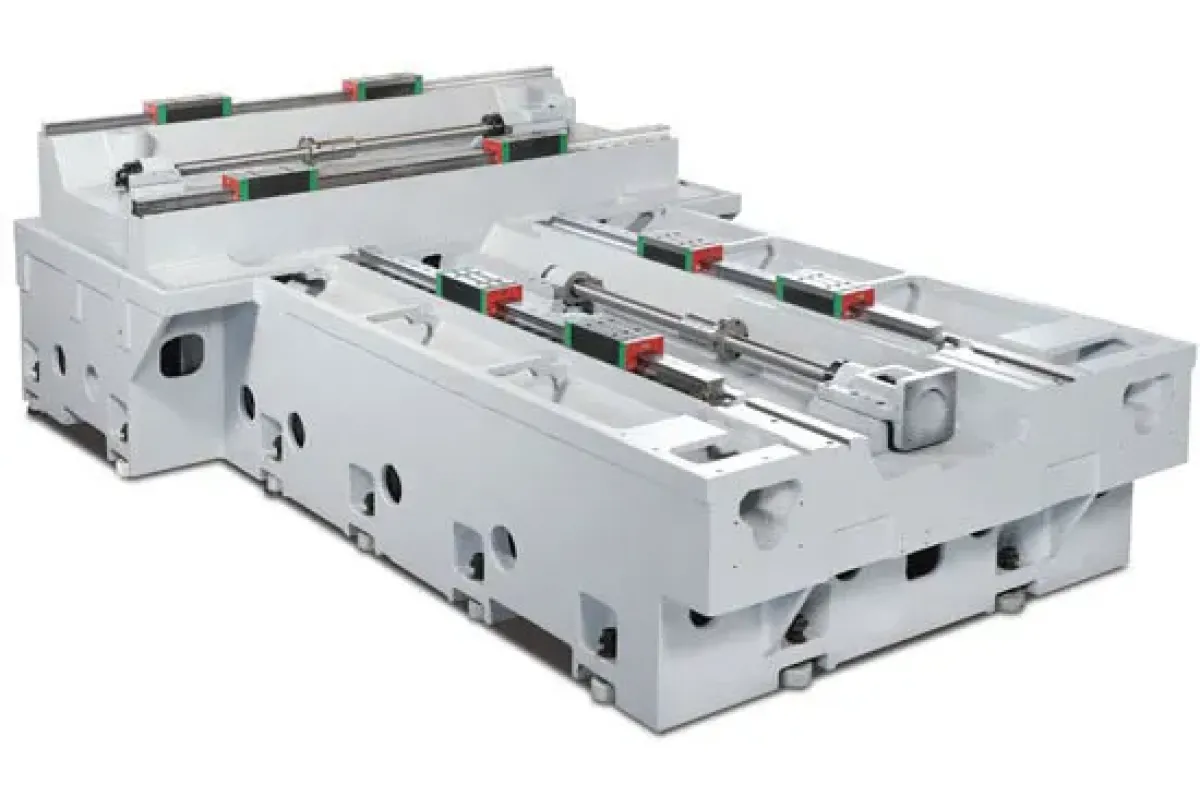

• Cast iron structure with double V axes
• ATC options: 30 / 40 / 60 / 80 / 100 / 120 tools
• Optional B-axis machining capability
• Spindle-through coolant system
• High rigidity and stability for heavy cutting operations

• Multi-face machining of medium to large components
• Industries requiring high rigidity and precision, such as automotive, aerospace, and general engineering
• Production environments with high-volume or complex parts requiring fast tool changes
• Components with B-axis machining or multi-axis operations
