Horizontal machining center Focaseiki HMC-500

Model: HMC-500
Brand: FOCASEIKI

Price on request
Description

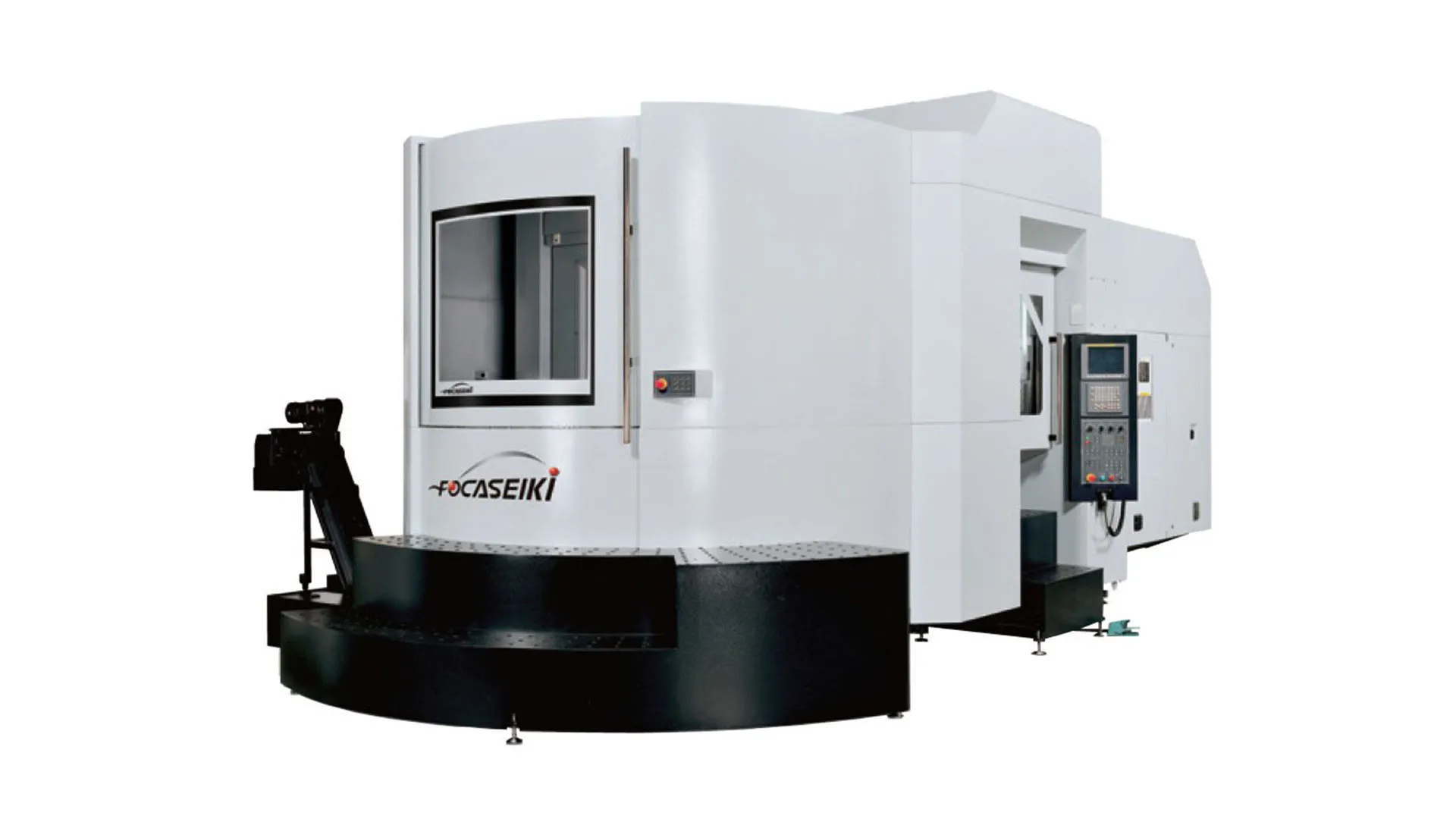

Horizontal Machining Center Focaseiki HMC-500

The Focaseiki HMC-500 is a precision horizontal machining center designed for high-rigidity and reliable performance in medium to high-volume production. Its 500 × 500 mm pallet allows efficient multi-face machining, while the machine’s X/Y/Z travels of 720 mm each provide flexibility for medium-sized components.

Focaseiki ensures maximum structural rigidity using advanced digital design tools, including COSMOS for structural analysis and FEA (Finite Element Analysis) to optimize the frame for stability under load. All structural components are produced in certified foundries using MEEHANITE casting, with strict quality verification after casting.

The machine is equipped with high-quality APC systems from Japan and an automatic tool changer with modern core technology, enabling fast and reliable pallet exchanges and high production efficiency.

Technical Specifications
X-axis travel:
720 mm
Y-axis travel:
720 mm
Z-axis travel:
720 mm
Table dimensions:
500 x 500 mm
Maximum permissible load:
600 Kg
Spindle nose attachment:
BT 40
Spindle speed:
12000 rpm
High pressure through the spindle:
Yes
Number of tool-changing positions:
40
Key points:
60 m/min
Working feed rate:
10 m/min
CNC type:
Fanuc, Siemens, Gsk, Syntec
Weight:
12400 Kg
Type of accommodation:
meehanite cast iron
Key Features
  • X axis travel: 720 mm
  • Y axis travel: 720 mm
  • Z axis travel: 720 mm
  • Pallet size: 500 × 500 mm
  • High-rigidity cast structure analyzed with COSMOS and FEA
  • Automatic pallet changer (APC) from Japan
  • Automatic tool changer (ATC) with modern core technology
  • Certified MEEHANITE structural components
  • Optimized for stability and precise machining
Typical Applications
  • Medium-volume production of mechanical components
  • Multi-face machining of medium-sized workpieces
  • Industries requiring high rigidity and precise tolerances, such as automotive, aerospace, and heavy machinery
  • Efficient production requiring fast pallet exchange and reliable tool handling
