High speed vertical machine center Blin BL-S800

Model: BL-S800

Brand: BLIN

Price on request

Description

High Speed Vertical Machining Center Blin BL-S800

The Blin BL-S800 is a high-speed vertical machining center engineered for precision machining and high-productivity applications. Its robust design and fast feed rates make it ideal for milling, drilling, and finishing operations on small to medium components.

Advantages:

High-speed spindle for rapid and precise cutting.
Large working envelope for a vertical machining center of this class.
Quick tool change reduces downtime, increasing productivity.
Multiple CNC options allow flexibility for integration in different production environments

The BL-S800 combines speed, accuracy, and flexibility, making it ideal for industries that demand efficient, precise, and repeatable machining.

Technical Specifications

X-axis travel:	800 mm
Y-axis travel:	520 mm
Z-axis travel:	450 mm

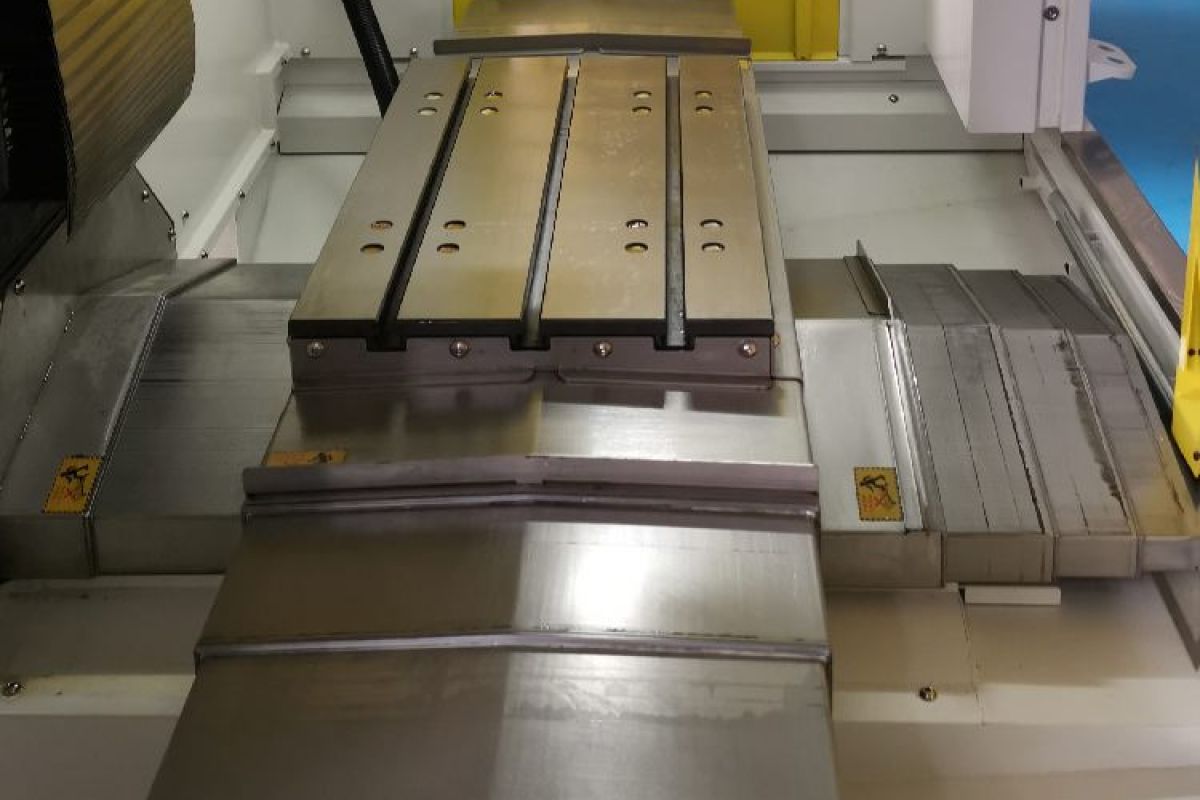

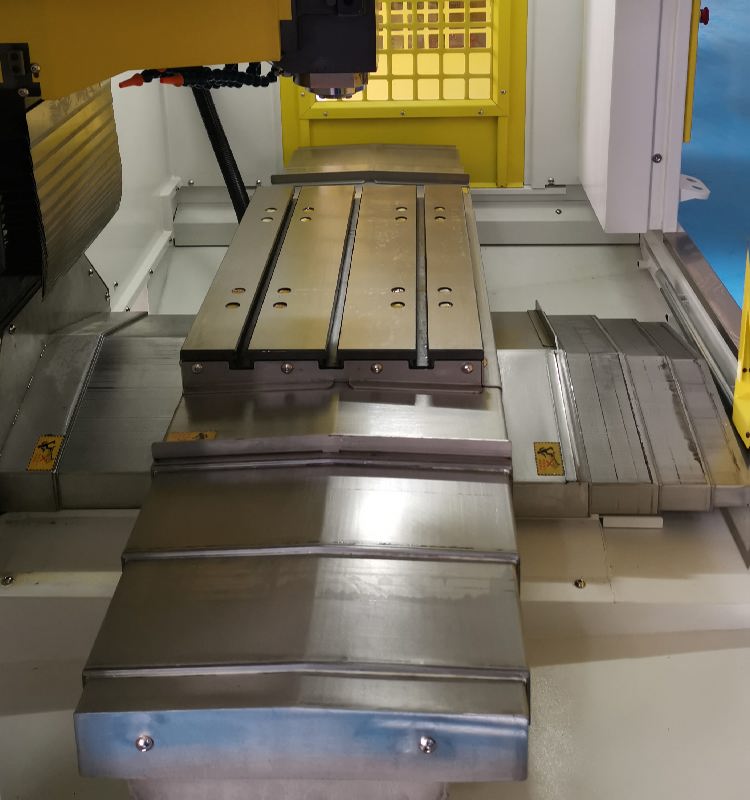

Table dimensions:	900 x 500 mm
Maximum permissible load:	500 Kg
Spindle nose attachment:	BT 40
Spindle speed:	12000 rpm

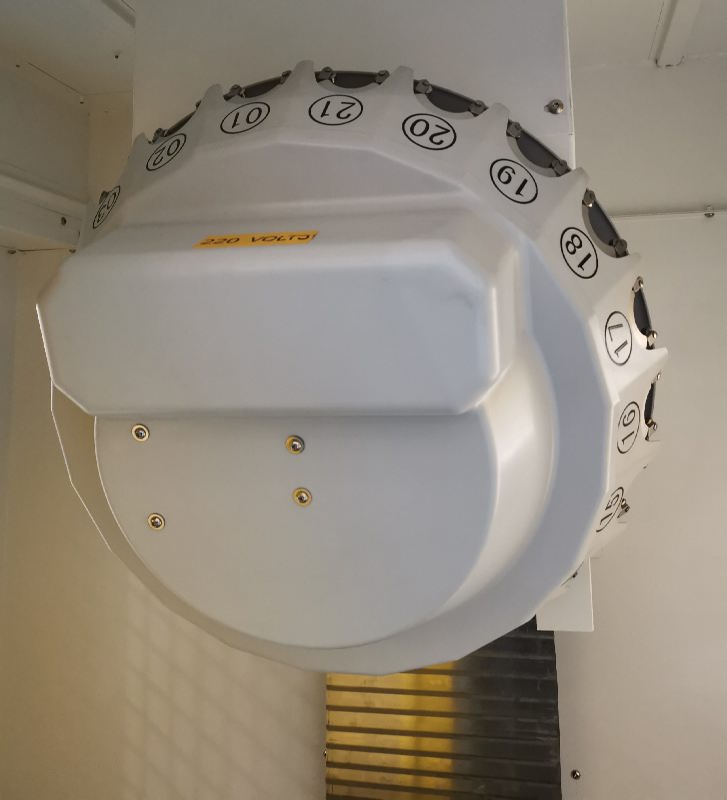

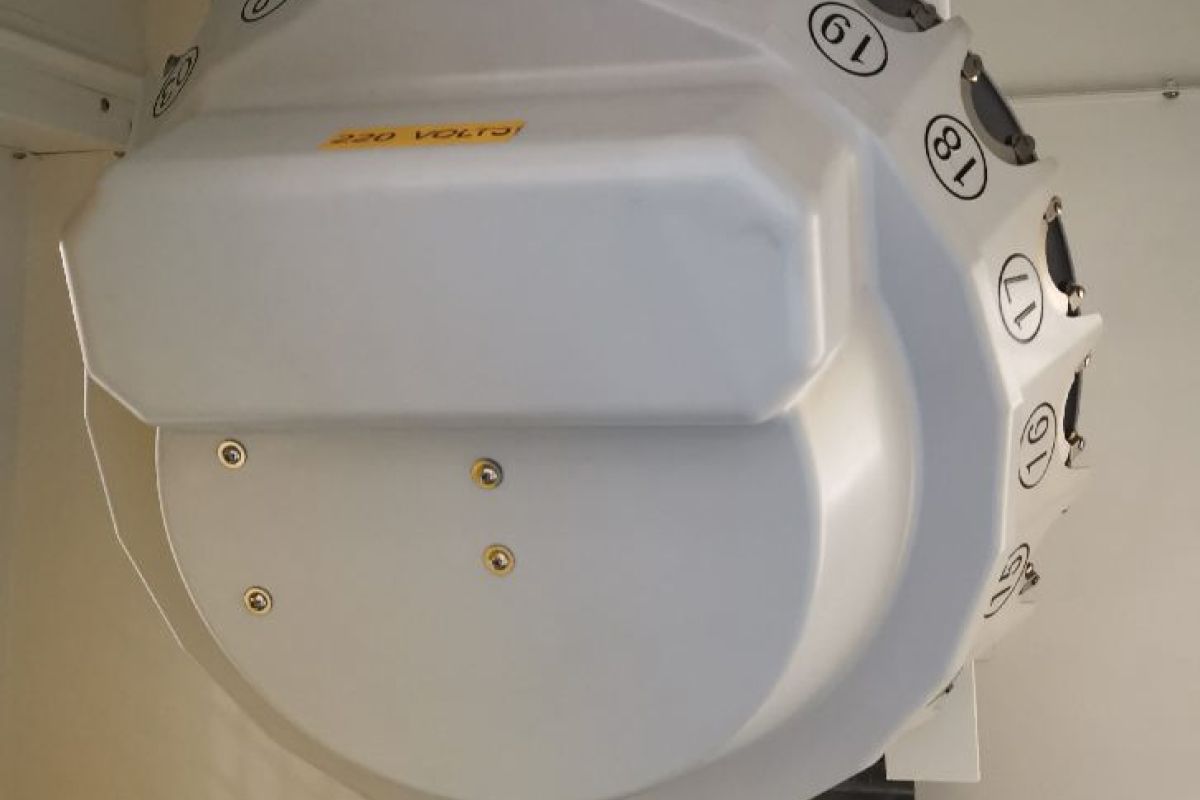

Number of tool-changing positions:	16/24
Key points:	48 m/min
Working feed rate:	15 m/min

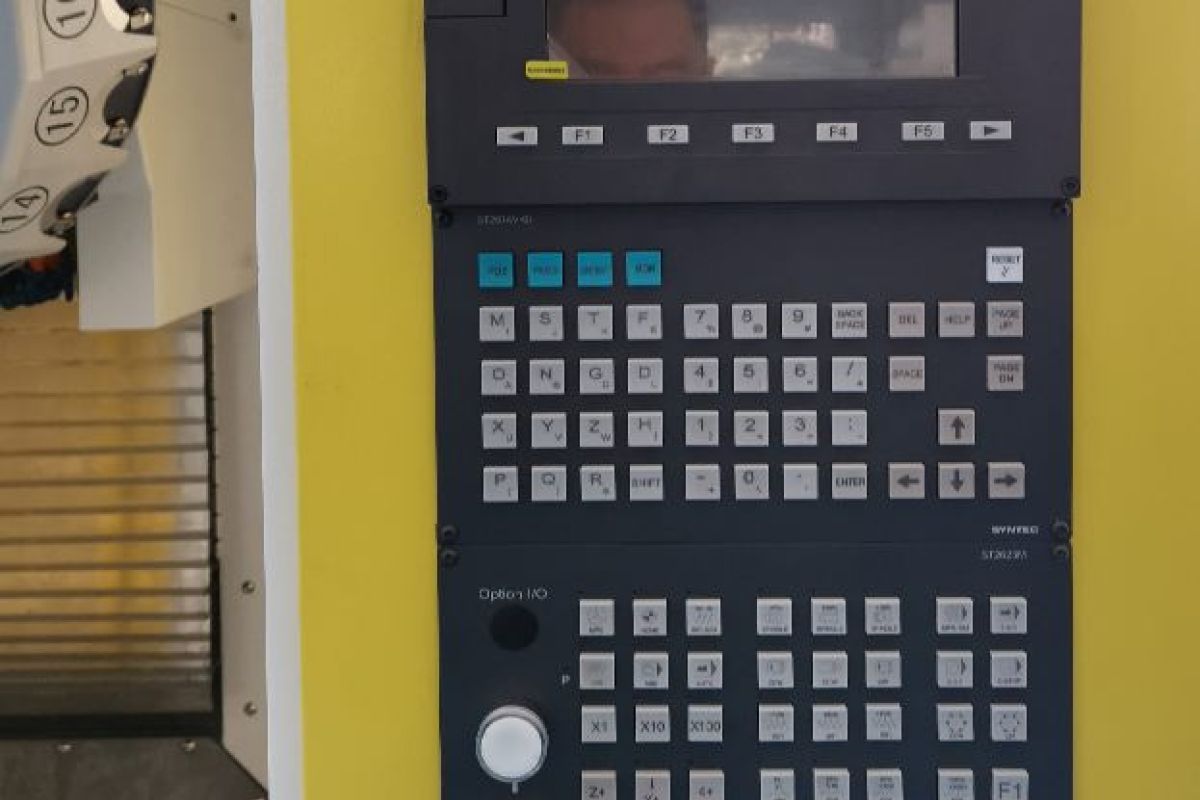

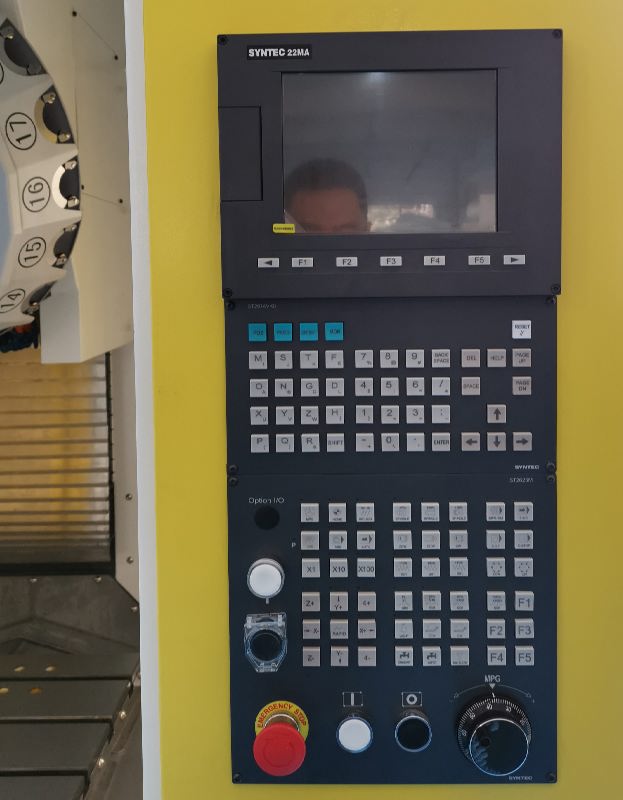

CNC type:	Fanuc, Siemens, Mitsubishi
Type of guides:	linear guideways
Type of accommodation:	meehanite cast iron
