Price on request

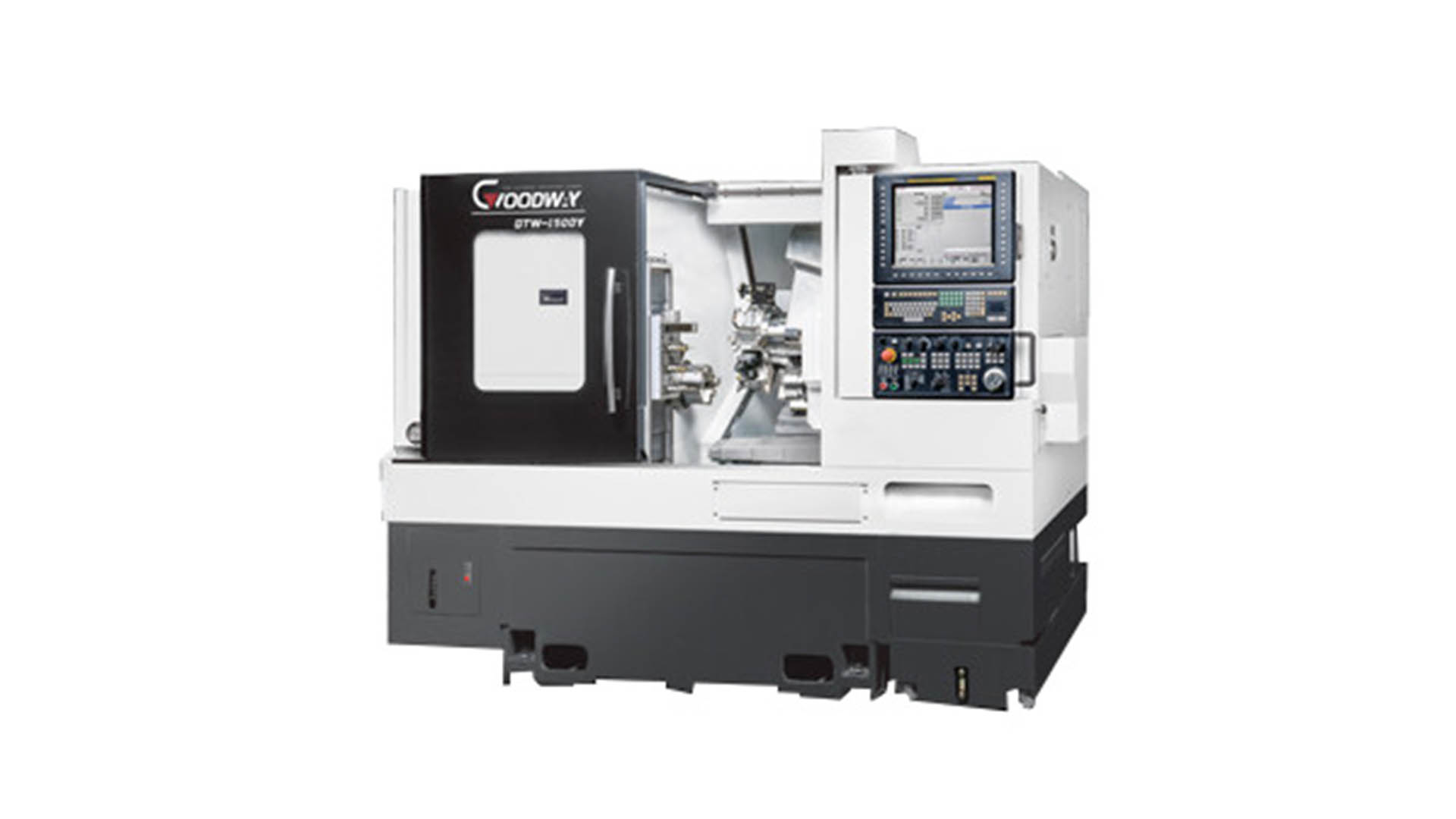

The Goodway GTW series is a compact CNC lathe designed for efficient turning of small to medium-sized components. Its robust design and precise axes control allow high-quality machining with minimal setup times.
Equipped with a standard 150 mm self-centering chuck, the GTW series provides secure workpiece clamping. The spindle motor power of 10/15 kW (continuous/30 min) ensures stable performance for a variety of materials.
The machine features a 12-position turret and an additional 8-position tool station on the bed, allowing multiple turning, drilling, and milling operations in one setup, improving flexibility and productivity.
Maximum rotating diameter on the bed: | 400 mm |
Maximum rotating diameter on the cross carriage: | 250 mm |
Machinable length: | 210 mm |
Turret type: | Motorized |
Number of seats in the cabin: | 12 |
Spindle nose attachment: | ASA A2-5 |
Spindle speed: | 5000 rpm |
C-axis and power tools: | 0,001° |
Key points: | 24 m/min |
CNC type: | FANUC 0i-TF |
Weight: | 4000 Kg |
Type of accommodation: | meehanite cast iron |
