Price on request

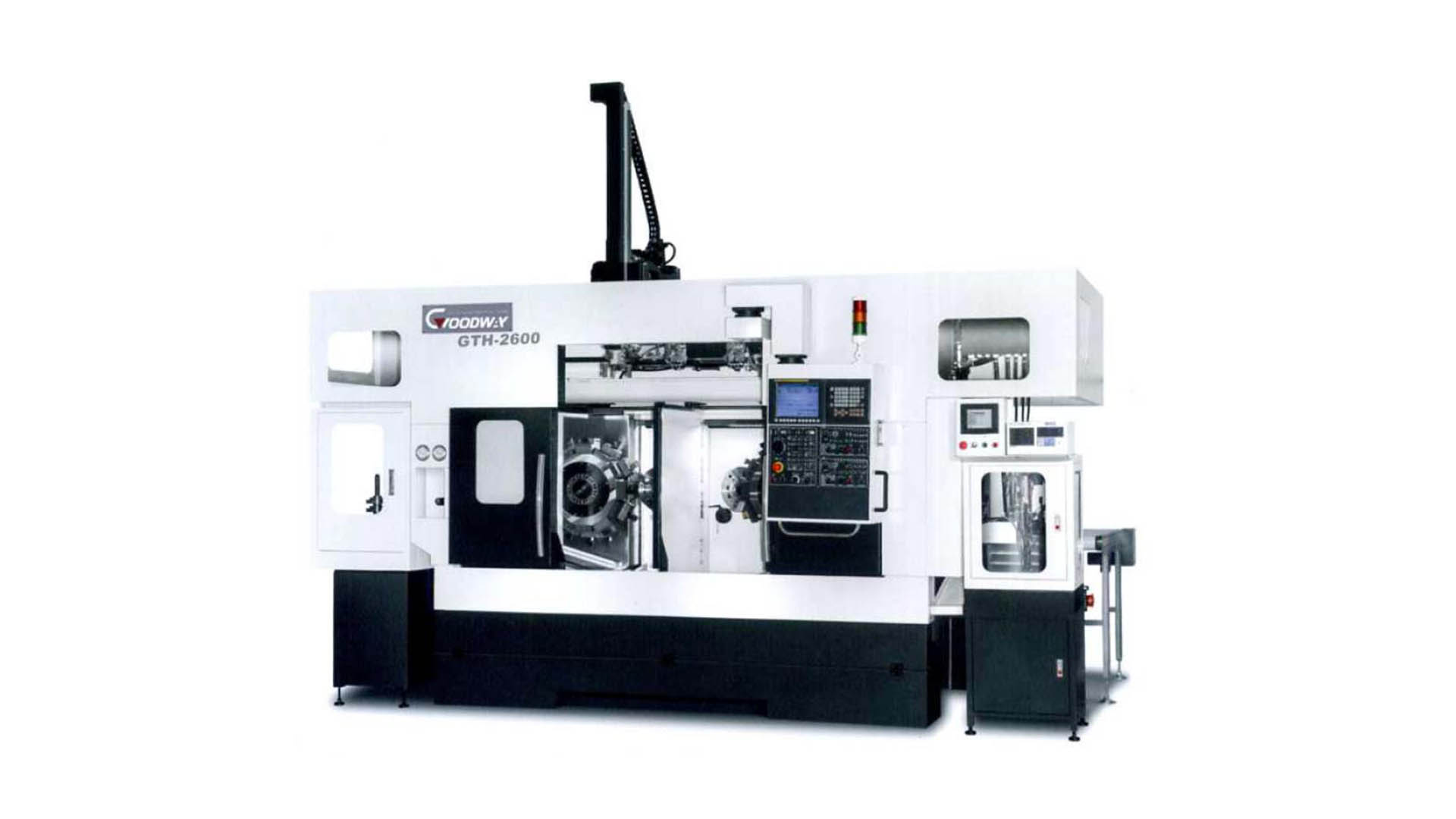

The Goodway GTH series is a versatile CNC lathe designed for efficient turning operations on medium-sized components. Its twin front spindle configuration allows simultaneous work on multiple workpieces, increasing productivity and reducing cycle times.
The machine features a robust structure suitable for precision machining, with a standard 250 mm self-centering chuck for secure workpiece clamping. The spindle motor power of 11/15 kW (continuous/30 min) ensures reliable cutting performance for a variety of materials.
Equipped with 12 turret tool positions, the GTH series supports multiple turning, drilling, and milling operations in a single setup, enhancing machining flexibility and reducing secondary operations.
Machinable length: | 260 mm |
Number of seats in the cabin: | 12 |
X-axis travel: | 195 mm |
Z-axis travel: | 220 mm |
Spindle nose attachment: | ASA A2-6 |
Spindle speed: | 4000 rpm |
C-axis and power tools: | 0,001° |
Key points: | 24 m/min |
CNC type: | FANUC 0i-TF |
Weight: | 6800 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
