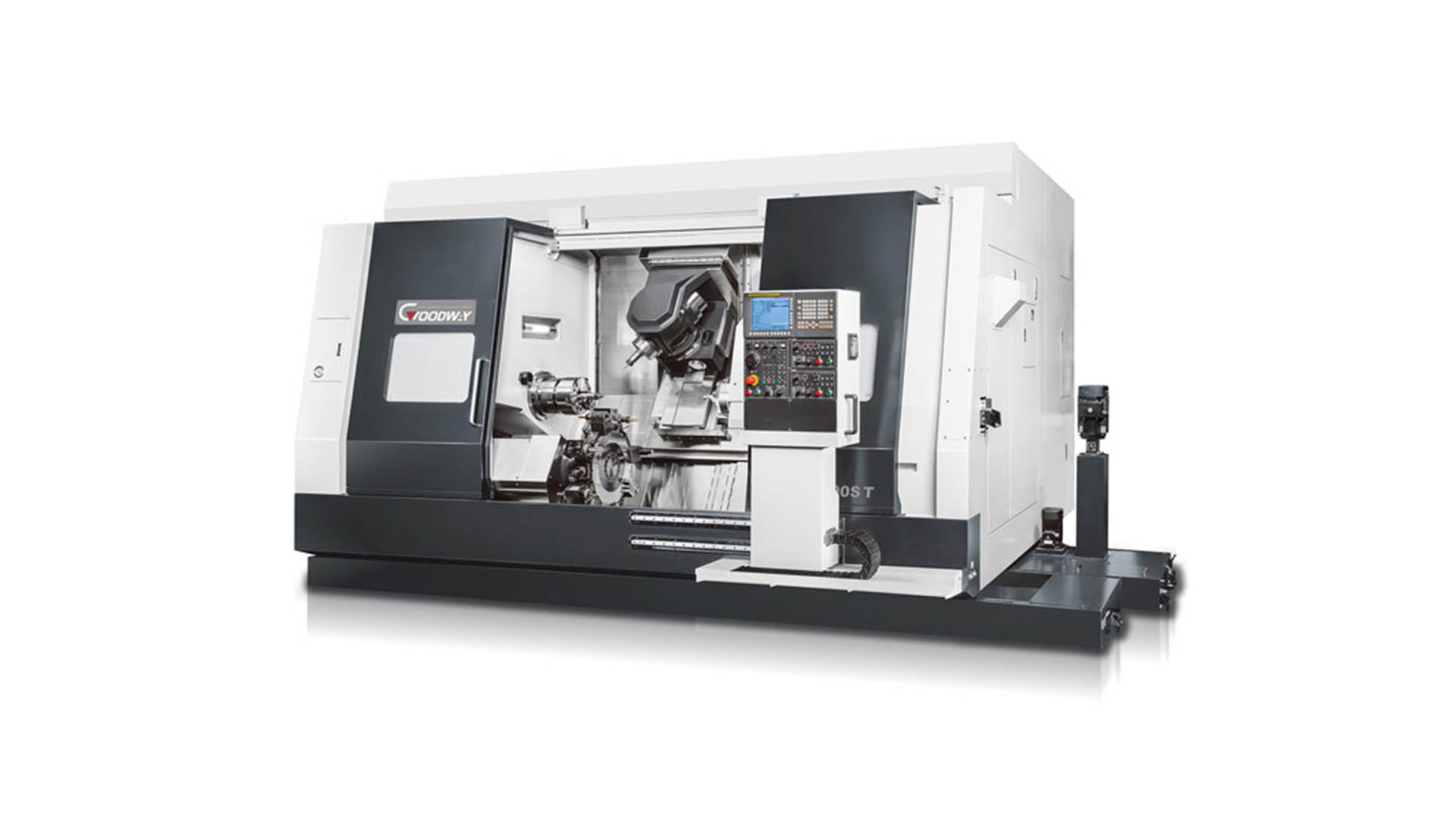

Goodway GMS Series CNC Lathe

CNC Lathe Goodway GMS Series – 5-Axis Multitasking

The Goodway GMS series is a high-performance 5-axis multitasking CNC lathe, designed for complex machining operations on medium and large components. Its dual turret configuration with an upper orientable turret and lower turret allows simultaneous turning, milling, drilling, and tapping operations, reducing setups and increasing production efficiency.

The machine features a rigid structure and high-power spindle motors (22/25 kW continuous/30 min), providing stability and precision even during heavy-duty cutting. The self-centering chucks (200 mm / 250 mm standard) enable secure clamping of various workpiece sizes.

The upper orientable turret includes 40 tool positions, while the lower turret has 24 tool positions, supporting a wide range of driven and static tools for complex multitasking operations.

• 5-axis multitasking CNC lathe
• Maximum rotating diameter: 900 mm
• Maximum turning diameter upper orientable turret: 550 mm
• Maximum turning diameter lower turret: 340 mm
• Maximum turning length: 1100 mm
• Standard self-centering chuck diameter: 200 / 250 mm
• Spindle motor power: 22 kW continuous / 25 kW 30 min
• Upper orientable turret: 40 tool positions
• Lower turret: 24 tool positions

• Complex multitasking machining of shafts, hubs, and medium-to-large components
• Turn-mill operations requiring simultaneous milling and turning
• High-precision components for aerospace, automotive, and heavy machinery
• Reduction of setups and increased productivity for medium and large batch production
• Machining operations on parts with multiple diameters and contours in a single setup
