Floor Type Milling Centers Mte Fbf M 6000

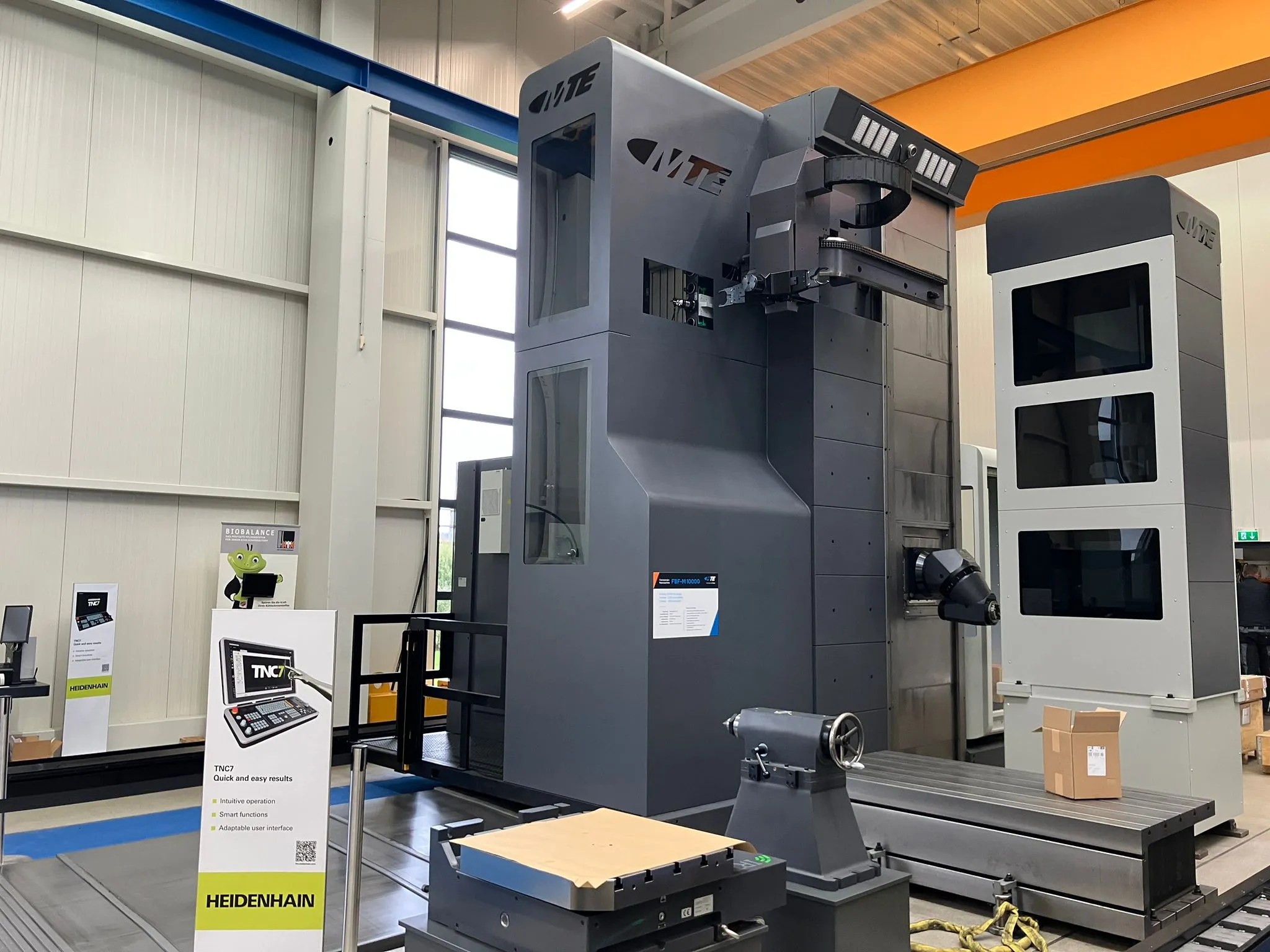

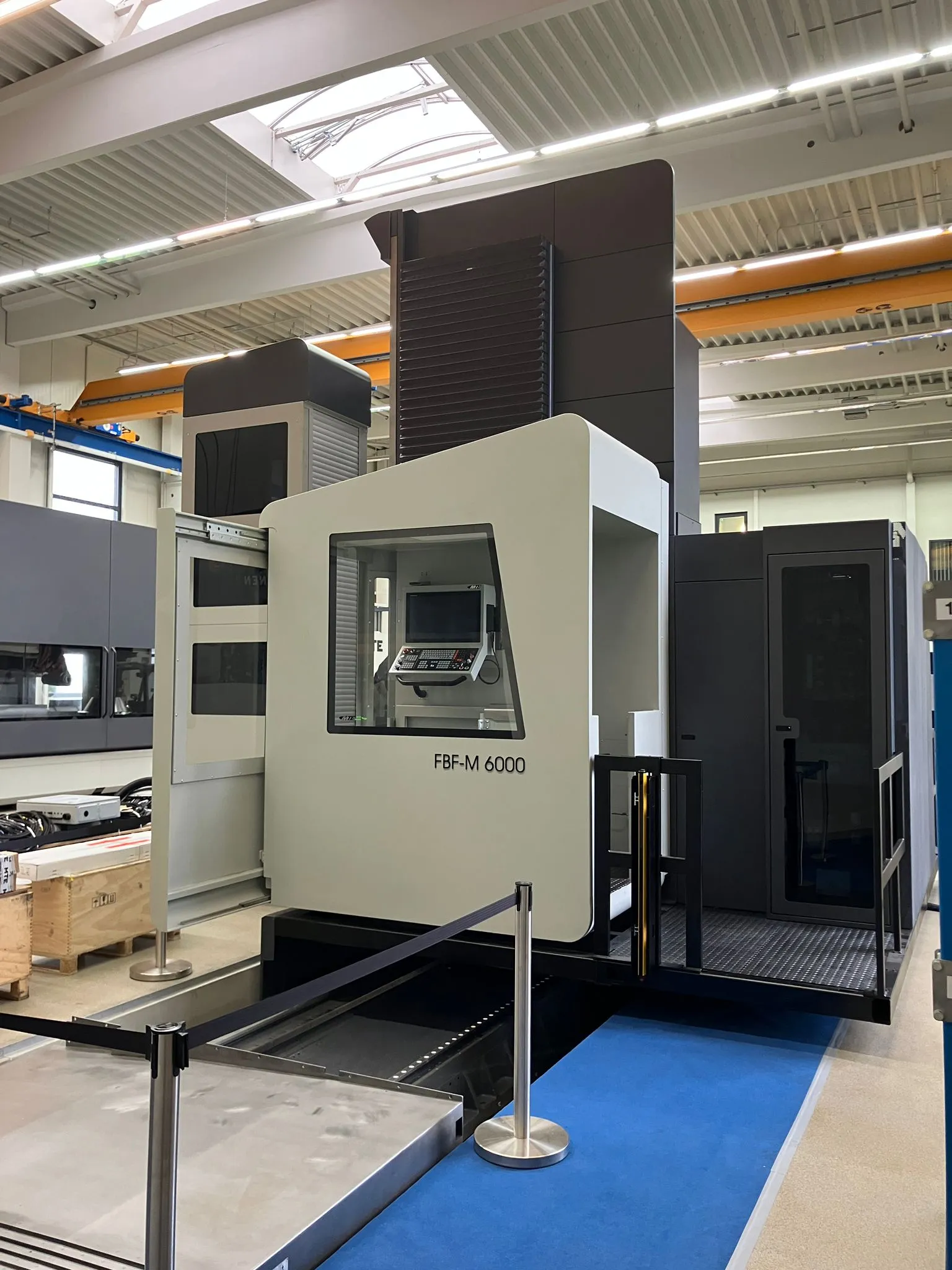

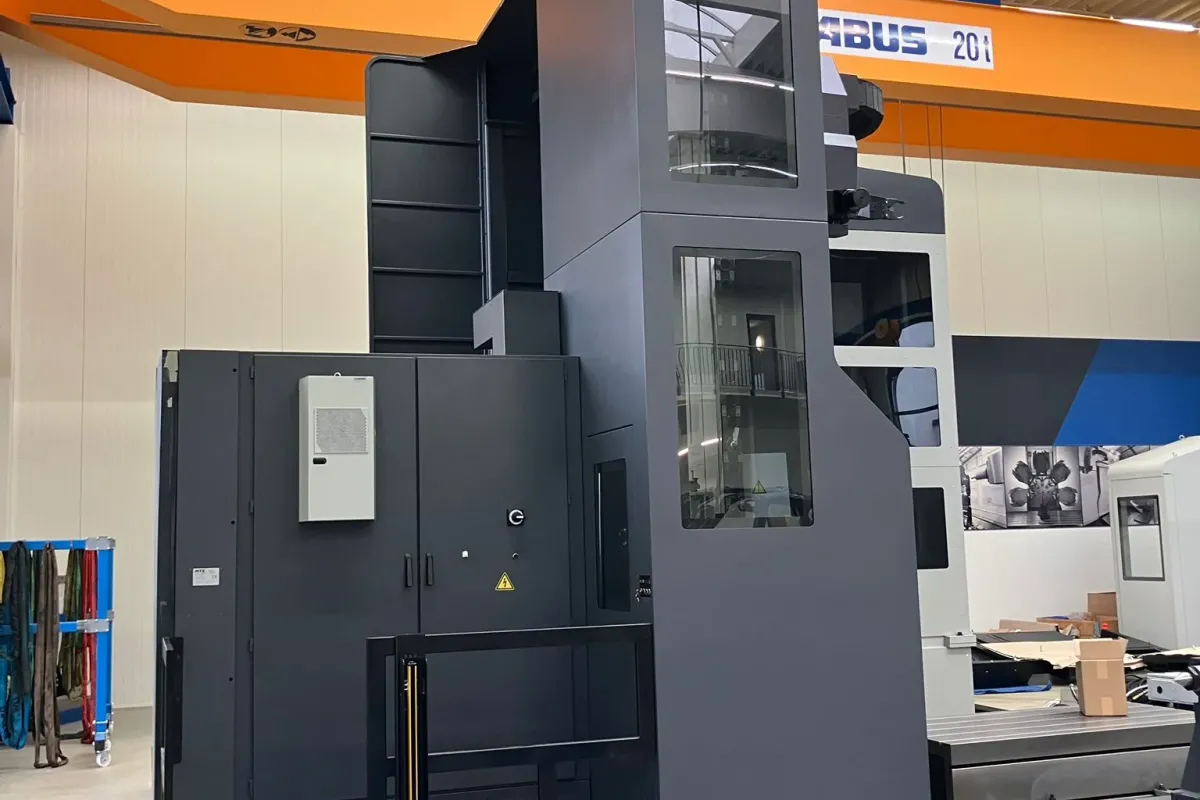

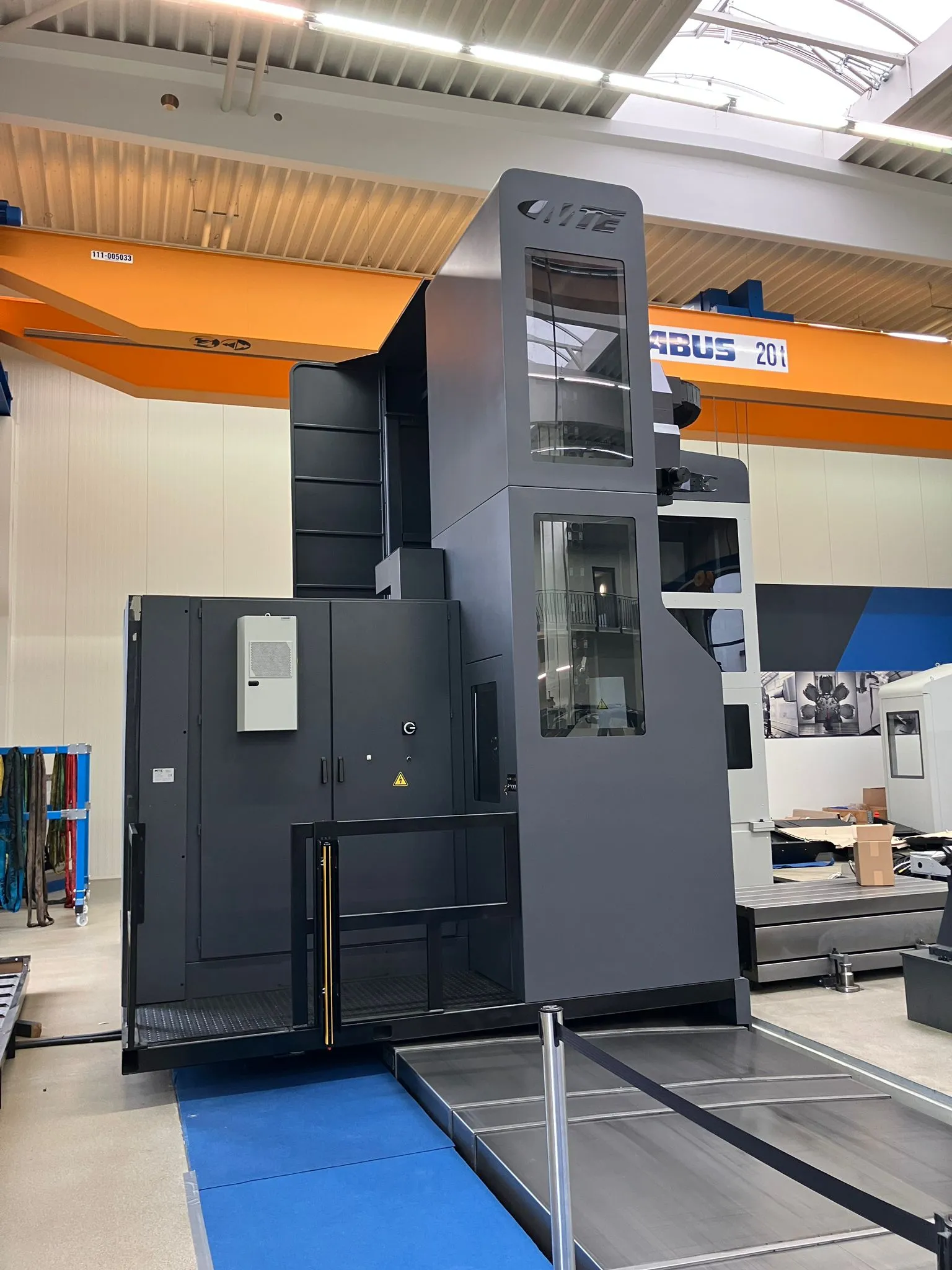

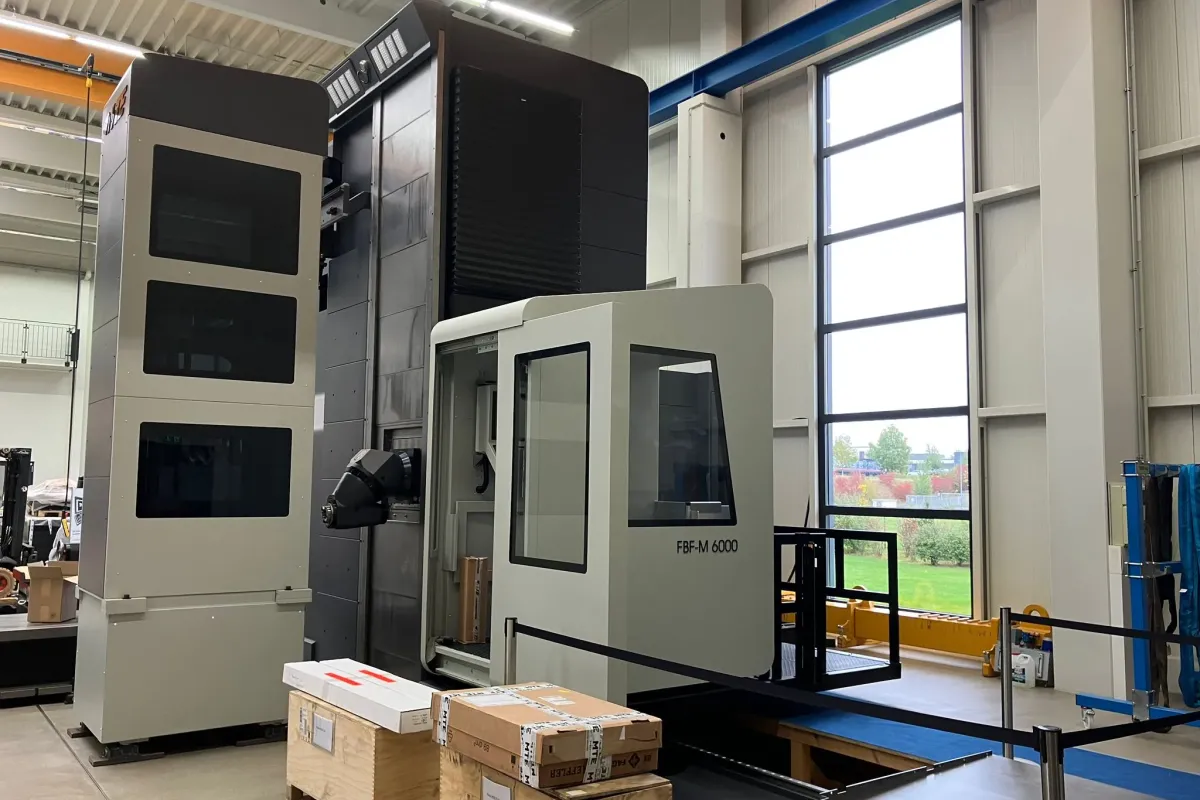

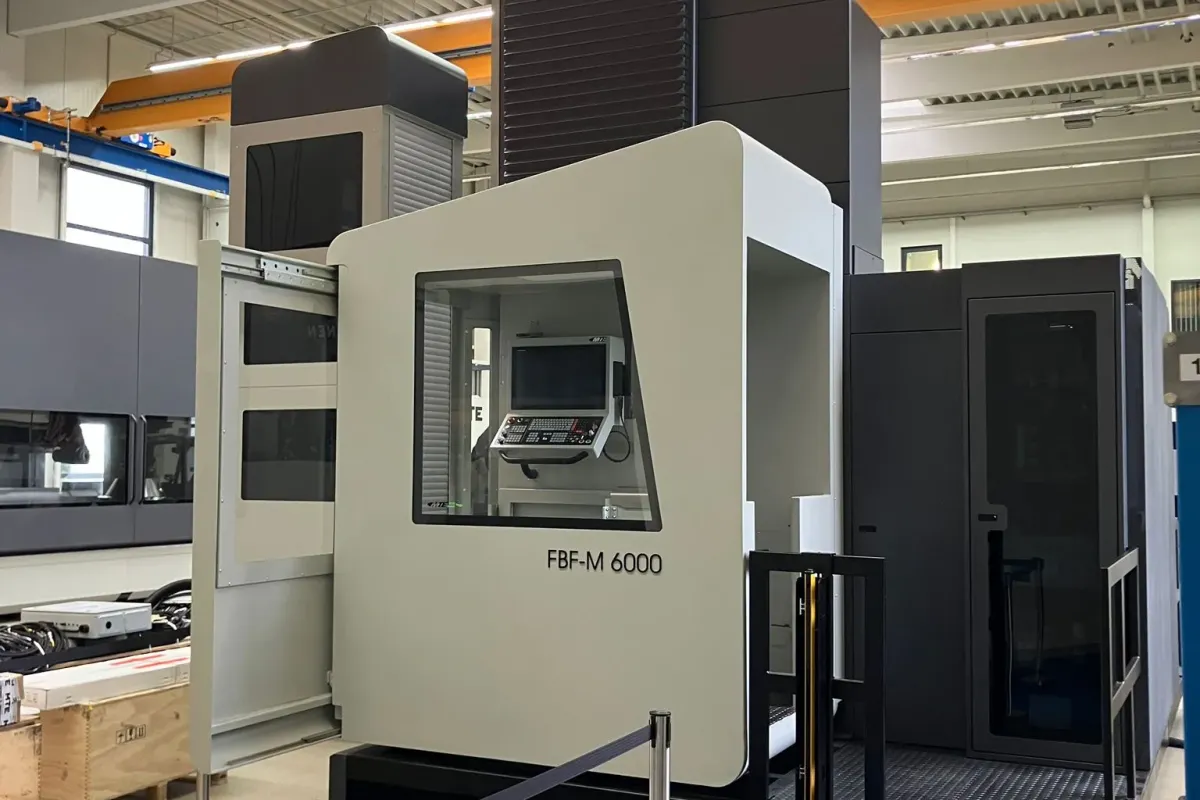

New Travelling Column Milling Machine MTE FBF M 6000 – Available for Immediate Delivery

The MTE FBF M 6000 is a new travelling column milling machine available for immediate delivery, designed for high-precision milling and heavy-duty machining of large components. Its robust structure and long travels on all axes ensure excellent stability and accuracy during demanding operations in modern workshops.

Equipped with a Heidenhain 7 CNC control, the machine features a fully automatic milling head with 0.01° indexing on both joints at 6,000 rpm, allowing flexible multi-face machining. The 60-position tool magazine supports horizontal and vertical tool changes, while the automatic head and accessory changer with 3 positions further increases efficiency.

Additional features include a HFK-500 extended spindle, through-spindle coolant and air at 20+8 bar, an operator platform with vertical lift, Ewon remote teleservice, and a rear hinged belt chip conveyor, making the machine ideal for large component production and Industry 4.0 connected environments.

• New travelling column milling machine
• Model: MTE FBF M 6000
• CNC control: Heidenhain 7
• X-axis travel: 6000 mm
• Y-axis travel: 1600 mm
• Z-axis travel: 3200 mm
• Automatic milling head with 0.01° indexing on both joints at 6,000 rpm

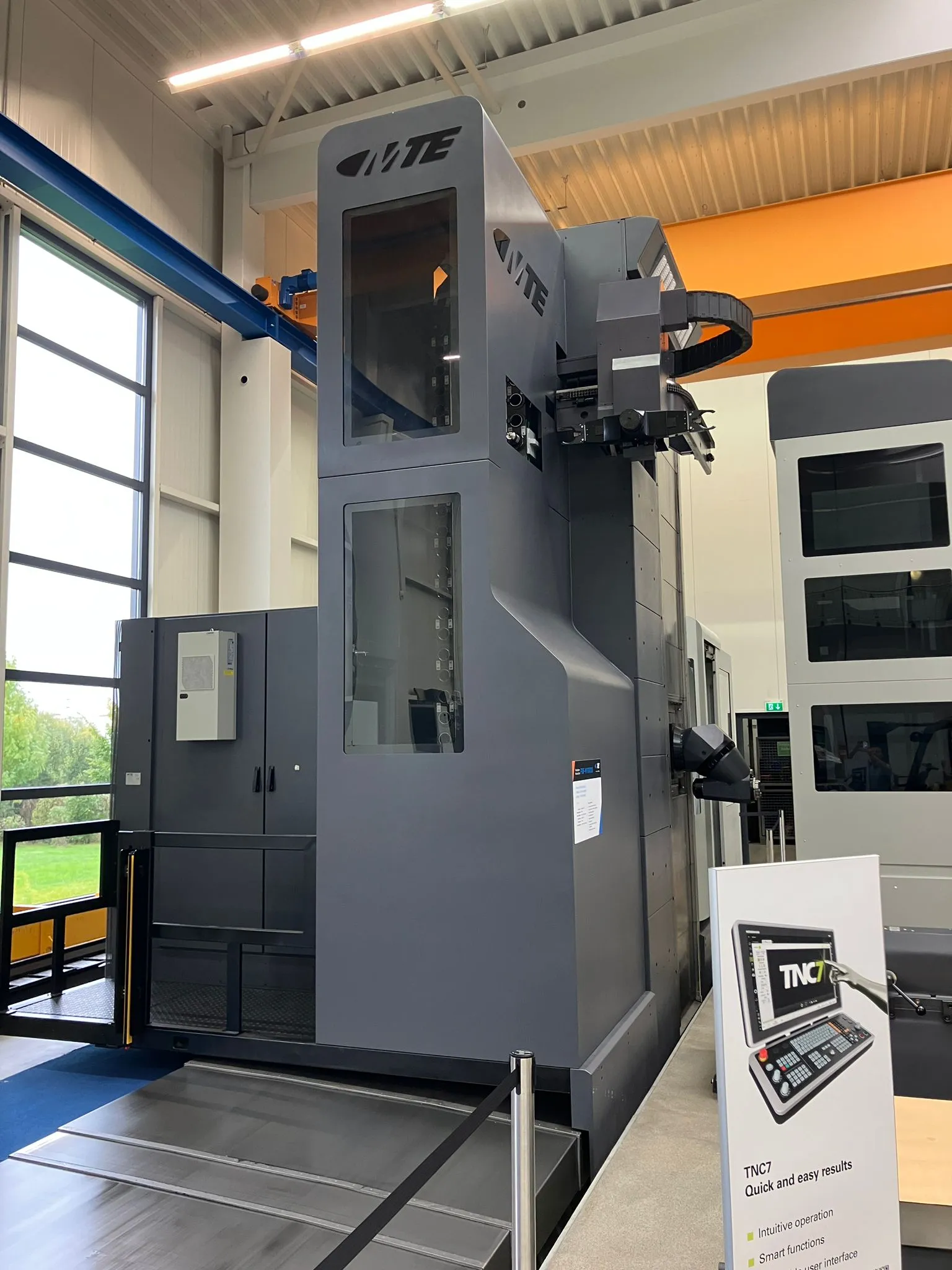

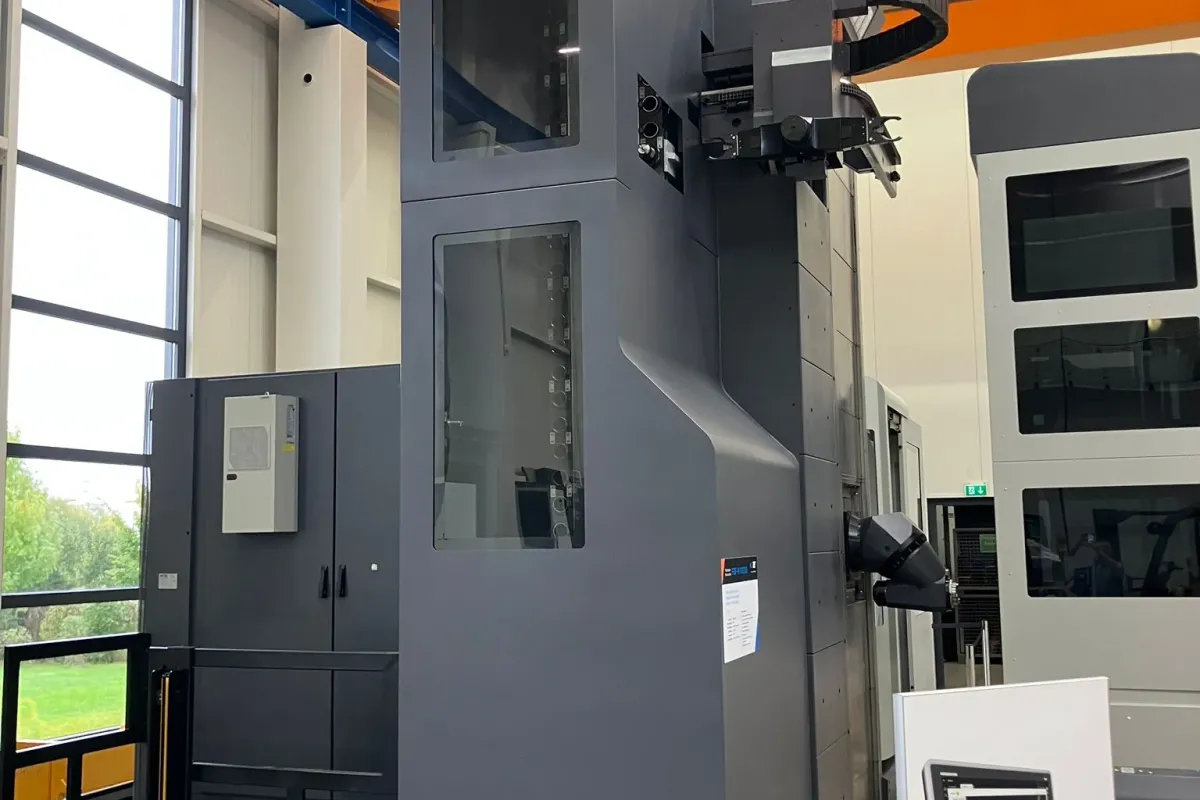

• 60-position tool magazine with horizontal/vertical change capability

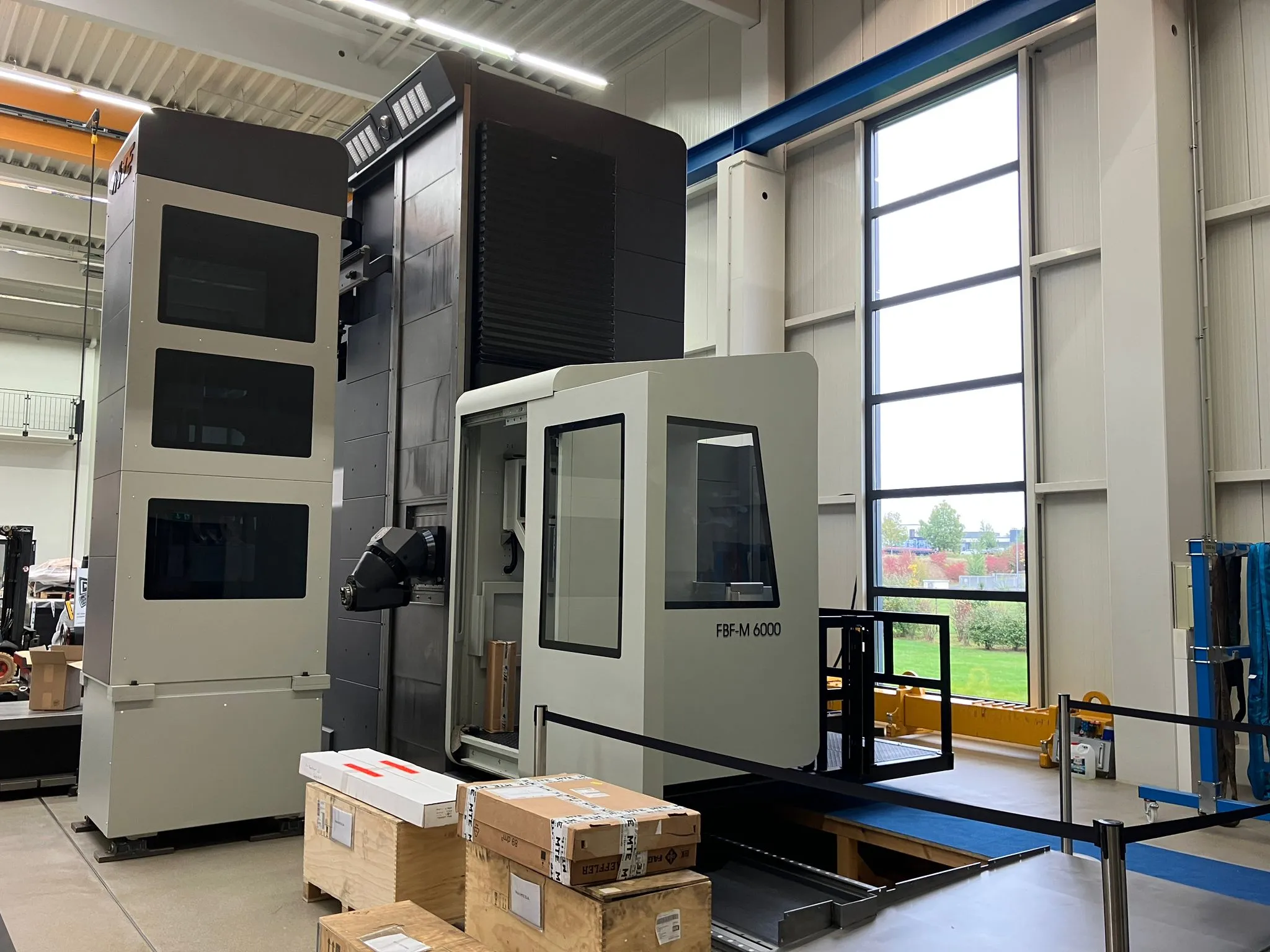

• Automatic head and accessory changer with 3 positions
• Extended spindle HFK-500
• Through-spindle coolant + air: 20 + 8 bar

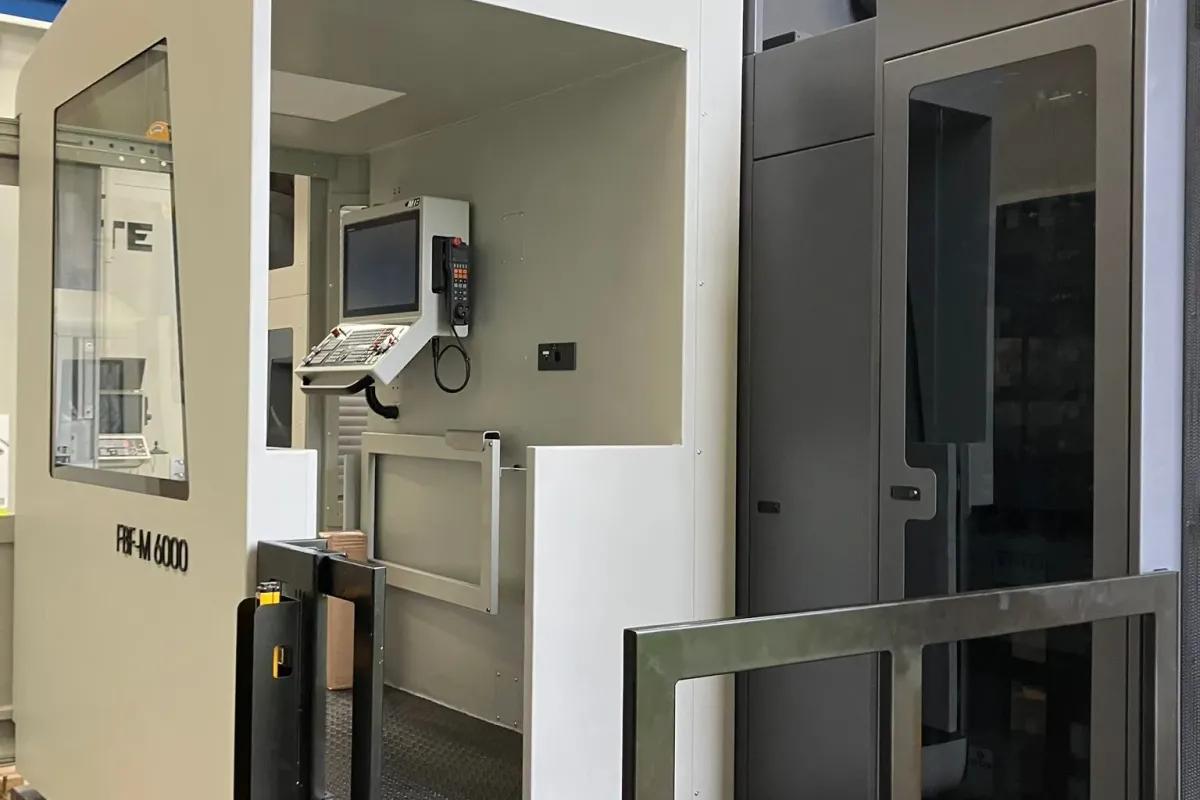

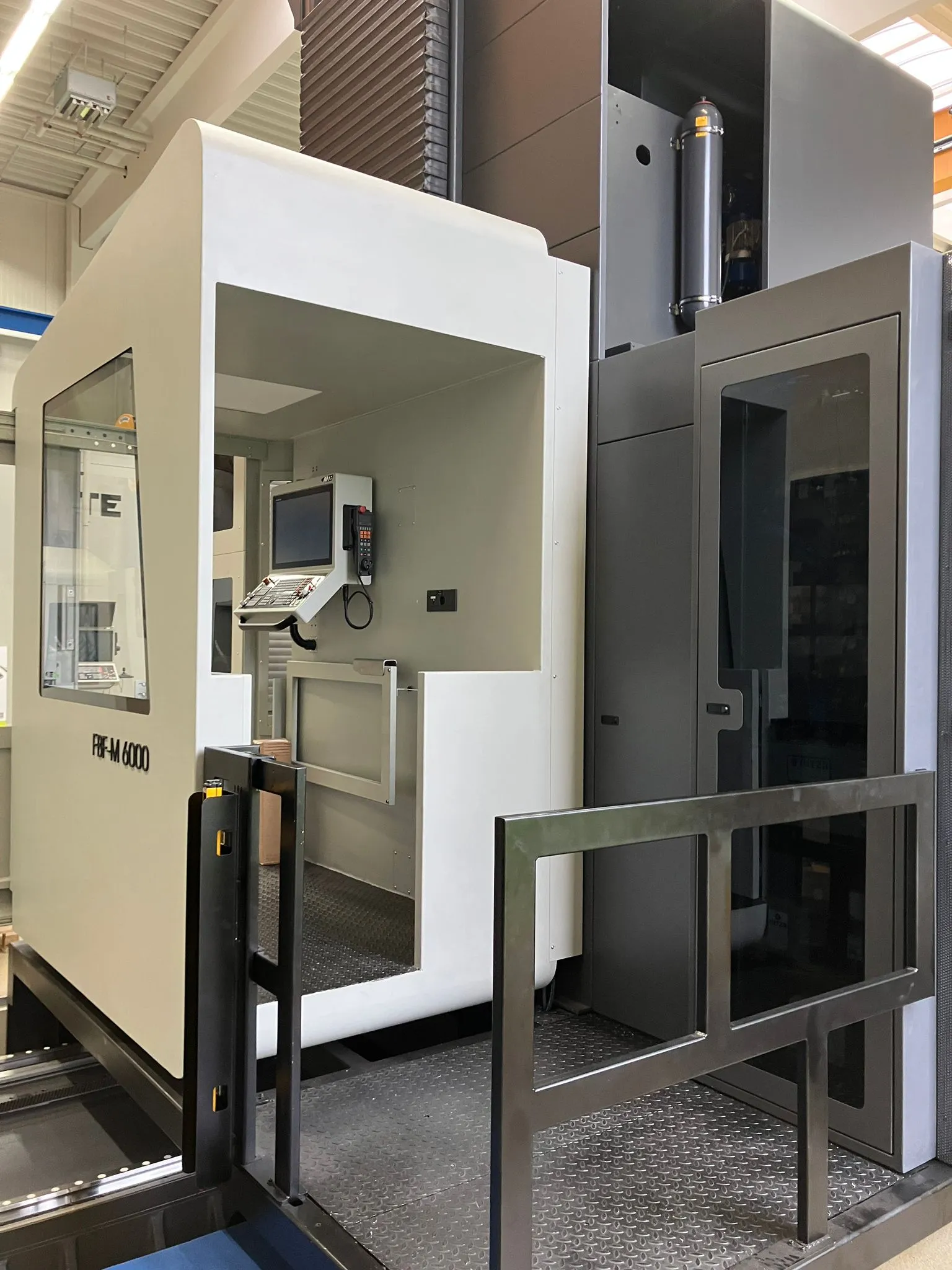

• Operator platform with vertical lift
• Rear hinged belt chip conveyor
• Ewon remote teleservice
• Available for immediate delivery

• Heavy-duty milling of large mechanical components
• Multi-face and multi-axis machining using indexed automatic head
• High-speed precision machining for molds, dies, and structural parts
• Production in large-scale mechanical workshops
• Industry 4.0 connected environments with remote monitoring
