Flat Bed Cnc Lathe Blin BL-HK63B-3000
Price on request
Flat Bed CNC Lathe Blin BL-HK63B-3000
The Blin BL-HK63B-3000 is a flat bed CNC lathe designed for machining medium to large and long workpieces, combining high rigidity, precision, and reliability. The machine features a robust cast iron structure and a wide bed design, ensuring excellent vibration damping and stability during heavy turning operations.

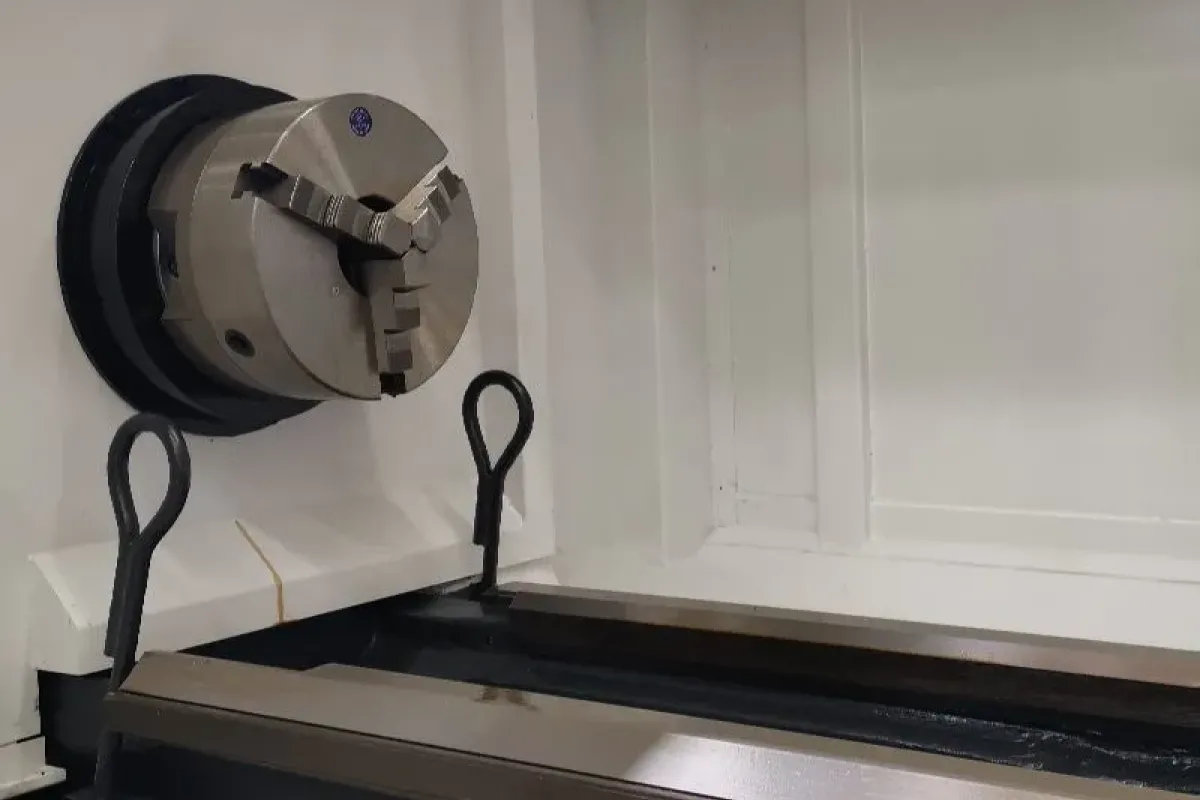

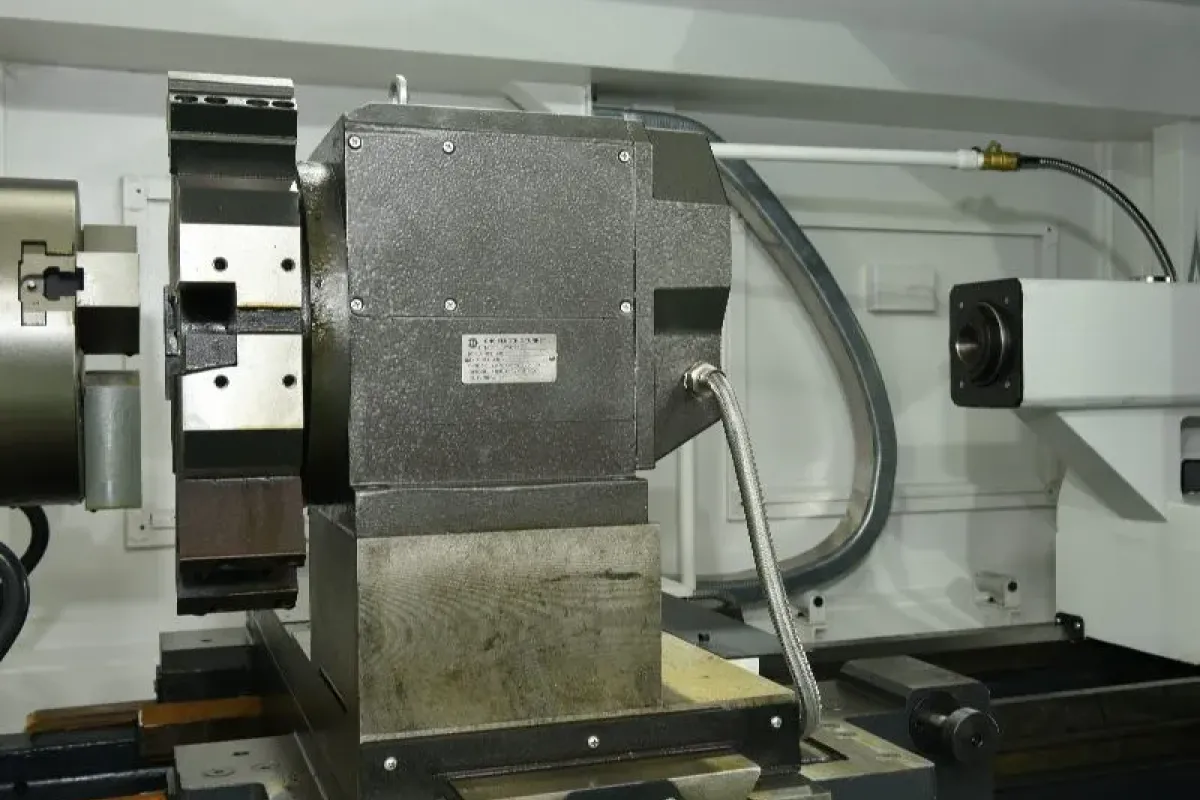

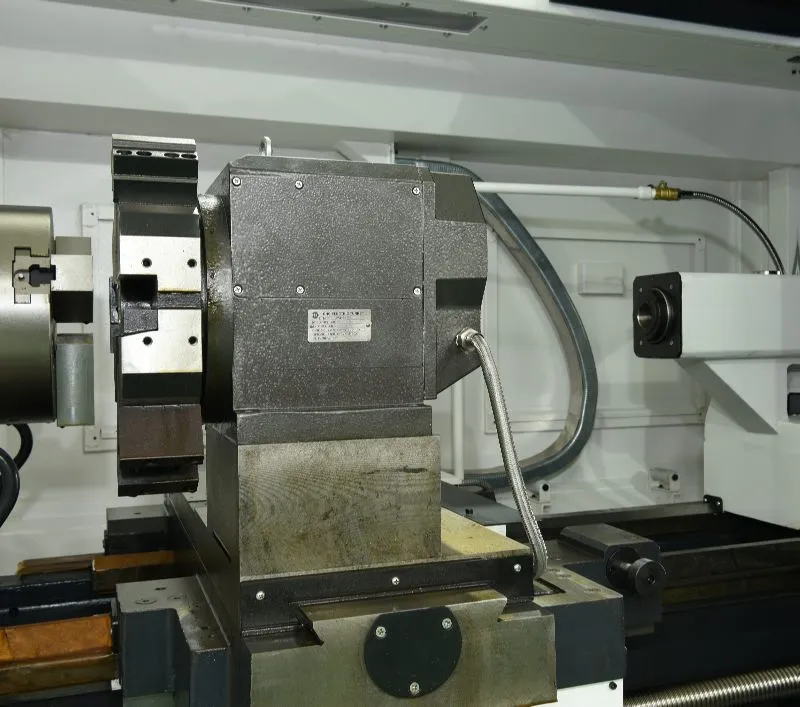

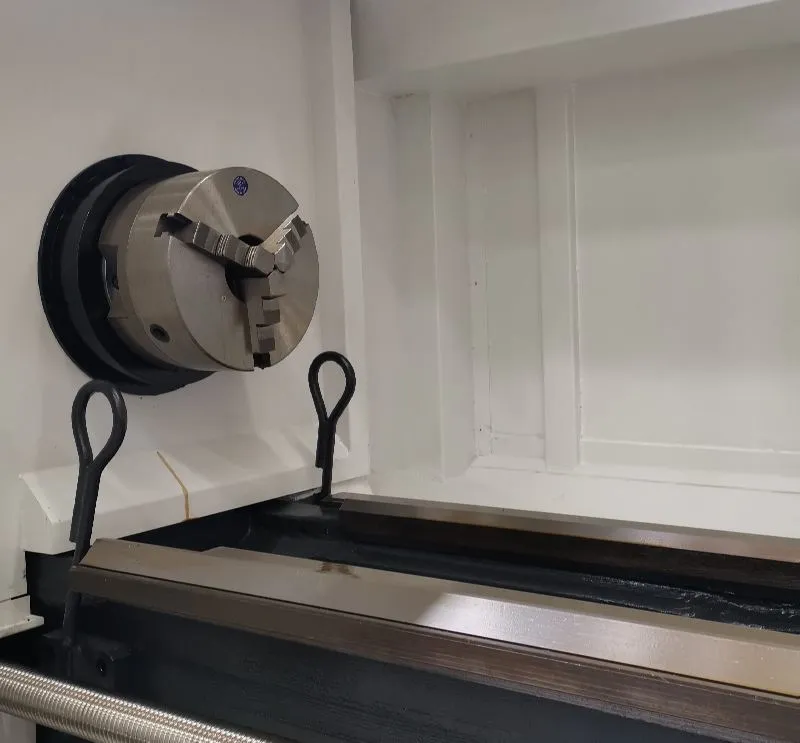

The box guideways with anti-friction material provide high load capacity and durability, making the machine suitable for demanding machining conditions. The lathe can be configured with two turret options: a 4-position vertical turret for larger turning diameters or a 6-position horizontal turret for more versatile machining operations.
With a maximum distance between centers of 3000 mm, the machine is ideal for machining long shafts and cylindrical components. The large spindle bore of 105 mm allows the machining of bar stock with significant diameters.
Thanks to its flexible configuration options, the BL-HK63B-3000 can be adapted to different machining requirements and production environments.
Maximum rotating diameter on the bed: | 630 mm |
Maximum rotating diameter on the cross carriage: | 360 mm |
Maximum turnable diameter with a 4-position turret (vertical axis): | 630 mm |
Maximum turnable diameter with a 6-position turret (horizontal axis): | 2900 mm |
Distance between the tips: | 3000 mm |
Machinable length: | 3000 mm |
Distance between centres with a 4-position turret (vertical axis): | 3000 mm |
Distance between centres with a 6-position turret (horizontal axis): | 2900 mm |
Turret type: | automatic |
Number of seats in the cabin: | 4/6/8/12 |
X-axis travel: | 370 mm |
Z-axis travel: | 2810 mm |
Spindle nose attachment: | ASA A2-11 |
Spindle speed: | 1120 rpm |
Spindle bore diameter: | 105 mm |
Spindle power: | 11/15 KW |
Key points: | 7 m/min |
CNC type: | Fanuc, Siemens, Fagor, Gsk, Syntec |
Weight: | 6100 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
- Bed width: 560 mm
- Maximum admissible load: 1200 kg
- X axis travel: 370 mm
- Z axis travel with 4-position turret (vertical axis): 2810 mm
- Z axis travel with 6-position turret (horizontal axis): 2710 mm
- Distance between centers with 4-position turret: 3000 mm
- Distance between centers with 6-position turret: 2900 mm
- Spindle bore: 105 mm
- Automatic electrical turret: 4 or 6 positions
- Box guideways with anti-friction material
- Heavy-duty cast iron structure
- Several configurations and sizes available
- Machining of long shafts and cylindrical components
- Production of flanges, sleeves, and mechanical parts
- General mechanical engineering and subcontract machining
- Precision turning operations on medium-large workpieces
