Flat Bed Cnc Lathe Blin BL-HK63B-1000
Price on request

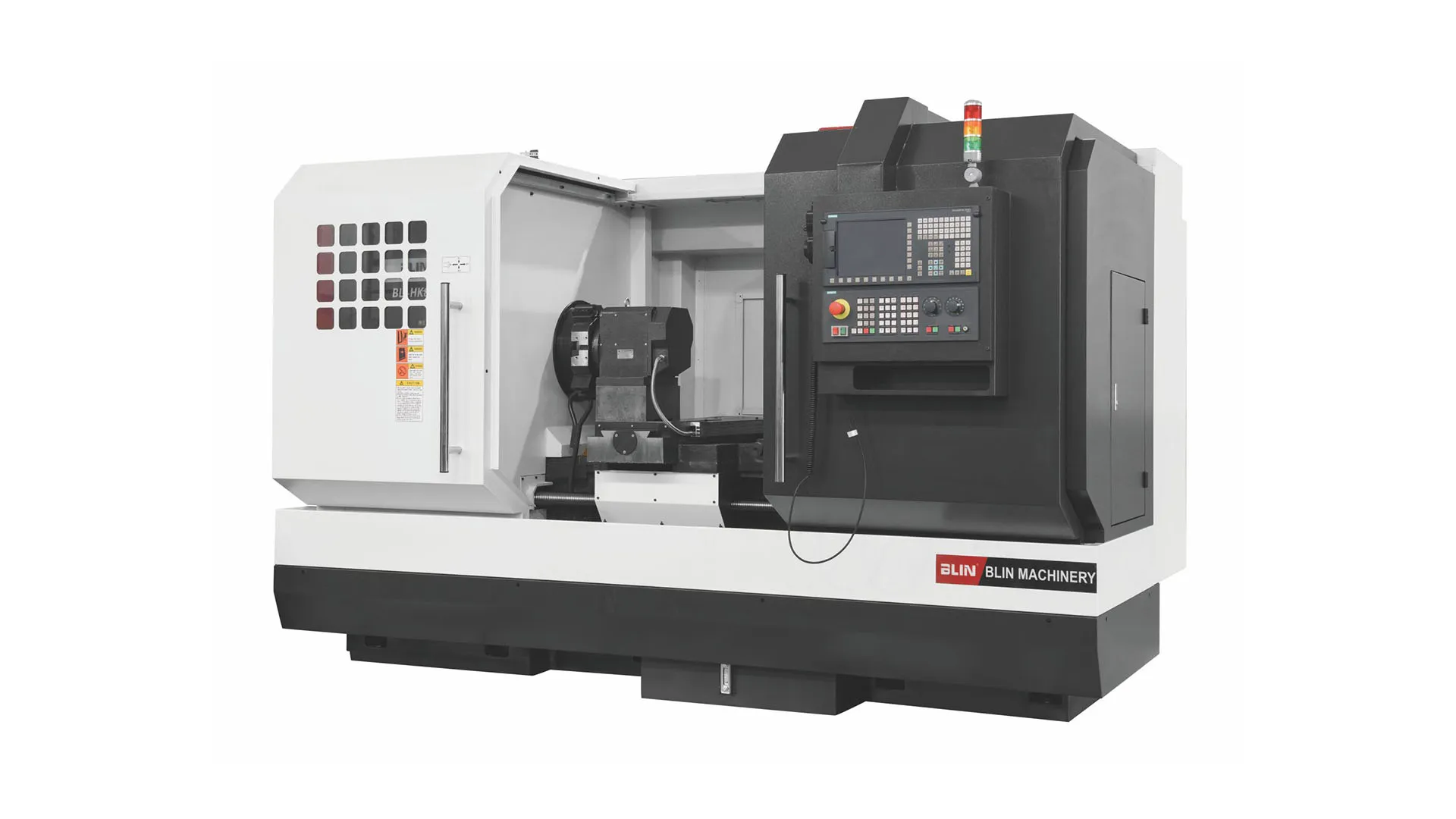

Flat Bed CNC Lathe Blin BL-HK63B-1000
The Blin BL-HK63B-1000 is a flat bed CNC lathe designed for machining medium to large diameter workpieces requiring high rigidity and precision. Thanks to its robust cast iron structure, the machine provides excellent vibration damping and stability during heavy turning operations.
The flat bed configuration ensures high structural rigidity, making the machine suitable for demanding machining tasks and heavy cutting conditions. The lathe can be configured with two turret options: a 4-position vertical turret for larger turning diameters or a 6-position horizontal turret for versatile machining operations.
The ASA A2-11 spindle nose allows the use of large chucks, enabling the machining of bigger workpieces. The machine is also equipped with a cooling system, improving tool life and machining performance during continuous operations.
Thanks to its flexible configuration options, the BL-HK63B-1000 can be adapted to different machining requirements and production environments.
Maximum rotating diameter on the bed: | 630 mm |
Maximum rotating diameter on the cross carriage: | 360 mm |
Maximum turnable diameter with a 4-position turret (vertical axis): | 630 mm |
Maximum turnable diameter with a 6-position turret (horizontal axis): | 900 mm |
Distance between centres with a 4-position turret (vertical axis): | 1000 mm |
Distance between centres with a 6-position turret (horizontal axis): | 900 mm |
Turret type: | automatic |
Number of seats in the cabin: | 4/6/8/12 |
X-axis travel: | 370 mm |
Z-axis travel: | 760 mm |

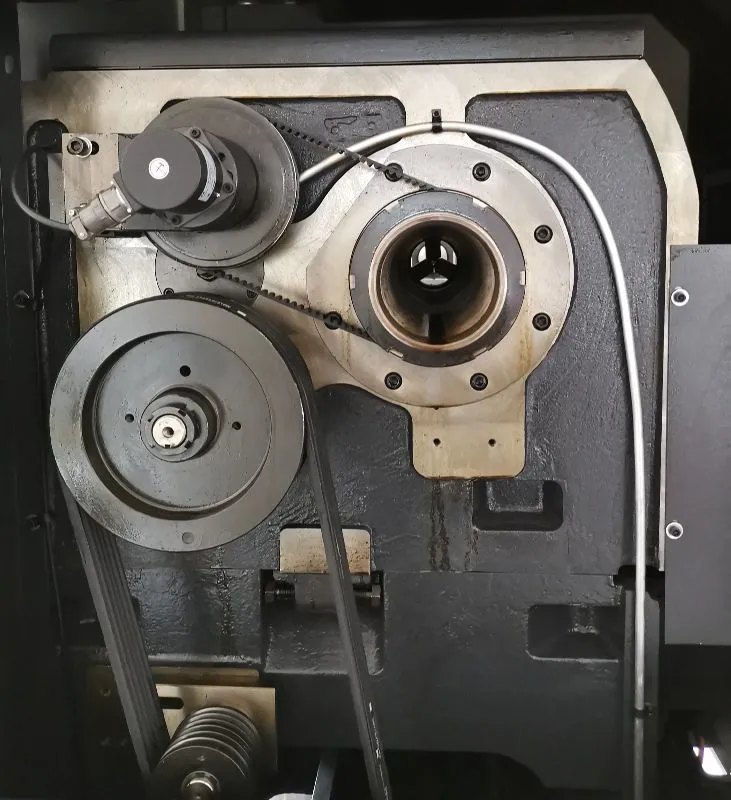

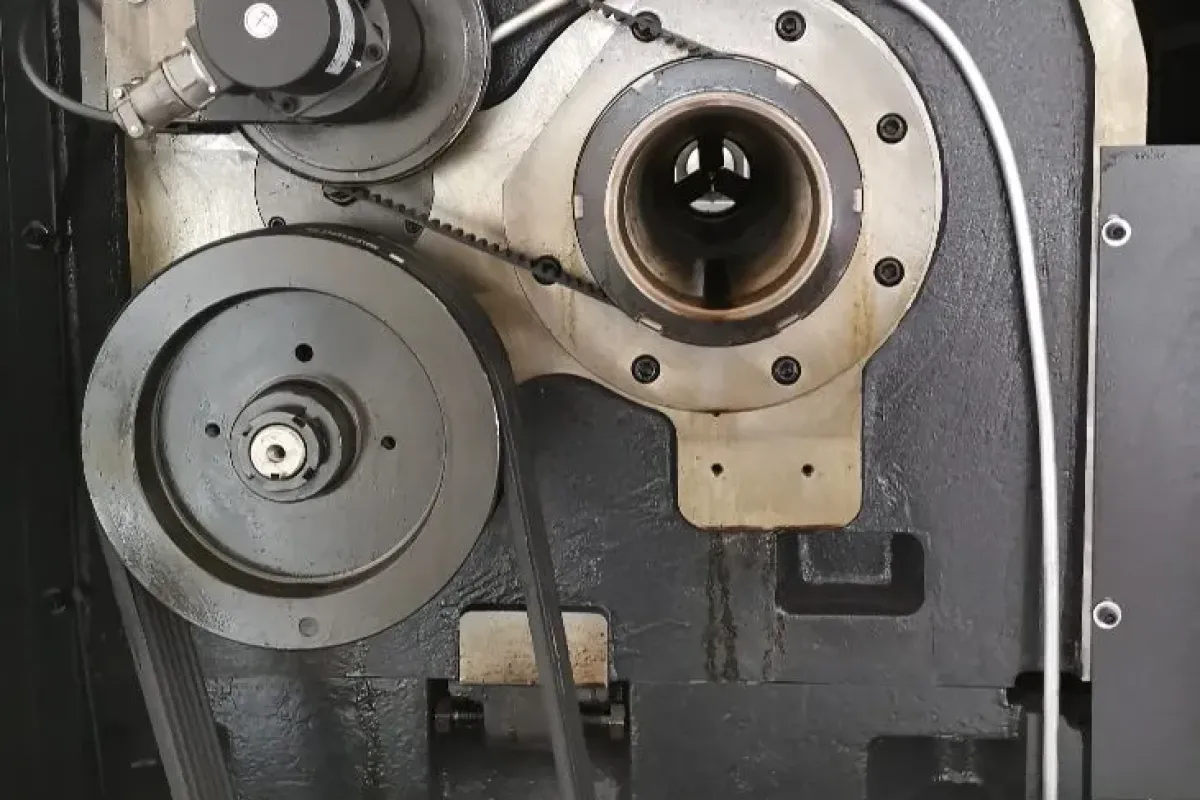

Spindle nose attachment: | ASA A2-11 |
Spindle speed: | 1120 rpm |
Spindle bore diameter: | 105 mm |
Key points: | 7 m/min |
CNC type: | Fanuc, Siemens, Fagor, Gsk, Syntec |
Weight: | 4600 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
- Swing over bed: 630 mm
- Swing over cover: 360 mm
- Max turning diameter with 4-position vertical turret: 630 mm
- Max turning diameter with 6-position horizontal turret: 500 mm
- Distance between centers with 4-position turret: 1000 mm
- Distance between centers with 6-position turret: 900 mm
- Spindle nose: ASA A2-11

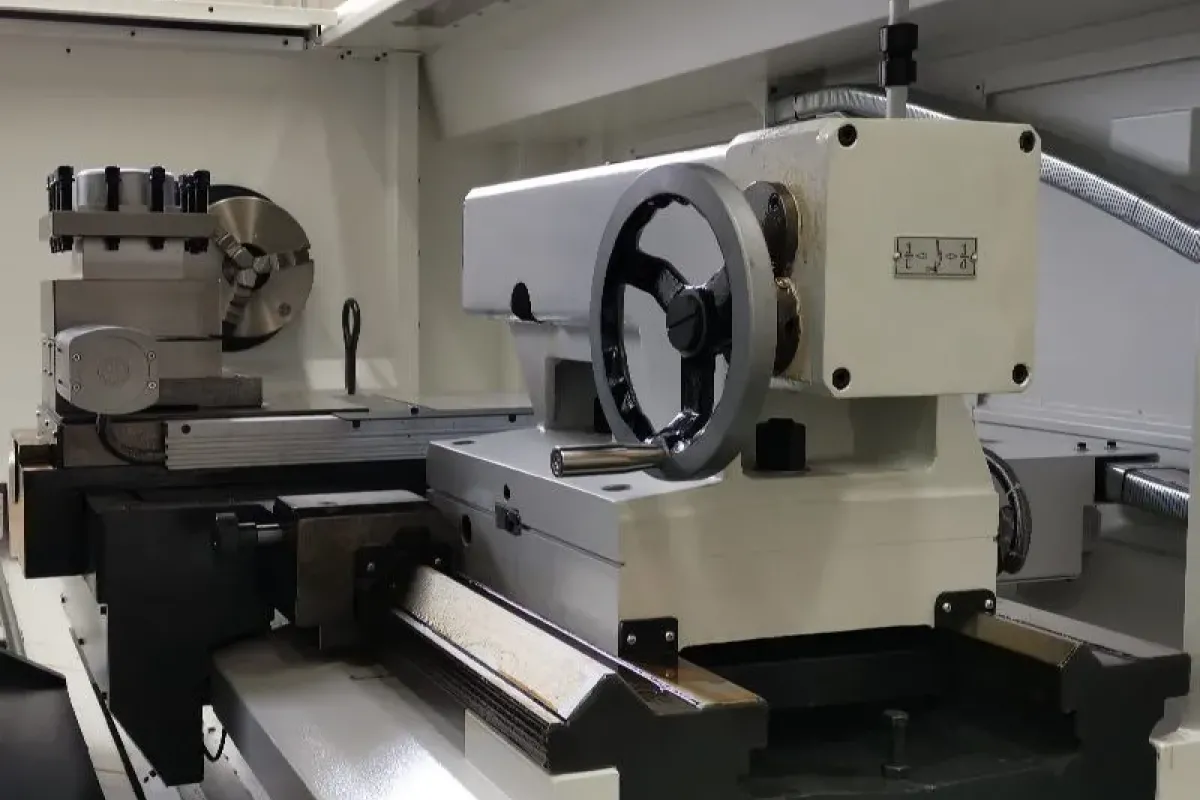

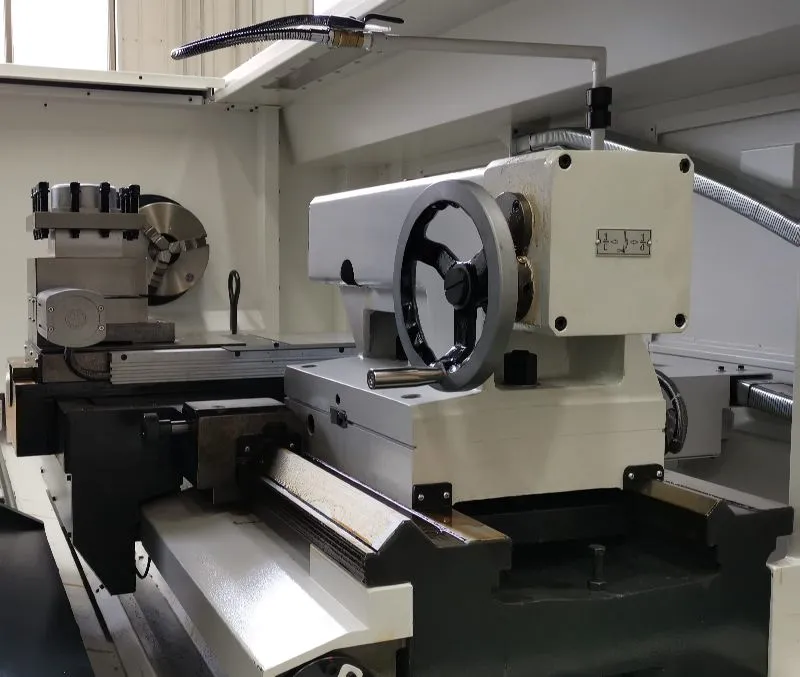

- Electrical turret with 4 or 6 positions
- Cooling system

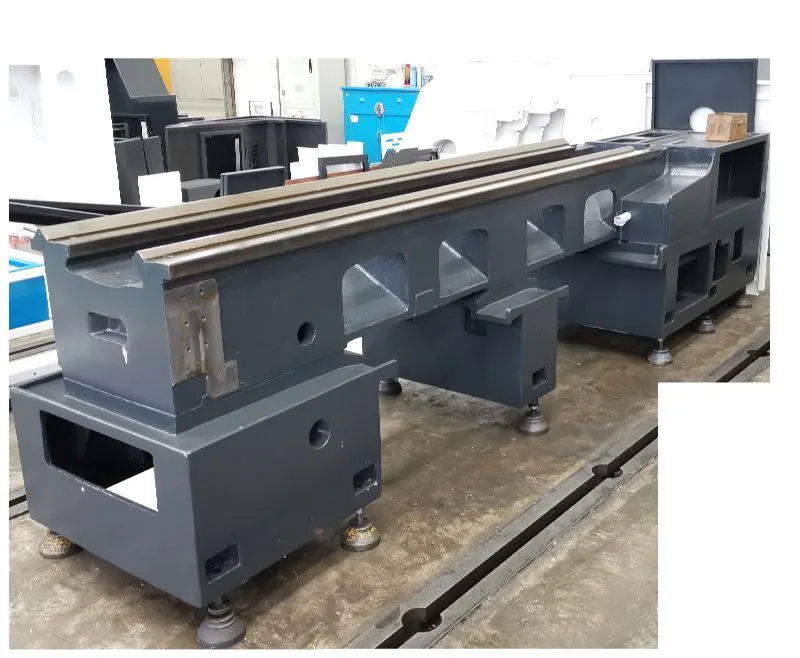

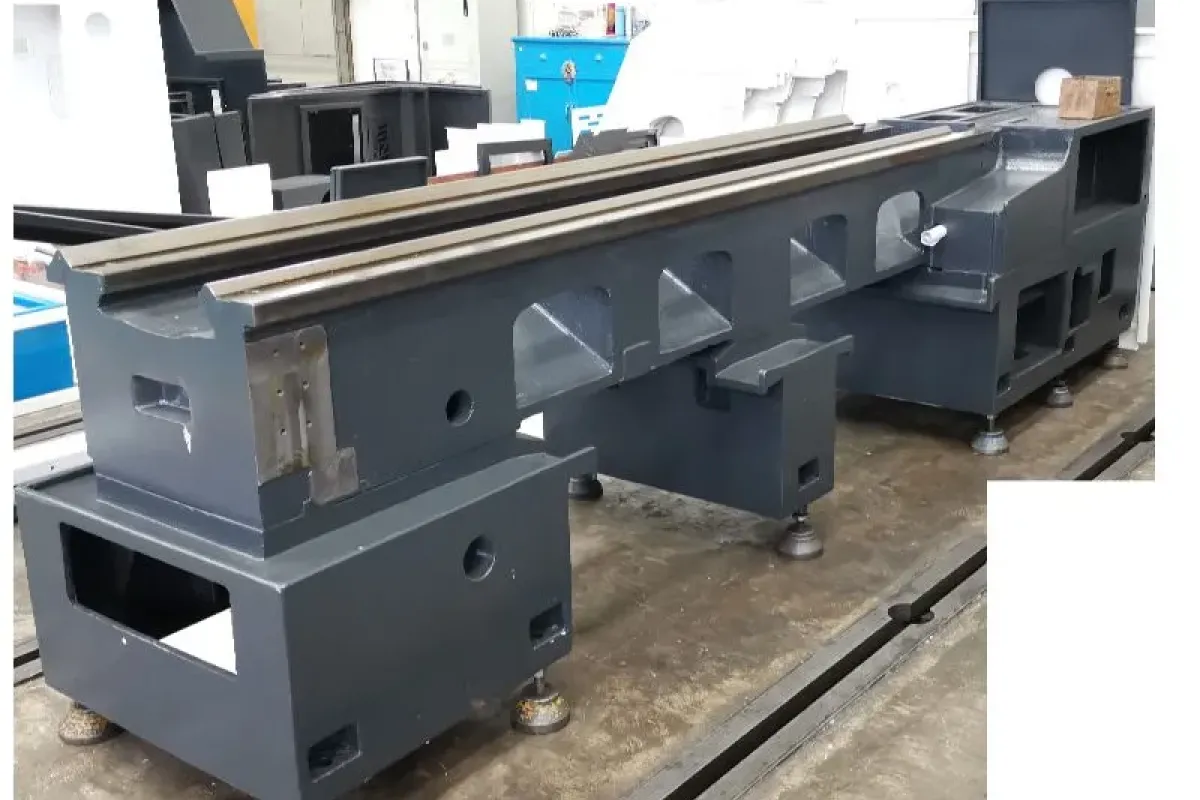

- Heavy duty cast iron structure
- Several dimensions and configurations available
- Machining of medium and large cylindrical components
- Production of shafts, flanges, rings, and mechanical parts
- General mechanical engineering and subcontract machining
- Precision turning operations on medium-large workpieces
