Price on request
The Blin BL-CKL6163-1000 is a flat bed CNC lathe designed for machining medium to large workpieces with high rigidity, precision, and reliability. The machine features a Meehanite cast iron structure, ensuring excellent vibration damping and long-term dimensional stability during heavy turning operations.
The wide bed design (550 mm) combined with the box guideway system provides high load capacity and stable machining performance. With a maximum swing over bed of 630 mm and a maximum turning length of 1000 mm, the machine is suitable for a wide range of turning applications on medium-sized components.
The spindle bore of 104 mm allows the machining of large bar stock, while the C.M. 11 spindle nose supports the use of robust workholding systems for secure clamping of heavy parts.

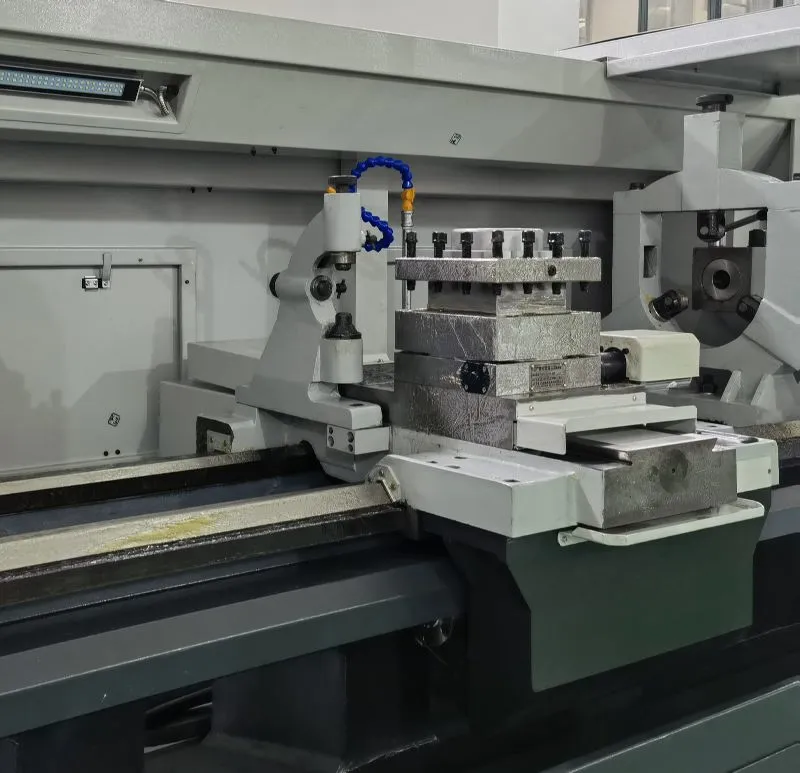

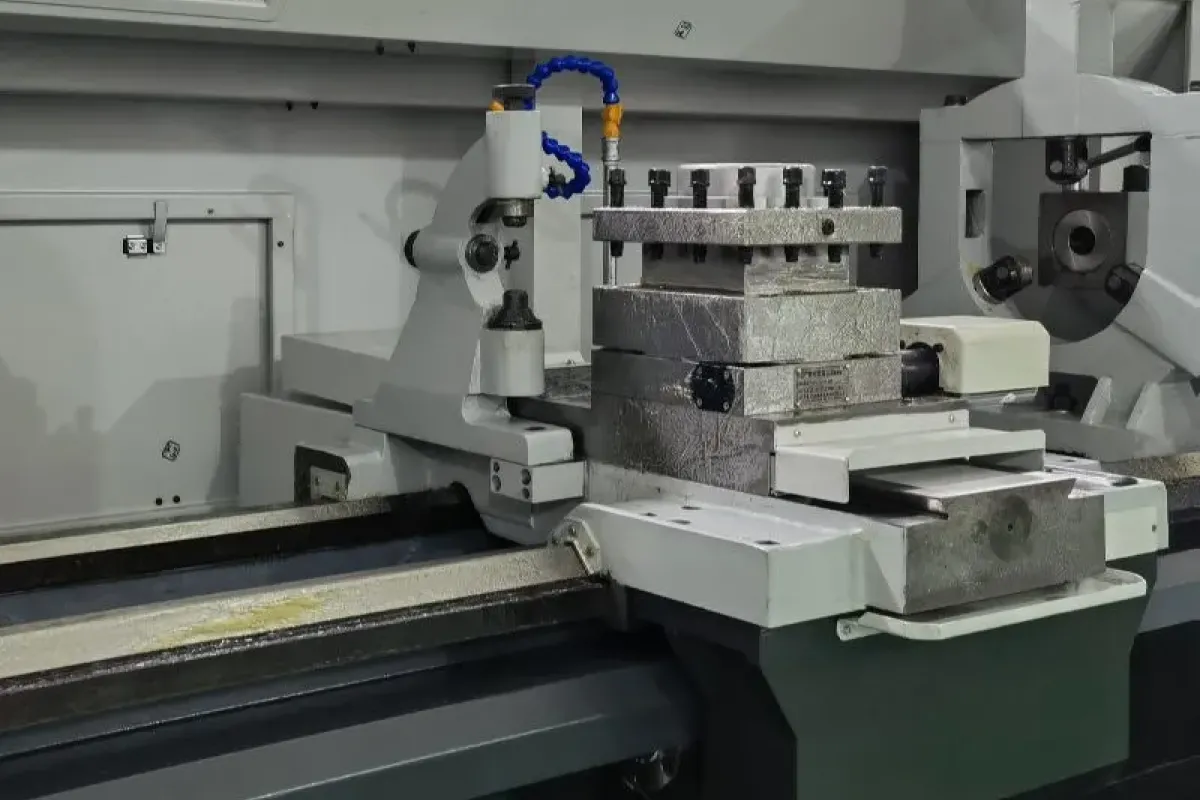

The machine is equipped with a 4-position automatic electric turret, allowing efficient tool changes during machining operations. An automatic lubrication system ensures proper lubrication of moving components, increasing reliability and reducing maintenance requirements.
Thanks to its robust construction and flexible CNC options, the BL-CKL6163-1000 is suitable for various industrial machining environments.
Maximum rotating diameter on the bed: | 630 mm |
Maximum rotating diameter on the cross carriage: | 350 mm |
Machinable length: | 1000 mm |
Turret type: | automatic |
Number of seats in the cabin: | 4/6/8/12 |
X-axis travel: | 320 mm |
Z-axis travel: | 850 mm |
Table size: | 315 mm |
Spindle nose attachment: | ASA A2-11 |
Spindle speed: | 1000 rpm |
Spindle bore diameter: | 104 mm |
Cone type: | C.M. 5 |
Key points: | 6 m/min |
CNC type: | Fanuc, Siemens, Fagor, Gsk, Syntec |
Weight: | 3700 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
