Flat Bed Cnc Lathe Blin BL-CKL61100M-6000
Price on request

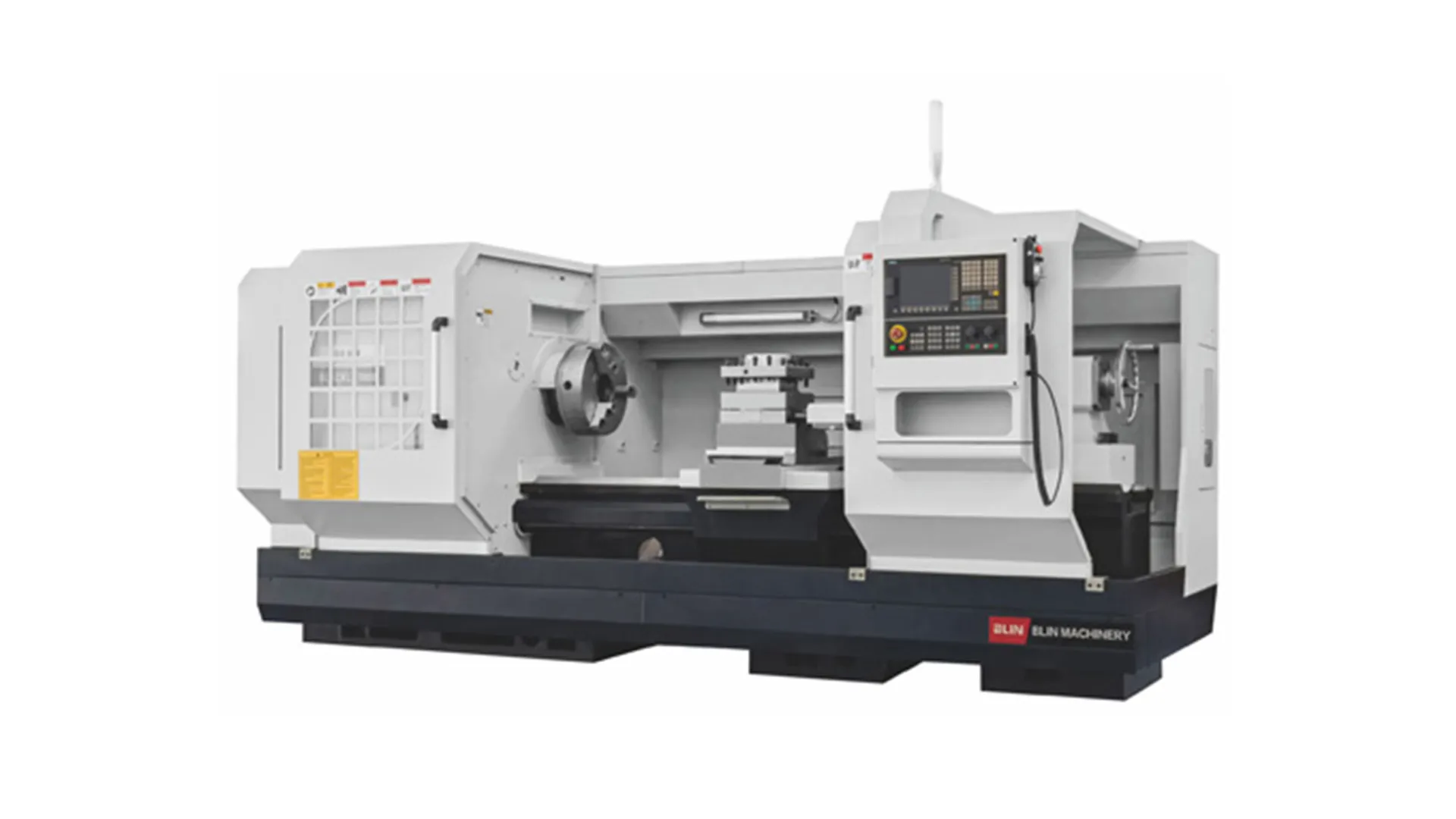

Flat Bed CNC Lathe Blin BL-CKL61100M-6000 with C Axis and Motorized Tools
The Blin BL-CKL61100M-6000 is a heavy-duty flat bed CNC lathe designed for machining very long and large workpieces with high precision and stability. Thanks to its robust cast iron structure and box guideways, the machine provides excellent rigidity and vibration damping during demanding turning operations.
With a bed width of 600 mm, a maximum swing over bed of 1000 mm, and a distance between centers of 6000 mm, the machine is ideal for machining long shafts and large cylindrical components. The maximum turning length of 5600 mm allows efficient machining of oversized parts in a single setup.
The lathe is equipped with a motorized turret with 12 VDI 50 positions, enabling combined machining operations such as turning, milling, drilling, and tapping. The CS axis with magnetic ring encoder and braking system allows precise spindle positioning and interpolation for complex machining operations.

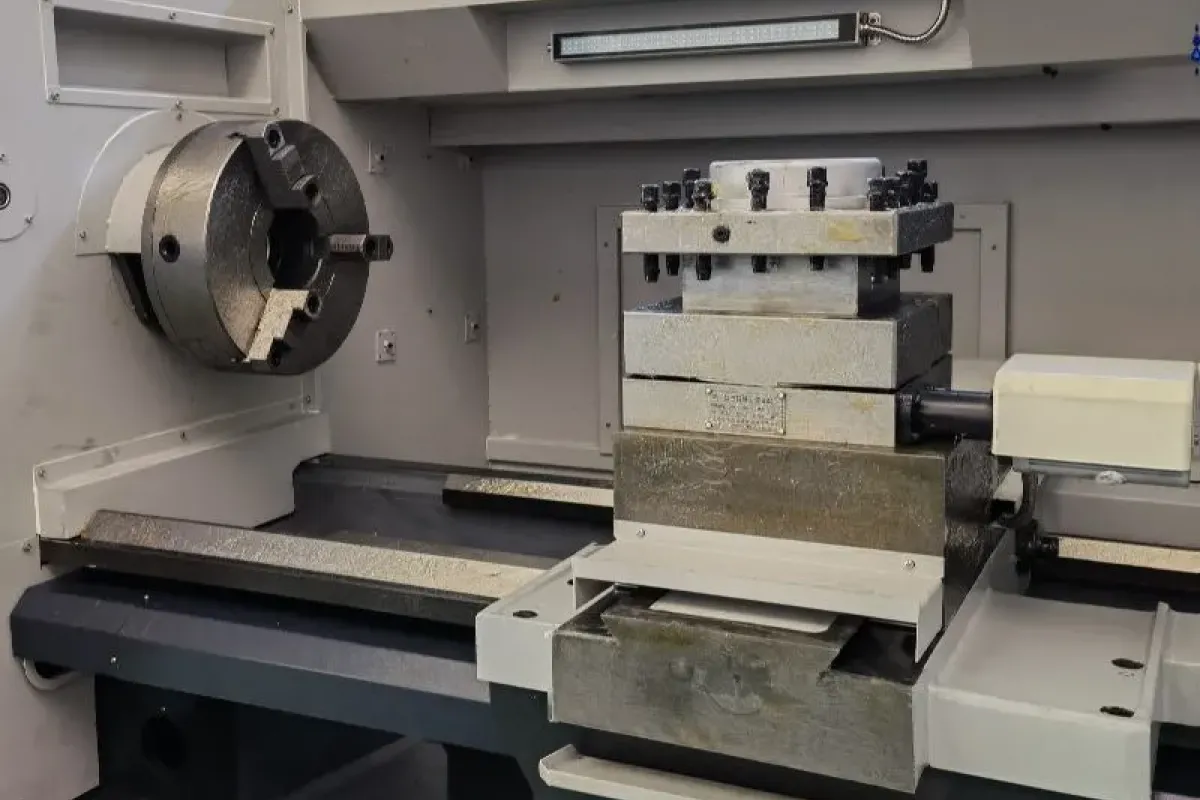

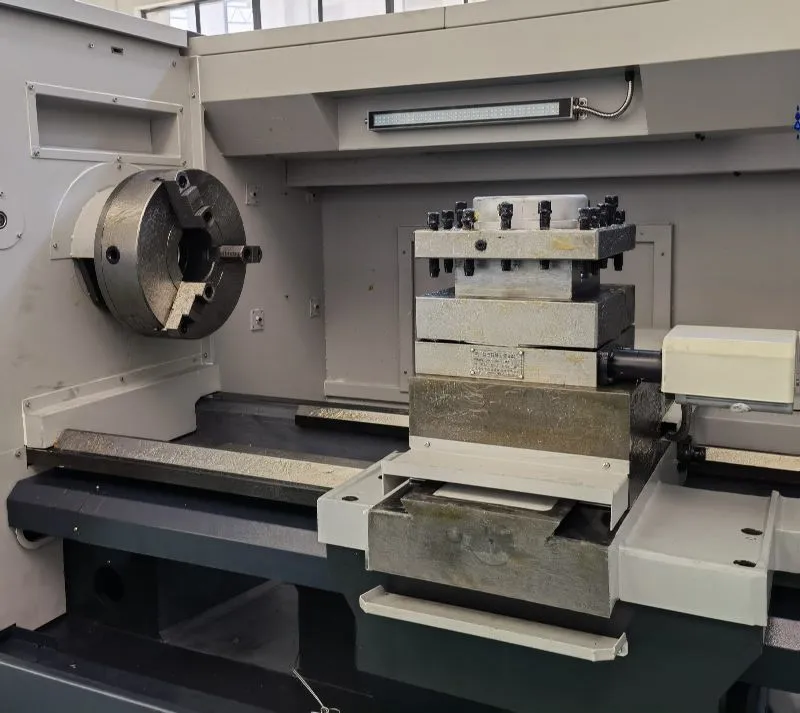

The machine is fitted with a 400 mm hydraulic self-centering chuck, ensuring secure clamping of large workpieces, while the C.M. 5 spindle nose taper supports reliable workholding configurations.
The box guideway sliding system ensures high load capacity and long-term durability under heavy machining conditions.
Thanks to its large working capacity and flexible configuration options, the BL-CKL61100M-6000 is suitable for industries requiring the machining of long and heavy components.
Maximum rotating diameter on the bed: | 1000 mm |
Maximum rotating diameter on the cross carriage: | 680 mm |
Distance between the tips: | 6000 mm |
Machinable length: | 5600 mm |
Turret type: | Power turret |
Number of seats in the cabin: | 12 |
X-axis travel: | 520 mm |
Z-axis travel: | 5850 mm |
Spindle nose attachment: | ASA A2-11 |
Spindle speed: | 800 rpm |
Spindle bore diameter: | 104 mm |
Cone type: | C.M. 5 |
Key points: | 6 m/min |
CNC type: | Fanuc, Siemens, Fagor, Gsk, Syntec |
Weight: | 9000 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
- Bed width: 600 mm
- Maximum swing over bed: 1000 mm
- Distance between centers: 6000 mm
- Maximum turning length: 5600 mm
- Maximum admissible workpiece weight: 4000 kg
- Spindle nose taper: C.M. 5
- Self-centering chuck diameter: 400 mm
- Motorized turret: 12 positions VDI 50
- CS axis with magnetic ring encoder and braking system
- Heavy-duty cast iron structure
- Box guideways for high rigidity
- Several configurations and dimensions available
- Machining of long shafts and large cylindrical components
- Production of rollers, spindles, and heavy mechanical parts
- Energy, steel, and heavy mechanical engineering sectors
- Combined turning, milling, drilling, and threading operations on large workpieces
