Electronic Lathe Hankook PROTEC-9N

Model: PROTEC-9N

Brand: HANKOOK

Type: lathes

Price on request

Description

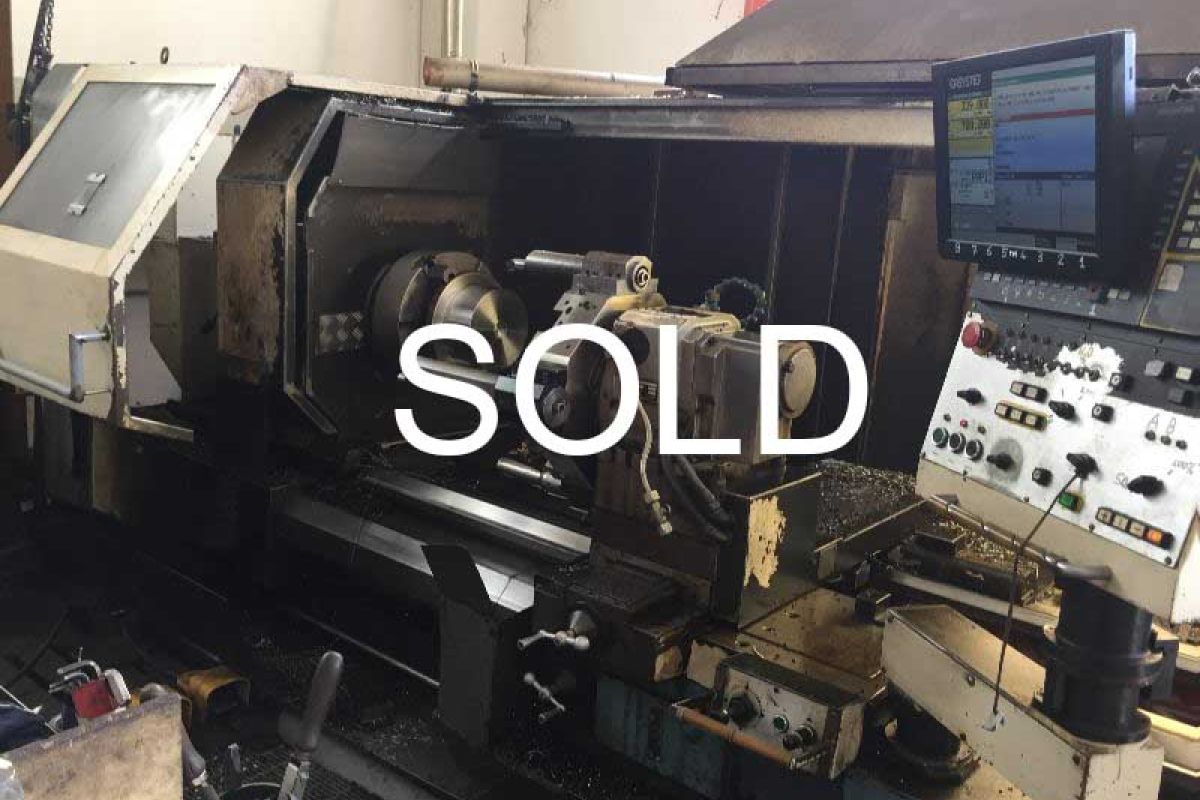

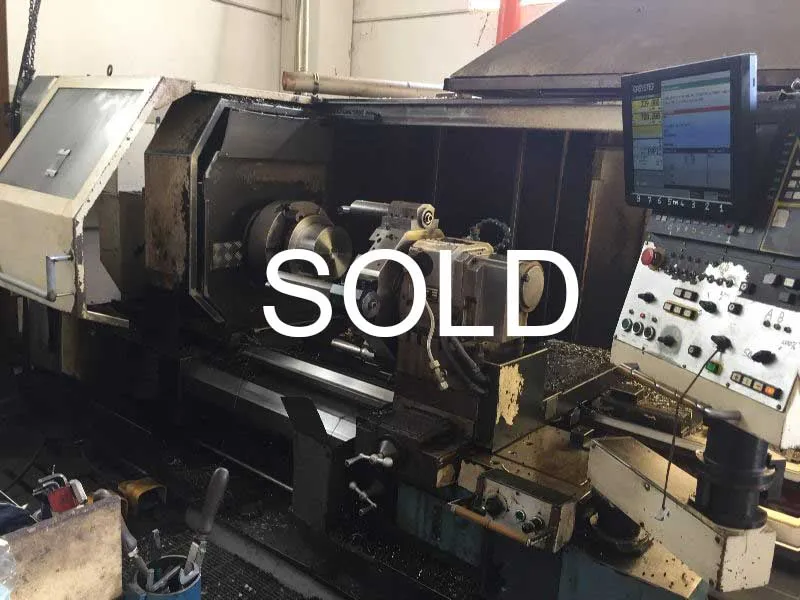

Used CNC Lathe Hankook PROTEC-9N 475 × 3000

The Hankook PROTEC-9N is a used electronic (CNC) lathe designed for precision turning of medium to large components. Its robust structure ensures stability and accuracy, making it suitable for mechanical workshops, maintenance departments, and small series production.

Equipped with a Siemens 810D CNC control and an automatic circular turret, the machine allows efficient multi-tool operations with reduced setup times. The inclusion of two steady rests supports long workpieces, ensuring precision and rigidity during turning operations.

The Hankook PROTEC-9N 475 × 3000 is ideal for companies seeking a used CNC lathe capable of precision turning on medium to long shafts and cylindrical parts.

Technical Specifications

Maximum rotating diameter on the bed:	950 mm
Maximum rotating diameter on the cross carriage:	630 mm
Maximum turnable diameter:	950 mm
Distance between the tips:	3000 mm
Machinable length:	2845 mm
Turret type:	automatic
Number of seats in the cabin:	8
Table dimensions:	600 mm
Table type:	Platform with 4 independent jaws
Spindle nose attachment:	ASA A2-11
Spindle speed:	1250 rpm
Spindle bore diameter:	84 mm
Cone type:	C.M. 6
CNC type:	SIEMENS 810D
Overall dimensions:	4715 x 2040 x 1850 h mm
