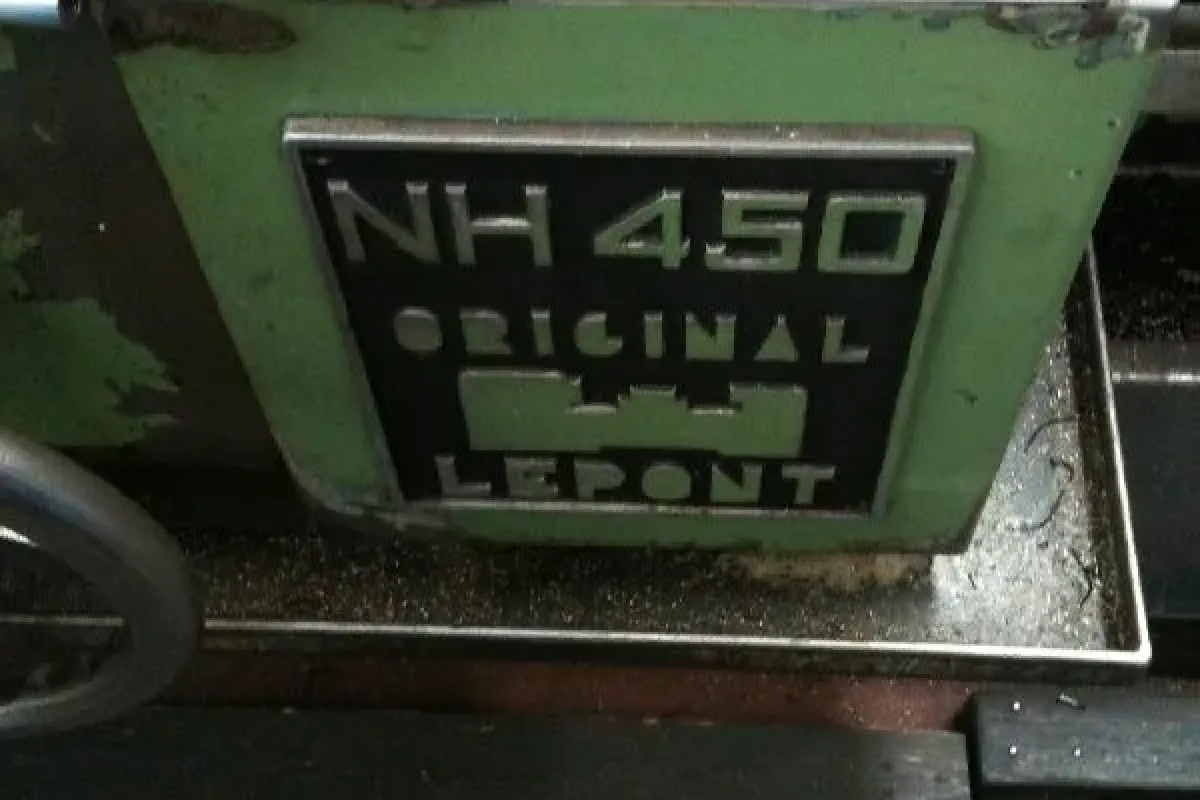

Conventional Lathe Leopoldo Pontiggia NH 450
Model: NH 450
Brand: PONTIGGIA
Type: lathes
Price on request
Description

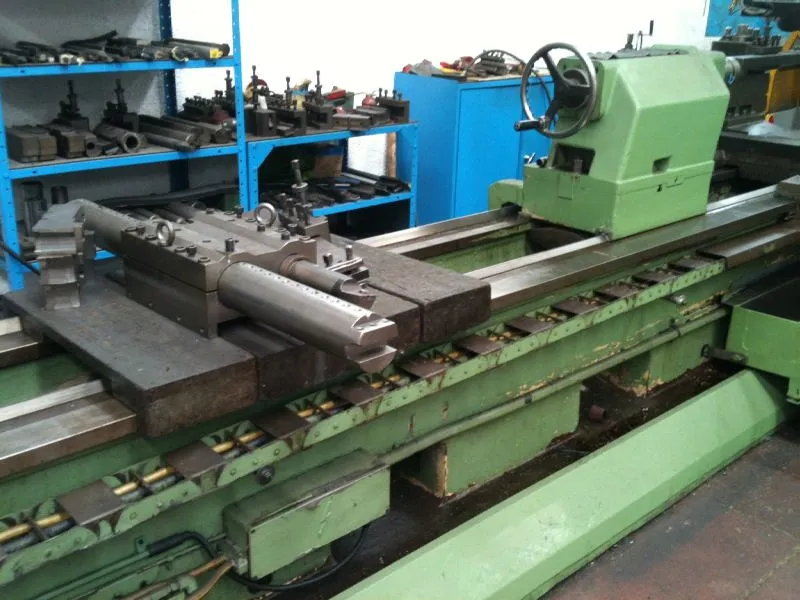

Used Conventional Lathe Leopoldo Pontiggia NH 450
The Leopoldo Pontiggia NH 450 is a used conventional heavy-duty lathe designed for machining long shafts and large mechanical components. Built with a rigid bed and robust structure, this machine ensures excellent stability and reliability during demanding turning operations.
With a distance between centers of 7000 mm and a large turning capacity, the machine is particularly suitable for machining long cylindrical parts. The presence of digital readouts on 3 axes improves machining accuracy and positioning control, making the Pontiggia NH 450 an ideal solution for workshops requiring a used conventional lathe for heavy and long workpieces.
Technical Specifications
Maximum rotating diameter on the bed: | 920 mm |
Maximum rotating diameter on the cross carriage: | 610 mm |
Distance between the tips: | 7000 mm |

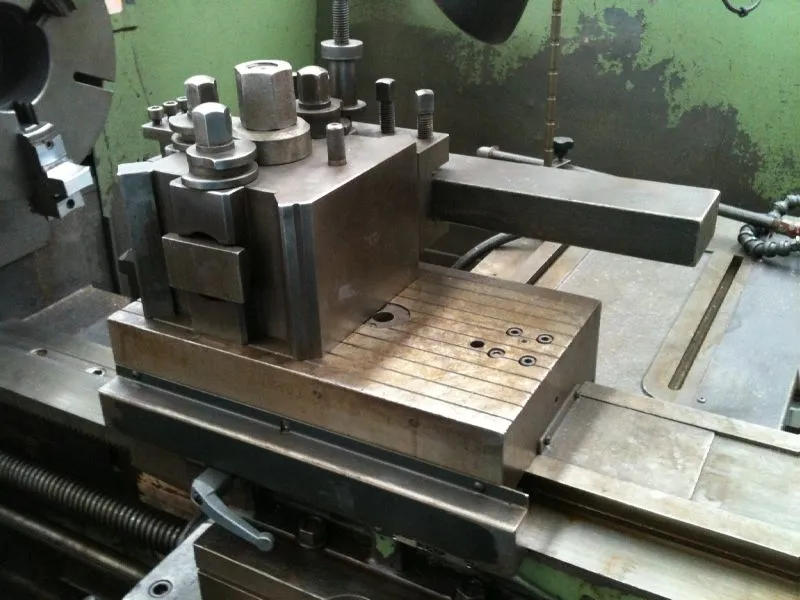

Turret type: | Manual |
Number of seats in the cabin: | 4 |
Spindle nose attachment: | ASA A2-11 |
Spindle speed: | 1000 rpm |
Spindle bore diameter: | 112 mm |
Cone type: | C.M. 6 |
Overall dimensions: | 9400 x 1700 x 1600 h mm |
Weight: | 15000 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
Key Features
- Conventional heavy-duty lathe

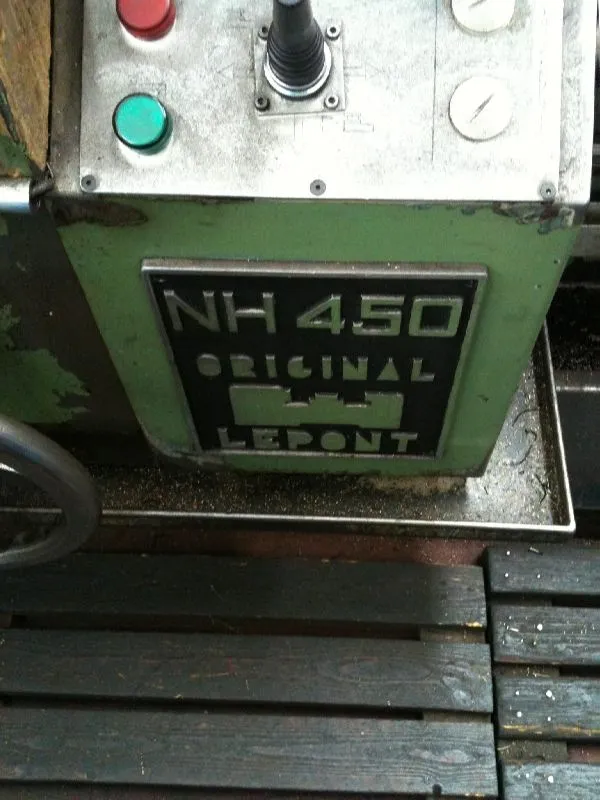

- Model Leopoldo Pontiggia NH 450
- Distance between centers: 7000 mm
- Center height: 450 mm
- Maximum turning diameter on the gap: 1200 mm

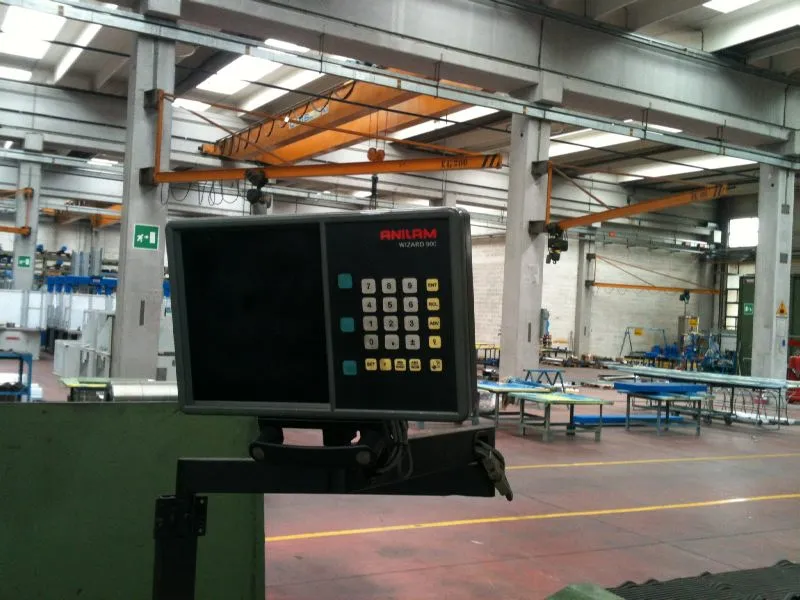

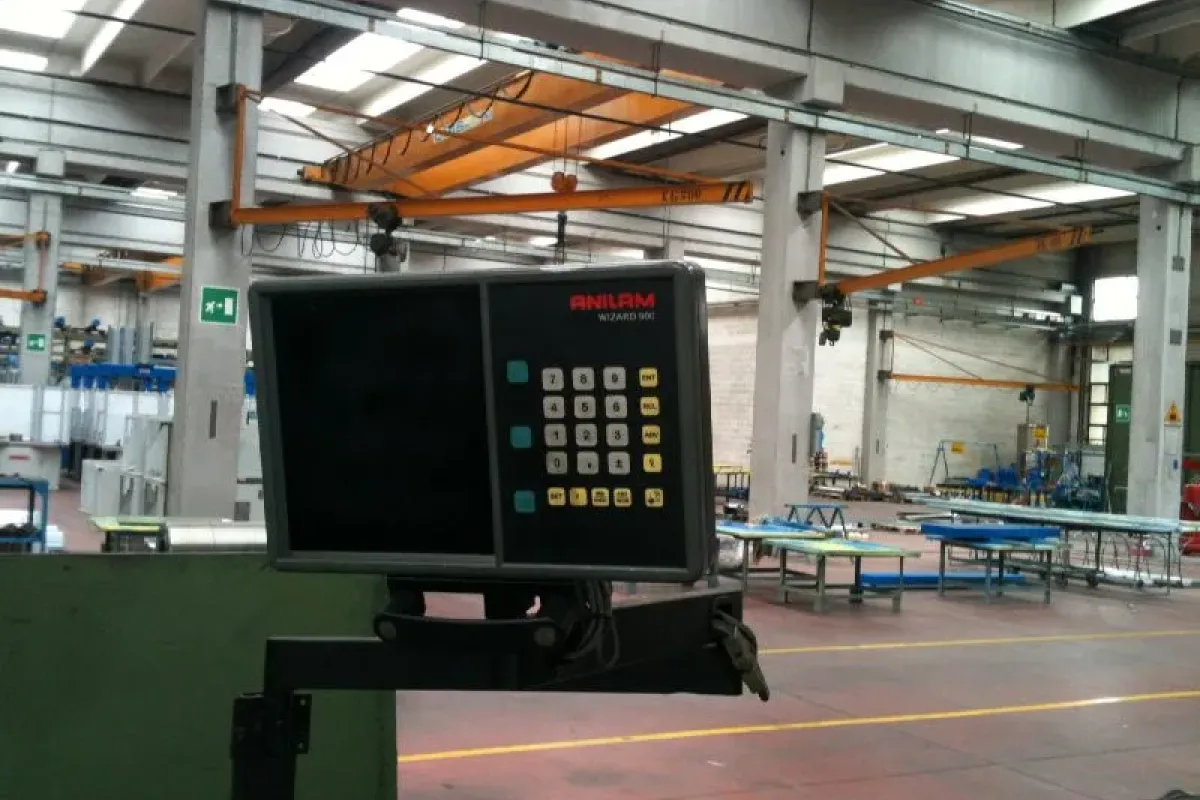

- 3-axis digital readouts (DRO)

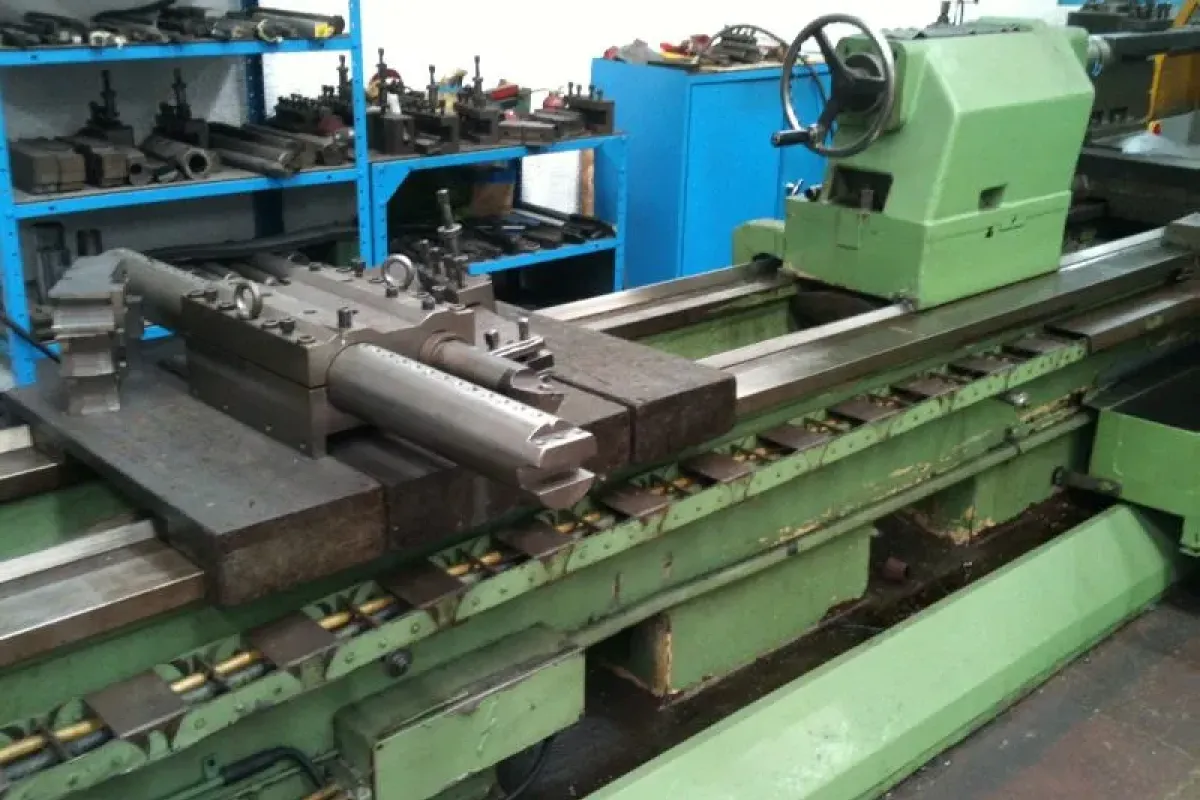

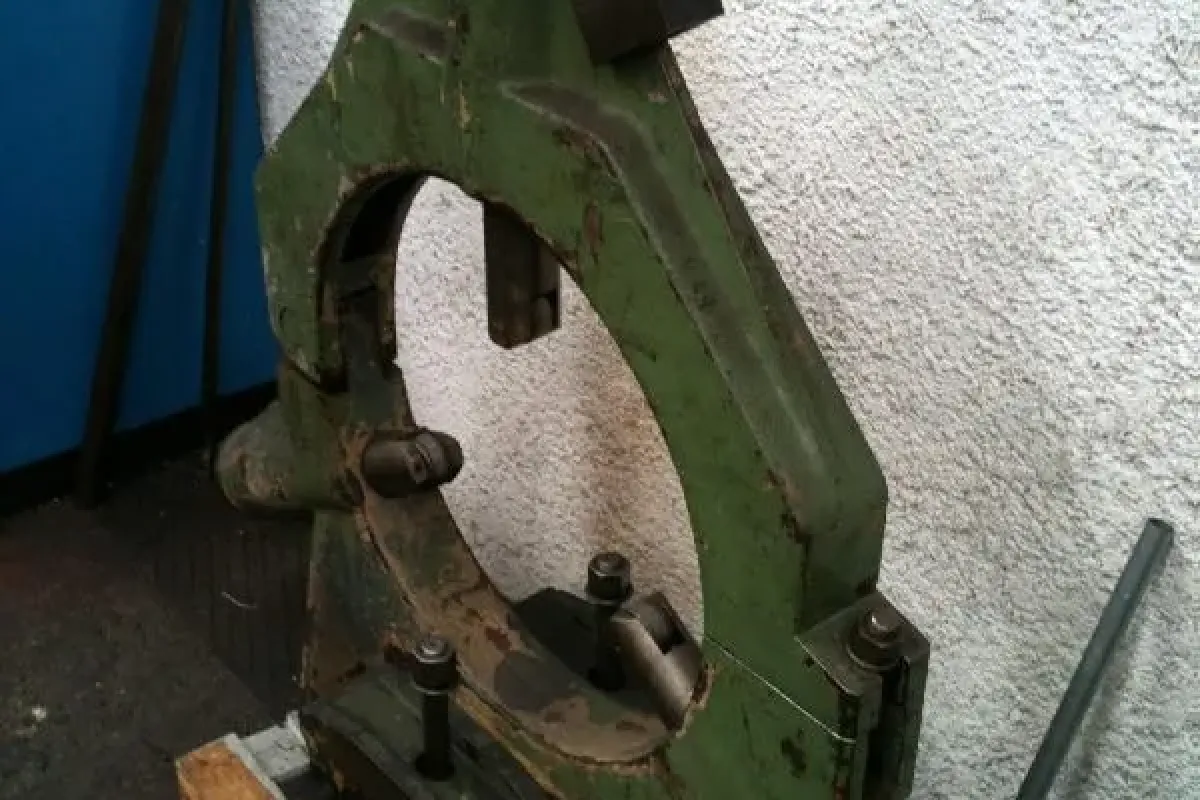

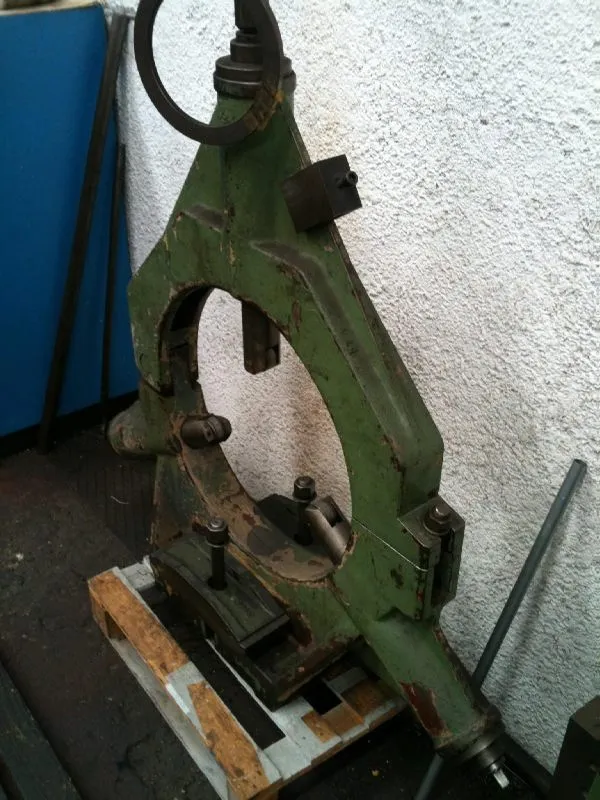

- Two steady rests for long workpieces
- 4-jaw independent chuck diameter: 800 mm
- Manual chuck
- Rigid machine bed suitable for heavy turning operations
- Standard accessories included
Typical Applications
- Heavy mechanical workshops
- Industrial maintenance departments
- Turning of long shafts and cylindrical components
- Machining of steel, cast iron, and alloy materials
- Repair and refurbishment of large mechanical parts
- Small and medium batch production
