Price on request

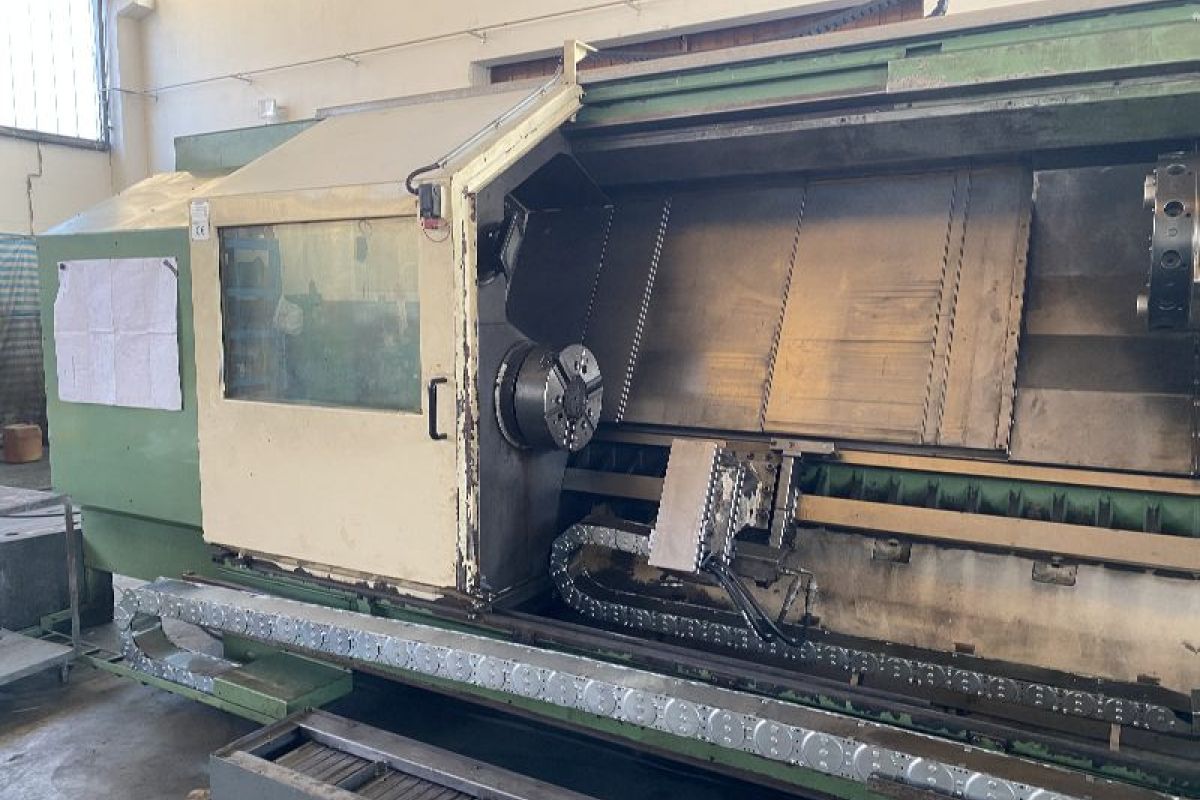

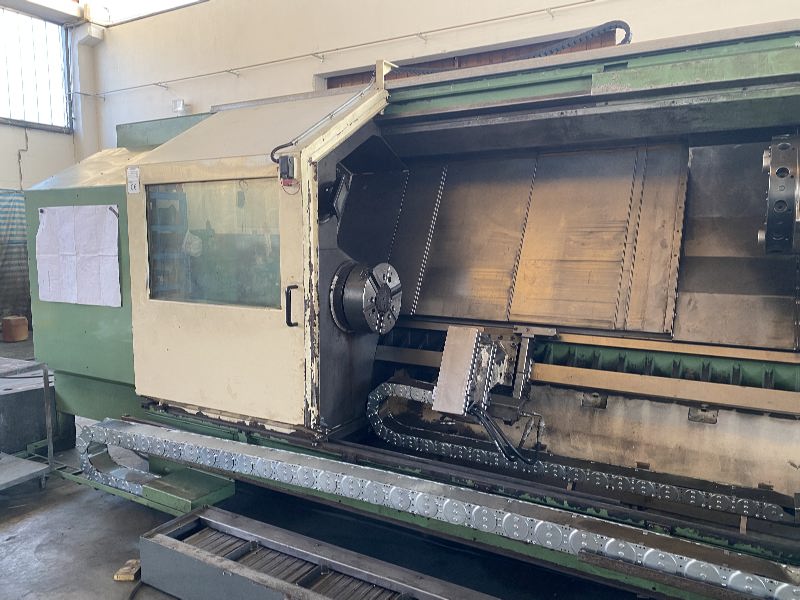

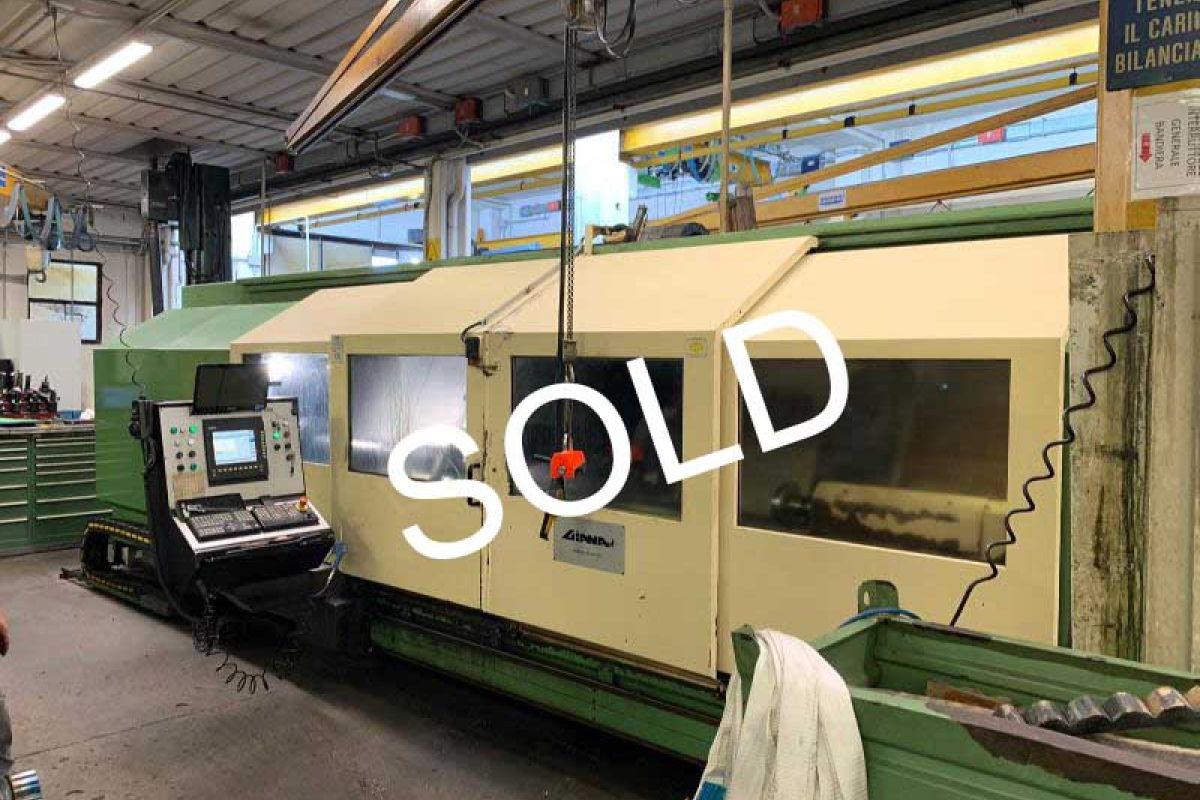

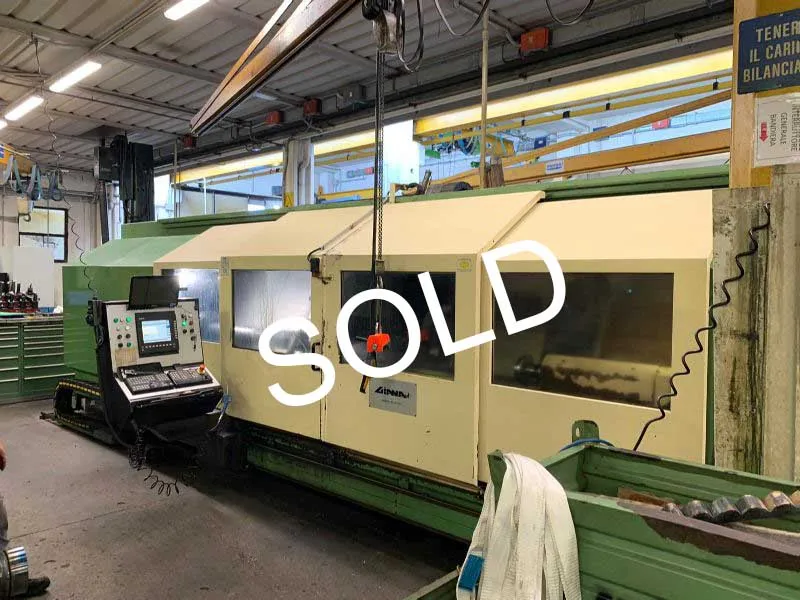

The Giana GF 450 is a second hand CNC lathe designed for precision turning of medium and long mechanical components. Built with a rigid structure and large distance between centers, this machine is well suited for machining shafts and cylindrical parts requiring stability and accuracy.

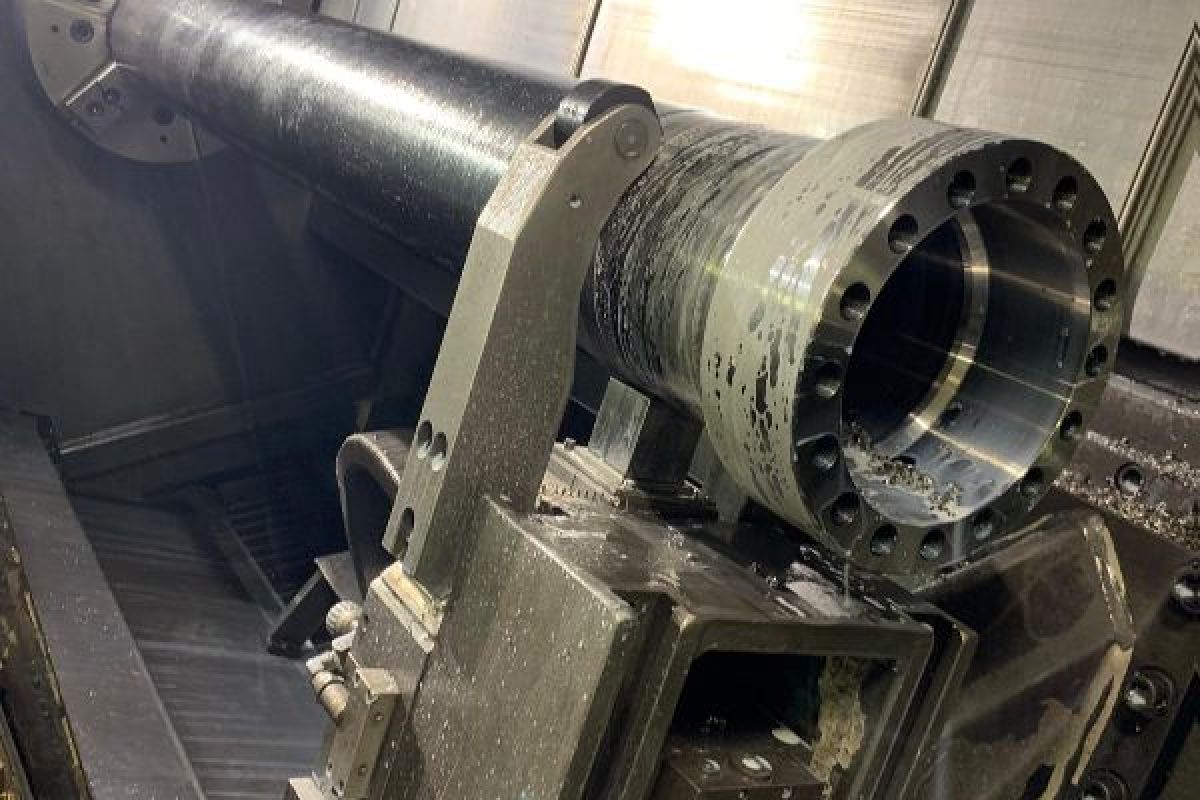

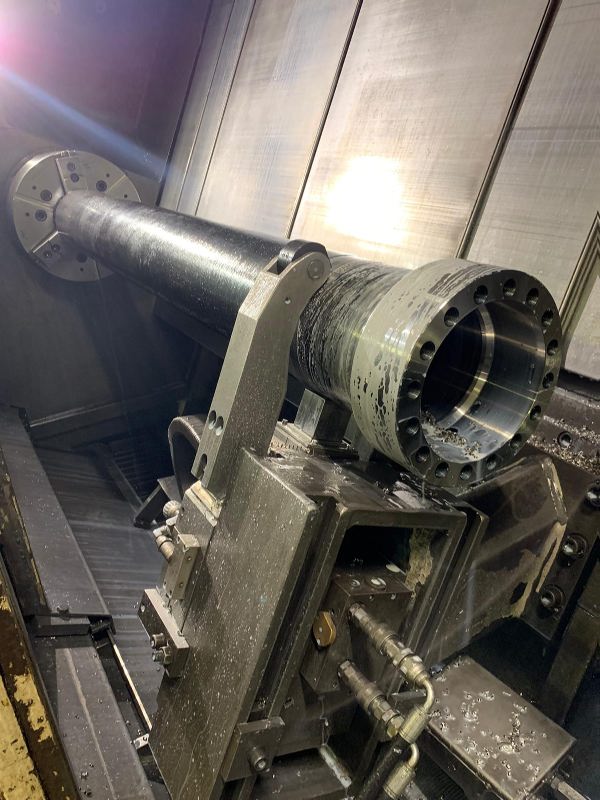

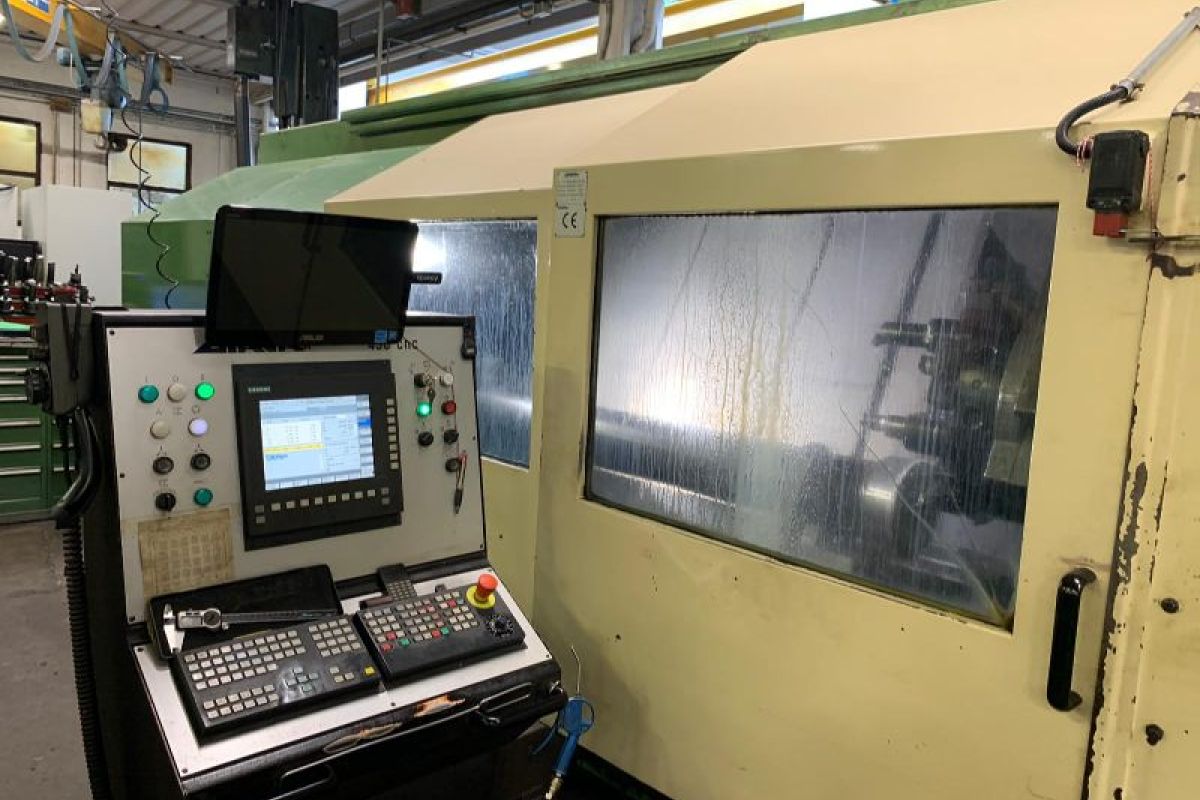

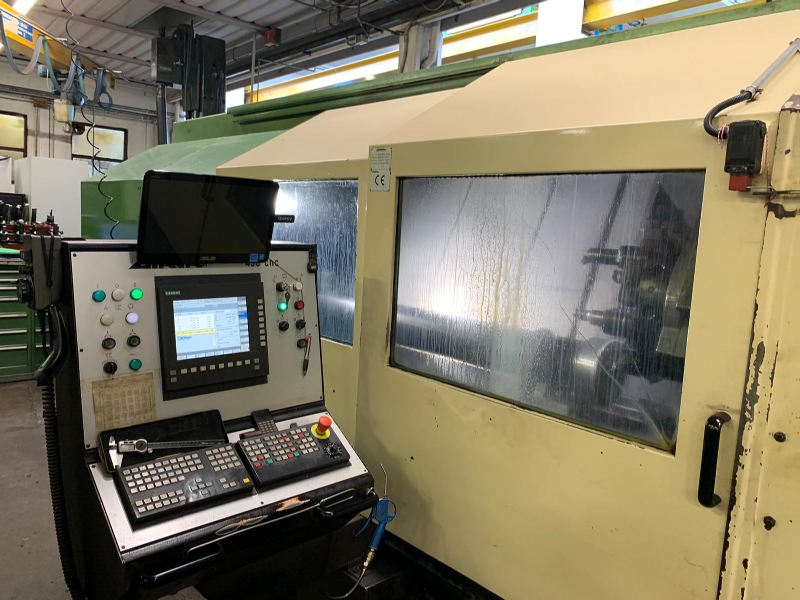

Equipped with a Siemens 840D CNC control, a live tool turret, and a C axis, the machine allows both turning and milling operations in a single setup. The presence of a hydraulic automatic steady rest Morari ensures proper support for long workpieces, improving machining stability and precision.
The Giana GF 450 is therefore an excellent solution for workshops seeking a used CNC lathe capable of performing complex turning and secondary milling operations on long components.
Maximum rotating diameter on the bed: | 520 mm |
Maximum rotating diameter on the cross carriage: | 450 mm |
Distance between the tips: | 3500 mm |
Machinable length: | 3200 mm |
Turret type: | Motorized |
Number of seats in the cabin: | 12 |
X-axis travel: | 430 mm |
Z-axis travel: | 3600 mm |

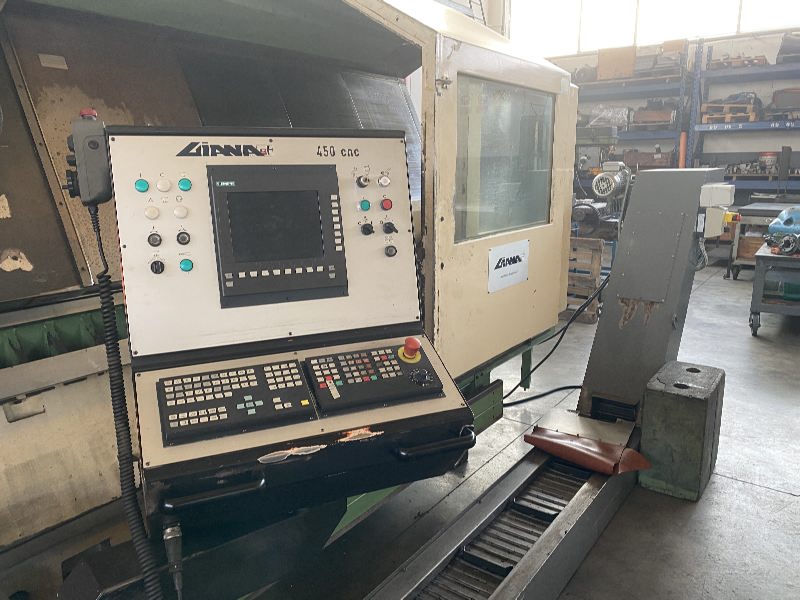

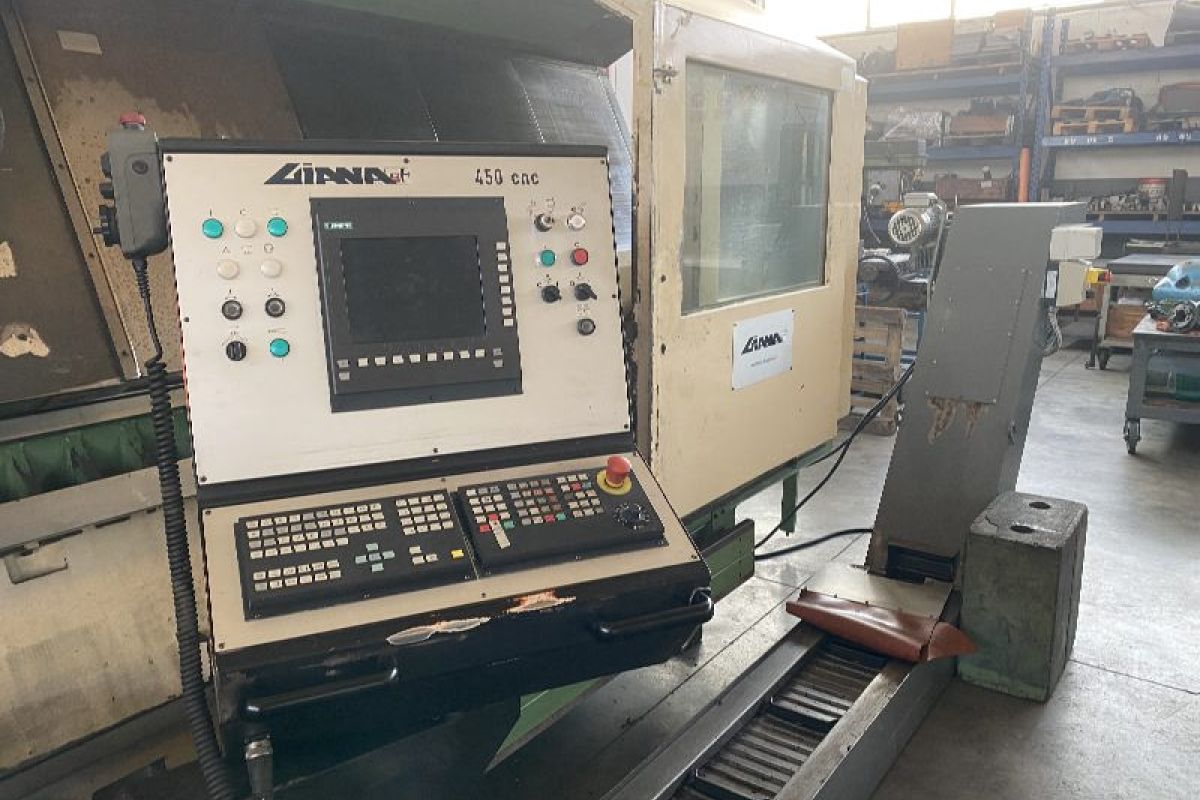

CNC type: | SIEMENS 840D |
Weight: | 23000 Kg |
Type of guides: | Box way |
Type of accommodation: | meehanite cast iron |
