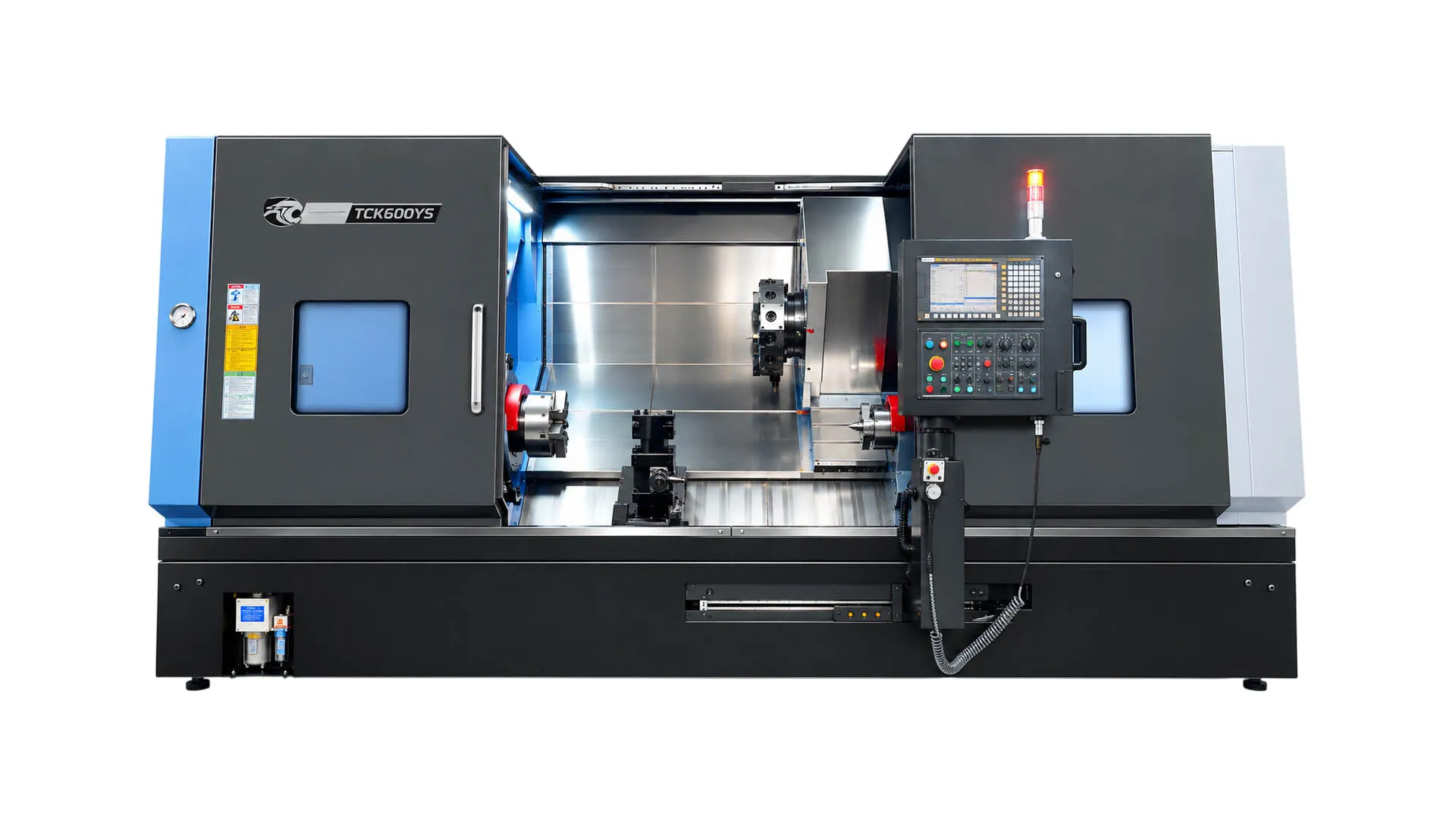

CNC Lathe Dongs TCK600
Price on request
The Dongs Solutions TCK 600 is a heavy-duty, high-performance CNC turning and milling center featuring a 45° slant bed design. It comes with a standard 1000 mm distance between centers and can be custom-configured upon request in extended versions of 1500 mm, 2000 mm, or longer to meet your specific production requirements.
Engineered to ensure maximum structural rigidity, outstanding positioning accuracy, and micron-level precision for both bar work and chucking operations on medium-to-large components, it boasts an impressive swing capacity with a maximum swing over bed of 650 mm and a maximum swing over cross slide of 400 mm.
Available in both standard configurations and optional high-tier setups fully equipped with a Y-axis, continuous C-axis, and driven tools (live tooling), it allows workshops to complete complex parts in a single setup. This positions the TCK 600 as a structurally superior and highly cost-effective alternative to industry-standard models such as the DN Solutions Lynx 2600Y. Compared to its competitor, the TCK 600 delivers a more generous working area over the cross slide (400 mm vs. 380 mm), total flexibility regarding shaft lengths, and a steep 45° bed inclination (compared to the competitor’s 30°), which drastically improves vibration dampening and heavy-duty chip evacuation.
Direct comparison between the DONGS turning center and the 10-inch category market standard:
| Technical Feature | DONGS TCK600 | DN SOLUTIONS LYNX 2600Y |
|---|---|---|
| Bed Inclination | 45° (Superior rigidity & chip evacuation) | 30° |
| Distance Between Centers | 1000 mm (Extendable to 1500 / 2000 mm+) | 610 mm (Fixed standard) |
| Max. Swing Over Bed | 650 mm | 630 mm |
| Max. Swing Over Cross Slide | 400 mm (Extended working area) | 380 mm (Max. turning diameter) |
| Spindle Nose | ASA A2-8 | ASA A2-8 |
| CNC Control Unit | FANUC 0i-TF PLUS (Native standard) | Fanuc i-Plus (Customized interface) |
Maximum rotating diameter on the bed: | 650 mm |
Maximum rotating diameter on the cross carriage: | 400 mm |
Distance between the tips: | 1000 / 1500 / 2000 mm |
Machinable length: | 1000 mm |
Turret type: | Power turret |
Number of seats in the cabin: | 12 |
X-axis travel: | 300 mm |
Z-axis travel: | 1000 / 1500 / 2000 mm |
Spindle nose attachment: | ASA A2-8 |
Spindle speed: | 3000 rpm |
Spindle bore diameter: | 86 mm |
Spindle power: | 15/18,5 KW |
C-axis and power tools: | Yes |
Y-axis: | Yes |
Key points: | 24 m/min |
CNC type: | Fanuc, Siemens, Mitsubishi, Syntec |
Type of guides: | linear guideways |
Type of accommodation: | meehanite cast iron |
- 45° Slant Bed Design: Heavy-duty, single-piece HT300 high-density cast iron structure, engineered to absorb heavy cutting vibrations, ensure thermal stability, and optimize chip flow
- Turning Capacity & Clearance: Generous working envelope with a maximum swing over bed of 650 mm and a maximum swing over cross slide of 400 mm for flexible part handling
- Modular Distance Between Centers: Starting at 1000 mm interaxis, fully customizable to 1500 mm, 2000 mm, or longer layouts to fit your specific manufacturing needs
- Heavy-Duty Spindle Line: Rigid ASA A2-8 spindle nose equipped with high-precision bearings and a generous through-spindle bar capacity for reliable, continuous machining cycles
- Customizable Multi-Axis Configuration: High-precision X and Z axis travel as standard, with the option to integrate a continuous, high-resolution C-axis and a Y-axis for off-center milling operations
- Optional Live Tooling Turret: Ready for a standard hydraulic turret or a high-speed servo turret fitted with driven tools (BMT55 / VDI40) for integrated milling, drilling, and tapping.
- Native CNC Control: Powered by the universally trusted and highly precise FANUC 0i-TF PLUS control unit, minimizing the learning curve for machine operators worldwide.
- Preloaded Linear Roller Guides: Smooth motion, high dynamics, and long-term geometric rigidity to guarantee consistent, tight tolerances over time

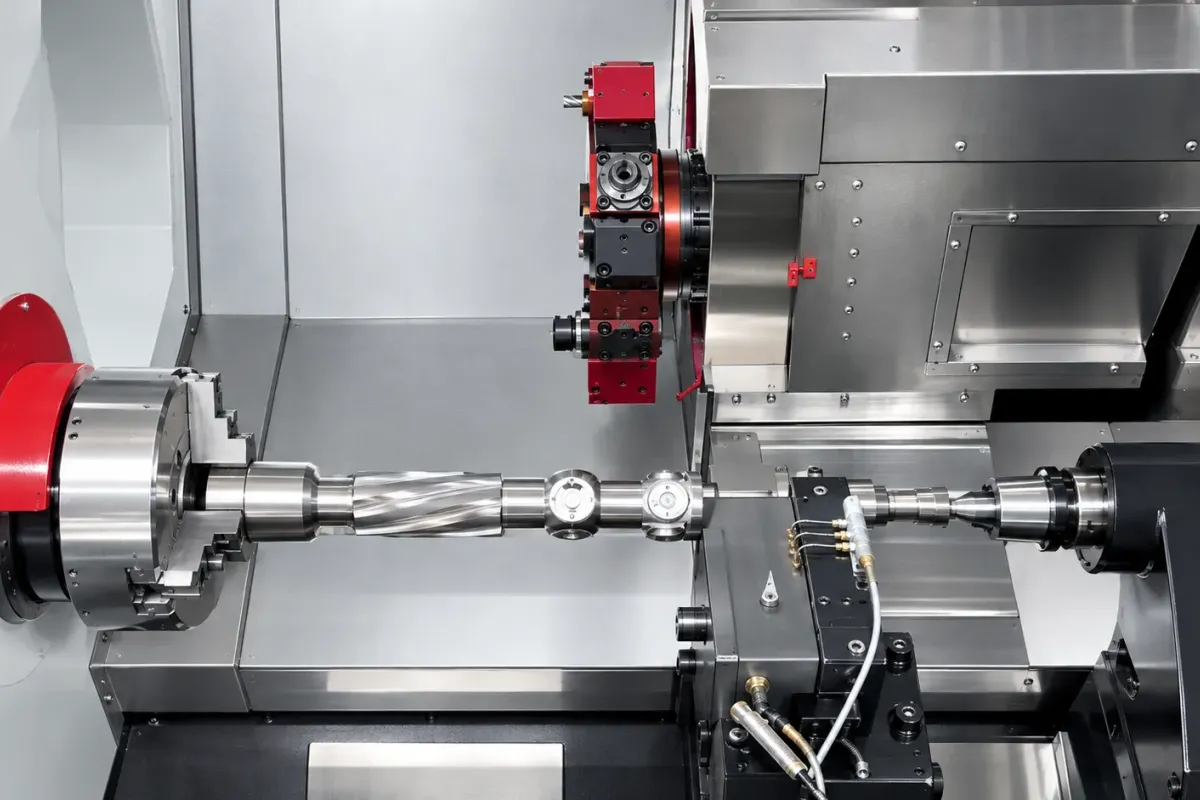

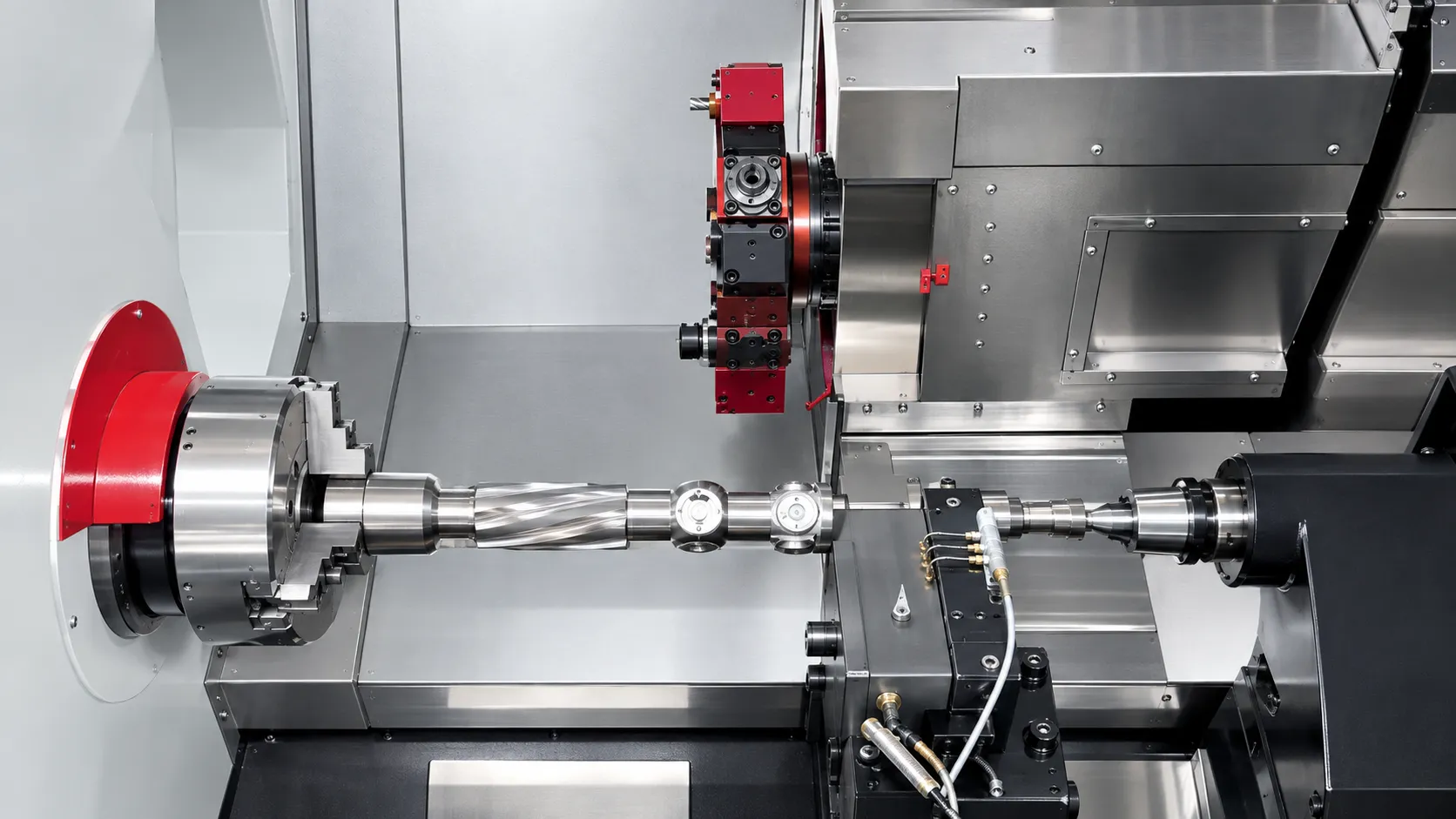

- Long Shaft & Drivetrain Component Manufacturing: Thanks to the modular interaxis length, it is ideal for turning, threading, and subsequent single-setup milling of keyways, slots, or radial holes on large shafts
- Flange & Industrial Valve Machining: Perfect for heavy-duty roughing and fine finishing of valve bodies, fittings, hydraulic components, and heavy flanges up to a swing diameter of 650 mm
- Automotive, Energy & Aerospace Components: Production of complex, geometrically intricate parts made of tough materials (alloy steels, stainless steel, titanium) requiring off-center milling and tapping via the Y-axis
- Job Shop & Subcontracting Operations: A versatile asset for contract manufacturing workshops that need to switch rapidly from medium-to-large production batches to custom-length single jobs
- Mold & Die Base Manufacturing: Optimization of complex profiles, pockets, and high-end surface finishes, leveraging the exceptional structural rigidity provided by the 45° slant bed
