CNC Lathe Blin BL-H60L
Price on request
CNC Slant Bed Lathe Blin BL-H60L
The Blin BL-H60L is a robust CNC slant bed lathe designed for precision turning of medium and large components. Its rigid cast iron structure ensures excellent stability, vibration damping and long-term accuracy, making the machine suitable for both heavy-duty machining and continuous production.
The machine is equipped with linear guideways on all axes, allowing smooth axis movement, high positioning precision and reliable dynamic performance. The use of Fanuc brushless motors provides powerful and precise axis control, ensuring consistent machining results.
With a maximum turning diameter of 600 mm and multiple turning length configurations (1000, 1500, 2000 and 3000 mm), the BL-H60L offers high flexibility for machining long shafts and large mechanical components. The ASA A2-8 spindle nose provides excellent rigidity and compatibility with industrial tooling systems.

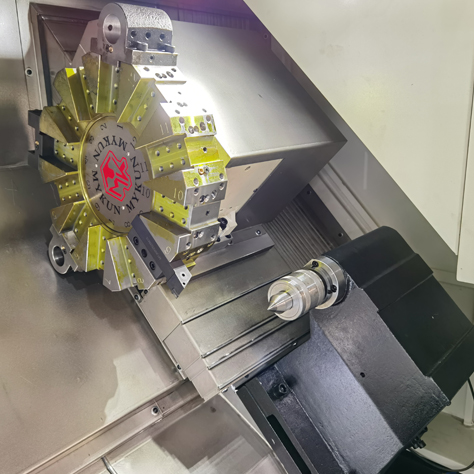

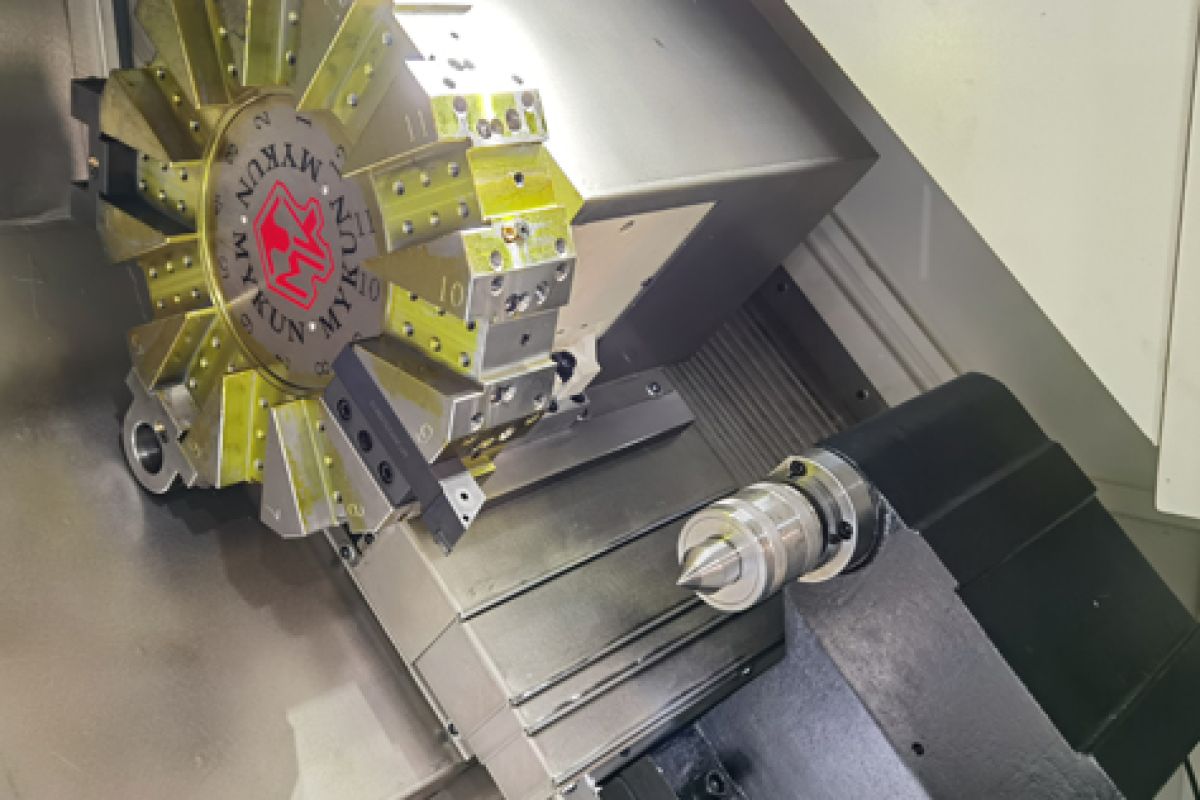

The machine features a 12-position turret for efficient tool management and reduced setup times. The programmable tailstock ensures proper support of long workpieces, improving machining stability and surface quality.
The BL-H60L can be configured with different CNC systems, including Siemens and Fanuc, allowing easy integration into various production environments.
Maximum rotating diameter on the bed: | 600 mm |
Maximum rotating diameter on the cross carriage: | 400 mm |
Machinable length: | 1000 mm |
Turret type: | Hydraulic |
Number of seats in the cabin: | 12 |
X-axis travel: | 320 mm |
Y-axis travel: | 1000 mm |
Table size: | 250 mm |
Spindle nose attachment: | ASA A2-8 |
Spindle speed: | 2500 rpm |
Key points: | 20 m/min |
CNC type: | Fanuc, Siemens, Gsk, Syntec |
Weight: | 7000 Kg |
Type of guides: | linear guideways |
Type of accommodation: | meehanite cast iron |
- Swing over bed: 600 mm
- Swing over cover: 400 mm
- Maximum cutting diameter: 600 mm
- Maximum turning length: 1000 / 1500 / 2000 / 3000 mm
- Spindle nose: ASA A2-8
- Cast iron machine structure
- Linear guideways on all axes
- Fanuc brushless motors
- 12-position turret
- Programmable tailstock
- CNC options available: Siemens or Fanuc
- Turning of medium and large mechanical components
- Machining of long shafts and cylindrical parts
- Production of flanges, hubs and industrial components
- Manufacturing for general mechanics and heavy industry
- Subcontract machining requiring high rigidity and precision
