Price on request

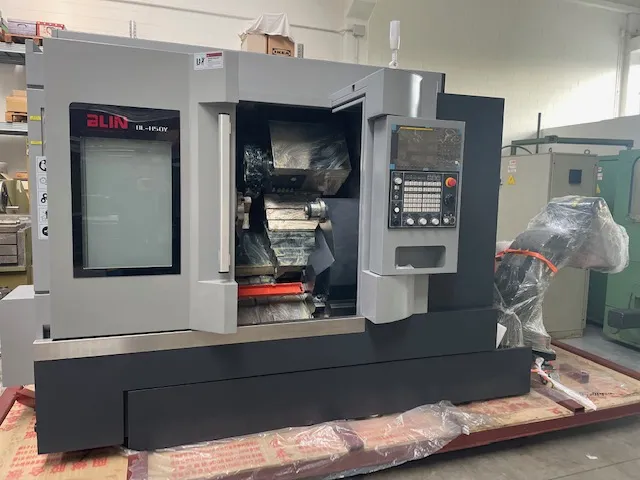

The Blin BL-H50Y is a new CNC lathe available for immediate delivery, designed for high-precision turning operations on medium-sized components. Built with a 30° inclined cast iron bed and linear roller guides, this machine ensures maximum rigidity, accuracy, and smooth motion, ideal for modern manufacturing environments.
Equipped with a Fanuc 0i-TF CNC control and a motorized 12-position BMT-55 tool turret, the BL-H50Y allows efficient multi-tool operations and complex part machining. The machine also features Y-axis capability, CS-axis with magnetic encoder and braking system, and comes ready for Industry 4.0 integration, offering advanced connectivity and smart manufacturing features.
With a maximum turning diameter of 350 mm and maximum turning length of 500 mm, the Blin BL-H50Y is perfectly suited for precision mechanical parts in toolrooms, production lines, and high-tech workshops.
Maximum rotating diameter on the bed: | 560 mm |
Maximum turnable diameter: | 350 mm |
Machinable length: | 500 mm |
Turret type: | Power turret |
Number of seats in the cabin: | 12 |
X-axis travel: | 210 mm |
Y-axis travel: | +/- 50 mm |
Z-axis travel: | 600 mm |
Table size: | 200 mm |
Spindle nose attachment: | ASA A2-6 |
Spindle bore diameter: | 65 mm |
C-axis and power tools: | 0,001° |
Y-axis: | Yes |
Key points: | 24 m/min |
CNC type: | FANUC 0i-TF |
Overall dimensions: | 2500 x 1500 x 1700 h mm |
Weight: | 4100 Kg |
Type of guides: | linear guideways |
Type of accommodation: | meehanite cast iron |
