CNC Lathe Angelini AVM ZENIT Twin Spindle – Twin Motorized Turret – Bar Feeder

Model: AVM ZENIT
Brand: ANGELINI
Type: lathes

Price on request


Description

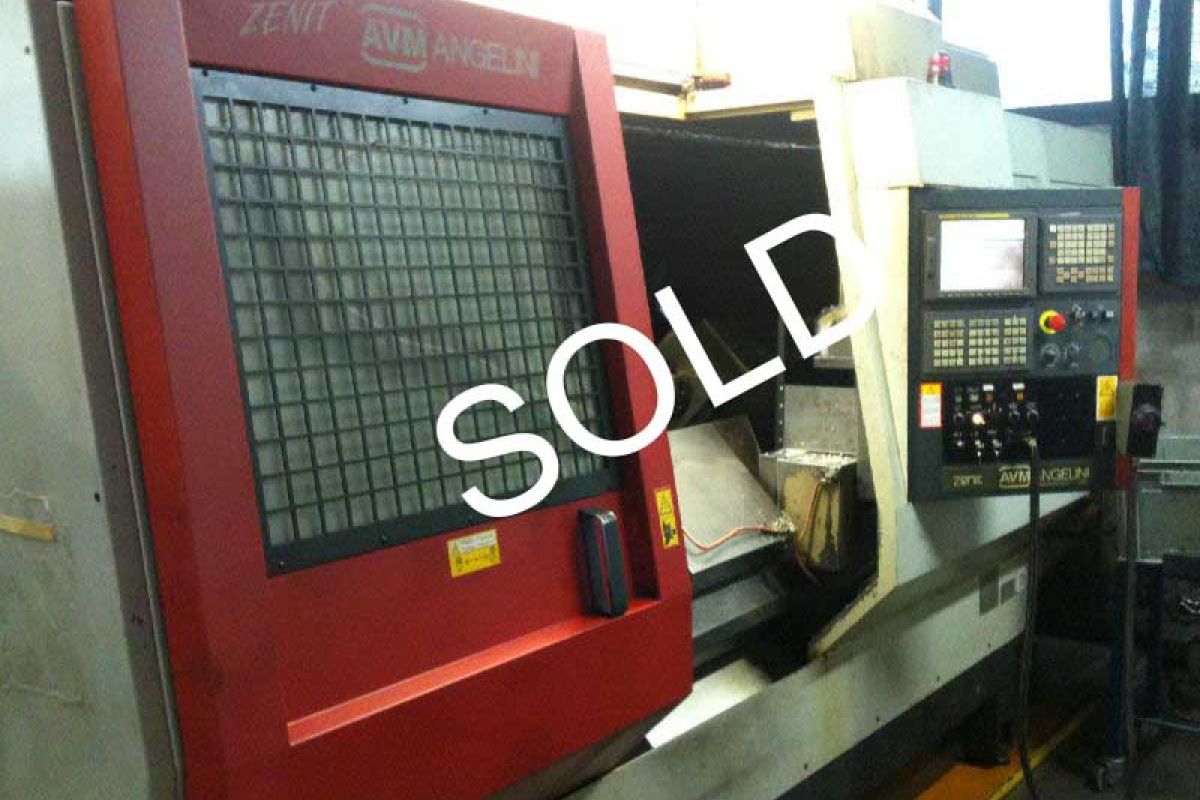

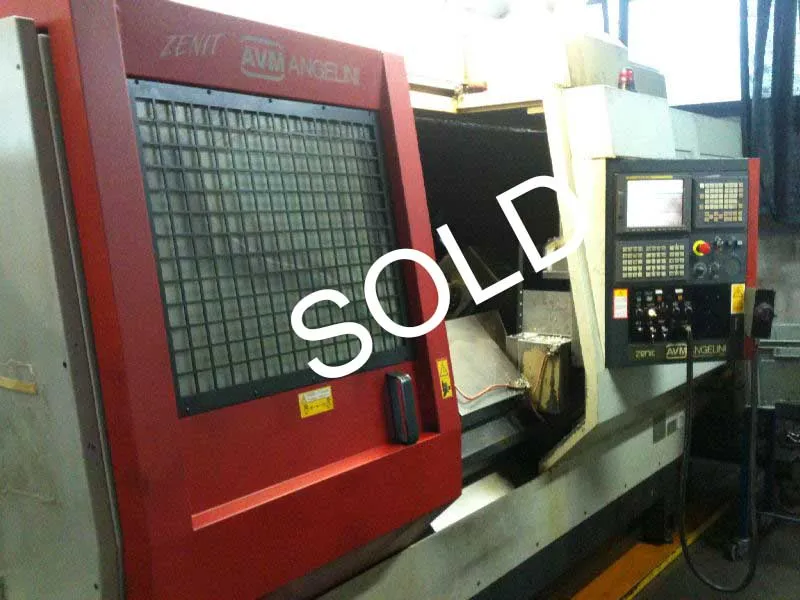

CNC Lathe Angelini AVM mod. ZENIT Twin Spindle – Twin Motorized Turret – Bar Feeder

The used Angelini AVM Zenit CNC lathe is a high-performance multitasking machine, designed for complete machining of complex parts thanks to its dual-spindle configuration, dual motorized turret, and C and Y axes.

Ideal for medium- to high-volume production, it allows turning, milling, and combined machining operations to be performed in a single cycle, drastically reducing setup times and increasing overall productivity. The automatic bar feeder makes it particularly suitable for series production.

Technical Specifications
Maximum turnable diameter:
250 mm
Machinable length:
1000 mm
Turret type:
Power turret
Number of seats in the cabin:
12
Spindle nose attachment:
ASA A2-6
Useful bar clearance:
65 mm
Y-axis:
+/- 65 mm
CNC type:
FANUC 18i-TB
Type of accommodation:
meehanite cast iron
Key Features
  • CNC turning center
  • Model Angelini AVM ZENIT
  • Year of manufacture: 2006
  • CNC control: Fanuc 18i-TB
  • Maximum turning diameter: 250 mm
  • Main spindle and sub-spindle configuration
  • Spindle nose: ASA 6
  • C axis for milling and positioning operations
  • Y axis on upper turret
  • Twin motorized turrets for simultaneous machining
  • Bar feeder: IEMCA Master 880 P-E
  • Chip conveyor
  • Standard accessories included
Typical Applications
  • Precision machining workshops
  • High-productivity turning operations
  • Manufacturing of complex mechanical components
  • Automotive and mechanical subcontracting
  • Small and medium batch production
  • Bar work and automated production lines
