Boring Machine Bragonzi Creusamatic 80

Model: CREUSAMATIC
Brand: BRAGONZI
Type: boring machines

Price on request


Description

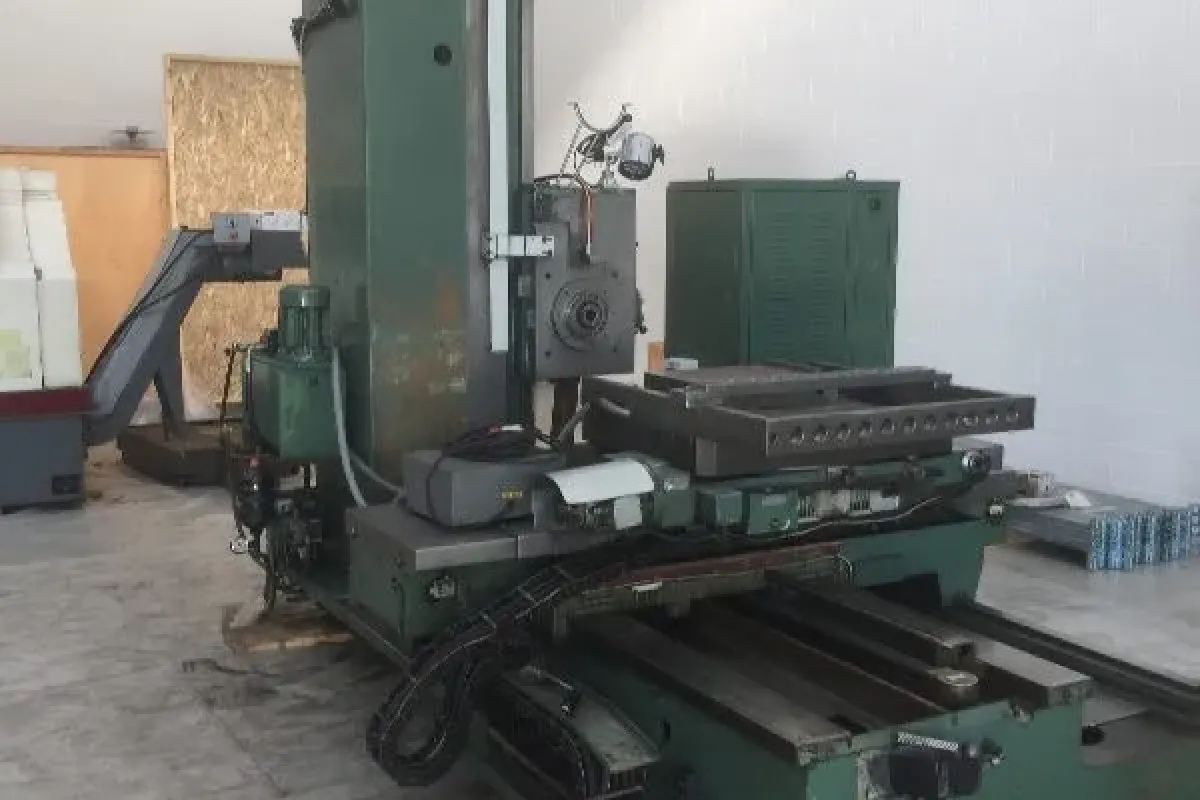

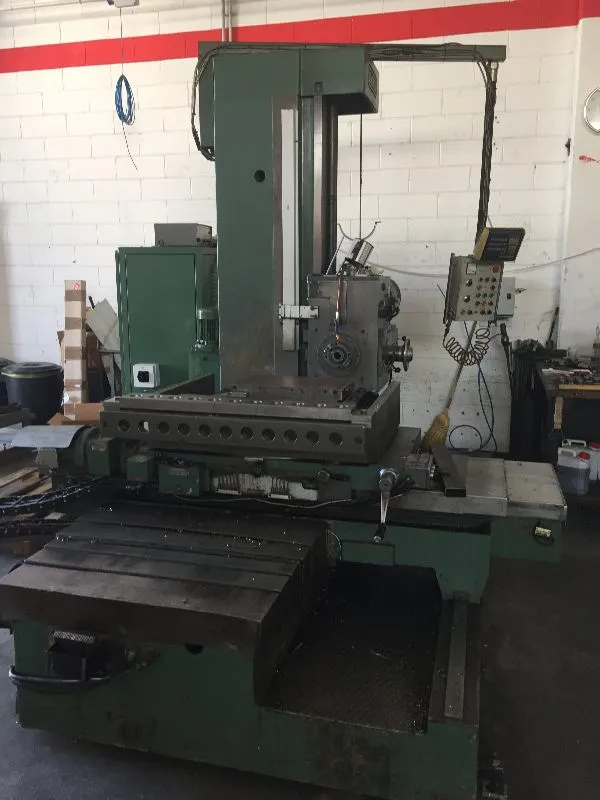

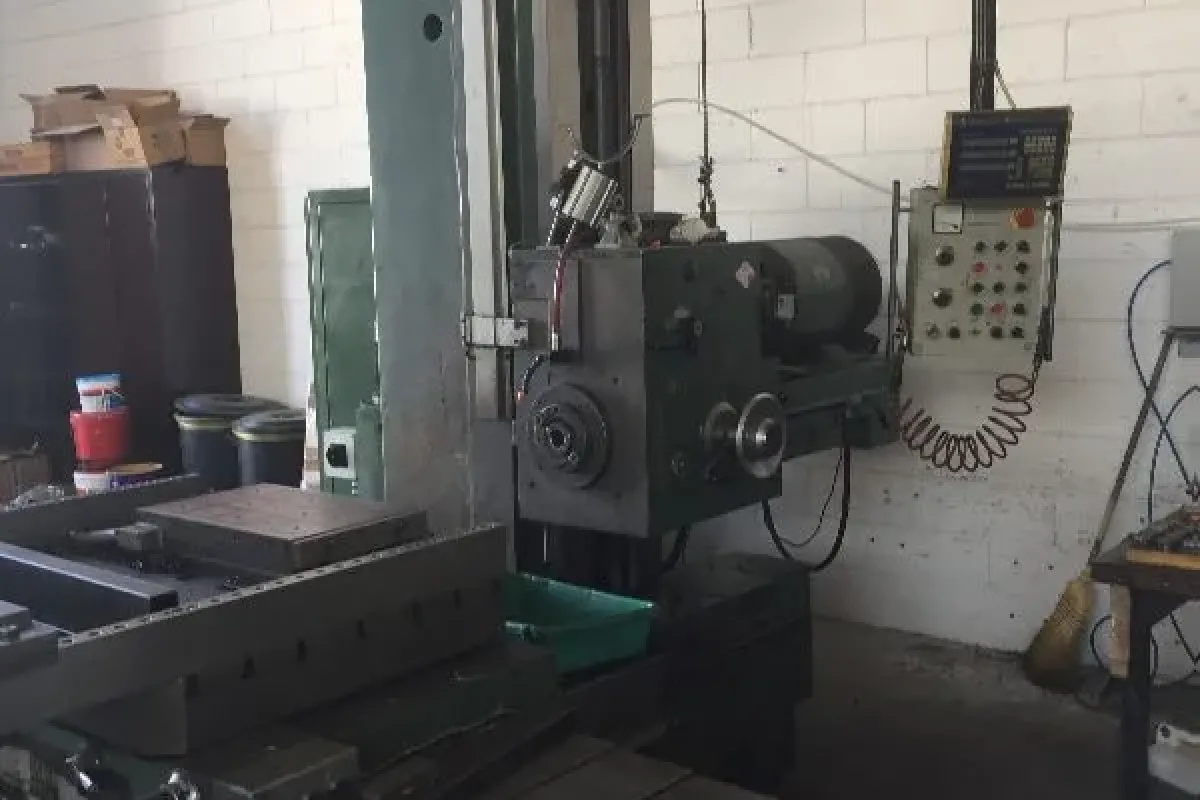

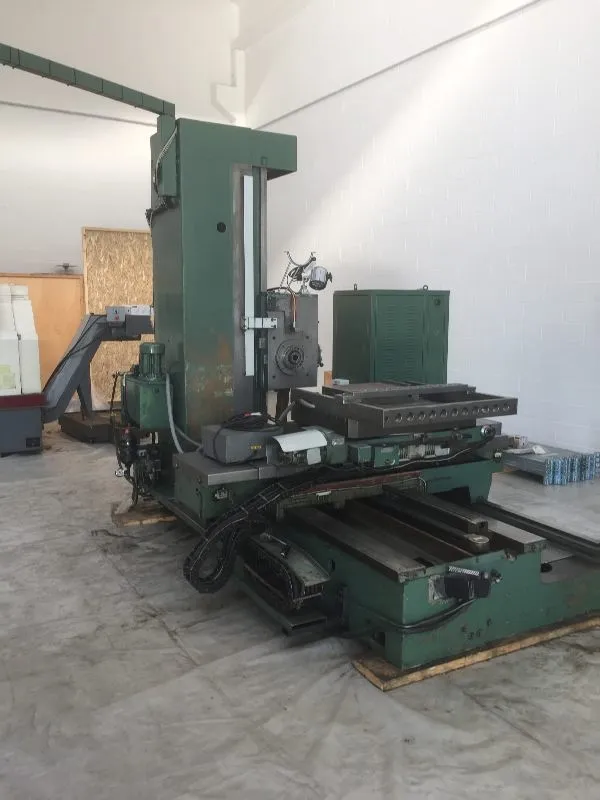

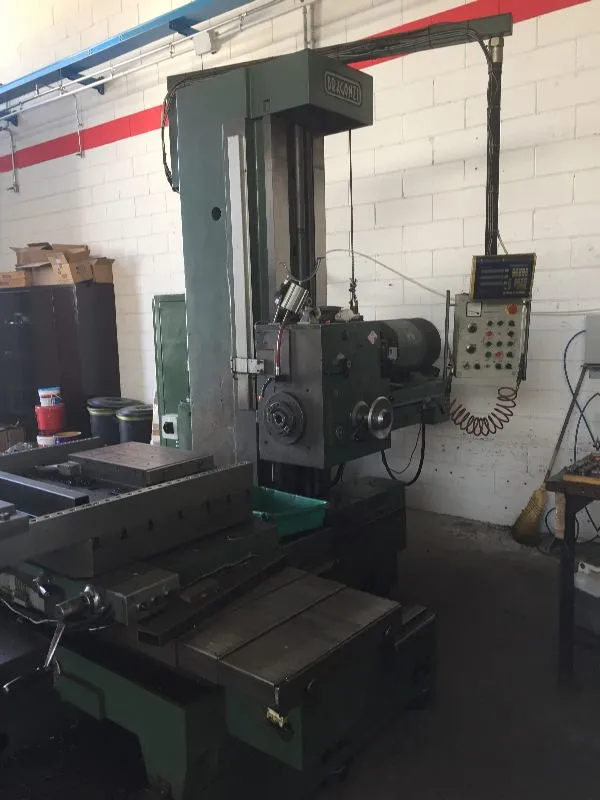

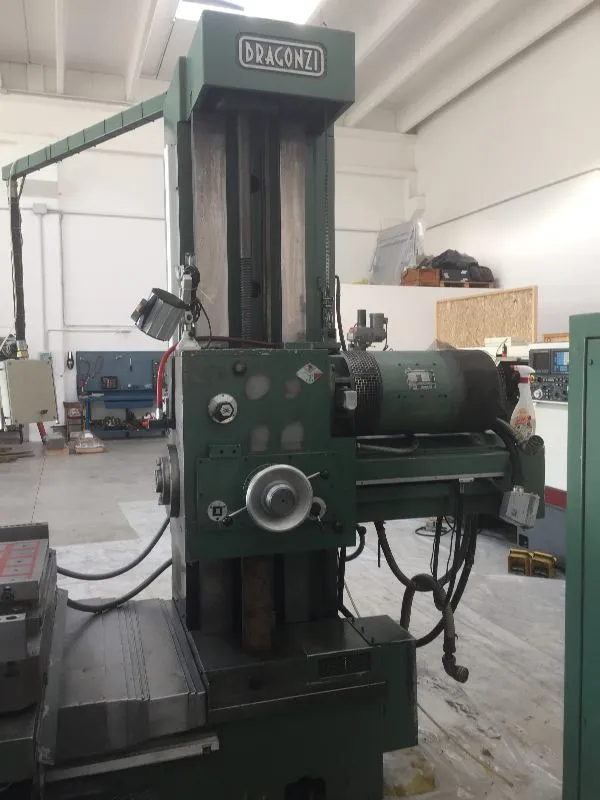

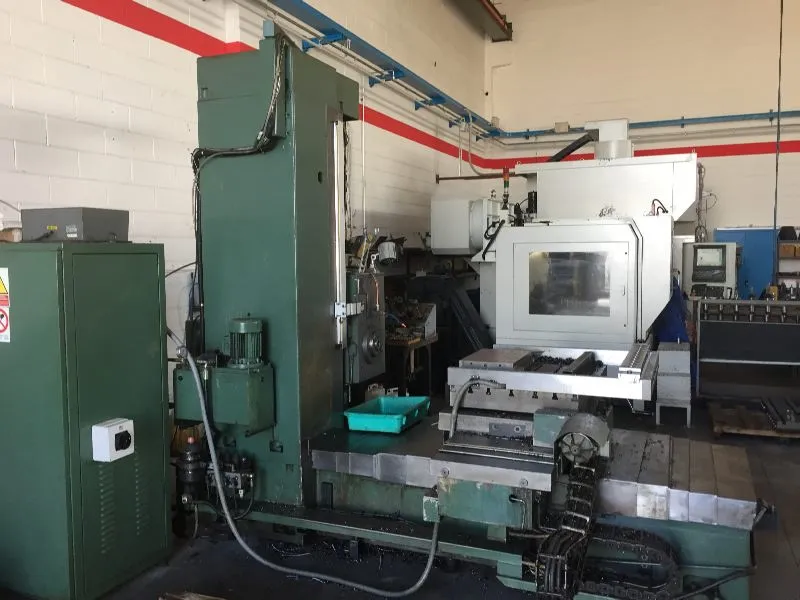

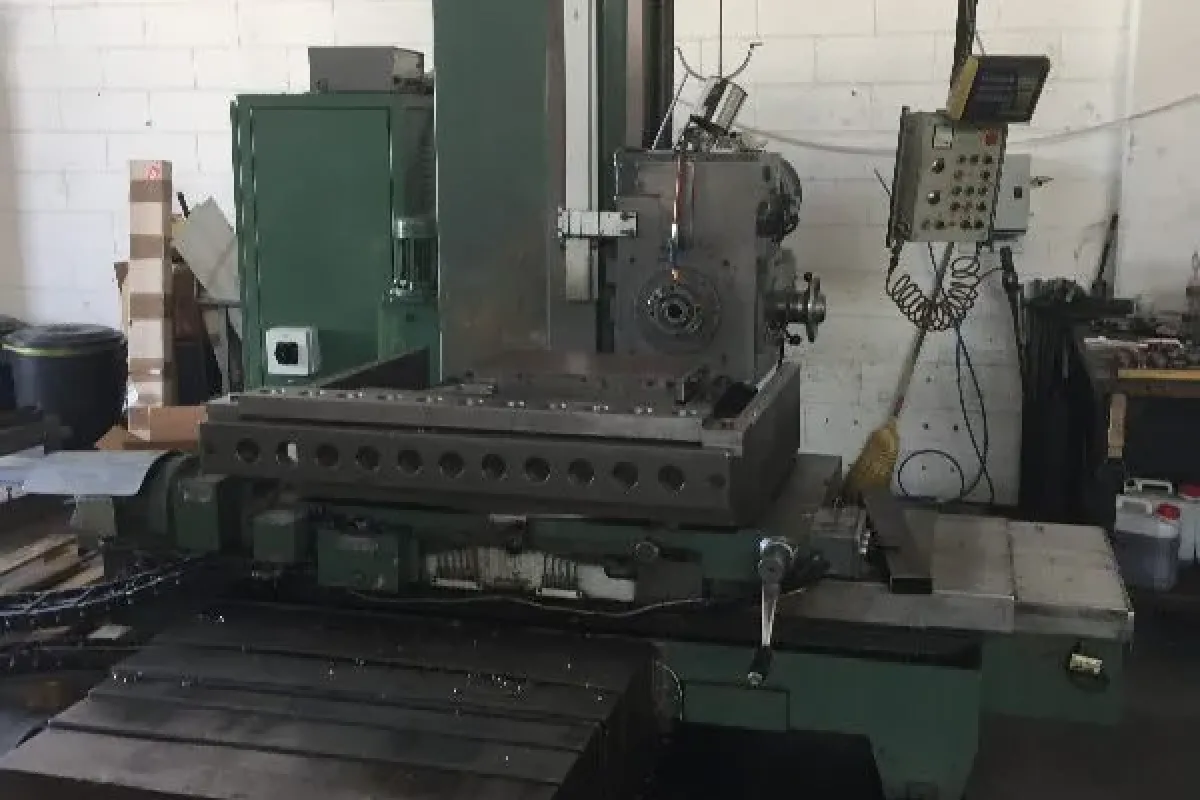

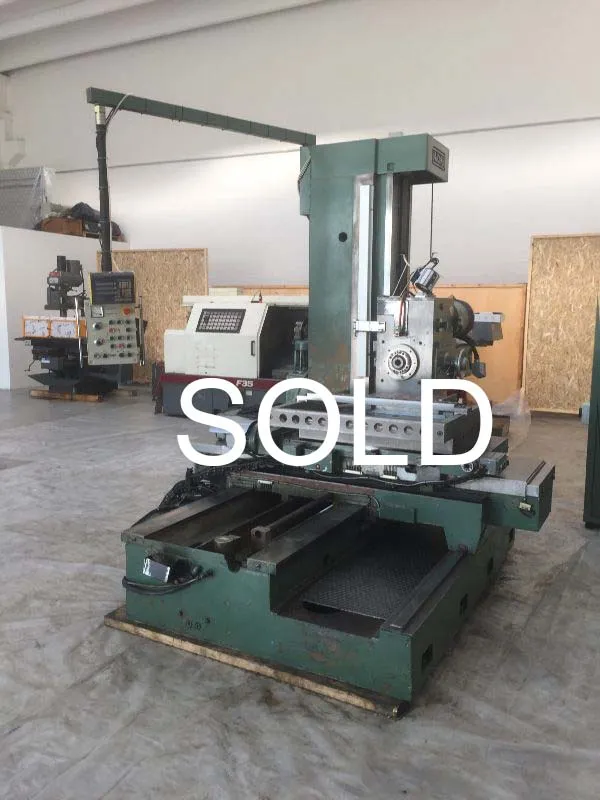

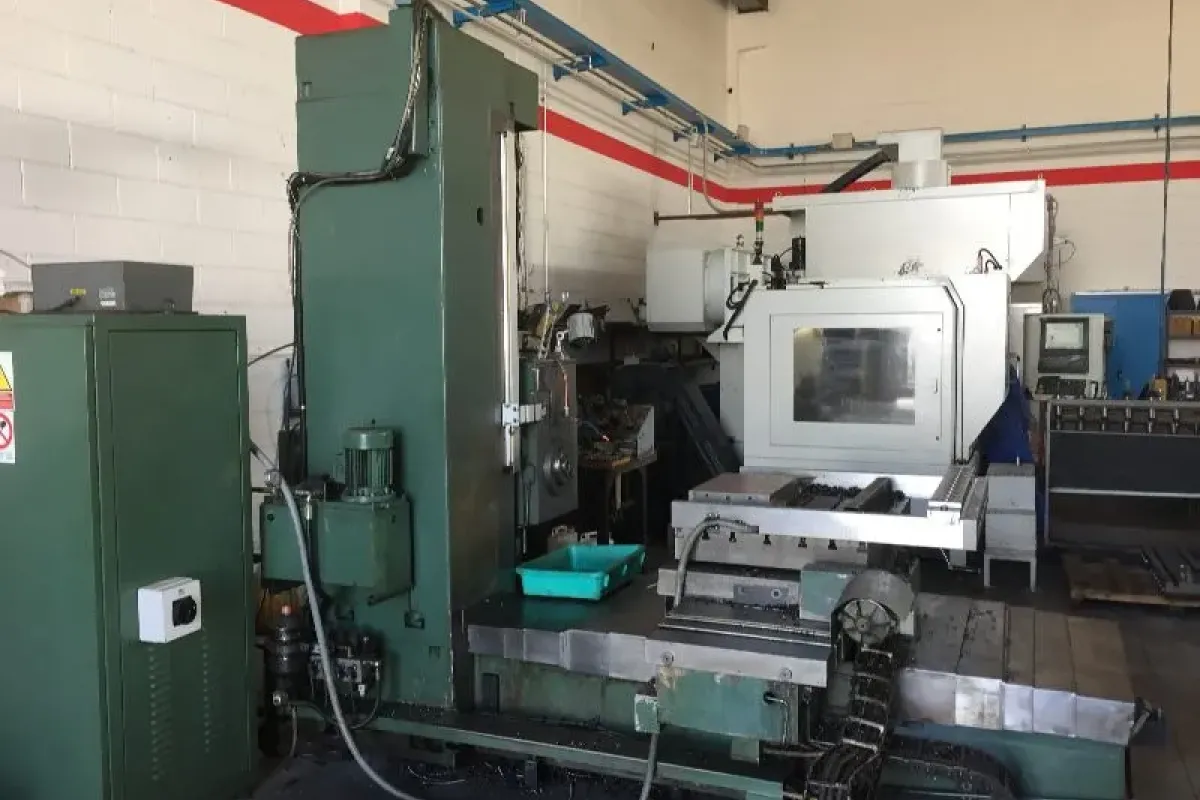

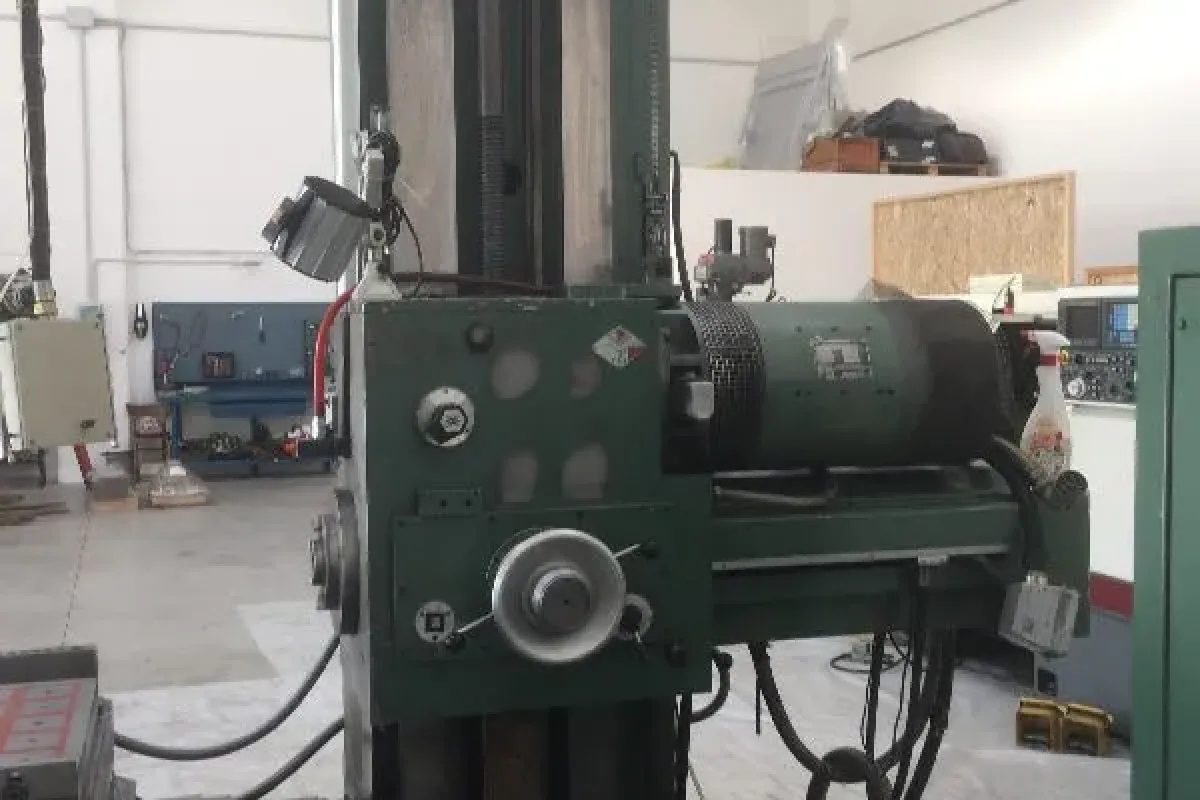

Used Conventional Boring Machine Bragonzi Creusamatic 80

The Bragonzi Creusamatic 80 is a used conventional boring machine designed for precision boring, facing, and milling of medium-sized mechanical components. Its robust construction ensures stability and accuracy during heavy-duty operations, making it suitable for mechanical workshops and maintenance departments.

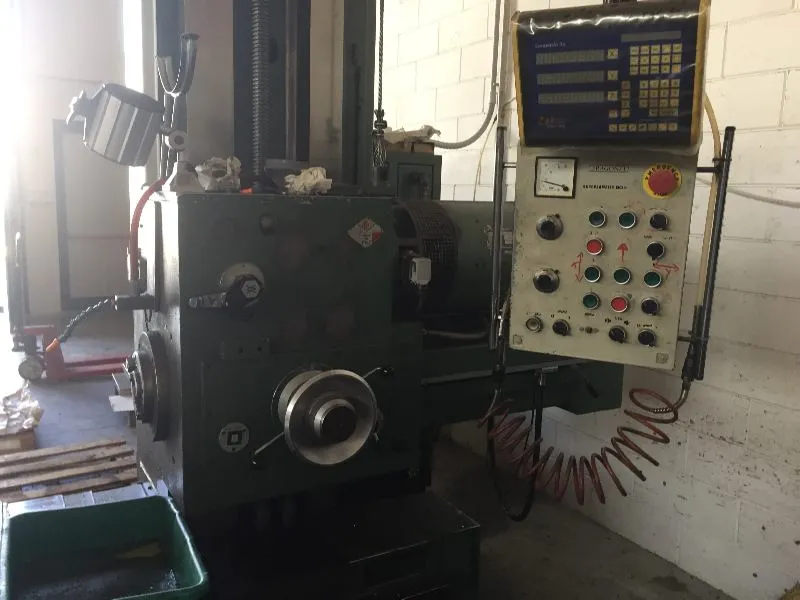

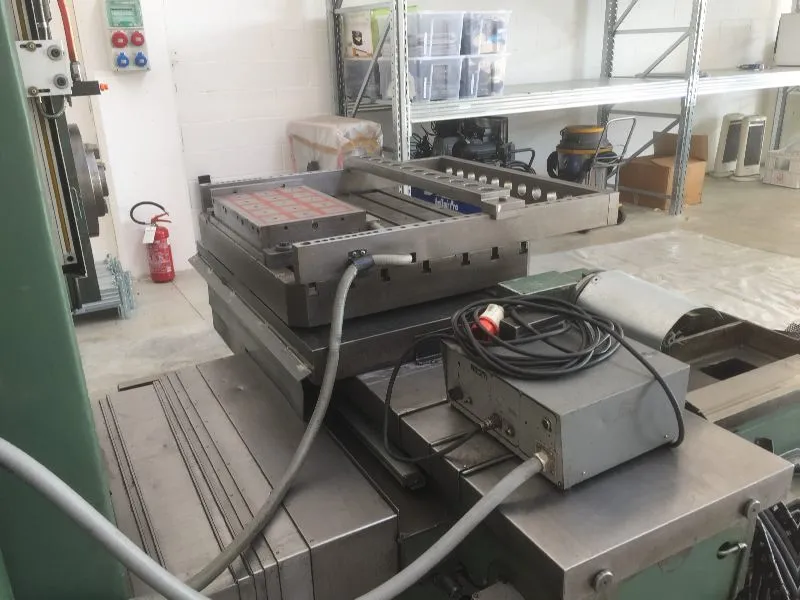

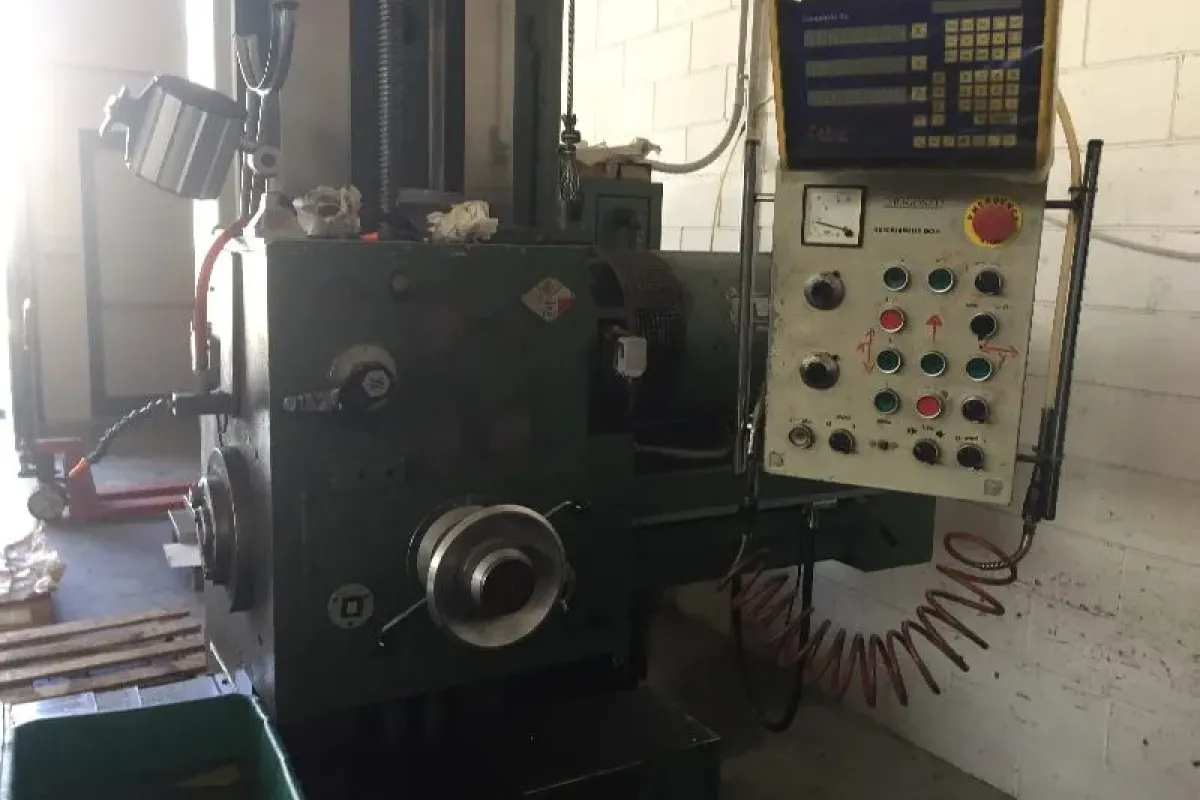

Equipped with digital readouts (DRO) and continuous spindle speed variation, the machine allows precise and flexible machining. The electromagnetic planar table and a wide range of tools make it versatile for different machining tasks.

The Bragonzi Creusamatic 80 is ideal for companies seeking a used conventional boring machine capable of accurate and reliable boring and milling operations.

Technical Specifications
X-axis travel:
1500 mm
Y-axis travel:
1100 mm
Z-axis travel:
400 mm
W-axis travel:
1000 mm
Table dimensions:
1000 x 780 mm
Maximum permissible load:
2500 Kg
Spindle nose attachment:
ISO 40
Spindle speed:
1400 rpm
Spindle bore diameter:
80 mm
Key points:
6 m/min
Working feed rate:
1 m/min
Overall dimensions:
4000 x 3400 x 3000 h mm
Weight:
9500 Kg
Type of guides:
Box way
Type of accommodation:
meehanite cast iron
Key Features
  • Conventional boring machine
  • Model Bragonzi Creusamatic 80
  • Spindle diameter for boring: 80 mm
  • Spindle diameter for milling: 130 mm

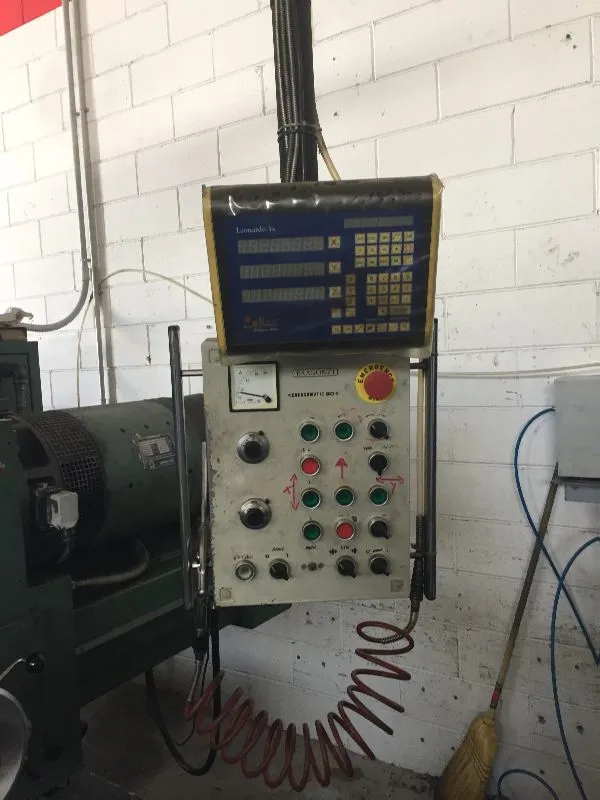

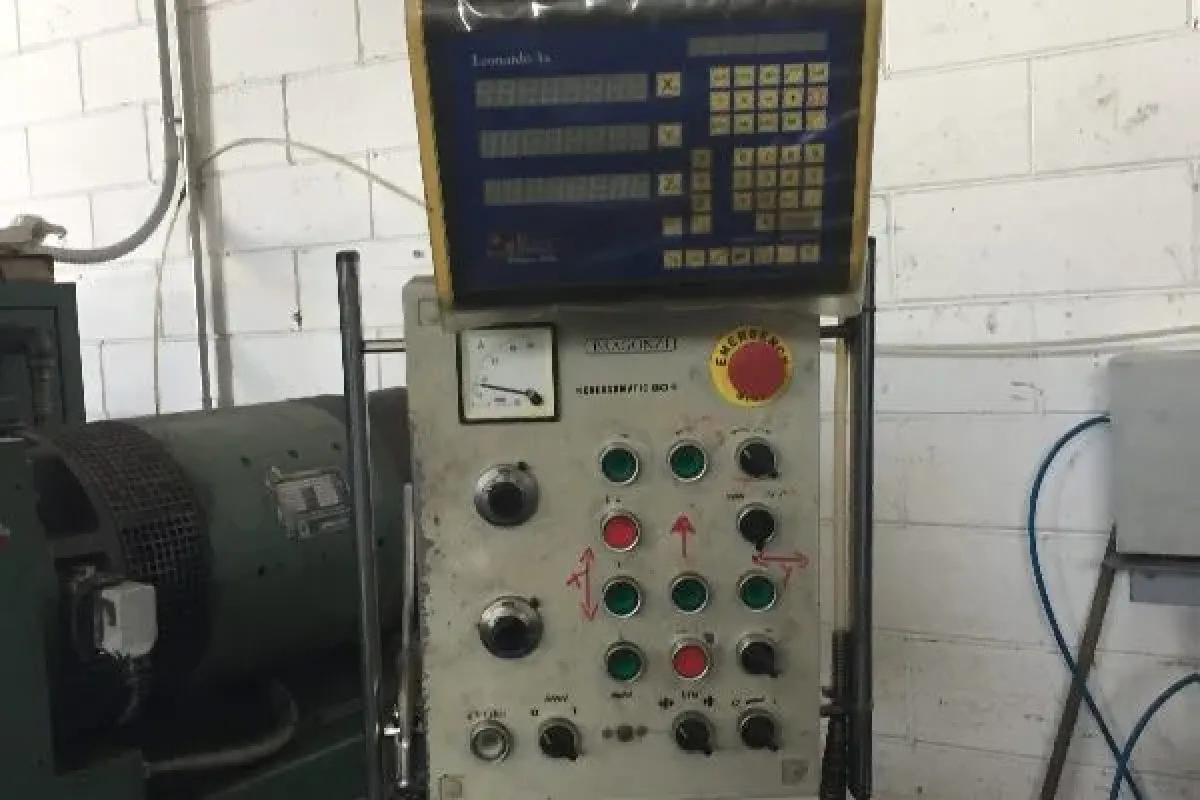

  • Digital readouts (DRO)
  • Continuous spindle speed variation

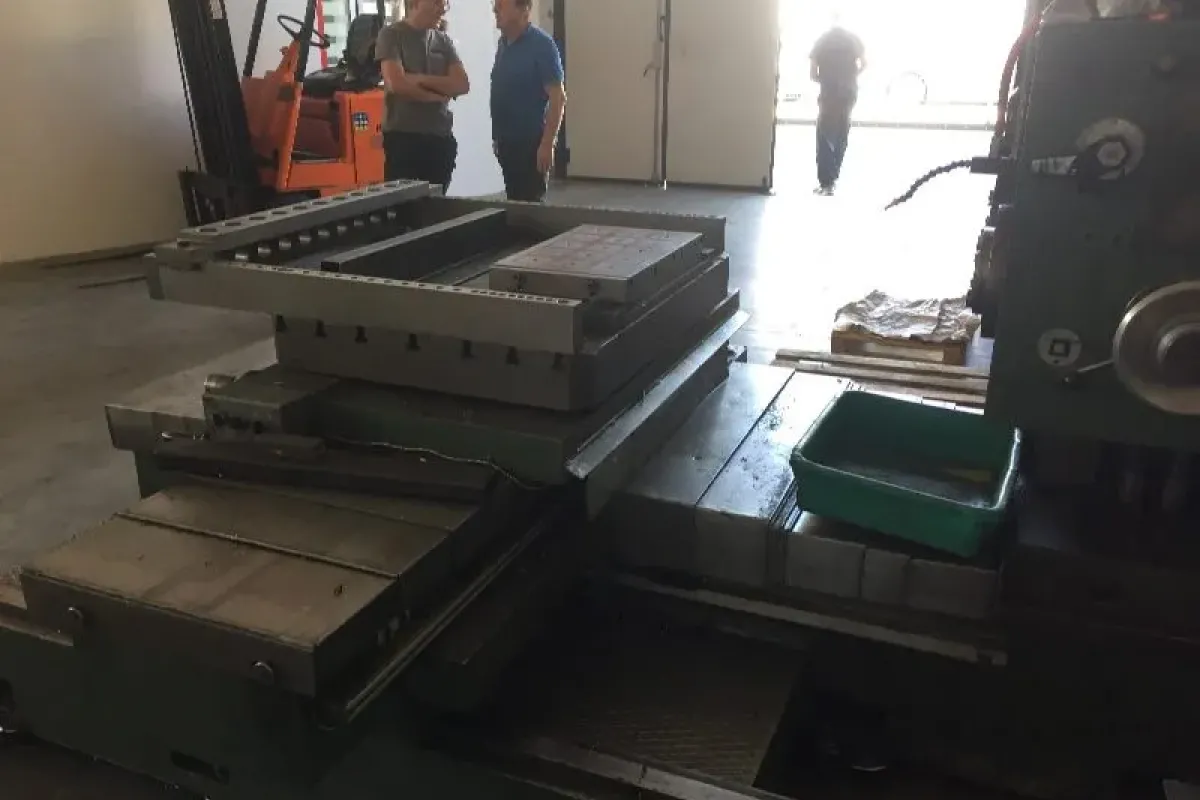

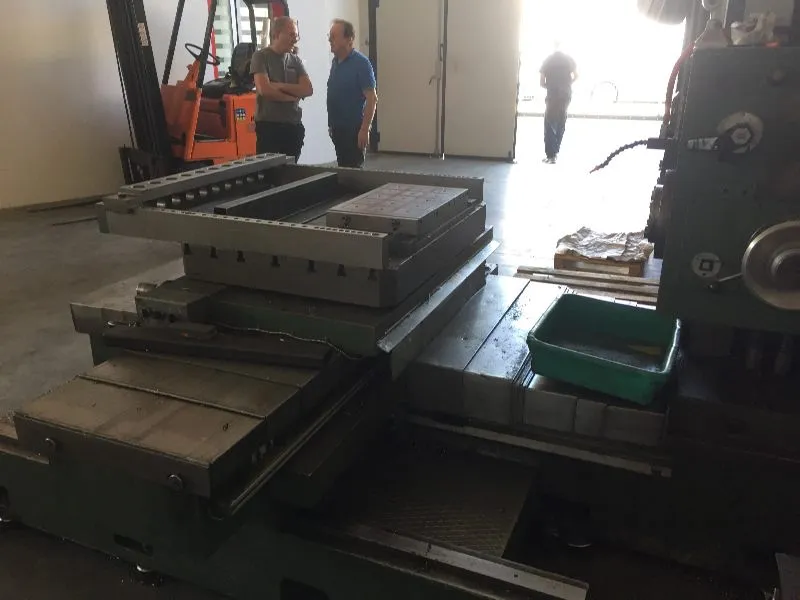

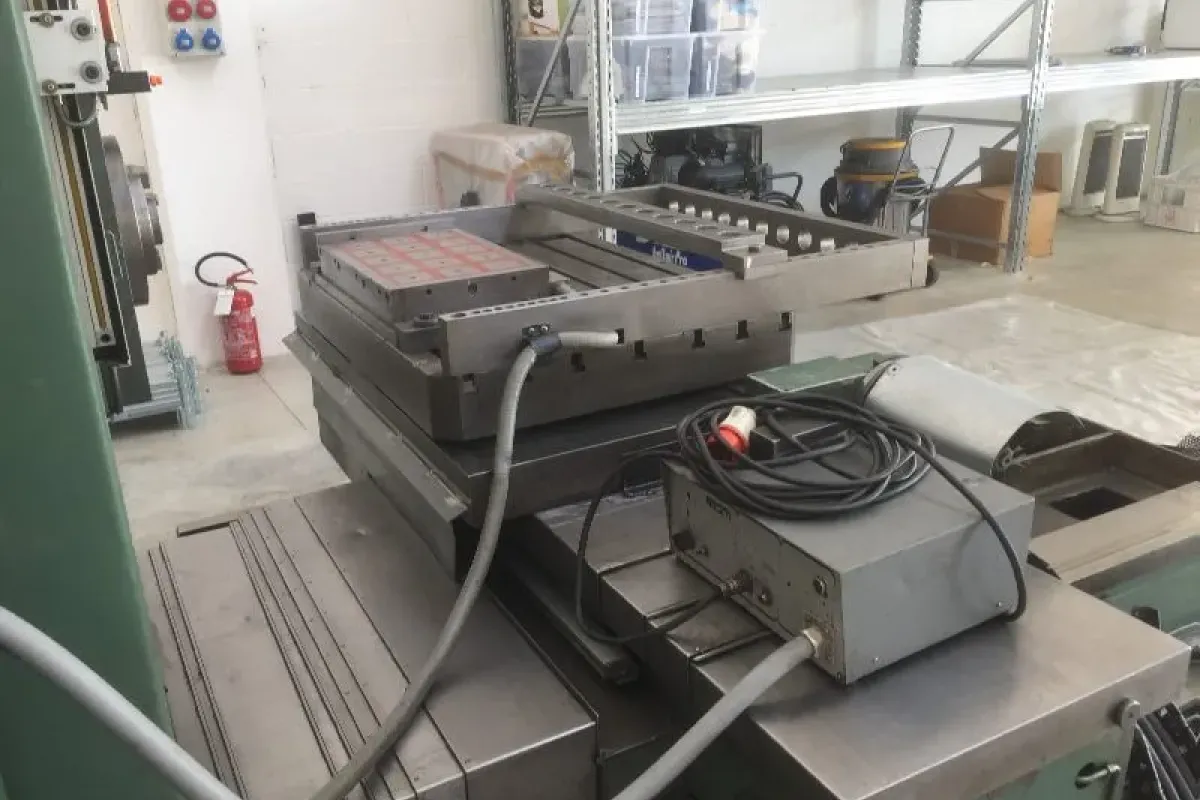

  • Electromagnetic planar table
  • Versatile for various tools and operations
  • Rigid structure suitable for medium-duty boring
  • Standard accessories included
Typical Applications
  • Precision boring of medium-sized components
  • Milling and facing operations on mechanical parts
  • Toolroom and maintenance machining
  • Production of flanges, bushings, and structural components
  • Small and medium batch machining operations
