BLIN BL-V11-5 Axis Simultaneous CNC Machining Center
Price on request
High-Performance 5-Axis CNC Machining Center for Complex Precision Manufacturing
The BLIN BL-V11-5 AXIS is a high-performance 5-axis simultaneous CNC vertical machining center designed for manufacturers requiring exceptional accuracy, productivity, and flexibility in the production of complex components.

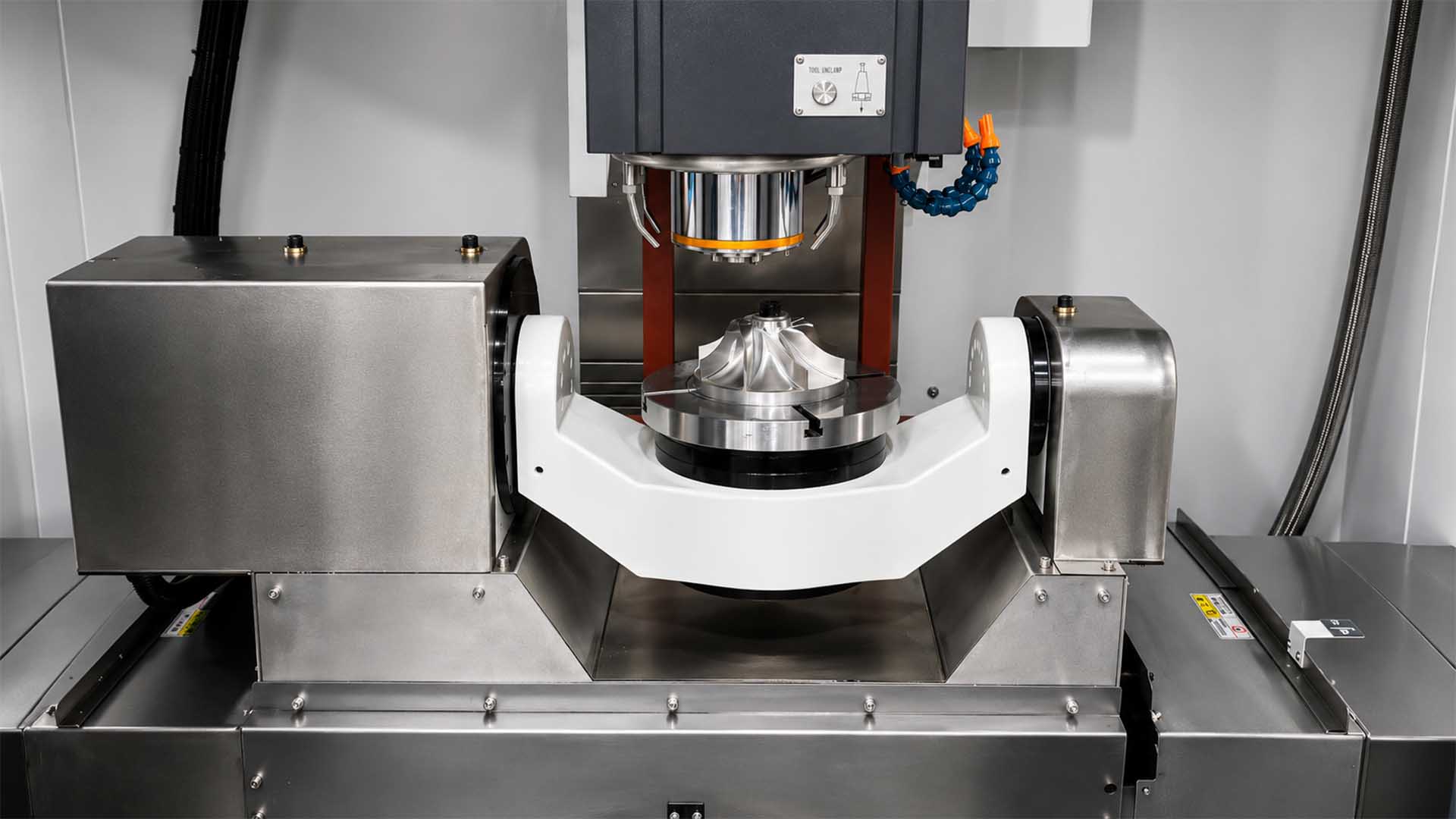

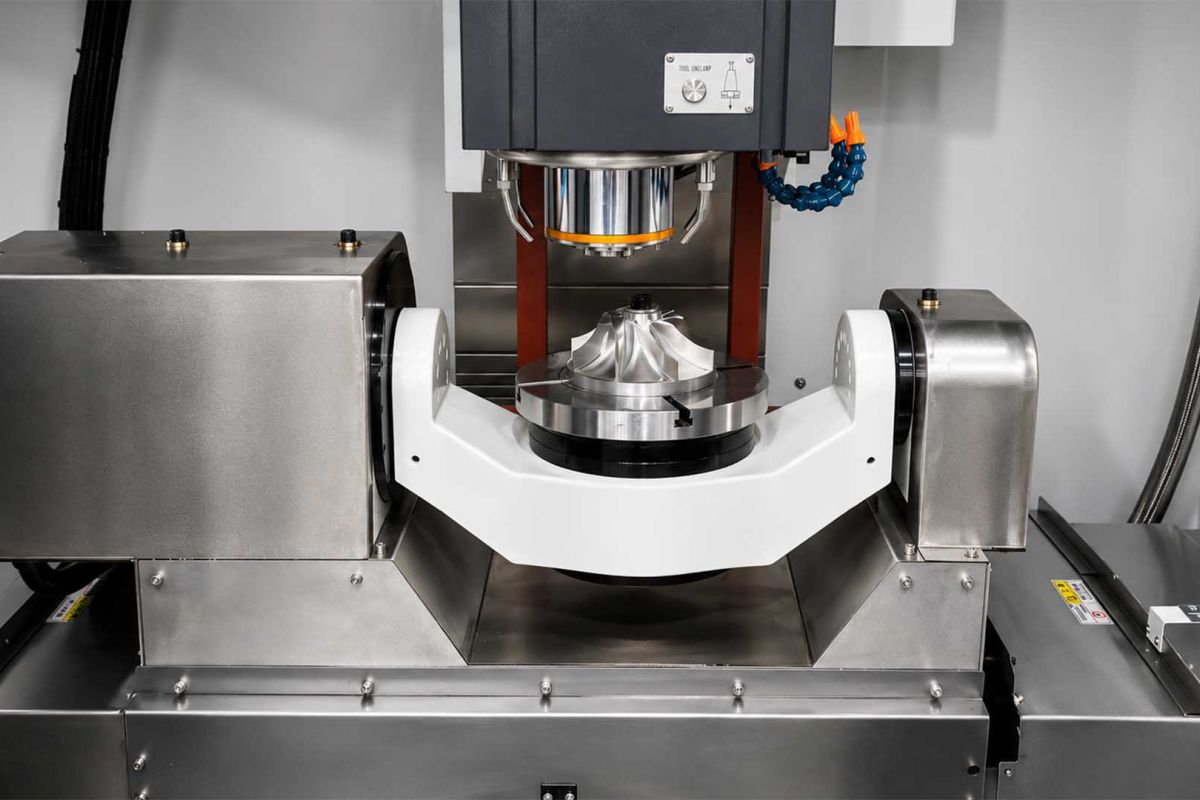

Featuring a fully integrated AC trunnion table (tilting-rotary table) and advanced 5-axis simultaneous machining capabilities, the BL-V11-5 AXIS enables complete multi-face machining in a single setup, reducing cycle times while improving dimensional accuracy and overall efficiency.
Built according to stringent Taiwanese manufacturing standards, the machine incorporates a robust HT300 cast iron structure, subjected to double aging treatment and optimized through Finite Element Analysis (FEA) to ensure maximum rigidity, thermal stability, and long-term machining precision.
The machine is equipped with roller linear guideways on all three linear axes, providing superior load capacity, enhanced rigidity, and excellent dynamic performance for both heavy-duty cutting operations and high-speed precision machining.
Its advanced Direct-Drive AC rotary system delivers outstanding positioning accuracy, smooth simultaneous motion control, and high responsiveness, making it ideal for demanding 5-axis applications across multiple industries.
To meet different production requirements, the BLIN BL-V11-5 AXIS can be configured with leading CNC control systems, including Fanuc, Siemens, Syntec, and Mitsubishi, complete with matching servo motors and drives.
Combining 5-axis simultaneous machining technology, premium German, Japanese, and Taiwanese components, and a highly rigid machine structure, the BLIN BL-V11-55 AXIS is an ideal solution for manufacturers operating in the aerospace, automotive, medical, energy, tooling, and precision engineering sectors.
Different sizes and configurations on request.
X-axis travel: | 810 mm |
Y-axis travel: | 630 mm |
Z-axis travel: | 560 mm |
Table dimensions: | 320 mm |
Table type: | continuous |
Spindle nose attachment: | BT 40 |
Spindle speed: | 15000 / 20000 rpm |
Spindle power: | 15/18,5 KW |
High pressure through the spindle: | Yes |
Number of tool-changing positions: | 24/30/40 |
Key points: | 15 m/min |
CNC type: | Fanuc, Siemens, Syntec, Mitsubishi |
Overall dimensions: | 2600 x 2400 x 2450 h mm |
Weight: | 7500 Kg |
Type of guides: | linear guideways |
Type of accommodation: | meehanite cast iron |
- 5-axis simultaneous CNC machining center
- AC trunnion table (tilting-rotary table)
- Advanced Direct-Drive rotary axis technology
- Roller-type linear guideways on X, Y and Z axes
- High-rigidity HT300 cast iron machine structure
- Double aging treatment for enhanced structural stability
- FEA-optimized machine design
- High-speed and high-precision machining performance
- Superior positioning accuracy and repeatability
- Premium German, Japanese, and Taiwanese components
- Designed for complex multi-surface machining
- Reduced setup times and fewer workpiece repositioning operations
- Long service life and high operational reliability
- Available with Fanuc, Siemens, Syntec, or Mitsubishi CNC controls
- Suitable for both heavy-duty cutting and precision finishing applications
- Aerospace and aviation components
- Automotive and motorsport parts
- Mold and die manufacturing
- Precision tooling production
- Medical and orthopedic components
- Energy sector components
- Complex mechanical parts with multiple machining angles
- Precision engineering applications
- High-value prototype manufacturing
- Multi-face machining in a single setup
- Small and medium batch production of complex parts
